A wireless keyless entry system for garage doors provides both convenience and security. Keypads like the LiftMaster 877LM and LiftMaster 877MAX wireless entry system help homeowners avoid lost keys while maintaining controlled access through secure PIN technology.

The LiftMaster 877MAX, which has now been replaced by the 878MAX, and the 877LM are similar products with a few important differences. Both are available at All Security Equipment along with additional access control accessories and garage security solutions.

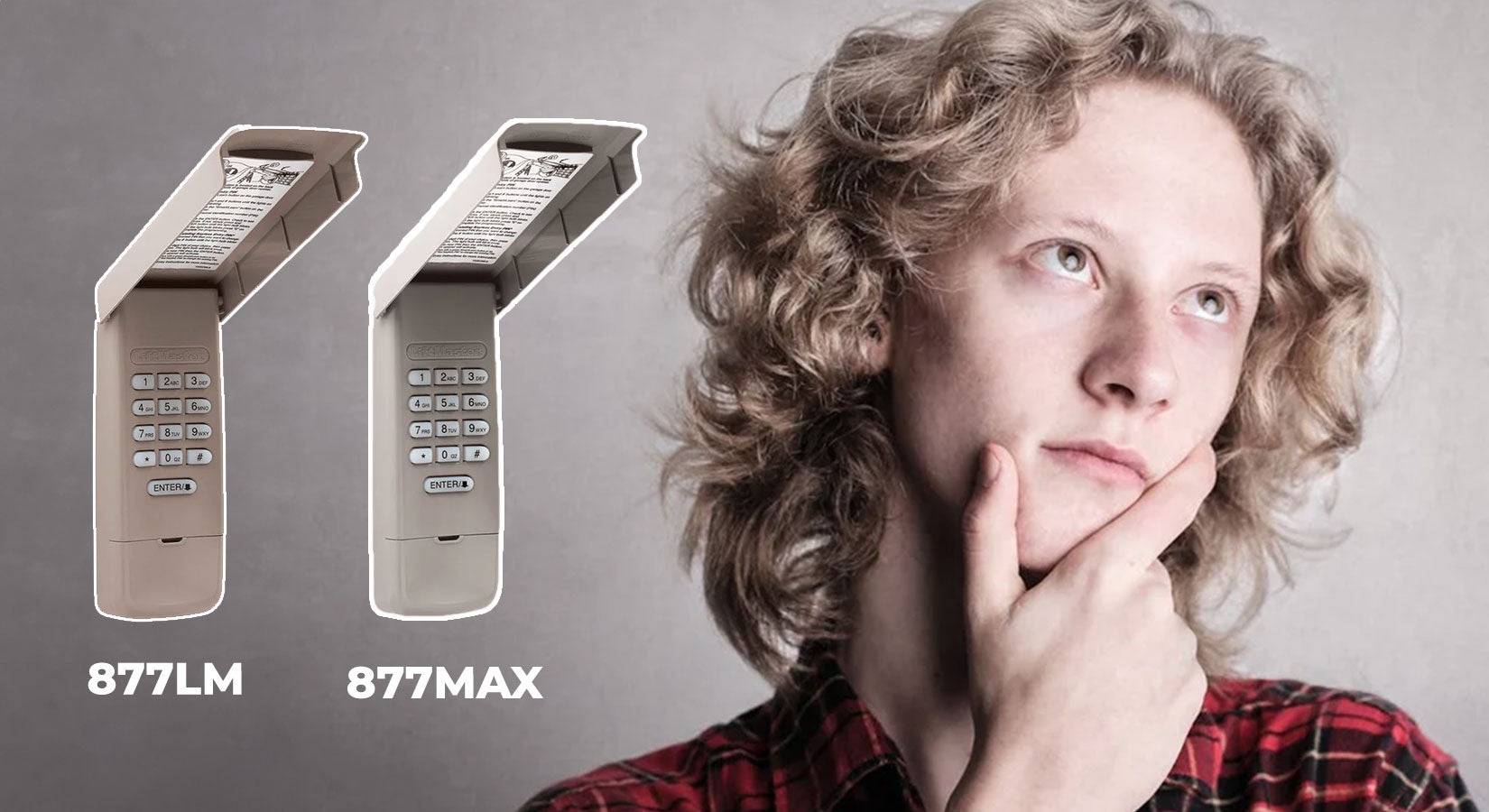

LiftMaster 877MAX vs LiftMaster 877LM

Both keypad systems are manufactured by LiftMaster and are mounted near the garage door for PIN-based access. With these keyless entry systems, you can open your garage without a remote control or key. Some users pair them with additional backup access solutions such as key cards or mobile-based controls.

Below are the main differences between the two keypads.

Compatibility

LiftMaster 877LM

The 877LM works with Security+ 2.0 garage door openers that use the yellow LEARN button and yellow antennas.

LiftMaster 877MAX

The 877MAX is backward compatible with a wider range of openers. It works with Chamberlain and LiftMaster garage door openers manufactured after 1993 and equipped with photoelectric sensors. It is compatible with the yellow, purple, green, or red/orange LEARN buttons.

Programming Method

Programming the 877LM

1. Press and release the LEARN button until the LED lights up.

2. Enter the 4-digit PIN.

3. Hold the ENTER button until the light blinks.

Programming the 877MAX

1. Press the * and # buttons until the light stops blinking.

2. Press the LEARN button on the opener until the LED turns on.

3. Enter the PIN and press ENTER until the light blinks.

4. Press 0 to complete programming.

Both keypads use rolling code technology, which improves security by sending a new code with every use.

Common Features of the LiftMaster 877MAX and 877LM

PIN-based keyless access is widely used in residential and commercial properties because it is affordable and simple to use. These keypads are well suited for gated communities or garages with low to moderate traffic where users can safely exit vehicles to enter a code.

Shared features include:

• Wireless design that does not require extra wiring

• Temporary access codes for visitors or service personnel

• Backlit keypads powered by a 9V battery for nighttime visibility

• Radio-frequency control that communicates with the existing garage door opener

Newer LiftMaster Keypad Models to Consider

LiftMaster now offers updated wireless keypads that provide improved encryption, simplified setup, and greater compatibility. These are excellent alternatives for customers comparing the 877lm keypad or 877max keypad with newer solutions.

LiftMaster Universal Wireless Keypad | LIF-L979U

This universal keypad provides secure access through a personal PIN and quick setup. Features include one-touch close, temporary PIN creation, and strong encryption for improved security. Its weather-resistant construction and intuitive programming make it ideal for families, guests, or service providers.

LiftMaster Keypad Max | LIF-L979M

This keypad provides convenient walk-up access without a remote or key. It features improved wireless programming, an illuminated keypad, one-touch close, and temporary PINs for guest access. It works with most Chamberlain, LiftMaster, and Craftsman garage door openers made after 1997 and includes advanced rolling code encryption for additional protection.

LiftMaster Wireless Keypad | LIF-L979S

The L979S offers reliable, keyless control using a personal PIN and now includes myQ app compatibility for smarter access management. Features include 4 to 8 digit PINs, one-touch close, temporary guest PINs, advanced rolling code encryption, a weather-resistant illuminated keypad, and fast wireless installation. It works with LiftMaster Security+ 3.0 garage door openers.

Maximizing Wireless Keyless Entry

When choosing an access control system, consider your security needs, gate traffic, ease of service, and budget. The LiftMaster 877LM, 877MAX, and the newest L979 series keypads are excellent choices for secure and convenient garage access.

To enhance door security, pair these keypads with LiftMaster gate operators and myQ smart connectivity for remote monitoring and control.
