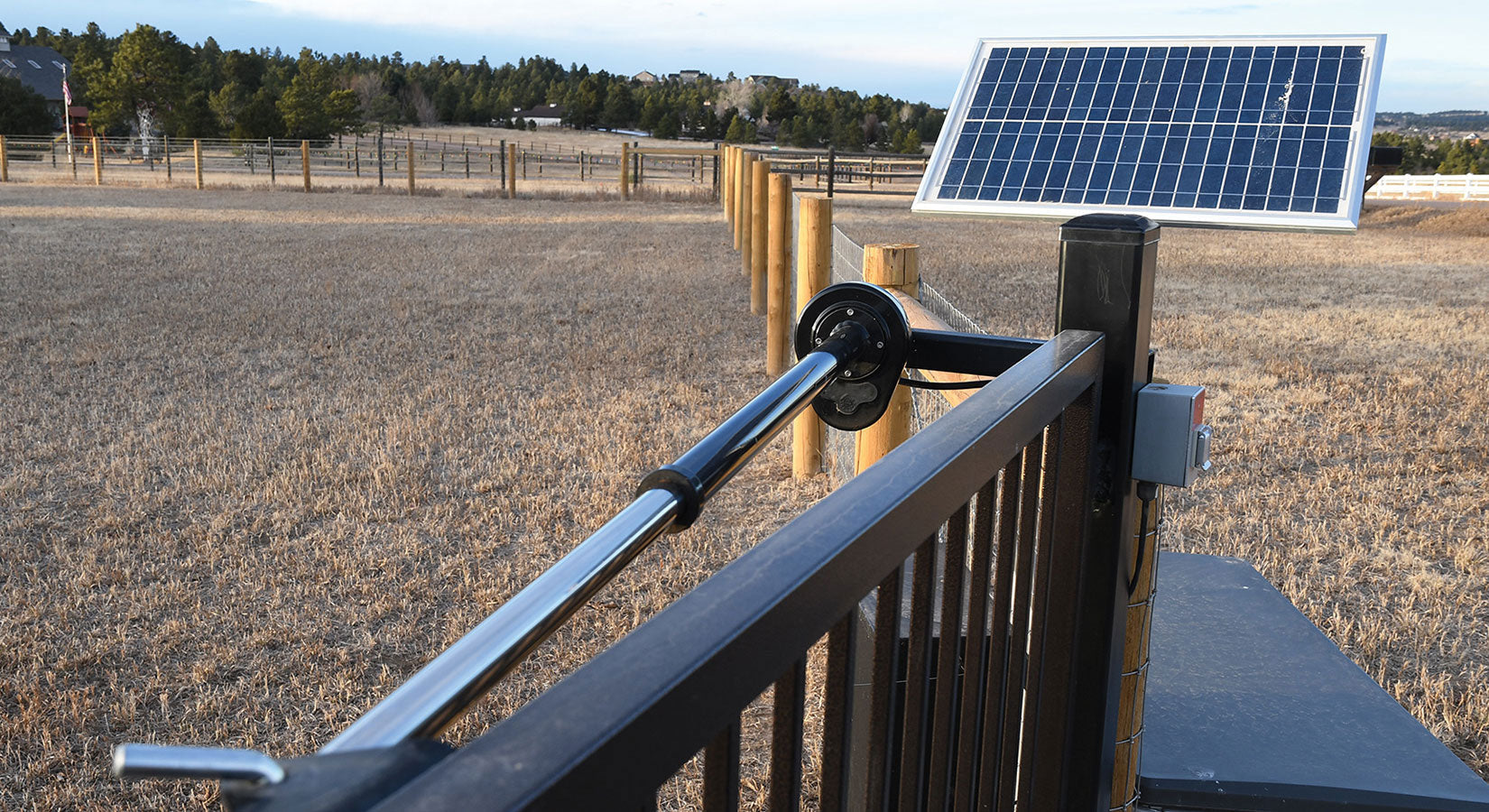

As solar-powered gate operators continue to grow in popularity, more installers and property owners are turning to off-grid solutions for residential, commercial, agricultural, and remote access applications. When designed correctly, a solar-powered gate operator can provide years of dependable performance while eliminating the need for utility power.
However, one of the most common misconceptions is that selecting a solar charging system is as simple as choosing a solar panel with the highest wattage. In reality, the performance of a solar gate operator depends on much more than the panel itself. The battery voltage, charge controller, panel specifications, wiring configuration, cable sizing, and gate operator requirements all need to work together as a complete system.
That’s why choosing the right solar kit is just as important as choosing the right gate operator.
Prefer Watching Instead?
Whether you’re selecting a solar kit for a new installation or upgrading an existing system, these videos provide practical guidance on solar panels, wiring, and installation best practices.
Featured Videos
- High-Capacity Solar Power for 24V Gate Operators | 120W 24V Solar Panel from All Security Equipment
- 50W Solar Panel for Gate Operators | More Power Than Standard 10W Solar Kits
- Wiring Solar Panel to LiftMaster 12V Gate Operator
- Step-by-Step Guide: Wiring Solar Panels to Your LiftMaster 24V Gate Operator
There Isn’t a One-Size-Fits-All Solar Solution
One of the questions installers ask most often is:
“Should I wire my solar panels in series or parallel?”
The answer is simple:
It depends on the system.
Connecting solar panels in series increases voltage while keeping current (amperage) the same. Connecting them in parallel increases current while maintaining the same voltage. Neither method is universally better, the correct configuration depends on the solar panels, battery system, charge controller, and the gate operator manufacturer’s specifications.
For example:
- PWM (Pulse Width Modulation) charge controllers are commonly used in many gate operator applications and are generally designed around panel voltages that closely match the battery voltage.
- MPPT (Maximum Power Point Tracking) charge controllers are designed differently and often allow higher solar input voltages.
Rather than assuming one wiring method is always correct, installers should always follow the gate operator manufacturer’s recommendations and verify the specifications of every component in the charging system.
The takeaway is simple: the goal isn’t to choose series or parallel, it’s to build a charging system where every component is compatible.
Why Component Compatibility Is So Important
A solar charging system is only as reliable as its least compatible component.
Choosing a solar panel based only on wattage can lead to disappointing performance if the rest of the system isn’t properly matched.
When designing a solar-powered gate operator installation, it’s important to consider:
- The gate operator’s operating voltage (12V or 24V)
- Battery capacity and charging requirements
- The type and rating of the solar charge controller
- Solar panel output characteristics
- Proper wire sizing to minimize voltage drop
- Local climate and average daily sunlight
- Expected daily gate cycles
Each of these factors contributes to the overall performance of the charging system.
Even if every component works individually, combining products that weren’t selected to work together can reduce charging efficiency, increase troubleshooting time, and shorten battery life.
Why Wiring Configuration Matters
One of the most common support questions we receive involves installations where multiple solar panels have been wired incorrectly.
When adding a second solar panel, it’s important to understand that the required wiring configuration depends on the design of the charging system. Wiring panels differently than intended can change the voltage delivered to the charge controller and, ultimately, to the gate operator.
For example, our 40W / 24V Solar Kits are engineered using two 20W / 12V solar panels that need to be wired in series. This configuration is intentional, it provides the voltage required for compatible 24V gate operator systems. Wiring these panels in parallel instead would produce a different electrical output than the system was designed to receive.
Likewise, attempting to wire solar panels in series on a charging system designed for a lower input voltage can exceed the specifications of the charge controller or other electrical components.
Incorrect wiring can lead to:
- Improper battery charging
- Reduced system performance
- Charging system faults
- Damage to the charge controller or other electrical components
- Costly troubleshooting and repairs
This is why it’s critical to follow the gate operator manufacturer’s installation instructions and the wiring configuration specified for the solar kit being installed.
Why We Developed ASE Solar Kits
Over the years, we’ve helped thousands of customers build solar-powered gate operator systems. One thing became clear: selecting compatible solar components can quickly become confusing.
Questions like:
- Which solar panel should I use?
- Do I need a battery?
- What charge controller should I choose?
- Is this panel compatible with my LiftMaster operator?
- Will this system provide enough charging capacity?
These are all important questions, and the answers vary depending on the application.
That’s why we developed ASE Solar Kits.
Instead of asking installers to source compatible panels, brackets, charge controllers, batteries, wiring, and accessories individually, we’ve assembled complete kits designed specifically for gate operator applications.
Our goal is simple:
Take the guesswork out of selecting solar components so installers can focus on completing reliable installations.
Learn More About Our Solar Solutions
If you’d like a closer look at our larger-capacity solar panels, these product overview videos explain their features, applications, and why they can be a great choice for demanding installations.
🎥 50W Solar Panel for Gate Operators | More Power Than Standard 10W Solar Kits
Learn why additional charging capacity can benefit many 12V gate operator installations and see the features included with the ASE 50W Solar Panel.
🎥 High-Capacity Solar Power for 24V Gate Operators | 120W 24V Solar Panel from All Security Equipment
Discover our highest-capacity solar panel for 24V gate operators, including the components included in the kit and the applications it’s designed to support.
Choosing the Right ASE Solar Kit
Every installation is different. That’s why we offer multiple solar kit options designed for different gate operator voltages and charging requirements.
20W / 12V Solar Kits
Ideal for lower-power 12V gate operator systems with lighter daily cycle counts.
Available options include:
- ASE KITLIF20W12V – Complete 20W LiftMaster-compatible solar kit
- ASE KITLIF20W12VBAT – Complete kit including battery
- ASE SP20KIT – Universal 20W solar panel kit
- ASE SP20W – Individual 20W solar panel
Features
- High-efficiency solar panel
- Mounting bracket
- Designed for outdoor installations
- LiftMaster-compatible kit options
- Complete installation hardware included with kit configurations
Ideal for residential gates, rural entrances, and other applications with modest daily cycle requirements.
40W / 24V Solar Kits
Designed for 24V gate operator systems, these kits combine two 20W / 12V solar panels to provide a complete 24V solar charging solution.
Available options include:
- ASE KITLIF40W24V - Complete 40W LiftMaster-compatible solar kit
- ASE KITLIF40W24VBAT - Complete kit including battery
- ASE SP40KIT - Universal 20W solar panel kit
Features
- Two 20W / 12V high-efficiency solar panels
- Mounting bracket
- Components selected for compatibility
- Designed specifically for 24V gate operator applications
Wiring Configuration
Because these kits are designed for 24V systems, the two 20W / 12V panels have to be wired in series. Wiring the panels in series combines their voltage to produce the output required for a properly designed 24V charging system while maintaining the same current.
The included components are intended to work together as a complete system for compatible 24V gate operator applications, helping simplify installation and component selection.
50W / 12V Solar Kit
For installations that require more charging capacity than entry-level systems.
Kit includes:
- 50W solar panel
- Solar charge controller
- Adjustable mounting bracket
- Extension cable
- Installation accessories
The 50W kit provides additional charging capacity for installations with higher daily gate usage or locations where increased solar collection is beneficial.
120W / 24V Solar Kit
Our highest-capacity complete kit for demanding 24V applications.
Features include:
- 120W high-efficiency solar panel
- 20A PWM solar charge controller
- Adjustable mounting bracket
- Heavy-duty extension cable
- Outdoor-rated construction
- Components selected for compatibility with gate operator applications
Designed for installations requiring greater charging capacity while maintaining a properly matched charging system.
Watch Our Installation Guides
If you’re installing a LiftMaster solar-powered gate operator, these step-by-step videos walk through the wiring process and help illustrate how properly matched components come together during installation.
🎥 Wiring Solar Panel to LiftMaster 12V Gate Operator | All Security Equipment
See how a 12V solar charging system is connected using compatible components designed for LiftMaster gate operators.
🎥 Step-by-Step Guide: Wiring Solar Panels to Your LiftMaster 24V Gate Operator
Follow the complete wiring process for a 24V LiftMaster gate operator and learn how the various components integrate into a complete solar charging system.
Frequently Asked Questions
Can I use any solar panel with my gate operator?
Not necessarily. The solar panel should be selected based on the gate operator manufacturer’s specifications, system voltage, battery requirements, and the compatible charge controller. Using incompatible components may affect charging performance or require additional equipment.
Do I need a 12V or a 24V solar kit?
Your solar kit should match the voltage requirements of your gate operator system. Always verify your operator’s specifications before selecting a solar panel or complete kit.
Is a larger solar panel always better?
Not always. While a higher-wattage panel can provide more charging capacity, every component in the charging system must be compatible. Selecting a properly designed system is more important than simply choosing the largest panel available.
Why choose a complete solar kit instead of buying individual components?
Complete solar kits simplify product selection by providing components that are designed to work together for gate operator applications. This helps reduce compatibility questions during the purchasing process and makes installation more straightforward.
The Bottom Line
Building a reliable solar-powered gate operator system isn’t just about installing a solar panel, it’s about selecting components that work together as a complete charging system.
The right combination of solar panel, battery, charge controller, mounting hardware, and accessories can make a significant difference in the long-term performance of your installation.
At All Security Equipment, we’ve developed a complete lineup of solar kits for both 12V and 24V gate operator applications. Whether you need a compact 20W solution for a residential entrance or a high-capacity 120W system for demanding installations, our kits are designed to simplify product selection and help installers build dependable solar-powered gate operator systems.
Instead of piecing together individual components and hoping they’re compatible, choose a complete solution designed specifically for the job.
