USAutomatic Ranger HD 2 AC Charged Dual Swing Operator with LCR | USA-020517

The USAutomatic Ranger HD II AC Charged Dual Swing Gate Opener Kit 020517 features a standard plastic enclosure and is designed for gates up to 16 feet in length and weighing up to 800 lbs.

Note: Battery required for operation (Battery not included)

If you need a single gate operator system, click here.

Manufacturer's Warranty Period
  • 3 years for components / 5 years for control board

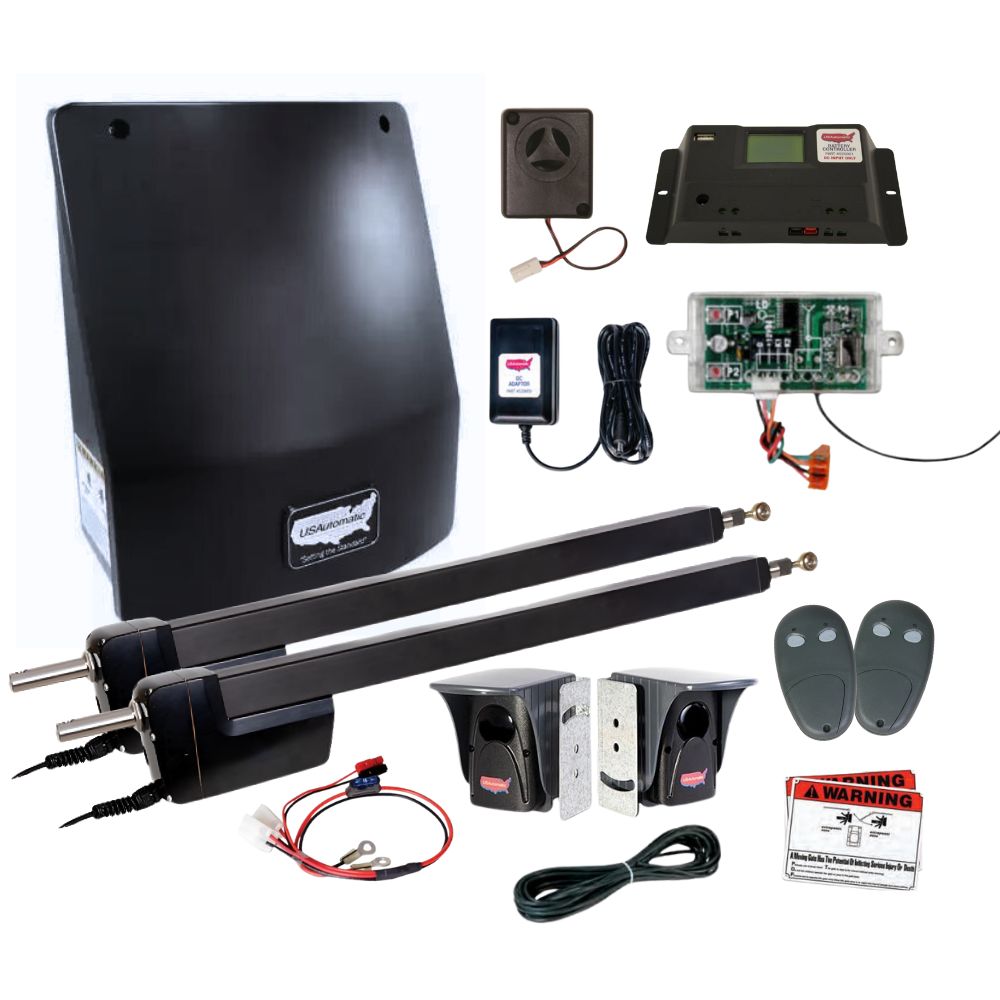

Includes

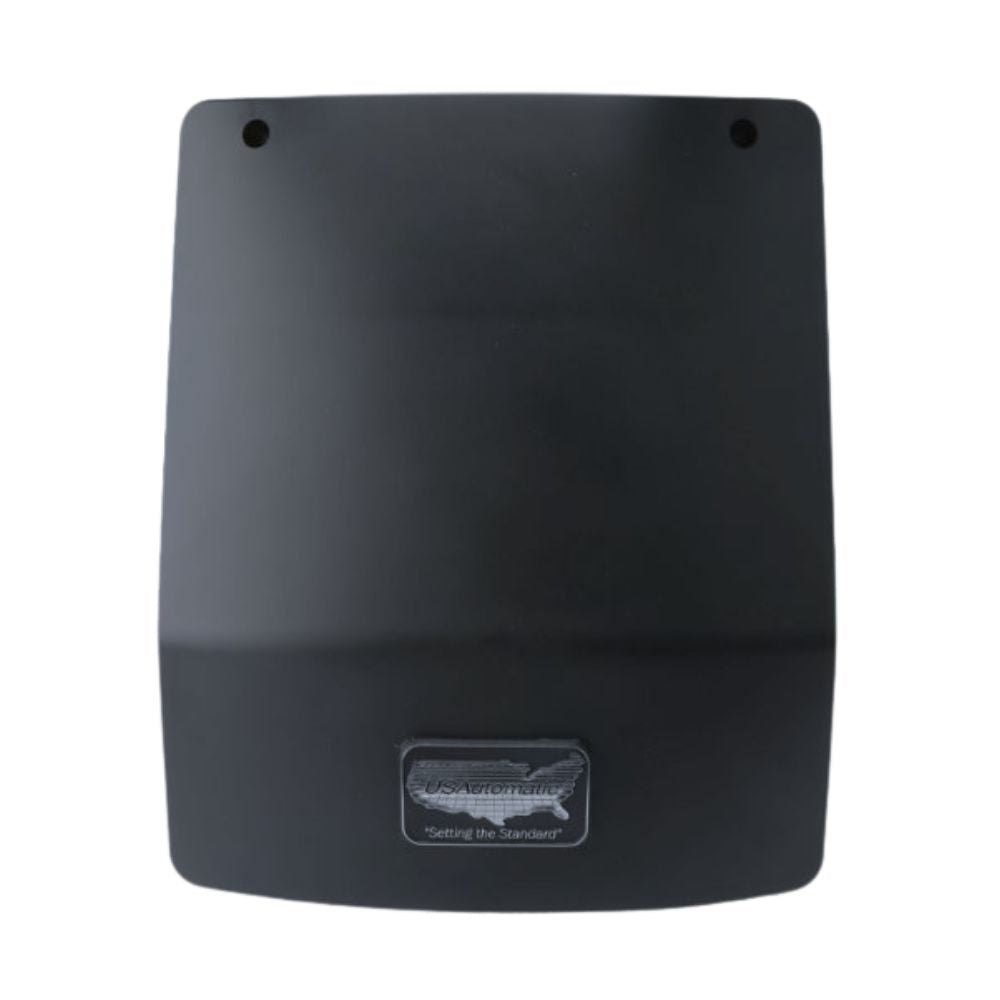

  • 1 Plastic Control Box and Cover 020570
  • 1 Battery Controller 520001
  • 1 LCR Dual Channel Receiver w/ Harness 030200
  • 1 Secondary Entrapment Siren 530015
  • 1 Quick Connect Plug and Go Harness 630041
  • 2 Ranger HD Actuator 510006
  • 1 Actuator 7 Conductor Wire 40’ 630020
  • 2 LCR 2 Button Transmitter 030210
  • 1 DC Adapter (20vdc and 1.2 Amps) 520009
  • 2 Safety Signs 601020
  • 1 Set of Photo Eye Kit with Batteries 550011
Features
  • Non-corrosive actuator and standard plastic control box
  • PWM soft start and soft stop
  • Battery under load monitoring
  • Low battery audible notification
  • Compatible with the USAutomatic Gate App
  • Gate opening speed - 12 seconds
  • Electronic limit control on board
  • Designed to operate with a variety of common accessories
  • Photo eye power management solar-friendly software
  • Tested and certified to meet the current UL325 gate operator safety standards

SEE ALL USAUTOMATIC GATE KITSUSAutomatic Ranger Swing Gate Operator | All Security Equipment

Technical Specifications
  • Style: Swing
  • Gate Setup: Single
  • Applications: Residential, light commercial, farm, ranch
  • Max. Swing Angle: 120°
  • Max. Gate Width: 16’ each leaf
  • Max. Gate Weight: 800 lbs. each leaf
  • Power Input: 12-volt DC battery, AC charged

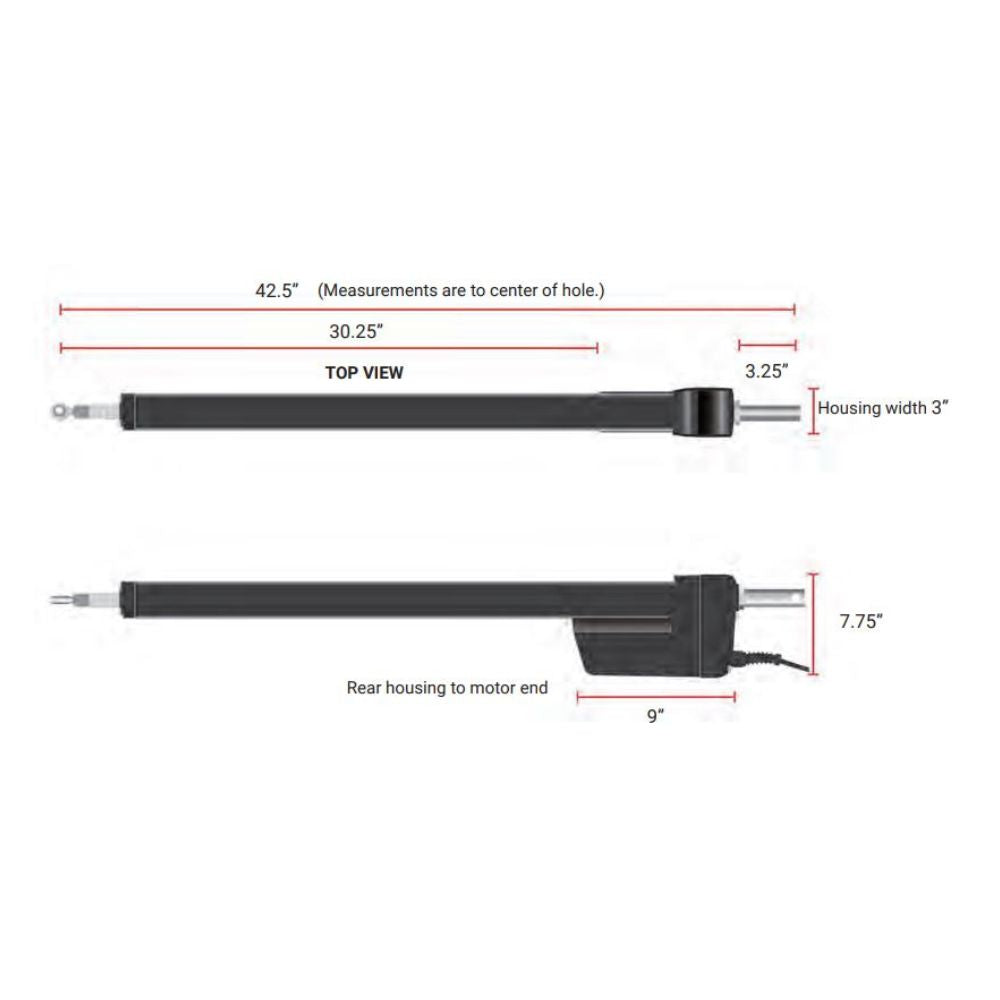

  • Drive: Non-corrosive 24" linear actuator
  • Speed: 12-second cycle (90° opening)
  • Dynamic Thrust: 580 pound force
  • Static Load Hold Rating: 4,000 pound force
  • Radio Receiver: Pre-wired solar-friendly LCR dual-channel receiver
  • Remote Control: Two 2-button remotes included
  • Adjustable Soft/Start/Stop: Yes, using pulse width modulation software
  • Limit Control Type: Electronic adjusted on the control board
  • Independent Adjustments: Independent gate safety sensitivity adjustments
  • Timer to Close: Built-in, adjustable from 2 to 120 seconds
  • Safety Photo Eyes: 1 set included
  • Control Box Enclosure: UV-resistant non-corrosive plastic with hinged cover
  • Installation: Push-to-open and push-to-close brackets included
  • Safety: ETL tested and certified to meet UL 325 safety regulations for Class I, II, III, and IV installations
  • Country of Manufacture: United States
Recommended Battery Type

Battery 12-volt, Group U-1; sealed (maintenance free); 30 amp hour minimum. Using a smaller amp-hour battery may cause damage to the charging system. The wiring harness has two 1/4” ring terminals to connect to battery posts.

CAUTION!!! Do not install a wet cell battery into the control box; this type of battery usually has removable caps used for service and will vent into the control box.
