USAutomatic Ranger HD I AC Charged Single Swing Gate Opener Kit 020516 with Standar Plastic Enclosure | USA-020516

USAutomaticSKU: USA-020516

Sale price$1,340.49
Add to cart

Please note, USAutomatic is experiencing shipping delays. All orders will be fulfilled in the order received.

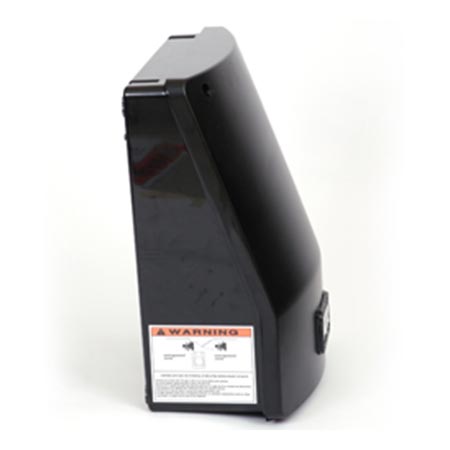

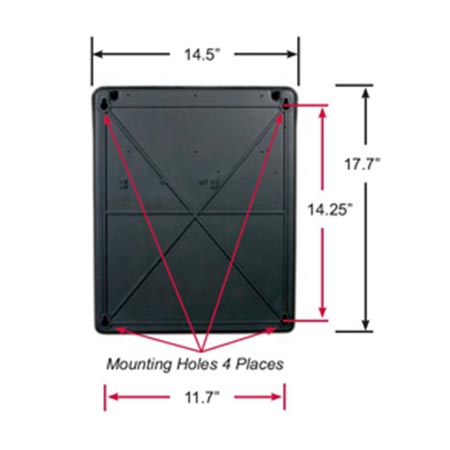

USAutomatic Ranger HD I AC Charged Single Swing Gate Opener Kit 020516 with Standard Plastic Enclosure For Gates Up To 16 Feet and 800 lbs

Heavy duty – 12 Vdc - 24in stroke linear actuator for residential, light commercial, farm and ranch use.

Why buy the new Ranger HD by USAutomatic?

The Ranger HD includes a radio receiver, two transmitters / remotes, photo beam, 3 years warranty, basic plug & play board, soft stop / start and limits on control board that will never have to reset! The gate industry is loving the Ranger HD!

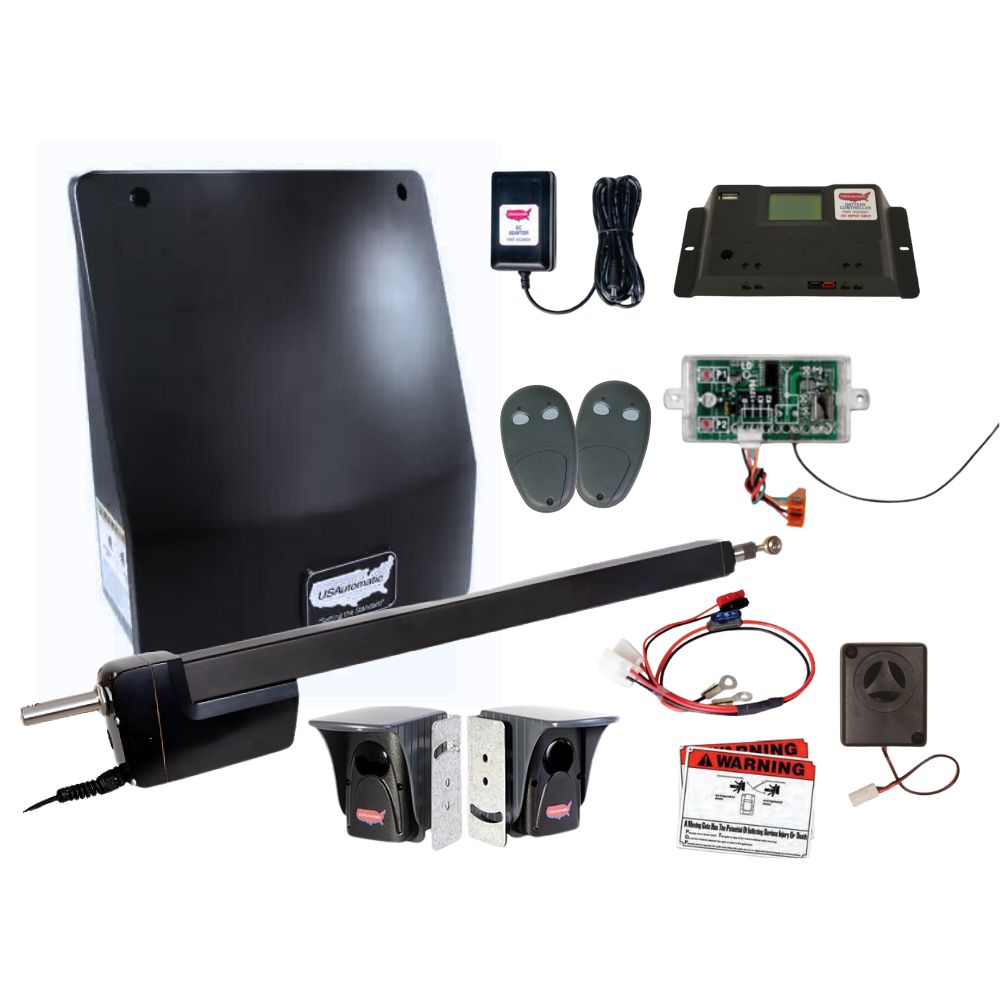

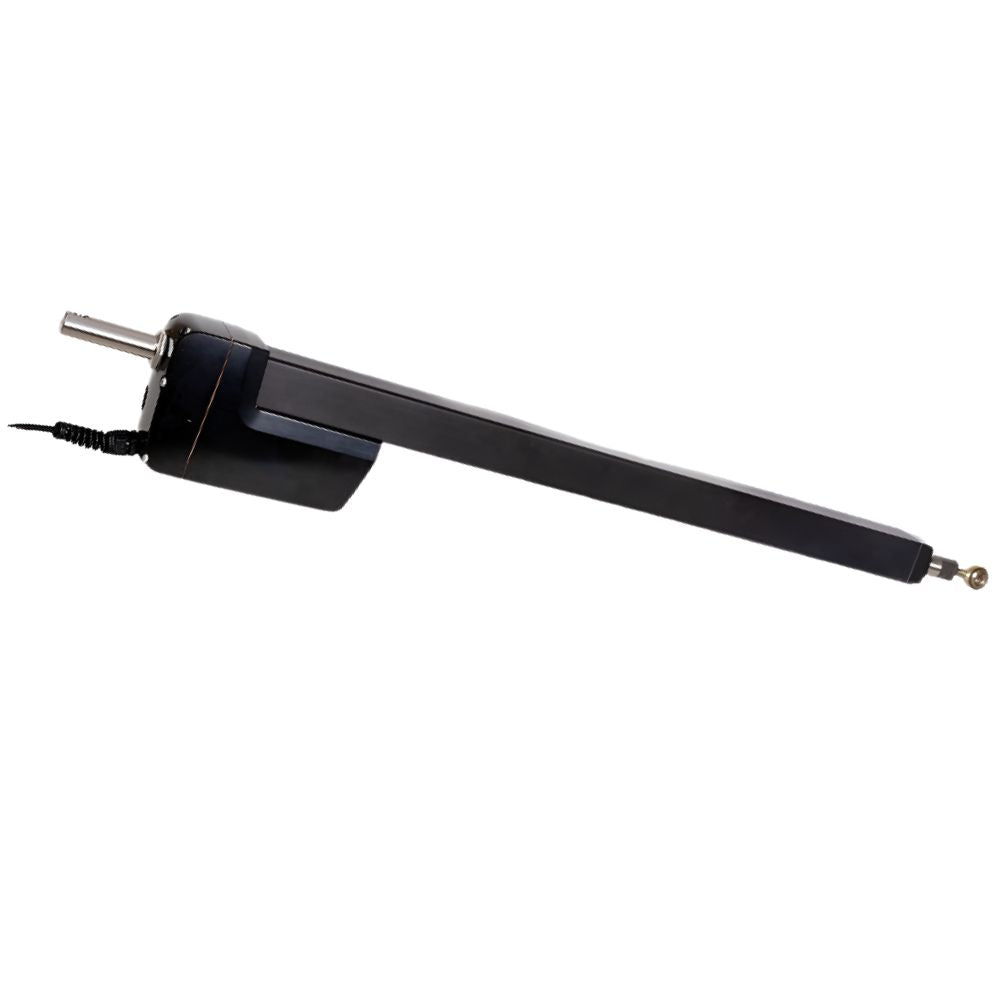

  • 1 Ranger HD Actuator 510006
  • 1 Control Board 500021
  • 1 Battery Controller 520001
  • 1 Radio Receiver w/Harness 030200

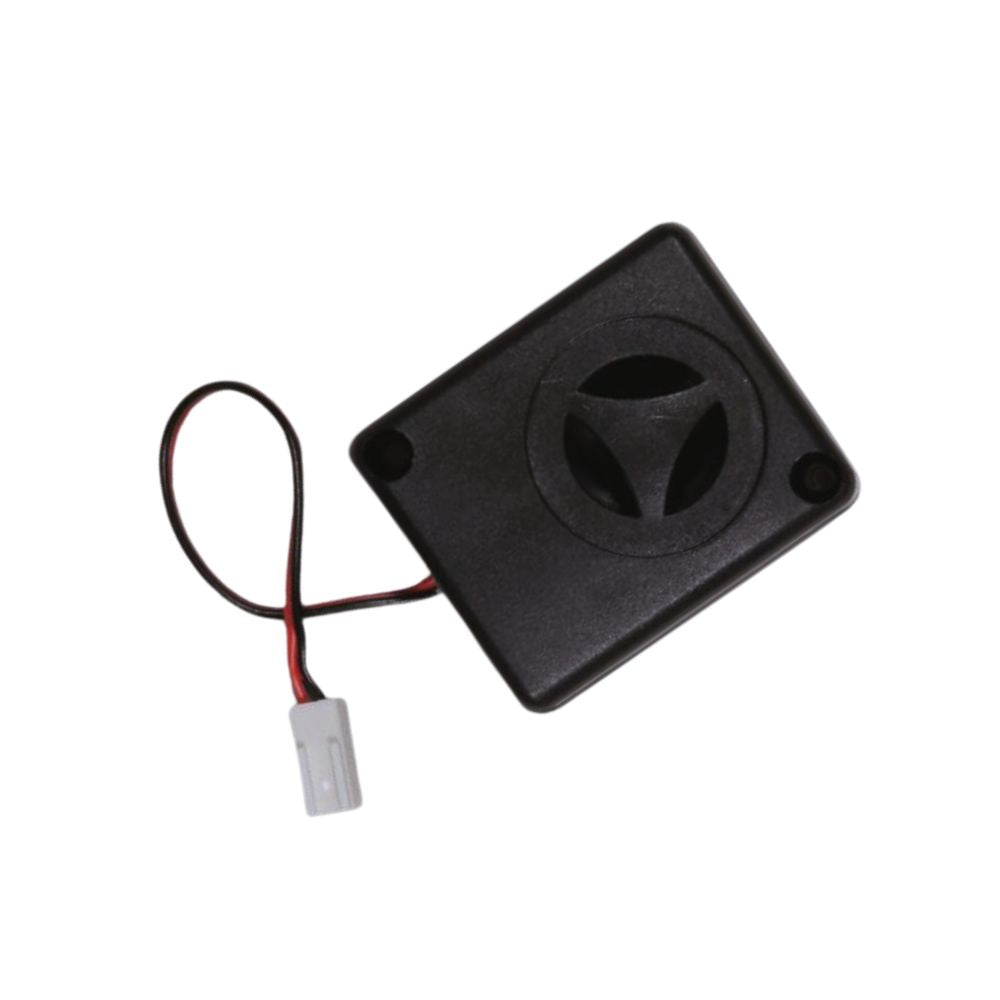

  • 1 Secondary Entapment Siren 530015
  • 1 Set of Photo Eyes 550011
  • 2 Wireless Two Button Remotes 030210>

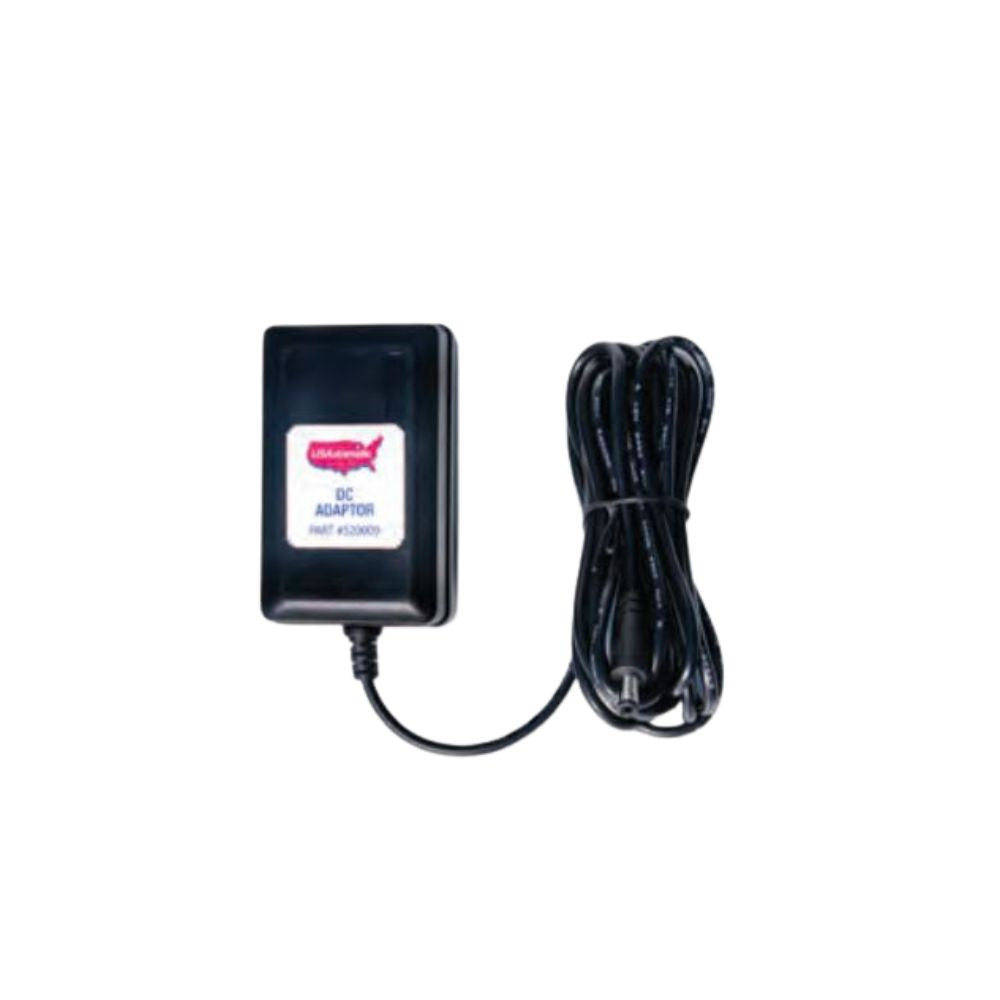

  • 1 DC Adapter (20vdc and 1.2 Amps) 520009

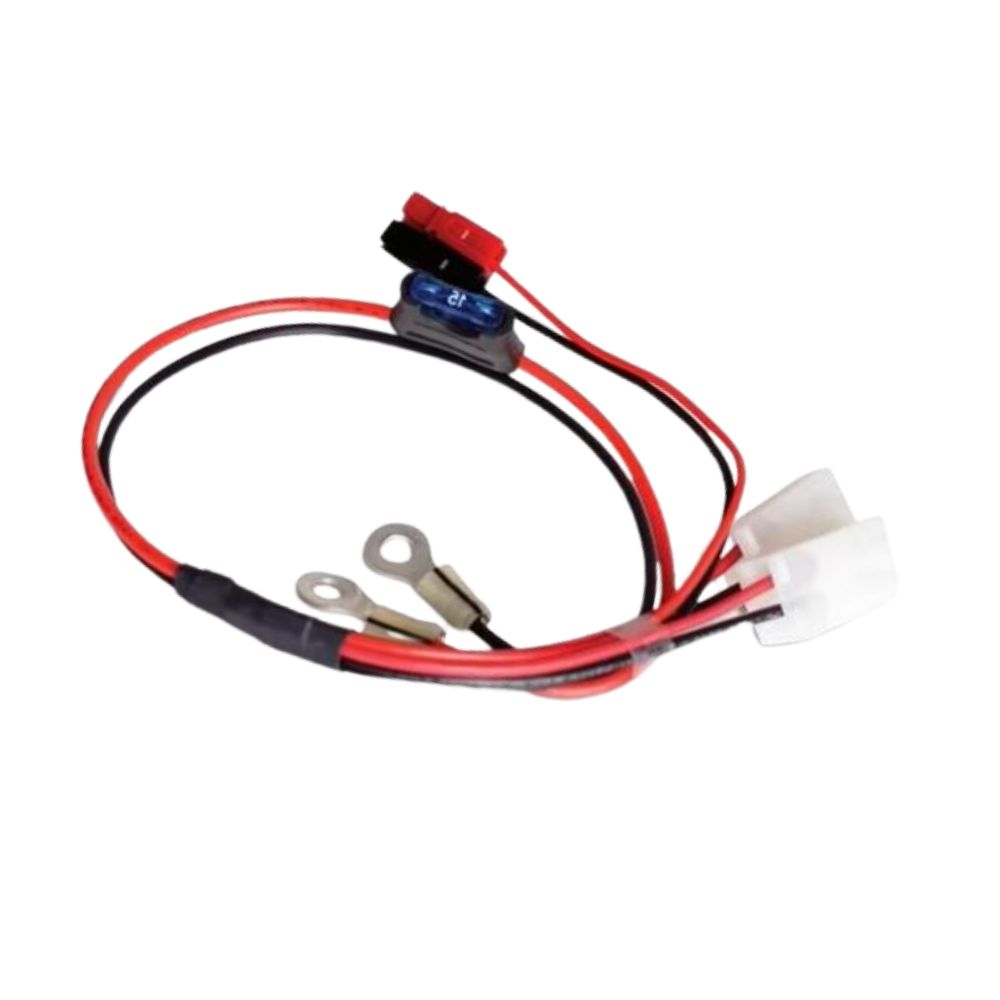

  • 1 Wiring Harness 630041
  • 2 Safety Signs 601020


Recommended Battery Type:
Battery 12-volt, Group U-1; sealed (maintenance free); 30 amp hour minimum. Using a smaller amp hour battery may cause damage to the charging system. The wiring harness has two 1/4” ring terminals to connect to battery posts.

CAUTION!!! Do not install wet cell battery into control box; this type of battery usually has removable caps used for service and will vent into control box.

USAutomatic Ranger Swing Gate Operator | All Security Equipment
USAutomatic Ranger HD Features
  • Proudly Made in the USA!
  • 3 Year Manufacture Warranty
  • Heavy Duty – 12 Vdc - 24in Stroke Linear Actuator
  • Gate travel speed ~12 seconds
  • Can be operated remotely with the NEW USAutomatic NexxGate App.
  • Non-corrosive actuator and control box
  • Photo Eye - through beam for reliability
  • Electronic Limit Control on board
  • PWM Soft Start and Soft Stop
  • Battery powered charged with AC or Solar
  • Optional galvanized box available
  • For Residential, Light Commercial, Farm and Ranch Use

USAutomatic Ranger HD Specifications:

  • Power Input: AC Charged
  • Maximum Gate Length: 16 Feet
  • Maximum Gate Weight: 800 Pounds
USAutomatic Ranger HD Manual
