USAutomatic Patriot II AC Dual Swing Gate Opener Kit | USA-020055
USAutomatic Patriot II AC Charged Dual Swing Gate Opener Kit with Radio Controls 020055 up to 16 feet and 650 lbs. each leaf
Ideal for installation requiring faster operating speed, proven strength, and reliability. The Patriot is unmatched in the industry with over 15 years of superior performance. Solar-charged gate operators from USAutomatic are the most efficient in the industry.

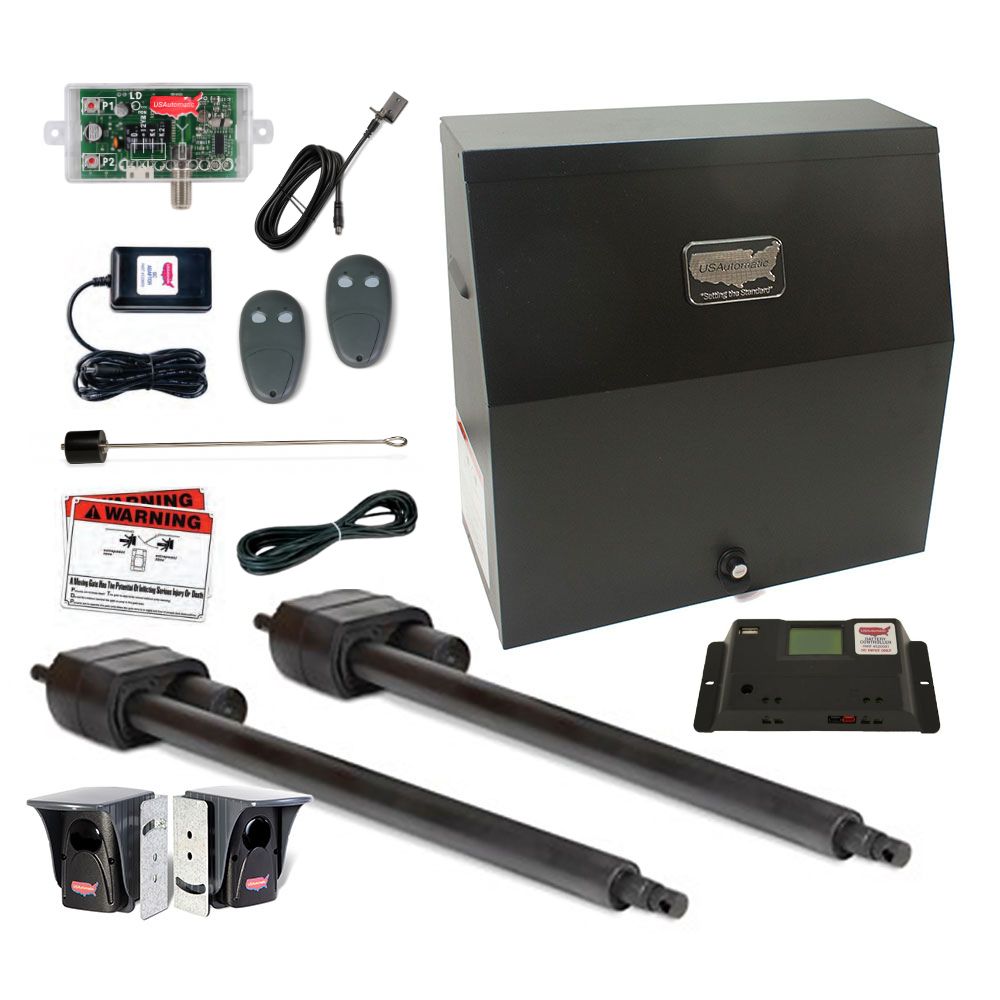

Includes

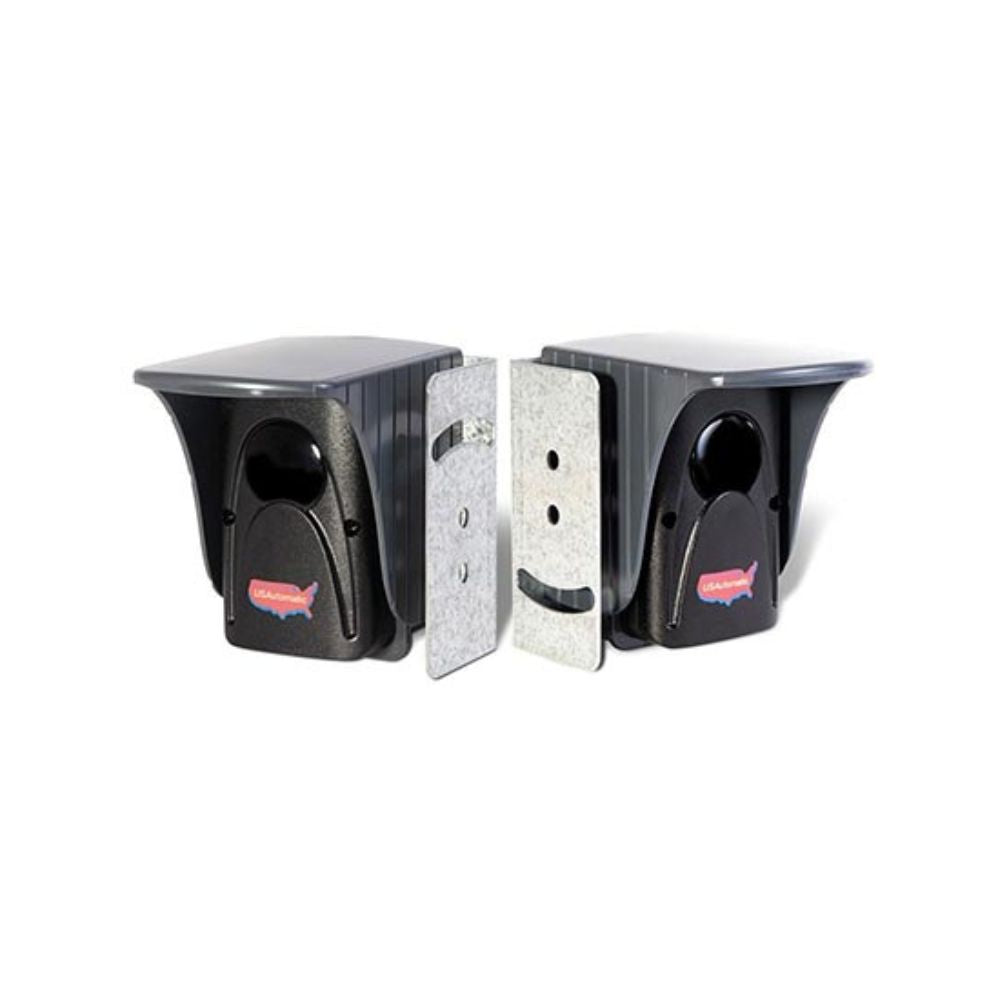

- 1 Set of Photo Eyes 550011

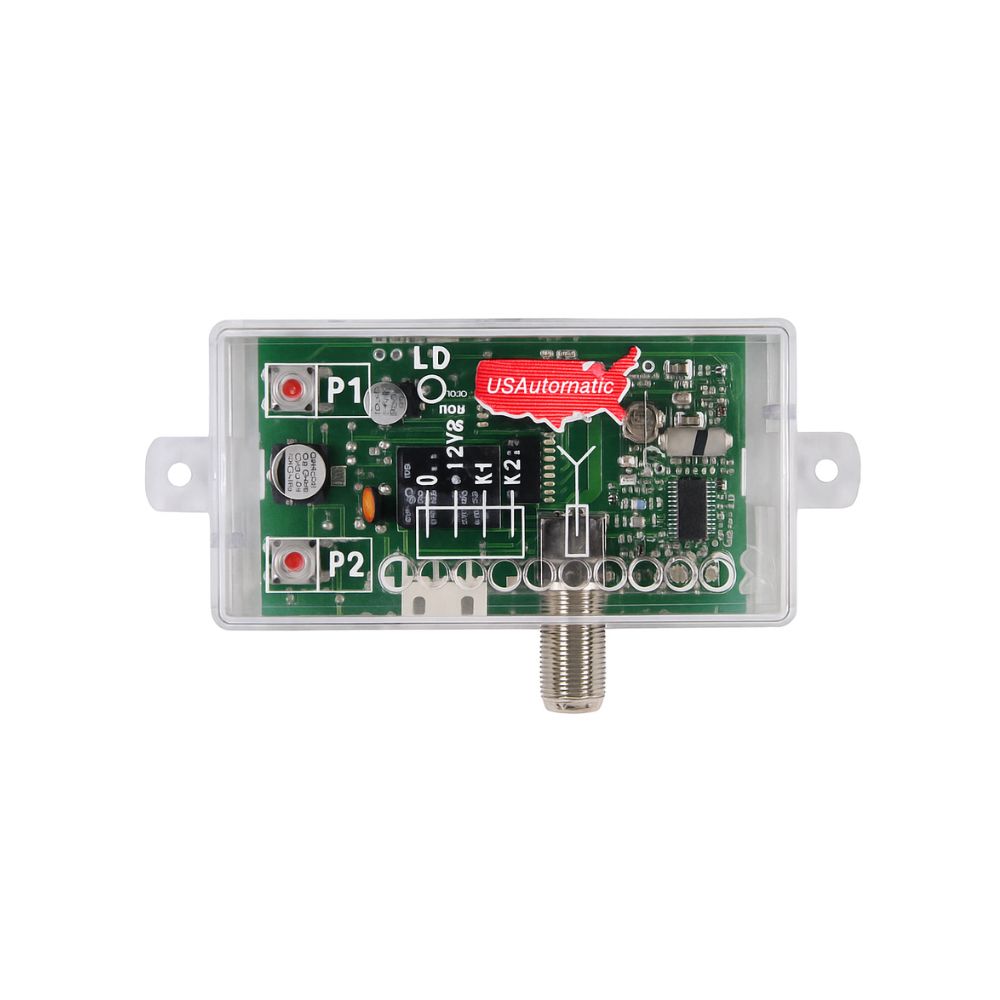

- 1 Wireless Receiver 030205

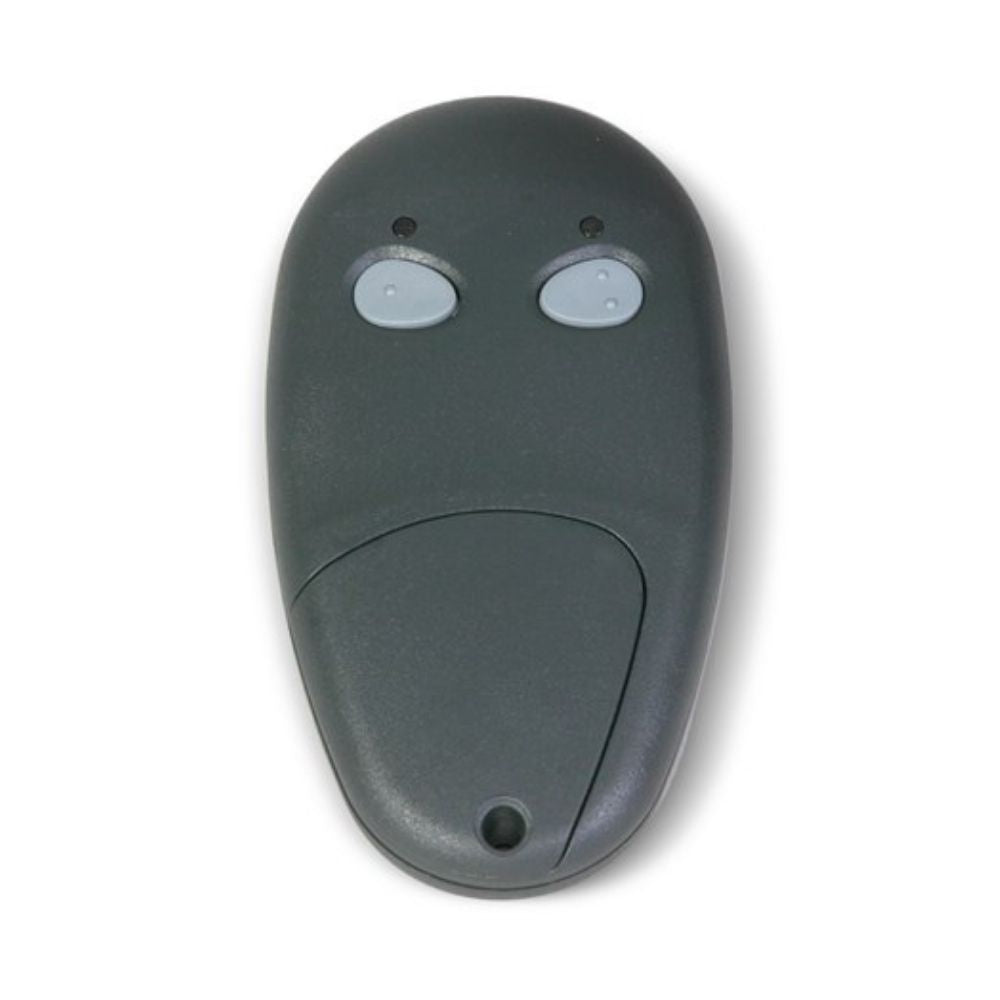

- 2 Wireless Two Button Remotes 030210

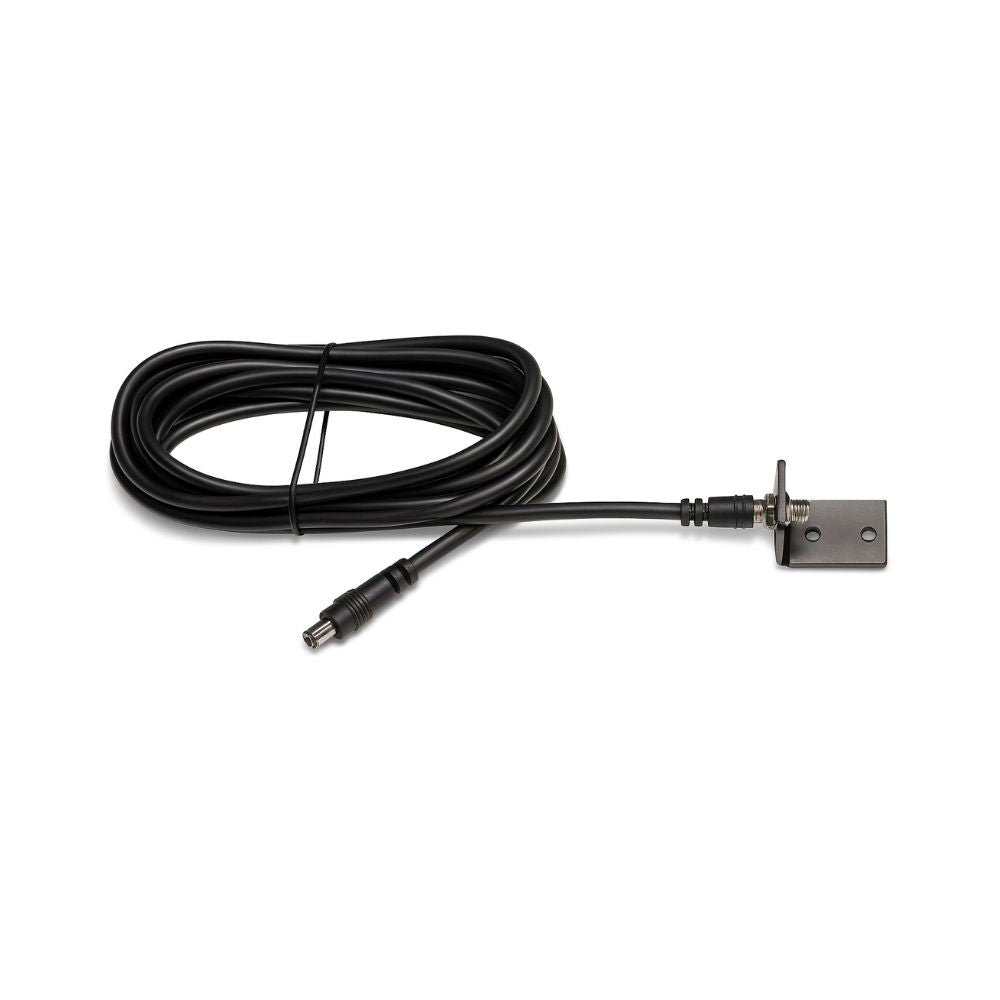

- 1 Coax Antenna Cable and Bracket 030013

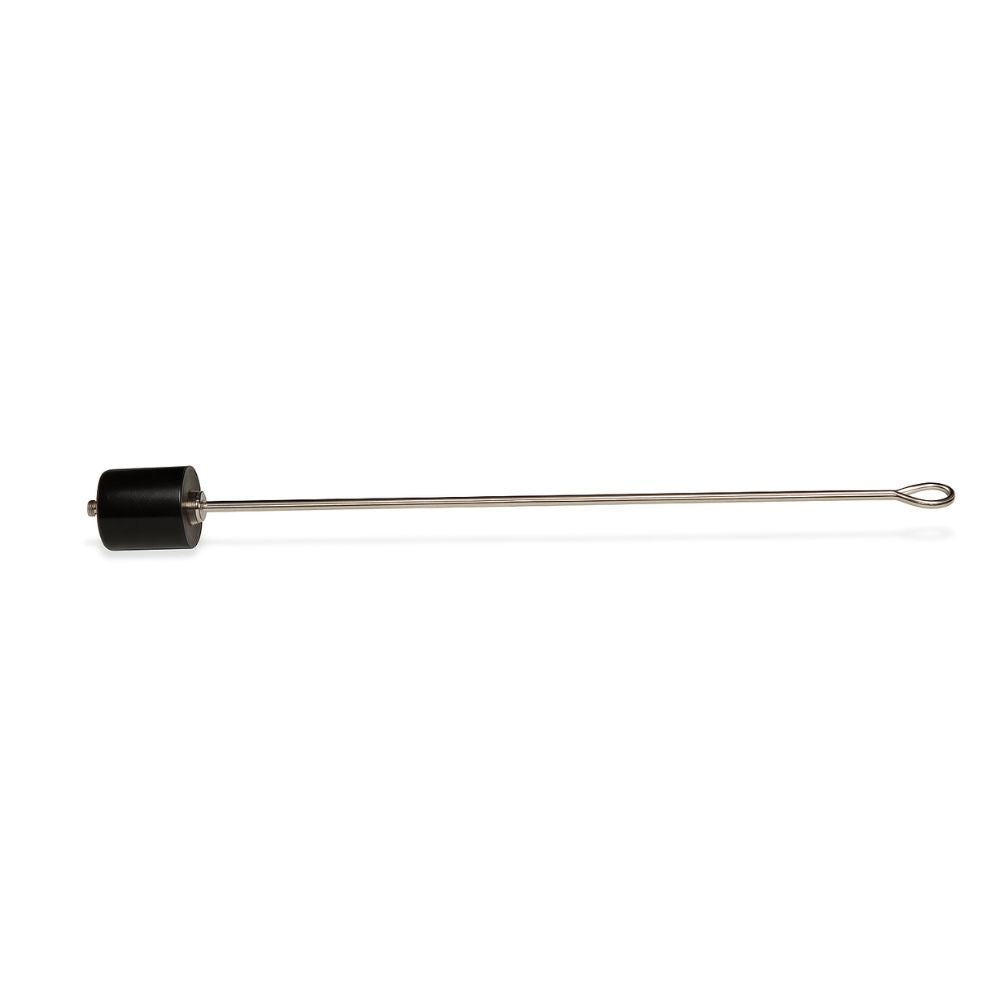

- 1 Antenna 030208

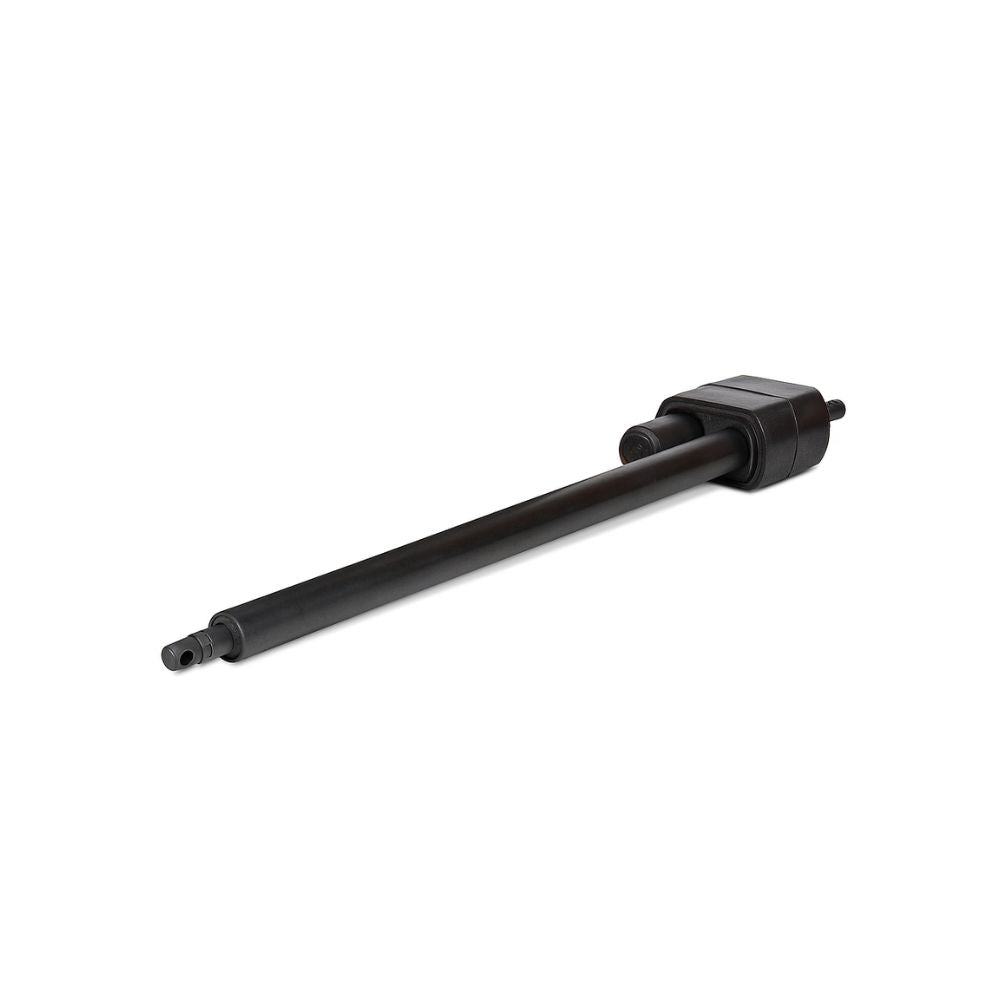

- 2 Patriot Actuators 510001-SS

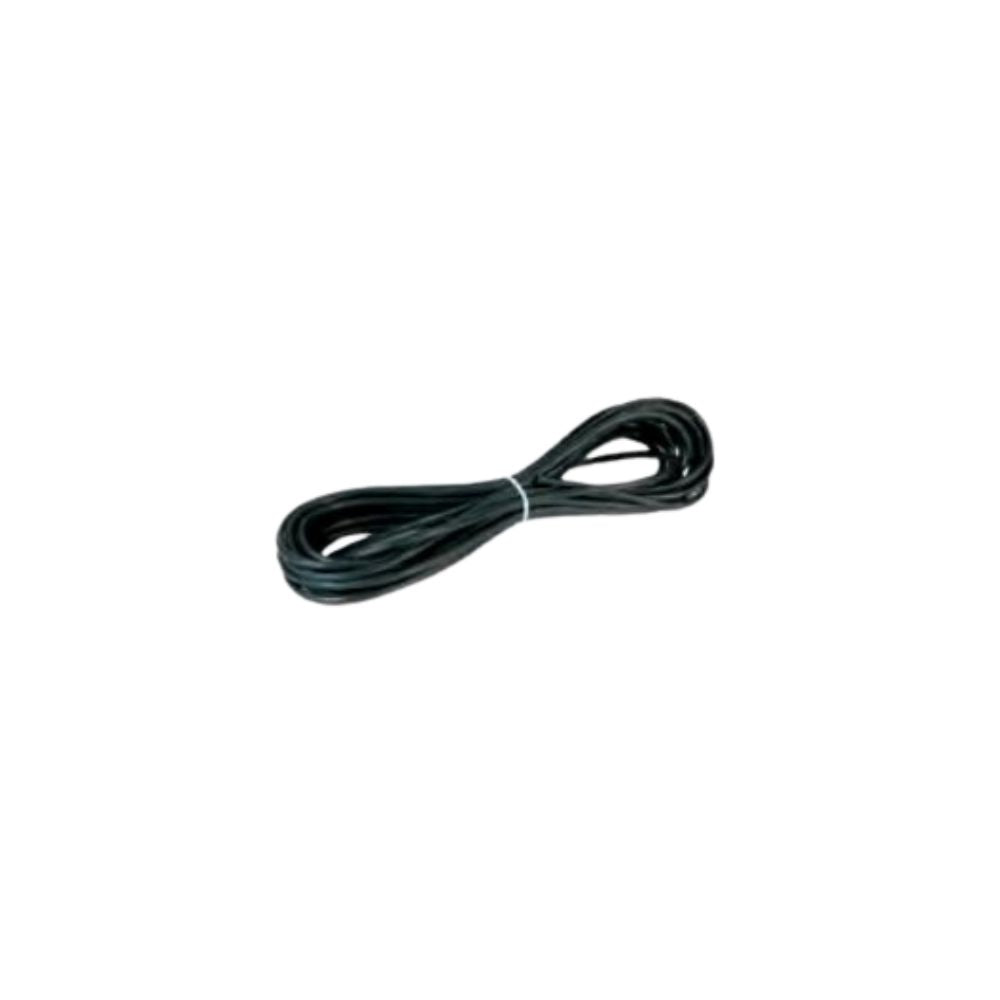

- 1 Dual Gate Actuator Extension Cable 40' 630020

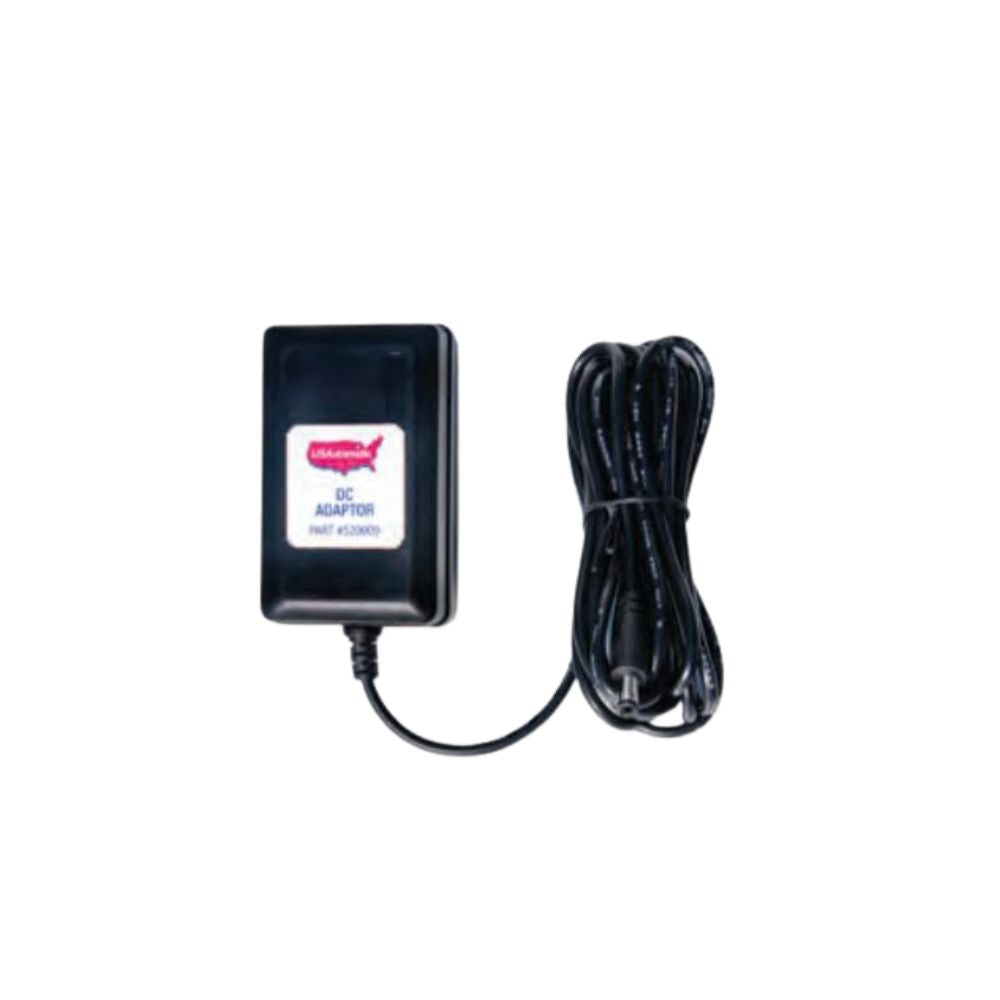

- 1 AC Transformer 520004

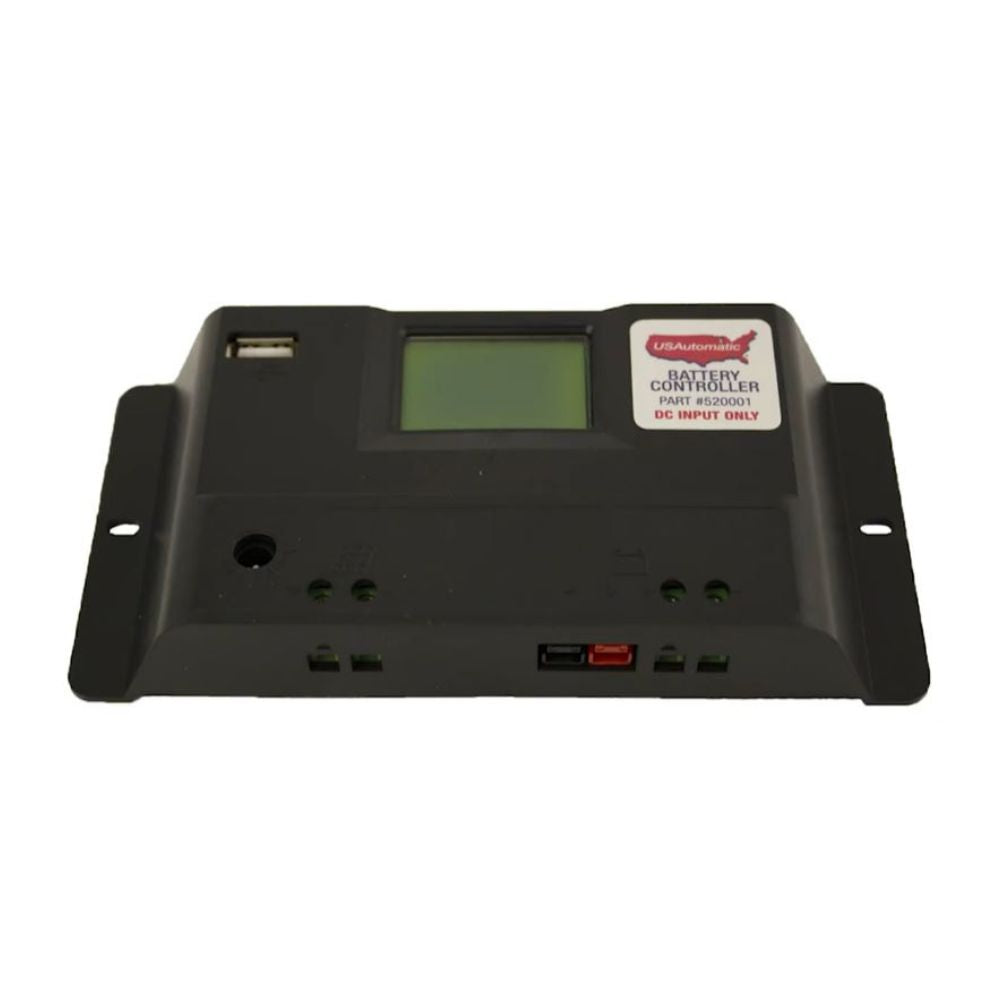

- 1 Charge Controller 520006

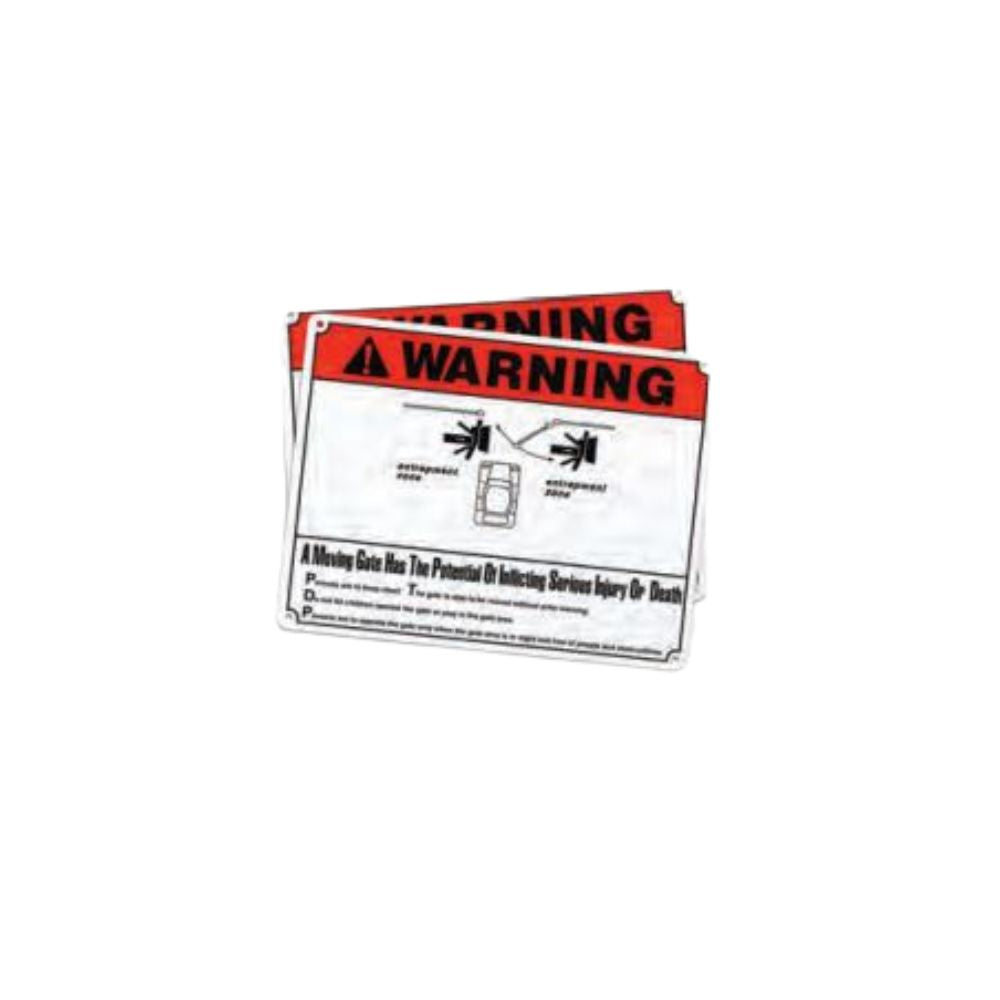

- 2 Safety Signs 601020
BATTERY REQUIRED FOR OPERATION (Battery not included)
Recommended Battery Type: Battery 12-volt, Group U-1; sealed (maintenance free); 30 amp-hour minimum. This type of battery is commonly known as a lawn tractor or wheelchair battery. You can easily find them at stores like Walmart, Sam's Club, etc.
Using a smaller amp hour battery may cause damage to the charging system. The wiring harness has two 1/4” ring terminals to connect to battery posts.
If the installation is located in an area that has frequent power outages (AC charged systems) or might experience weeks of no sunshine, then a larger amp hour battery needs to be considered. A 70 amp hour battery minimum would be recommended for those locations.
CAUTION!!! Do not install wet cell battery into control box; this type of battery usually has removable caps used for service and will vent into control box.
Features
- Proudly Made in the USA!
- Solar or AC charged with solar friendly smart controller
- Independent Gate 1 and Gate 2 sensitivity adjustments
- Built in timer to close
- For residential, light commercial, farm and ranch use
- Soft stop selectable for swing or slide gate operator
- Fast 12 second cycle time (90 degree opening)
- 5 year warranty on control board / 3 year warranty on al other components
- Pre-wired solar friendly LCR dual channel receiver
- Designed to operate with all types of solar friendly accessories without adding solar panels
- Battery powered providing real battery battery backup and not just 1 cycle
- Photo Eye Power Management (PEPM) solar friendly software
- Single or Dual gate compatible
- Same control board for swing or slide gate operator
- Thompson 24" linear actuator delivering 500 lbs. of dynamic thrust and a static hold load rating of 1000
Specifications
- Power Input: AC Charged
- Maximum Gate Length: 16 Feet
- Maximum Gate Weight: 650 Pounds
