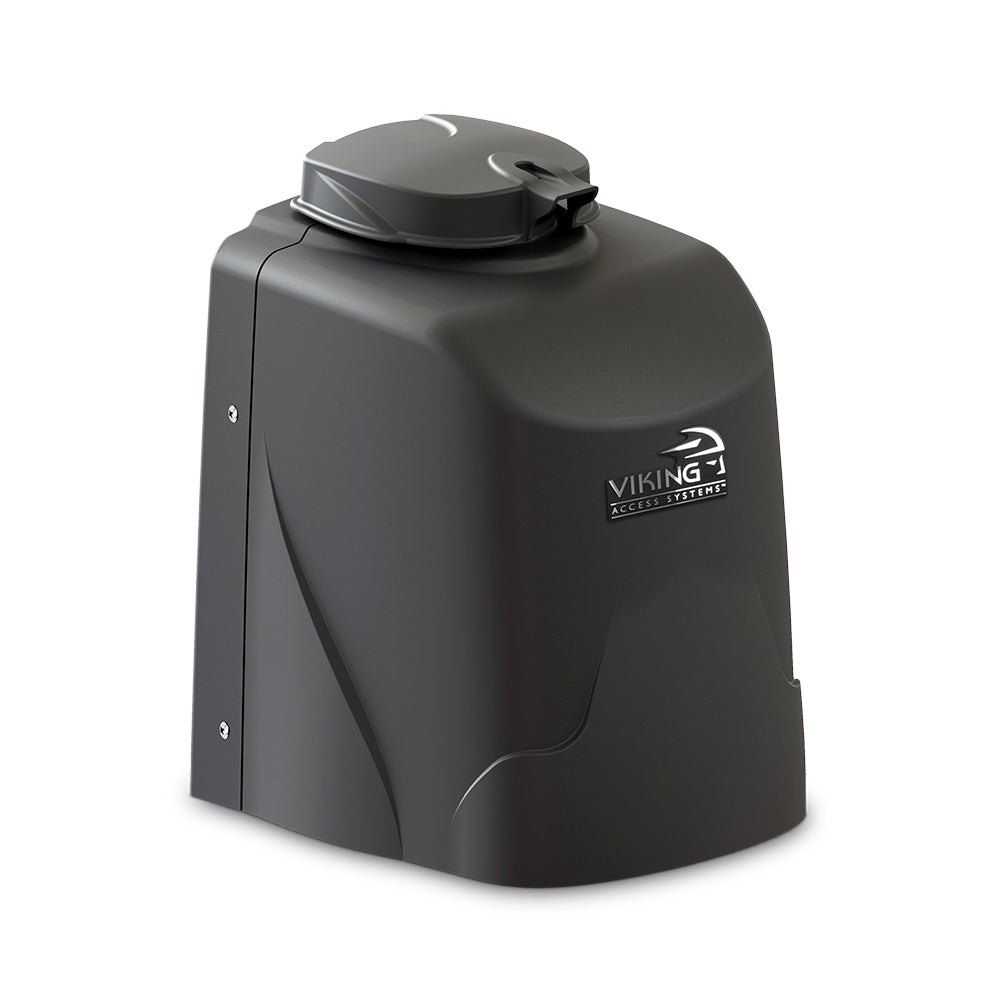

Viking F1 Residential & Commercial Swing Gate Operator | VIK-VA-F1NX

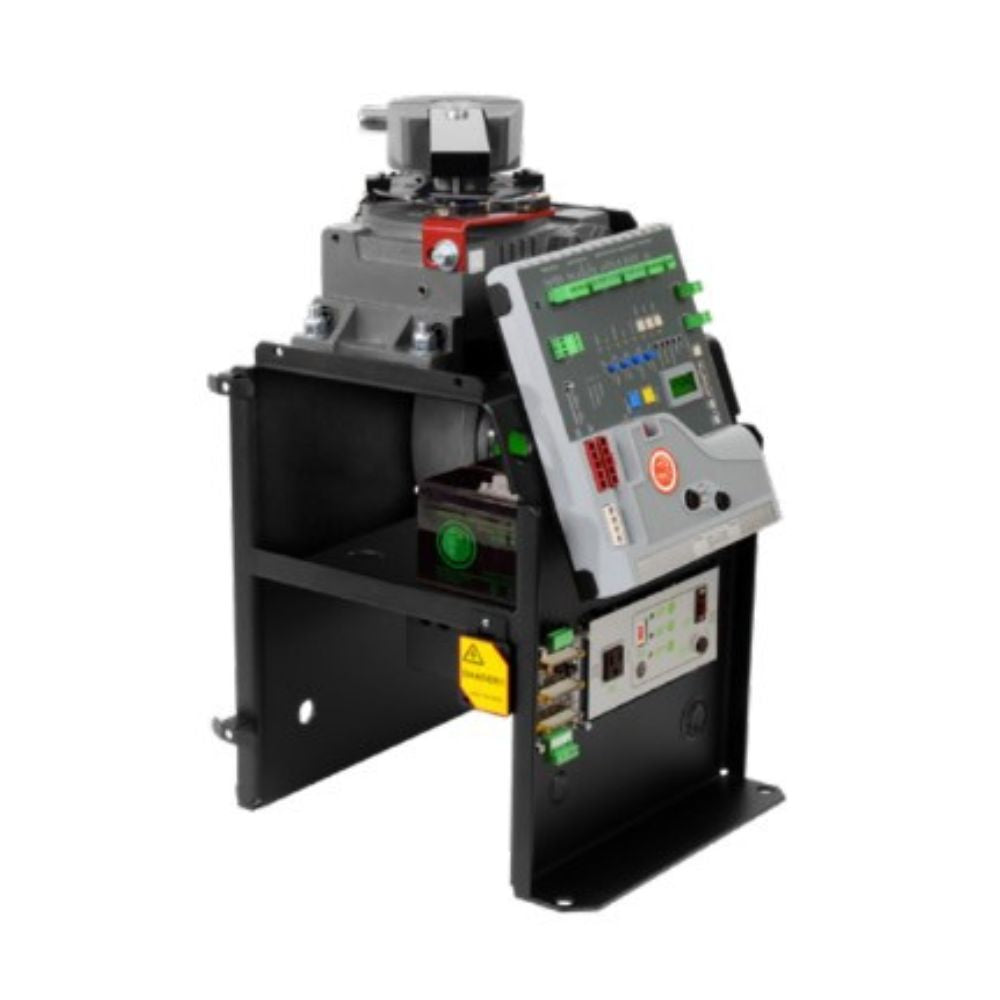

The F1 Swing Gate Operator includes the V-Flex control board and a removable power supply box for low-voltage wiring. The removable power supply box allows you to run low voltage to the gate operator rather than high voltage which removes the need to trench high voltage wires. This can save the home or business owner thousands in labor and permit costs.

The V-Flex control board provides an LCD display for diagnostics and operator status.

The new 1/4" steel chassis allows an increased handling capacity for gates up to 1500 lbs.

The F1 operator also features Viking's soft-start / soft-stop, built-in heater, and Viking's true battery backup system.

Smooth gate operation, compliant with both ETL and UL standards with a 5-year commercial or 7-year residential warranty makes the F1 operator the ideal choice for your gate automation needs.

  • FREE Digital Multimeter
  • Adaptive motor control
  • Built-in loop rack
  • Built-in thermostat-controlled heater
  • Built-in voltmeter
  • Lightning strike protection
  • Multiple power options
  • On-board display
  • True battery back-up
  • UL325 compliant
  • Two monitoring inputs w/up to 4 devices per input
  • 120VAC outlet provided
  • Adjustable speed control
  • Anti-tailgating feature
  • Fail secure mode
  • Fail-safe mode
  • Manual release - mechanical
  • Multiple power outage options
  • Two 4Ah batteries included
Manufacturer's Warranty Period
  • 3 Years
Technical Specifications
  • Maximum Gate Capacity: 12 ft at 1500 lb / 16 ft at 1000 lb
  • UL 325 Classification Class: I, II, III, IV
  • Duty Cycle: 100%
  • Operating Voltage: 24VDC
  • Voltage Current Specs: 120VAC - 2.5A or 240VAC - 1.5A
  • Main Power Frequency: 50Hz / 60Hz
  • Main Power Fuse: 4A Timed
  • Alternative Power Source: 24VAC / VDC (60VA) or Solar
  • Accessory Power: 24VDC - 750mA
  • Power Consumption - Idle: 70mA
  • Motor Current (Typical): 4.0A
  • Operating Temperature: -20°F (-28°C) to 160°F (71°C)
  • Opening Angle: 120°
  • Gate Speed: 13-16 sec./90°
  • Battery Backup: 400 Continuous Cycles
