Viking G5 Swing Gate Operator Single Kit | VIK-VA-G5SLK
The Viking G-5™ leads the industry in linear actuator swing gate operators. This new design boasts a maximum gate capacity of 2000 lbs and 100% duty cycle operation, making it unlike any other. It features a convenient electronic manual release switch and is pre-wired for easy and quick installation.
The G-5™ is now powered by the V-Flex control board, including a speed control dial and diagnostic LCD display. This new design is solar efficient and ready to be powered with low voltage wiring, allowing versatility of installations. The G-5™ is ETL and UL compliance.

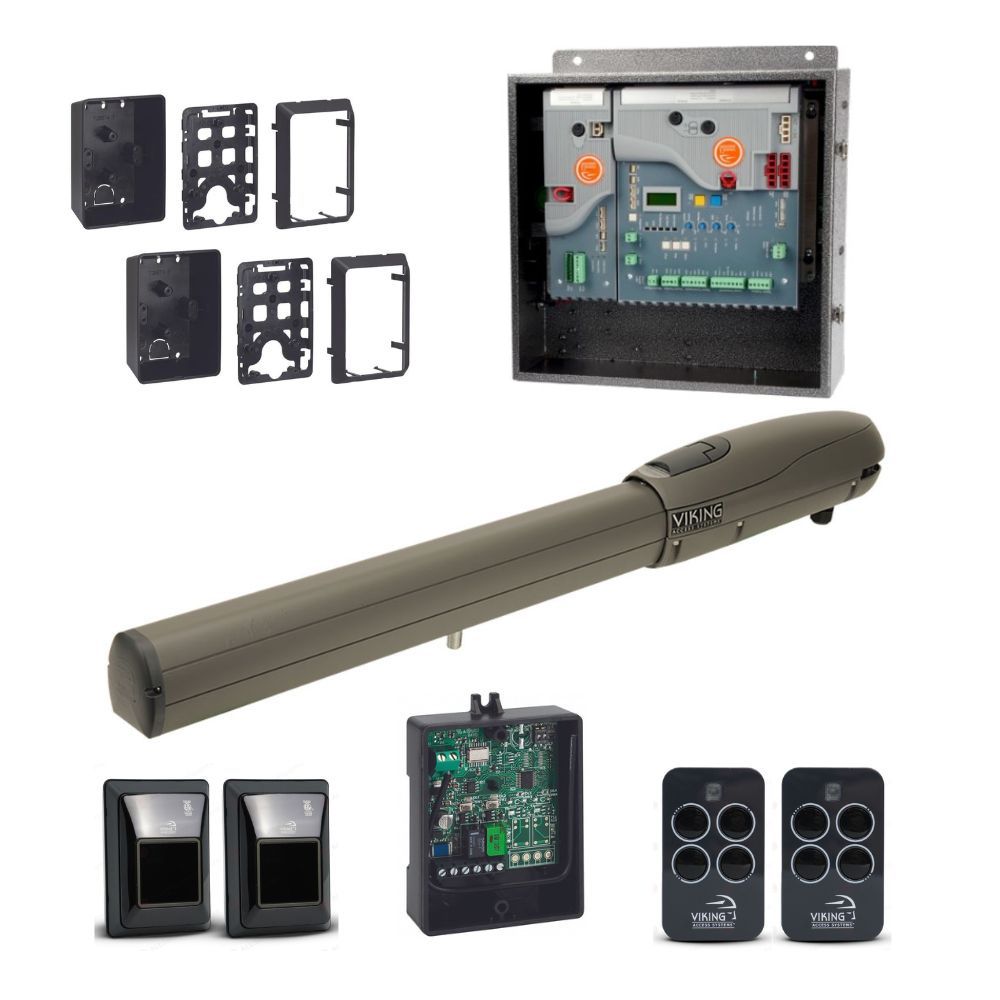

Includes
- 1 G5 Swing Gate Operator VA-G5NX
- 1 ECU Single VA-ECUSNX2
- 1 433 Mhz Receiver FA-XR2C
- 2 433 Mhz RC Transmitter FA-XT4RC
- 1 Photocell 10K Resistor FA-XP30-10K
- 2 Photocell adapter FA-XP30AC
- FREE Digital Multimeter
Features
- Adaptive motor control
- Built-in thermostat-controlled heater
- Built-in voltmeter
- Lightning strike protection
- Multiple power options
- On-board display
- True battery back-up
- UL325 compliant
- Two monitoring inputs w/ up to 4 devices per input
- (Optional) Large box with 120 V outlet
- Adjustable speed control
- Anti-tailgating feature
- Fail secure mode
- Fail-safe mode
- Large box option
- Lockable cover
- Manual release - electronic
- Multiple power outage options
Technical Specifications
- Maximum Gate Capacity: See fig. 2
- UL 325 Classification: Class I, II, III, IV
- Duty Cycle: 100%
- Operating Voltage: 24VDC
- Voltage Current Specs: 120VAC - 1.5A or 240VAC - 1.0A
- (each motor)
- Main Power Frequency: 50Hz / 60Hz
- Main Power Fuse: 4A Timed
- Alternative Power Source: 24VAC / VDC (60VA) or Solar
- Accessory Power: 24VDC - 750mA
- Power Consumption - Sleep: 28mA
- Motor Current (Typical: 3.0A
- Operating Temperature: -20°F (-28°C) to 160°F (71°C)
- Opening Angle: 135°
- Gate Speed: 15-18 sec./90°
- Battery Backup: 400 Continuous Cycles
Notes:
- Viking G5 Residential And Commercial Swing Gate Operator must have a Photo Beam to function. It is recommended you add a Photo Beam for convenience and/or to minimize complications. This accessory is available in the product options.
- *Warning: The capacities stated by the manufacturer are calculated without a wind factor. Depending on the force of the wind and the gate design, your gate operator capabilities can be drastically affected up to the point of causing irreversible damage. If you know your location is subject to regular windy conditions, we highly recommend using a pad mount operator such as the VA-F1NX. If you are unsure about which operator to choose in regards to your weather conditions, please give us a call at 1-800-730-8382 to speak to one of our sales advisors. Damages caused by wind are not covered under warranty.
