Viking R6 Swing Gate Operator Kit | VIK-VA-R6SLK

Viking Access SystemsSKU: VIK-VA-R6SLK

Price:
Sale price$1,965.00

Estimate shipping

Viking R6 Swing Gate Operator Kit | VIK-VA-R6SLK

The R-6™ Residential Swing Gate Operator features the V-Flex control board with an onboard diagnostics LCD display and new chassis design providing easy viewing of the controls. The R-6™ is also equipped with a built-in heater; an onboard temperature management system and allows for an increased gate capacity of up to 700 lbs, making it a great option for heavy ornamental gates. Viking’s integrated true battery backup system, convenient fuse access, and LED status indicators for incoming high voltage make this the operator of choice for homeowner's swing gate applications.

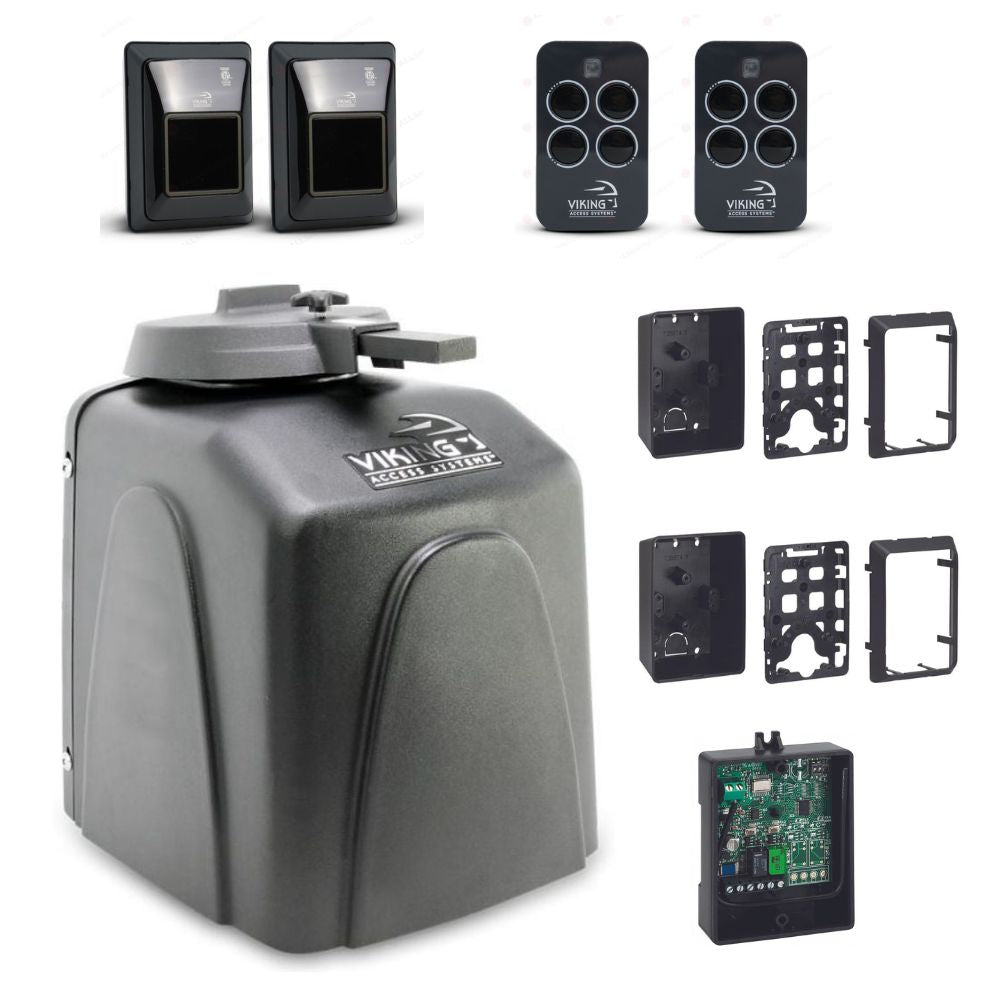

Includes
  • 1 VA-R6NX R6 Swing Gate Operator
  • 1 FA-XR2C 433 Mhz Receiver
  • 2 FA-XT4RC 433 Mhz RC Transmitter
  • 1 FA-XP30-10K Photocell 10K Resistor
  • 2 FA-XP30AC Photocell adapter
  • FREE Digital Multimeter
Features
  • Adaptive motor control
  • Built-in thermostat-controlled heater
  • Built-in voltmeter
  • Lightning strike protection
  • Multiple power options
  • On-board display
  • True battery back-up
  • UL325 compliant
  • Two monitoring inputs w/ up to 4 devices per input
  • 120 V outlet provided
  • Adjustable speed control
  • Anti-tailgating feature
  • Fail secure mode
  • Fail-safe mode
  • Manual release - mechanical
  • Multiple power outage options
  • Two 4A batteries included
Manufacturer's Warranty Period
  • 3 Years
Technical Specifications
  • Maximum Gate Capacity: 14 ft at 700 lb
  • UL 325 Classification: Class I
  • Duty Cycle: 100%
  • Operating Voltage: 24VDC
  • Voltage Current Specs: 120VAC - 2.5A or 240VAC - 1.5A
  • Main Power Frequency: 50Hz / 60Hz
  • Main Power Fuse: 4A Timed
  • Alternative Power Source: 24VAC / VDC (60VA) or Solar
  • Accessory Power: 24VDC - 750mA
  • Power Consumption - Idle: 70mA
  • Motor Current (Typical): 4.0A
  • Operating Temperature: -20°F (-28°C) to 160°F (71°C)
  • Opening Angle: 120°
  • Gate Speed: 13-16 sec./90°
  • Battery Backup: 400 Continuous Cycles
