USAutomatic Ranger HD II SOLAR Charged Dual Swing Gate Opener Kit | USA-020523
USAutomatic Ranger HD II SOLAR Charged Dual Swing Gate Opener Kit 020523 with Metal Enclosure Upgrade For Gates Up To 16 Feet and 800 lbs.
Note: Battery is required for operation (Not included)

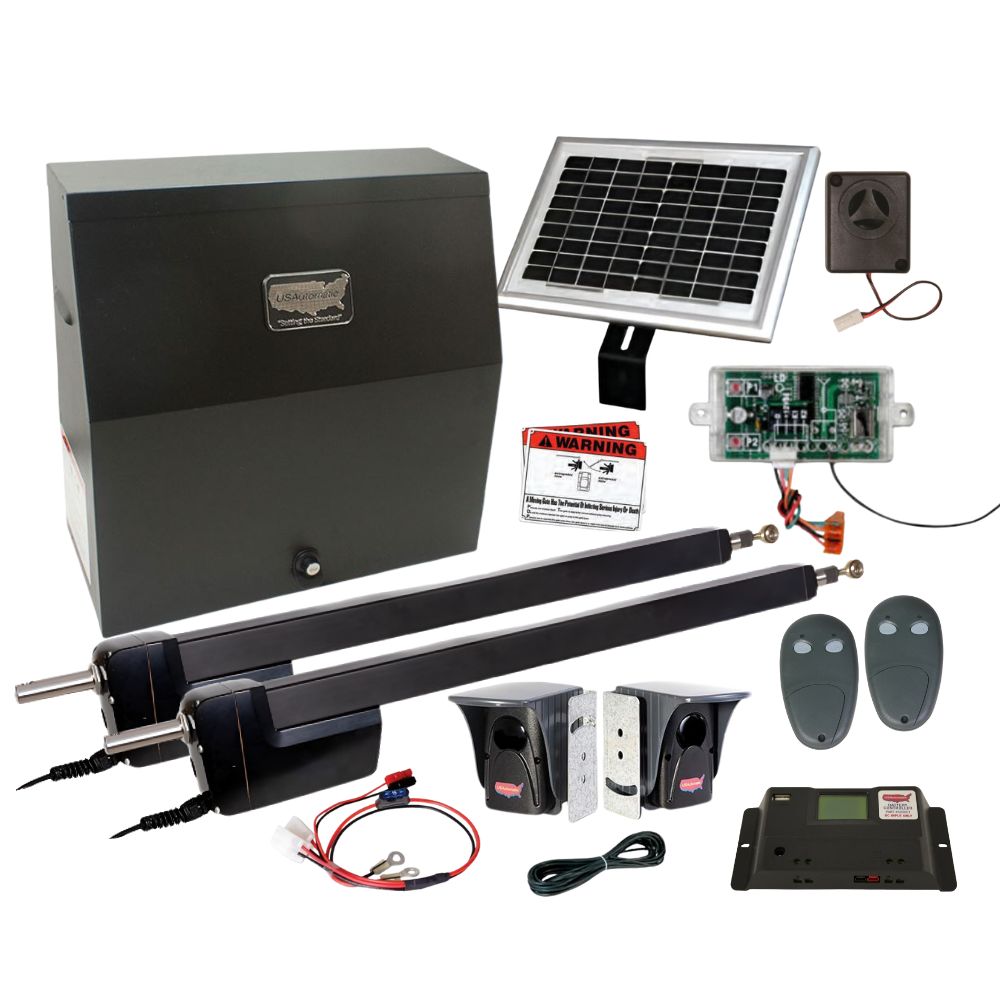

Includes
- 2 Ranger HD Gate Opener 510006
- 1 40' Dual Gate Opener Extension Cable 630020
- 1 Control Board 500021
- 1 Battery Controller 520001
- 1 Radio Receiver with Harness 030200
- 1 Secondary Entrapment Siren 530015
- 1 Set of Photo Eyes 550011
- 2 Wireless 2 Button Remotes 030210
- 1 10-watt Solar Panel Kit 520026
- 1 Wiring Harness 630041
- 2 Safety Signage 601020
Features
- 3-Year Manufacturer's Warranty
- Heavy Duty, 12 Vdc, 24in Stroke Gate Opener
- Gate travel speed ~12 seconds
- Can be operated remotely with the NEW USAutomatic NexxGate App.
- Non-corrosive actuator and control box
- Photo Eye, through beam for reliability
- Board has Electronic Limit Control
- PWM Soft Start and Soft Stop
- Battery powered charged with AC or Solar
- Optional galvanized box available
- For Residential, Light Commercial, Farm, and more
- Proudly Made in the United States
Technical Specifications
-
Power Input: Solar Charge
-
Maximum Gate Length: 16 Ft.
- Maximum Gate Weight: 800 Lbs.
Recommended Battery Type
Battery 12-volt, Group U-1; sealed and maintenance free; 30 amp hour minimum. Using a smaller amp-hour battery may cause damage to the charging system. The wiring harness has two 1/4” ring terminals to connect to the battery posts.
CAUTION: Do not install a wet cell battery into the control box. This type of battery usually has removable caps that are used for service and will vent into the control box.
