USAutomatic Ranger HD II AC Charged Dual Swing Gate Opener Kit | USA-020521

USAutomaticSKU: USA-020521

Sale price$2,350.61
Add to cart

Estimated delivery 4-8 weeks.

USAutomatic Ranger HD II AC Charged Dual Swing Gate Opener Kit | USA-020521

Please note, USAutomatic is experiencing shipping delays. All orders will be fulfilled in the order received.

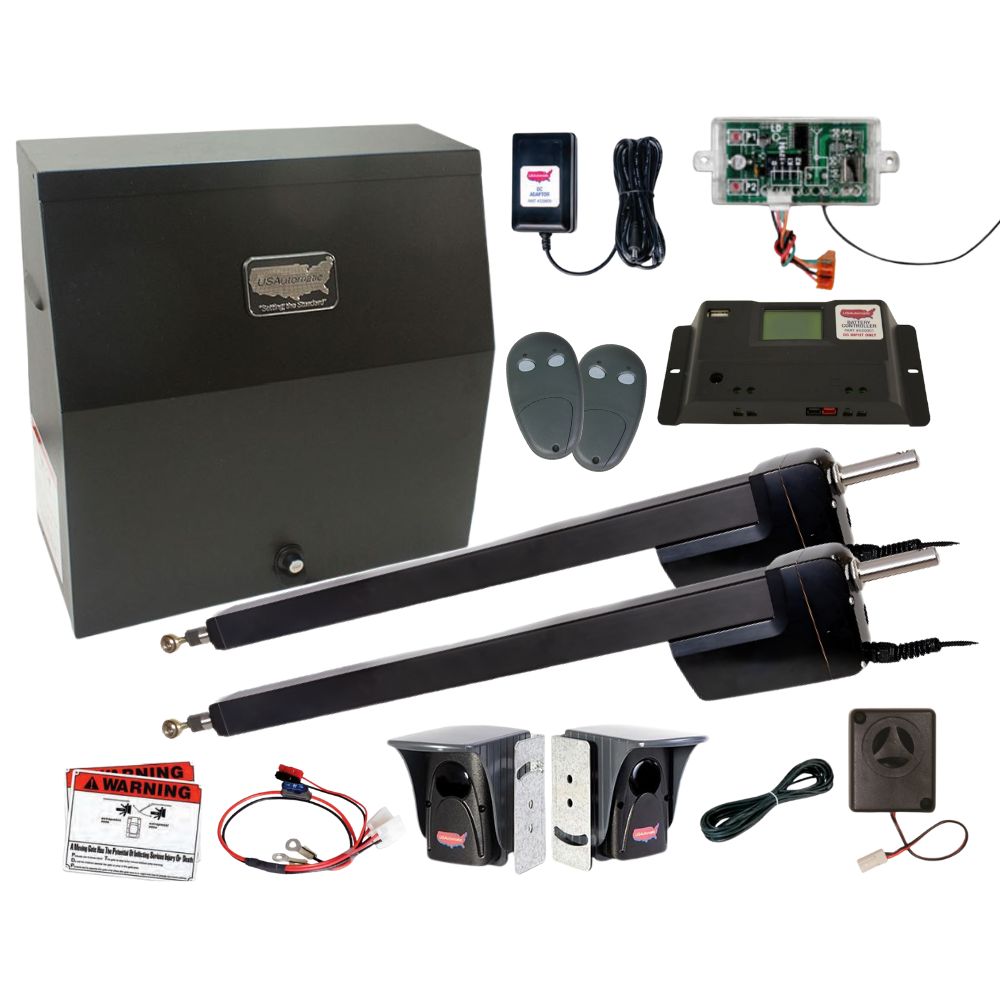

USAutomatic Ranger HD II AC Charged Dual Swing Gate Opener Kit 020521 with Metal Enclosure Upgrade For Gates Up To 16 Feet and 800 lbs. SEE ALL USAUTOMATIC GATE KITS

Note: Battery required for operation (Battery not included)

  • 2 Ranger HD Actuator 510006

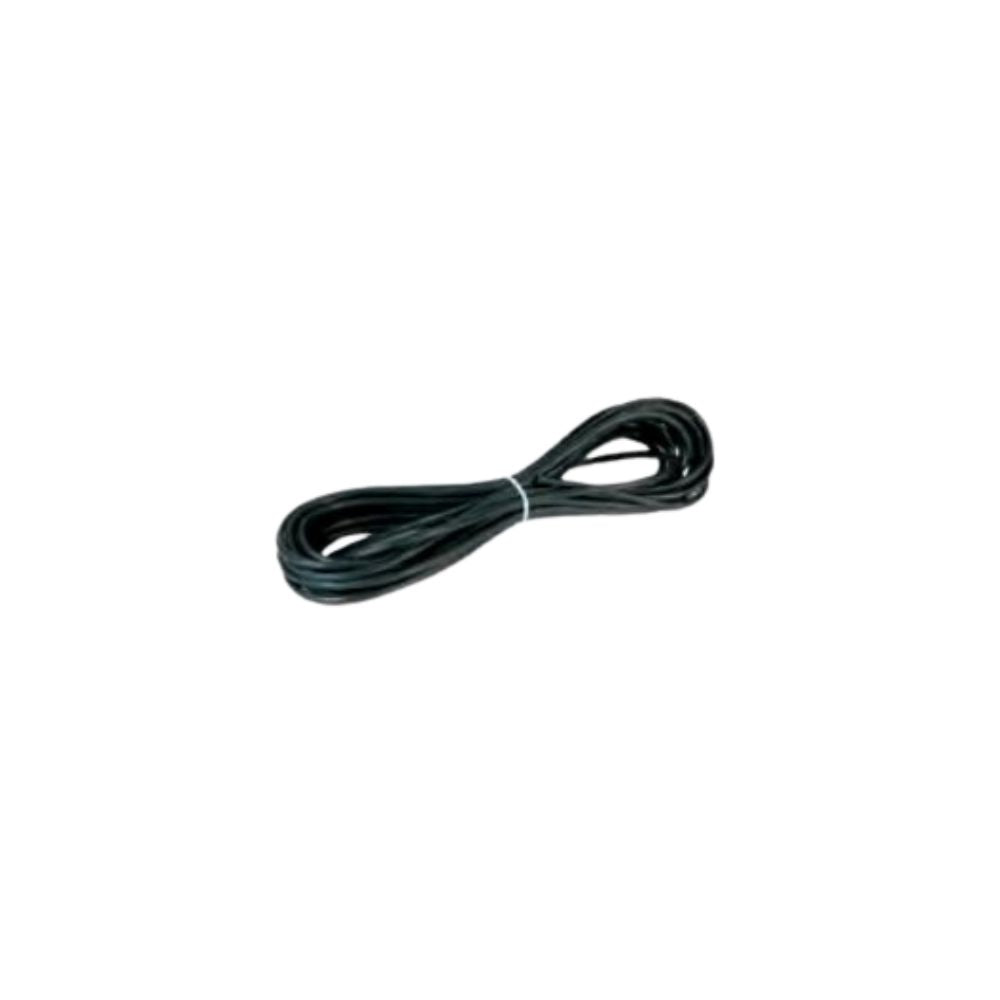

  • 1 40’ Dual Gate Actuator Extension Cable 630020
  • 1 Control Board 500021
  • 1 Battery Controller 520001
  • 1 Radio Receiver w/Harness 030200
  • 1 Secondary Entrapment Siren 530015
  • 1 Set of Photo Eyes 550011
  • 2 Wireless Two Button Remotes 030210

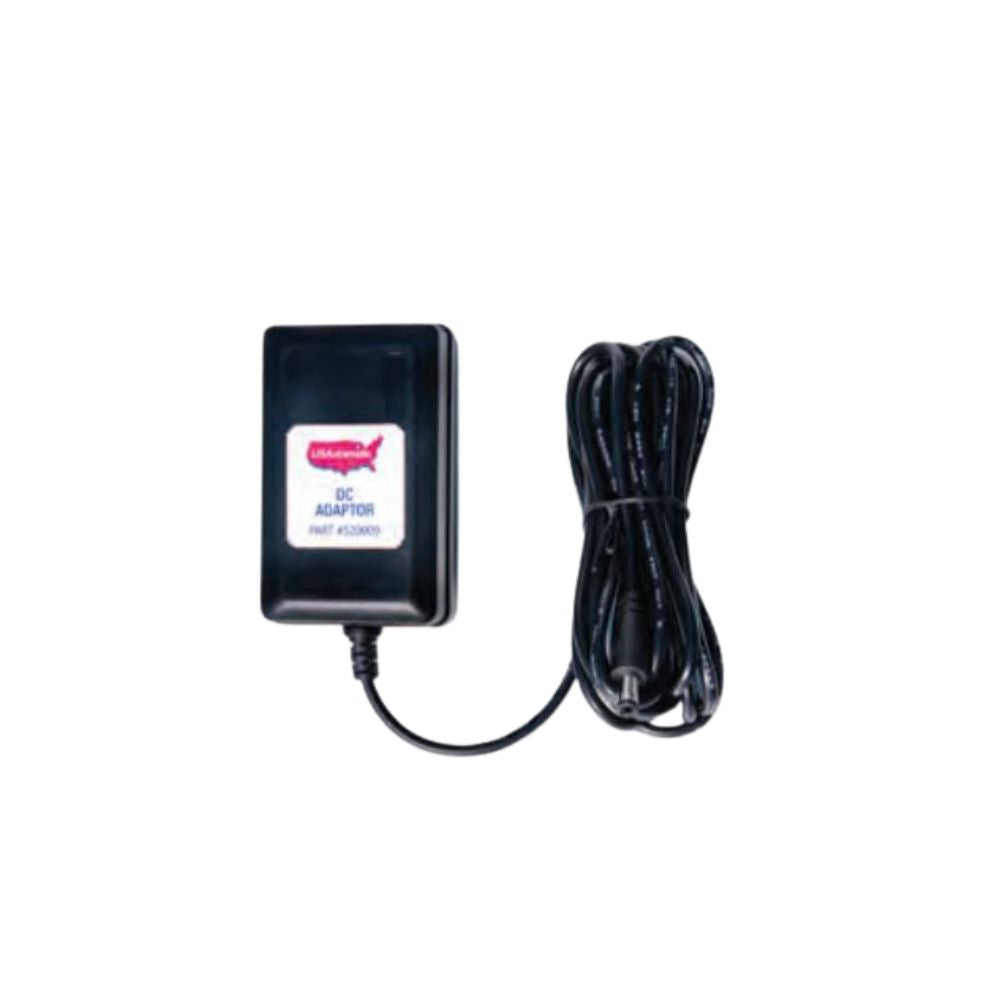

  • 1 DC Adapter (20vdc and 1.2 Amps) 520009
  • 1 Wiring Harness 630041
  • 2 Safety Signs 601020
  • Proudly Made in the USA!
  • 3-Year Manufacture Warranty
  • Heavy Duty – 12 Vdc - 24in Stroke Linear Actuator
  • Gate travel speed ~12 seconds
  • Can be operated remotely with the NEW USAutomatic NexxGate App.
  • Non-corrosive actuator and control box
  • Photo Eye - through beam for reliability
  • Electronic Limit Control on board
  • PWM Soft Start and Soft Stop
  • Battery powered charged with AC or Solar

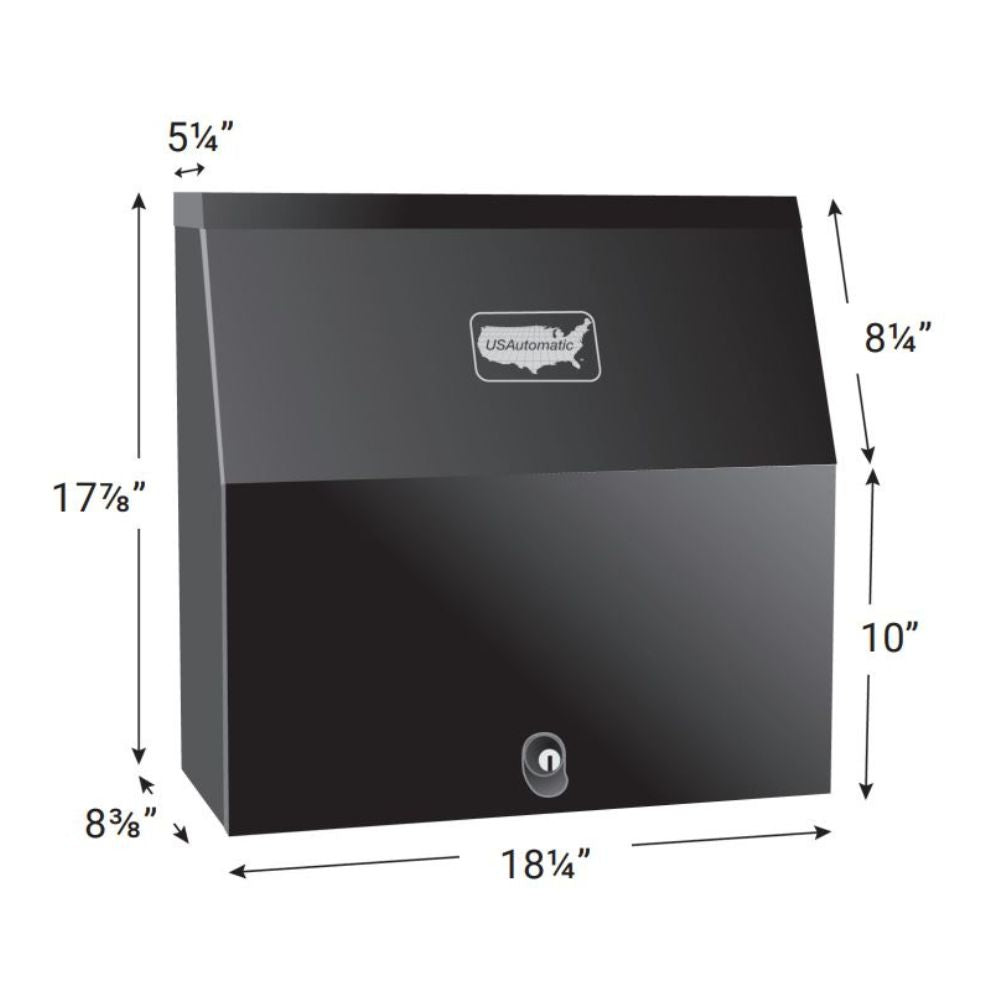

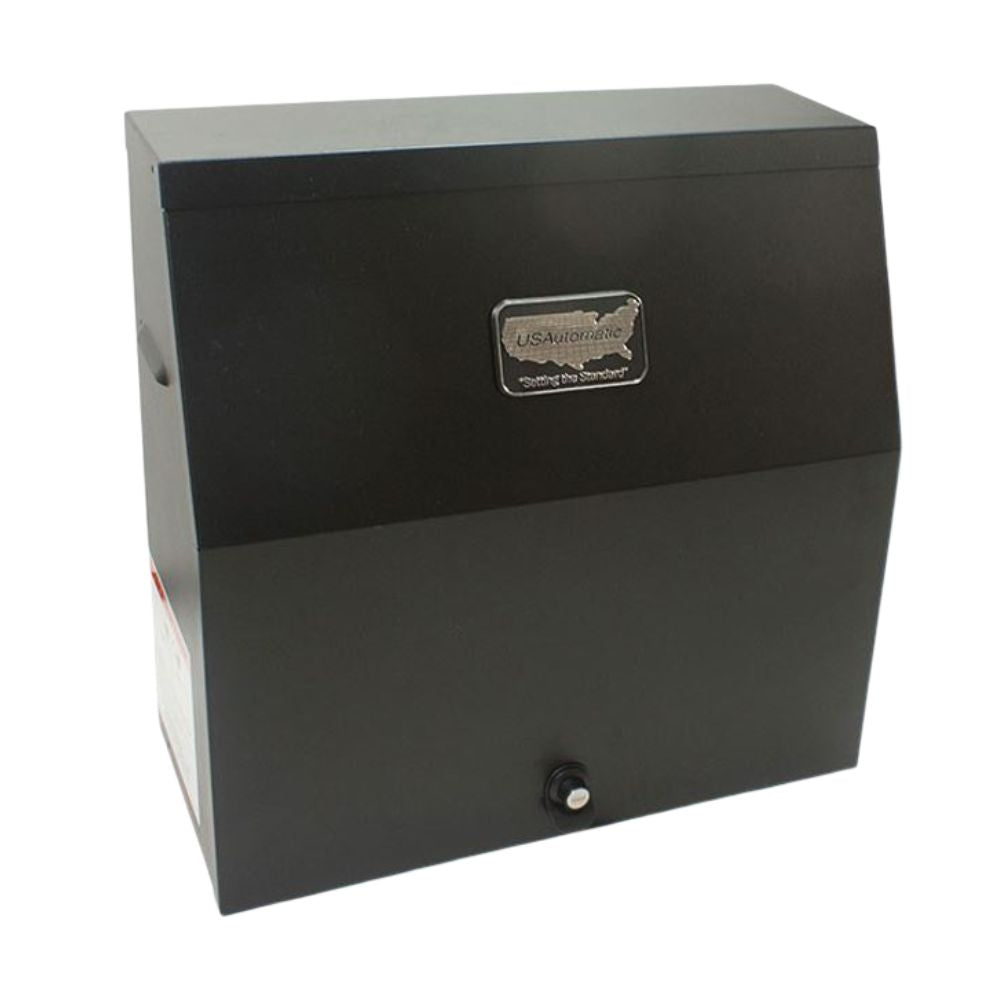

  • Optional galvanized box available
  • For Residential, Light Commercial, Farm, and Ranch Use
Technical Specifications
  • Power Input: AC Charged
  • Maximum Gate Length: 16 Feet
  • Maximum Gate Weight: 800 Pounds
Recommended Battery Type

Battery 12-volt, Group U-1; sealed (maintenance free); 30 amp hour minimum. Using a smaller amp-hour battery may cause damage to the charging system. The wiring harness has two 1/4” ring terminals to connect to battery posts.

CAUTION!!! Do not install a wet cell battery into the control box; this type of battery usually has removable caps used for service and will vent into the control box.

    Product Literature
