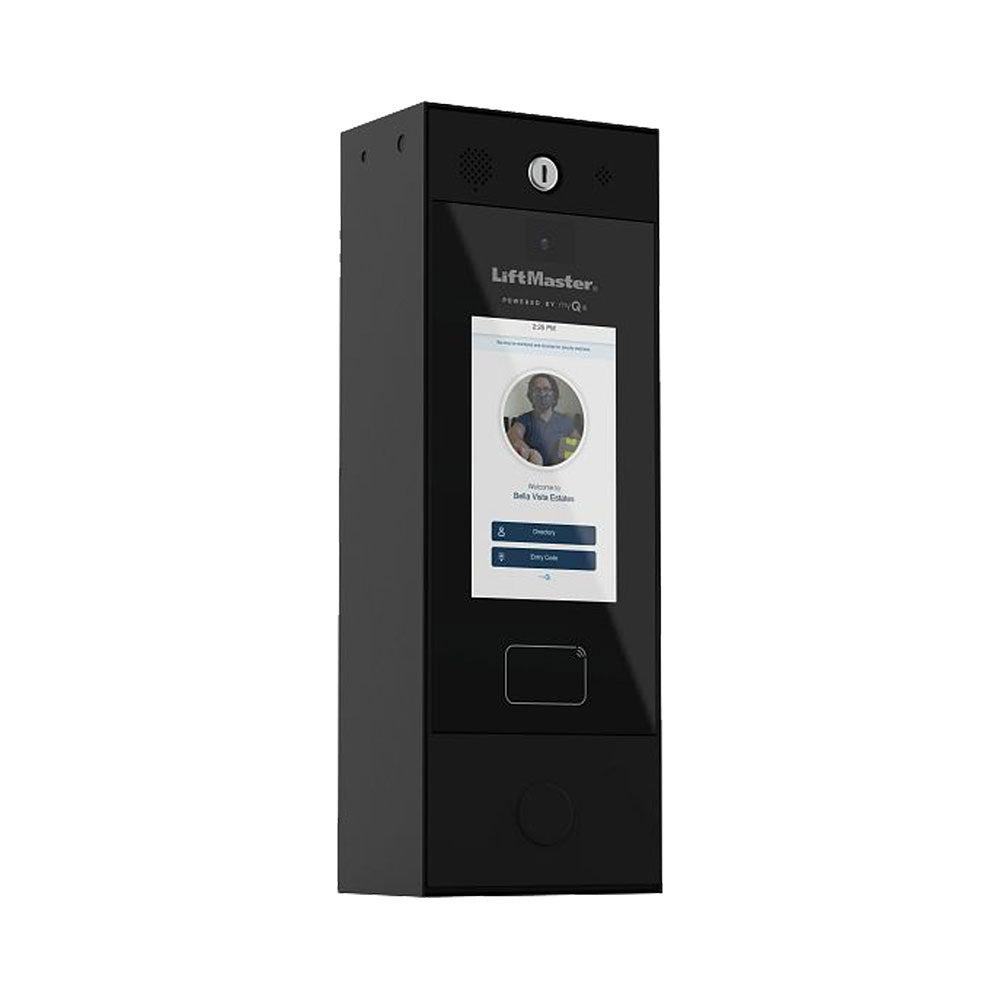

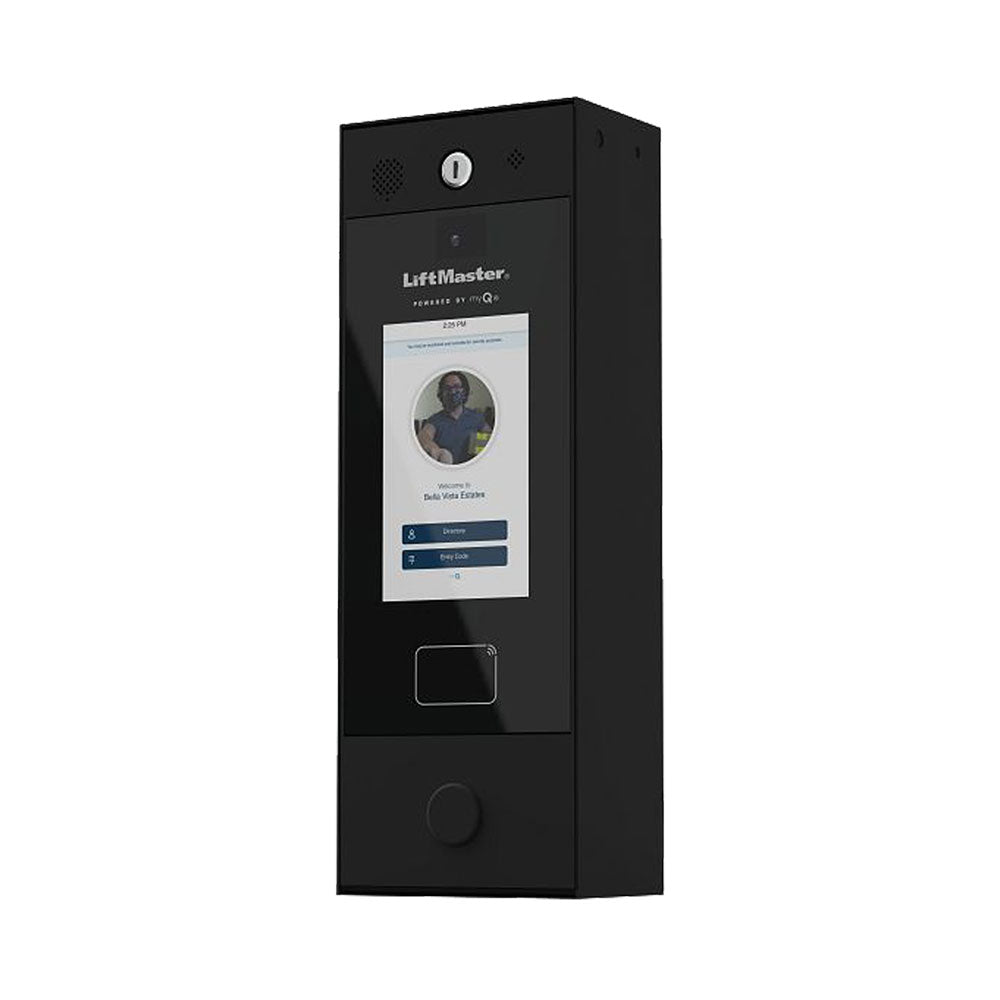

Key Features of the LiftMaster CAPXM

A gated community with multiple entry points up to two gates or doors will benefit from the LiftMaster CAPXM key features. A smart video intercom such as this enhances any access control system to ensure convenient, secure and seamless entry while preventing illegal access.

Video Capability

• Integrated video camera with 135ᵒ wide angle
• HD video recordings
• Night vision functionality for both high and low-light environments
• 1080p camera resolution

Audio Capability

• Built-in speakers for high-quality communication
• VoIP phone service that can call 10-digit numbers
• Phone.com is required for VoIP, and additional charges may apply

Security

• Two-factor authentication that protects residents' information
• Connects to myQ community for managing multiple entry points

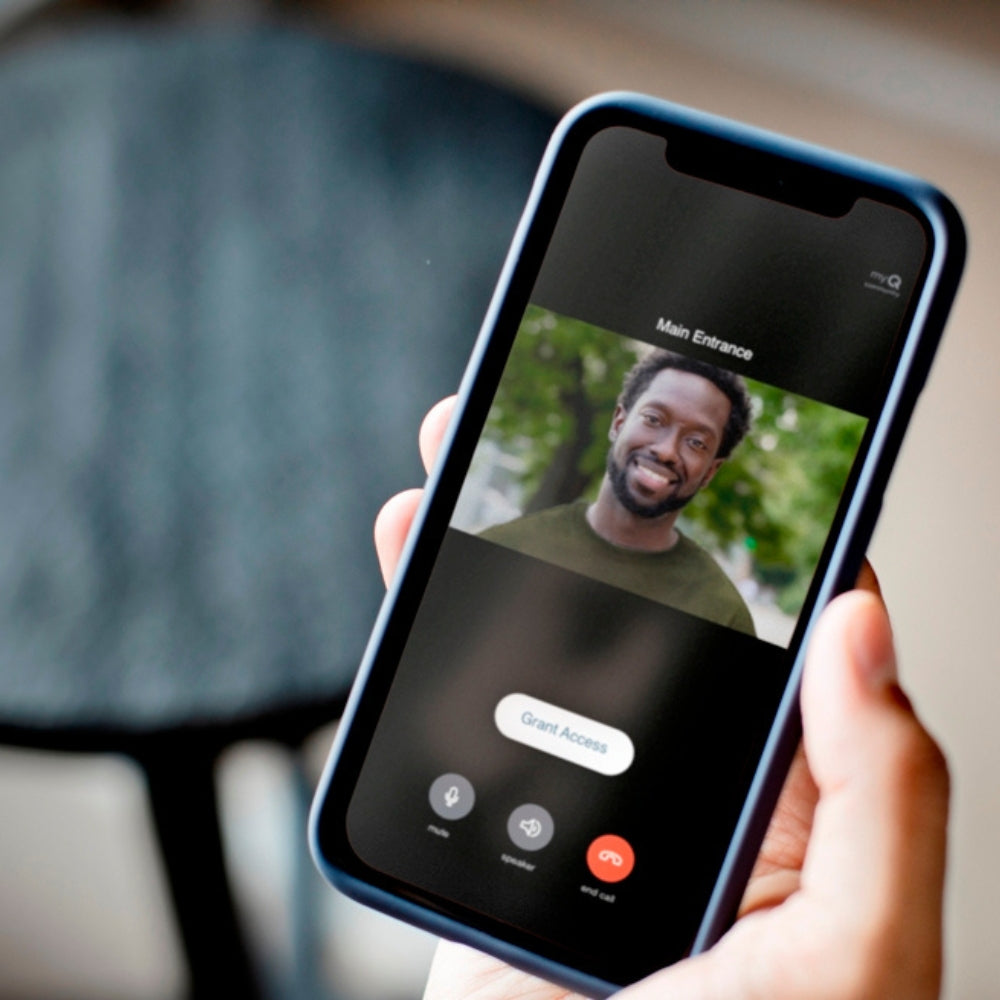

• Residents can remotely identify visitors before allowing entry
• Email notification alerts when suspended codes are used

Connectivity

• The myQ app allows residents to manage the property using their smartphone
• Connects using either a wired internet connection or WiFi

LiftMaster CAPXM for Customized Control

The LiftMaster CAPXM uses the myQ Community Web Platform. This cloud based platform enables residents and managers to have better control of the system.

Users can set schedules for entry for specific people such as deliveries, cleaners or babysitters. When at home, residents can “press to unlock” any point of entry they have access to operate to admit visitors or themselves inside the vicinity.

For administrators or managers of the gated community, LiftMaster CAPXM also provides them with six customizable program roles with specific log-in details dependent on their management levels.

Adding or deleting residents and assigning entrance access is also doable, even if managers are not around physically.

Additional Remarkable Features of the CAPXM

Different LiftMaster intercom systems boast different features. Knowing what these features are will help you decide which one best suits your application.

For the CAPXM, here are some features worth noting:

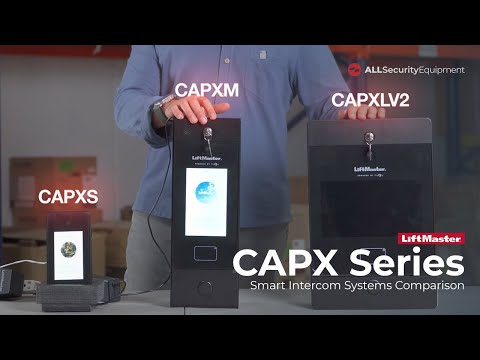

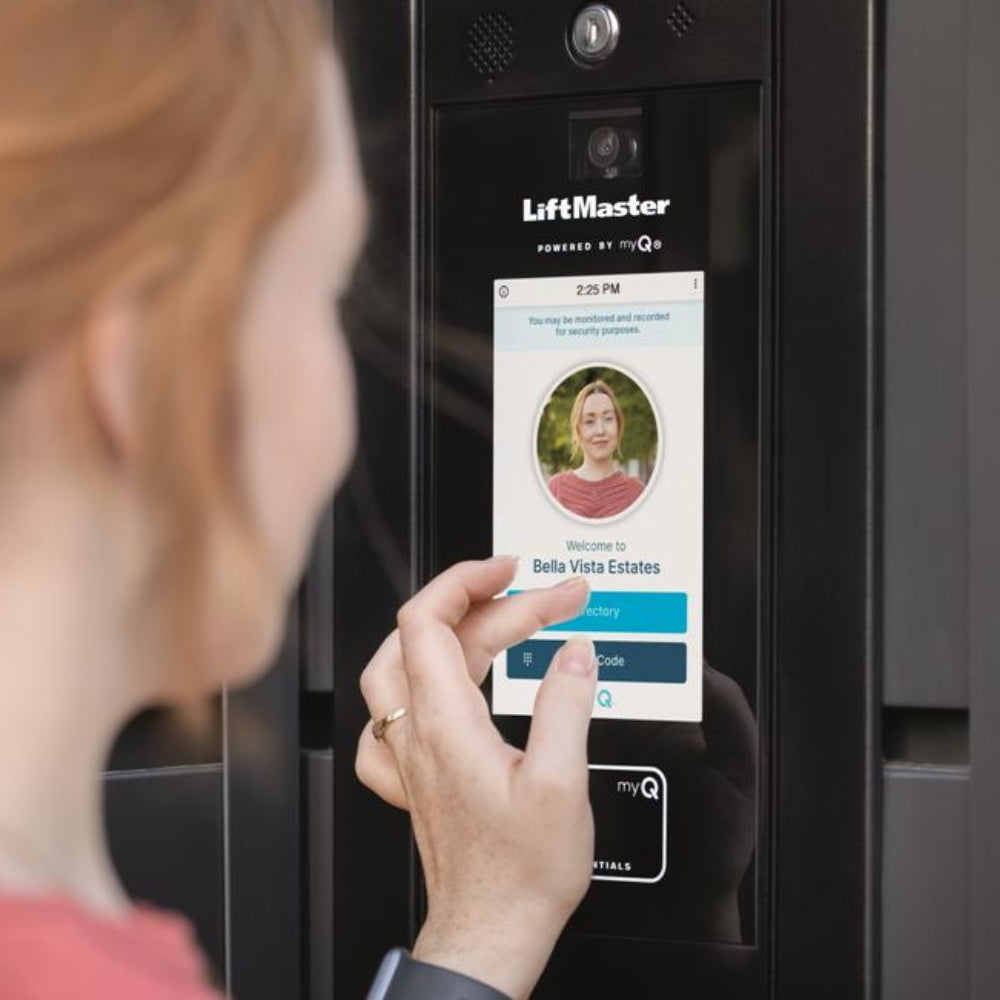

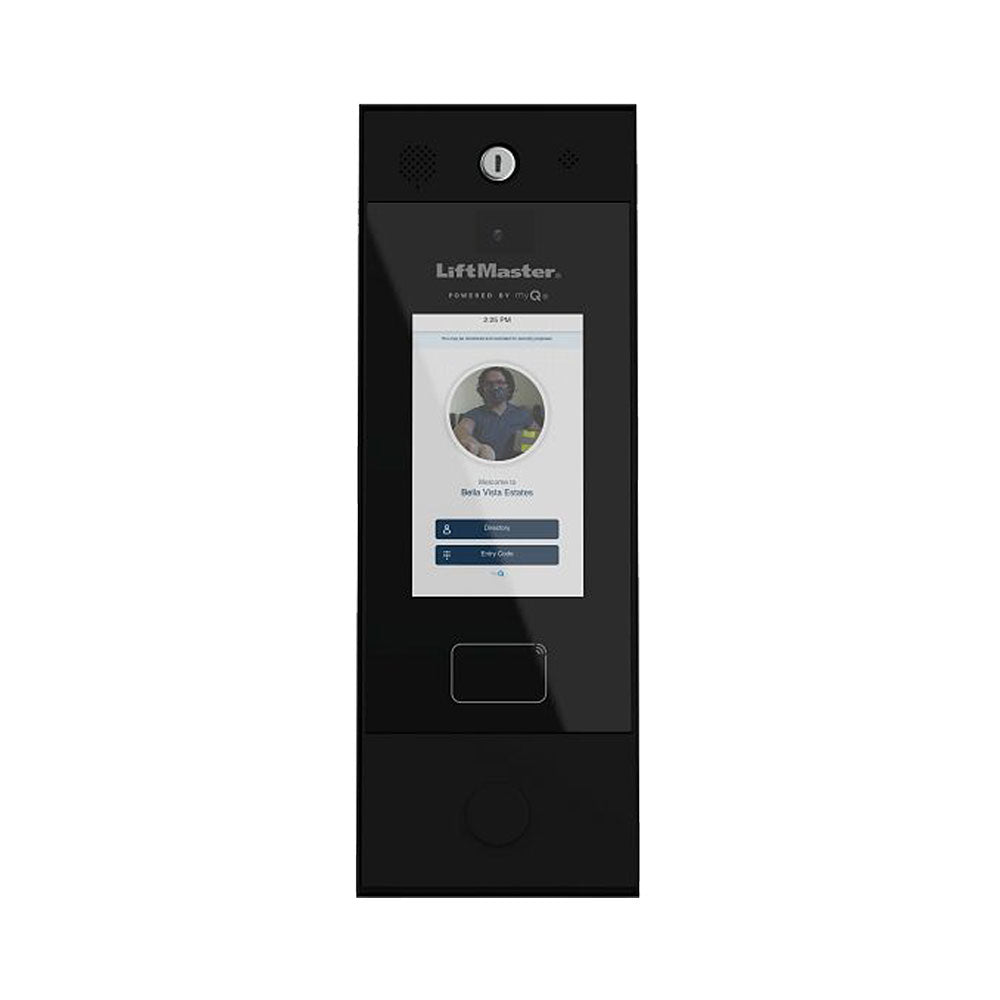

• 7-Inch Color Touchscreen Display. Compared to the CAPXLV with a 10-inch display, the CAPXM has a smaller screen, which is perfect for smaller spaces.

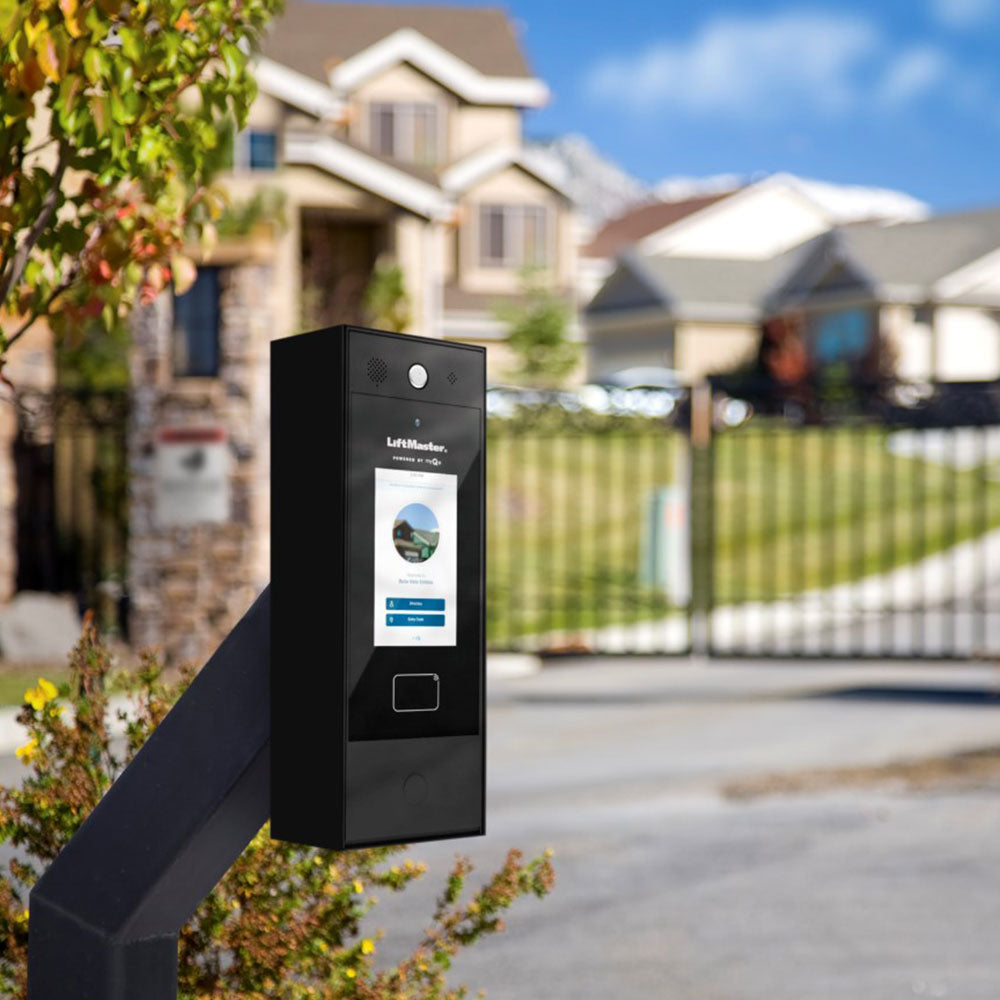

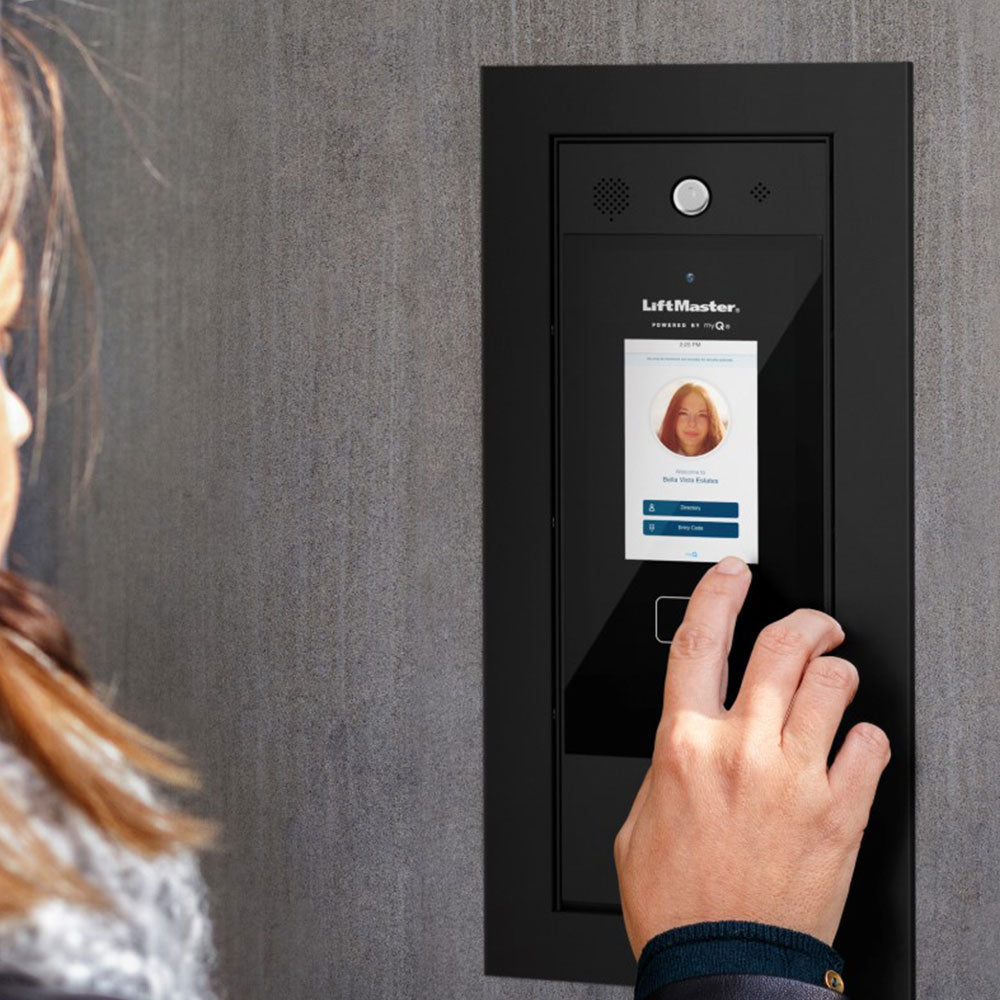

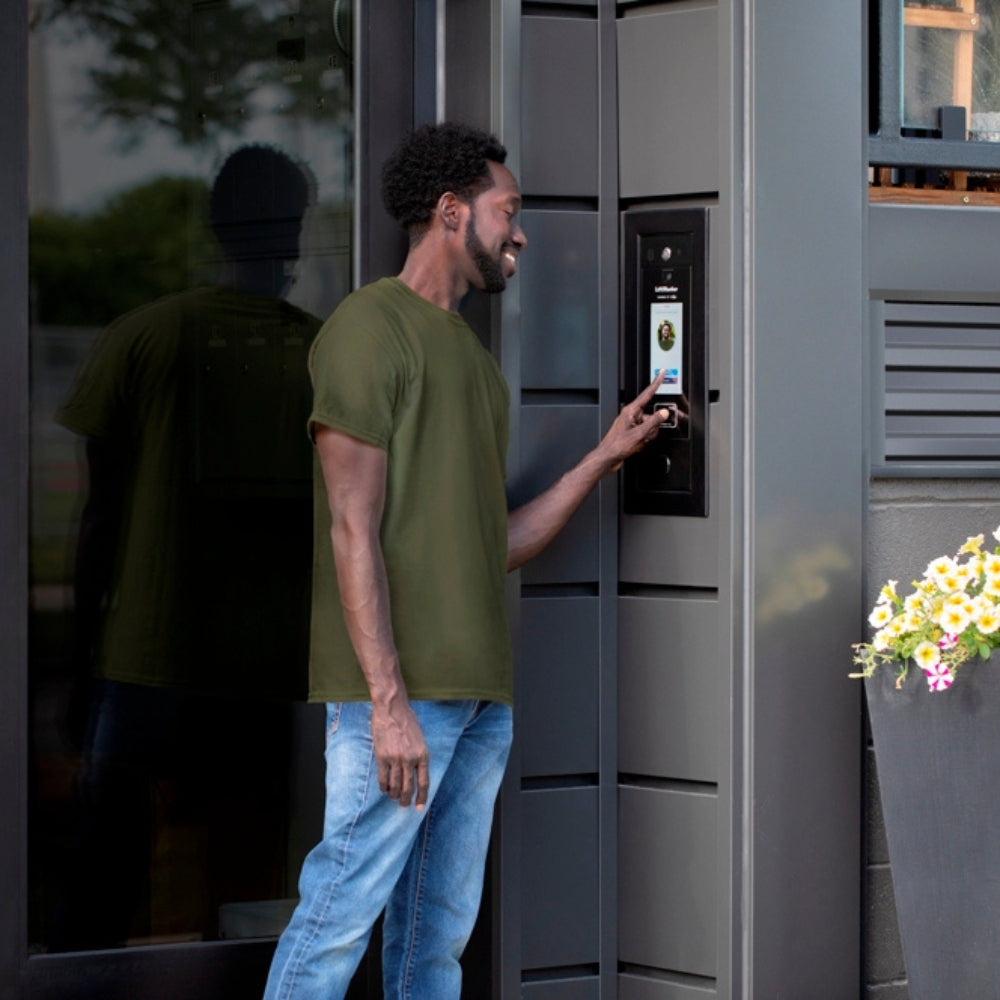

• Different Mounting Options. The CAPXM offers several ways for mounting. It can be surface-mounted, pedestal-mounted, or flush-mounted. The installation comes in easy steps, especially with the help of a personal Success Manager.
• Anti-Tamper Alarm. The anti-tamper alarm lets you know when your lock or code has been tampered with. This added security feature guarantees users and administrators that safety is a top priority of the CAPXM.
• Waterproof and Sandproof Gasket. The solid construction of the LiftMaster CAPXM makes it a durable choice for outdoor applications. The touchscreen, which is a vital part of the system, is protected with waterproof and sandproof gaskets to ensure optimum performance against weather changes and external factors.
• Compatible With Other LiftMaster Smart Access Products. To maximize its full potential, the CAPXM can be upgraded with other LiftMaster products, such as RFID vehicle tags, trim kits, wired keypads, and proximity readers, among others.

• Smartphone Control myQ Community app
• Wiegand Input 2
• Relay Output 4 (2Primary, 2 Auxiliary)
• Connectivity VoIP (Phone.com) using Internet via wired Ethernet 10/100 (DHCP, static configuration), or Wi-Fi** (DHCP configuration only)
• Software myQ Community
• Display Type 7 Inch 720p high-definition, fade and glare-resistant touchscreen display with picture-in-picture.
• Dimensions 17”H x 6.125”W x 4”D
• Operating Temperature -20°F to 130°F (-29°C to 54°C)
• Wireless Communication With LiftMaster UL 325
• Gate Operators mfr. After 10/17
• System Capacity 50,000 Local Resident Capacity Per Unit
• Video Video Camera: 1080p resolution with 135-degree viewing angle
• Warranty 2 Years
