Aiphone 1-Call Master Station with Door Release | AIP-LEM-1DLC

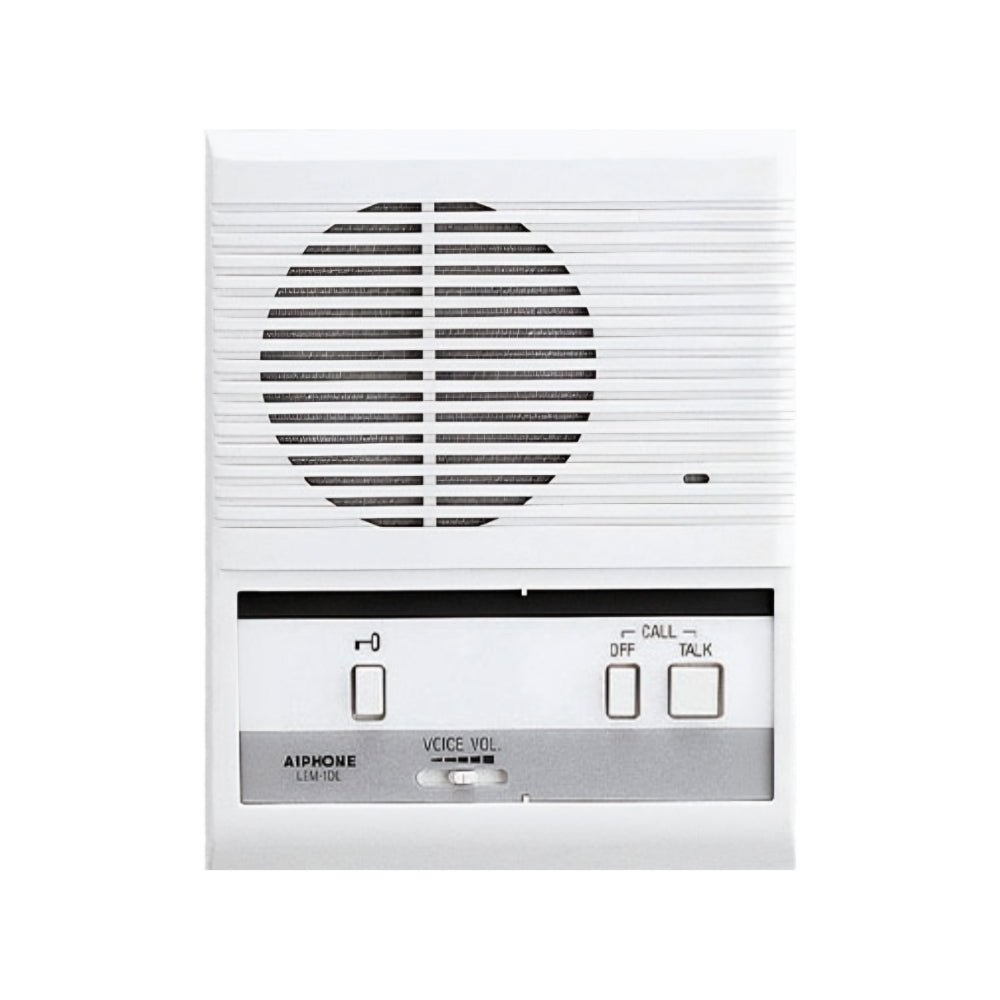

The Aiphone LEM-1DLC 1-Call Master Station provides audio communication and door-release control for a single entrance in a compatible dual-master intercom system. It allows two indoor master stations to communicate with the same door station, making it ideal for locations where entrance calls need to be answered from separate rooms or work areas.
The station supports push-to-talk audio communication, allowing users to speak with a visitor before activating compatible electric door-release equipment. Its built-in door-release button provides convenient access control from the master station.
Designed for desk or wall installation, the LEM-1DLC is suitable for small offices, retail locations, reception areas, warehouses, clinics, and residential properties requiring two indoor answering points.
Includes
- In-Use Occupied Lamp
Features
- Equipped to connect up to 4 master stations to answer one door station
- Provides communication to LE series door stations
- Voice volume control
- Push-to-talk communication
- Privacy LED to indicate that another master station answered the door
Manufacturer's Limited Warranty
- 2 Years
Technical Specifications
- Power Consumption: 4W (16V AC) max.,
200mA (24V DC) max. - Output: 100mW
- Type of communication: Push-to-talk (simplex)
- Door Release Contact: N/O dry contact, 30V AC/DC 1A
- Mounting: Wall or desk mount
- Wire Type: Door Station to Master Station: 2-cond., overall shield - use Aiphone #822202(22AWG) or #821802(18AWG)
- Between LEM-1DLCs:3-cond., overall shield - use Aiphone #822203(22AWG) or #821803(18AWG)
- Wire Distance: Door Station to Master Station: 650'(22AWG) 1,600(18AWG)
