Aiphone Standard Expansion Station | AIP-JO-1FD

AiphoneSKU: AIP-JO-1FD

Price:
Sale price$512.99

Estimate shipping

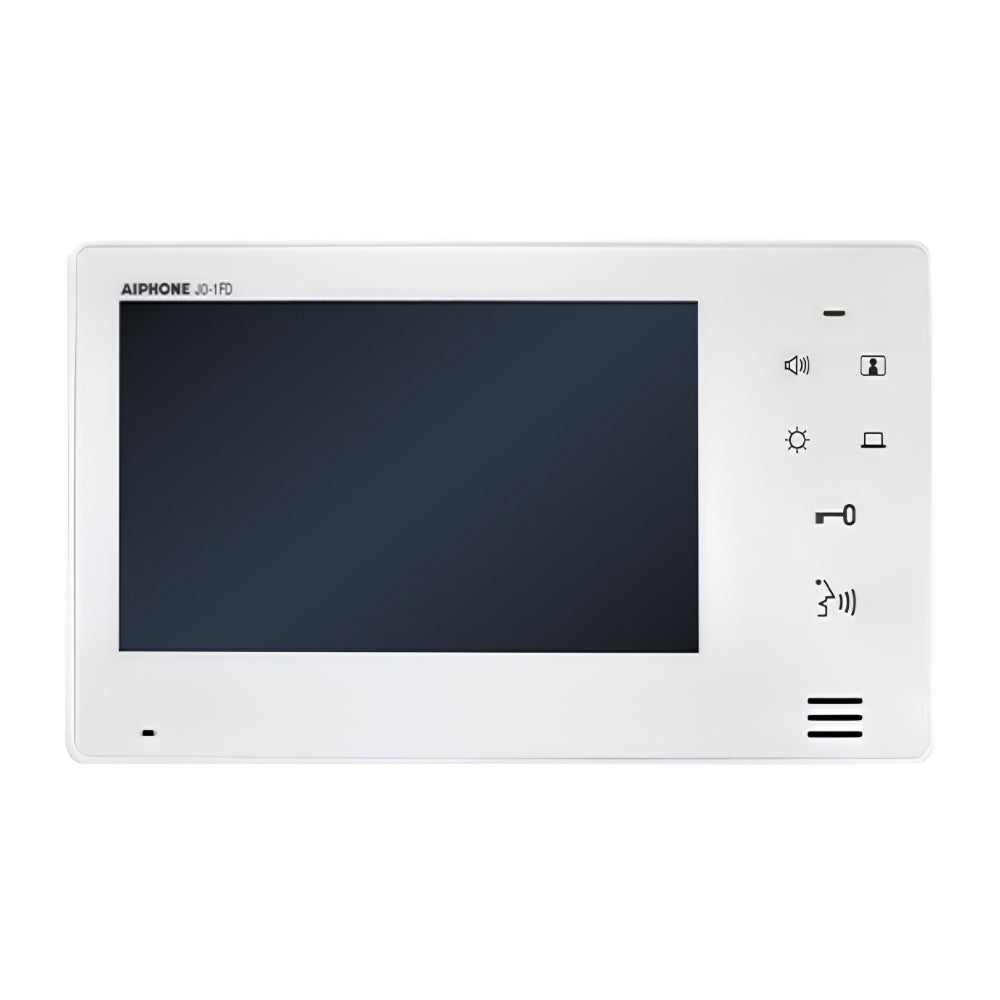

Aiphone Standard Expansion Station | AIP-JO-1FD

Adding a second hard-wired monitoring location is easy using the JO-1FD. The Aiphone JO-1FD Expansion Answering Station adds a secondary indoor answering location to a compatible Aiphone JO Series video intercom system. It allows users to answer calls, communicate with visitors, and operate supported door-release functions from an additional room or area within the property.

Designed as an expansion station, the JO-1FD is ideal for homes, offices, clinics, and small commercial facilities that need convenient intercom access from more than one indoor location. Its compact wall-mounted design integrates cleanly into interior spaces while extending the usability of the primary JO Series master station.

Manufacturer's Limited Warranty
  • 2 Years
Features
  • Video identification and monitoring with 7″ screen
  • Slim design
  • Electrostatic touch buttons
  •  Hands‑free or push‑to‑talk communication
Technical Specifications
  • Power Source: 18V DC (use PS‑1820UL)
  • Power Draw: 420mA max
  • Communication: Hands-free (VOX) or push-to-talk (simplex)
  • Video Display: 7" LCD screen
  • Door Release: N/O dry contact, 24V AC/DC, 500mA (use RY-18L for larger contact)
  • Mounting: Surface mount directly to wall or desk mount using MCW-S/A
  • Wire Type: 2-cond., low cap, non-shielded - use Aiphone #871802
  • Distance: Door Station to farthest Master Station: 165' (22AWG) 330' (18AWG)
