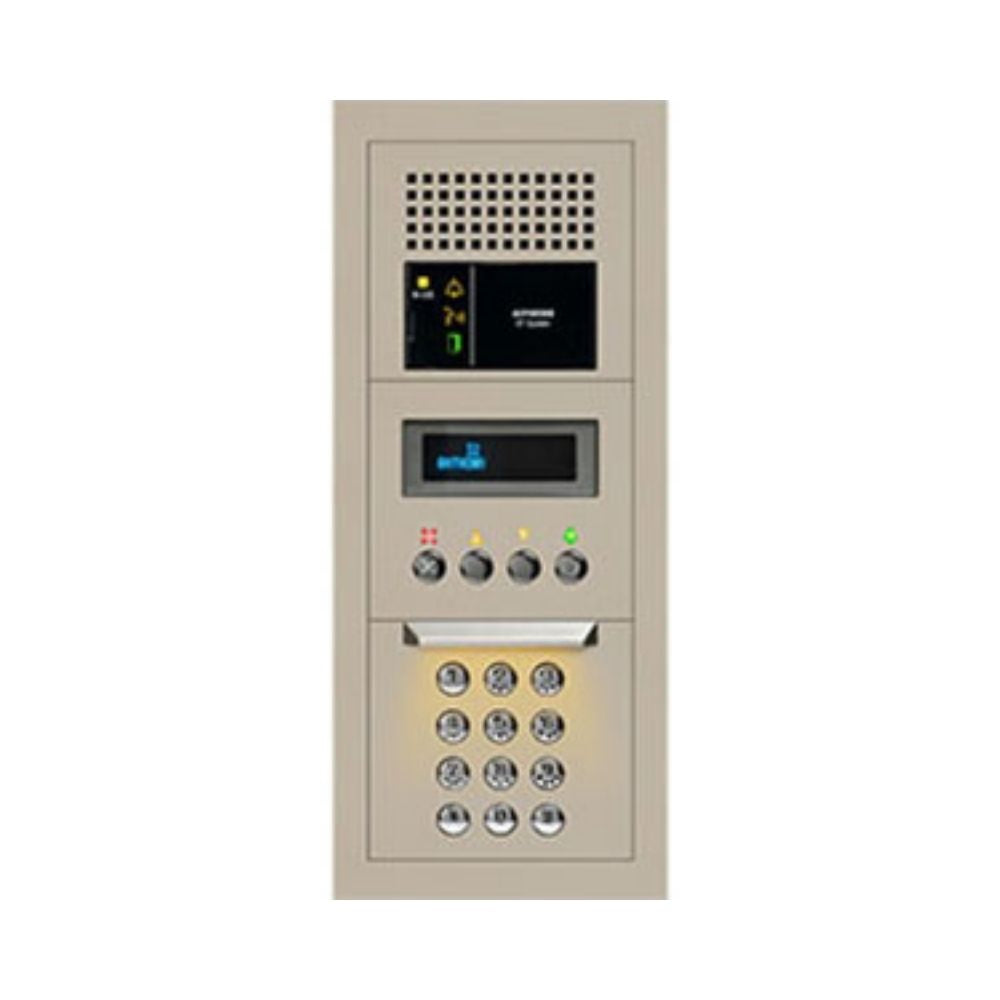

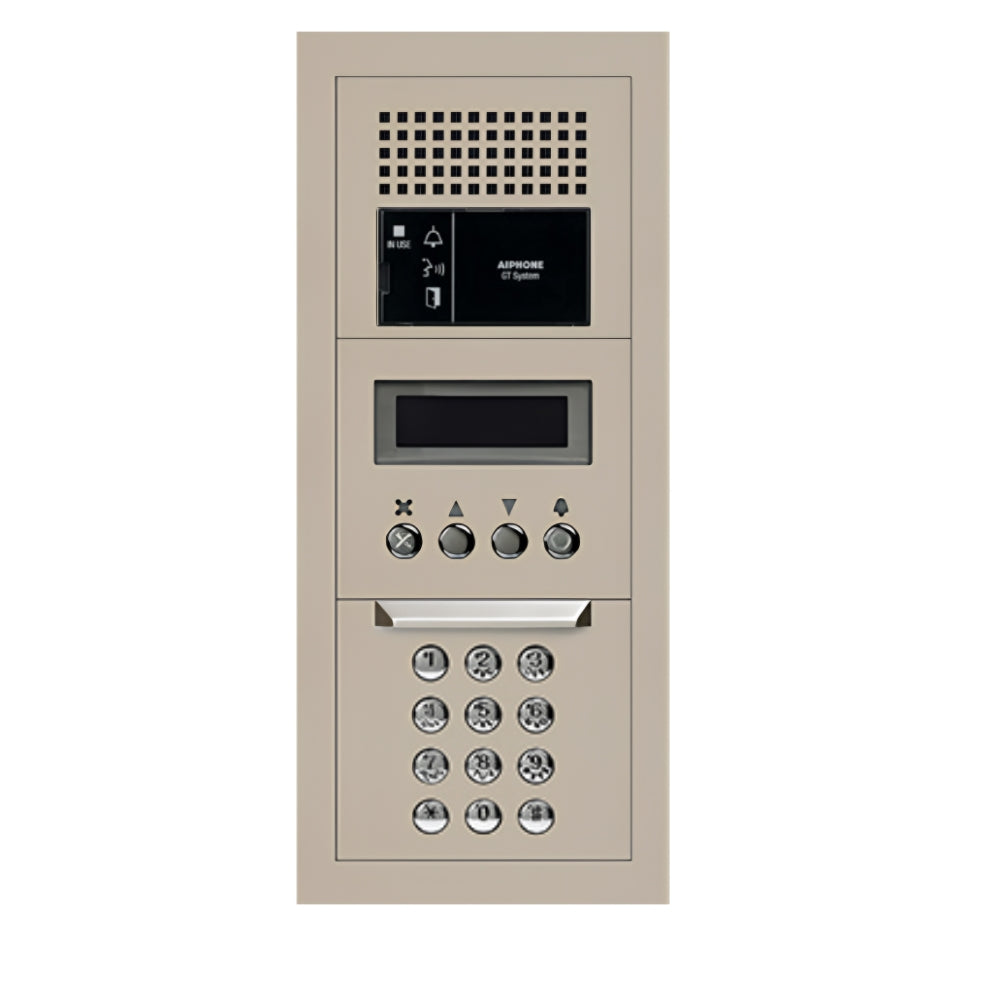

Aiphone 10-Key Audio Entrance Panel Kit | AIP-GTA-DESB
The Aiphone 10-Key Audio Entrance Panel Kit GTA-DESB is an audio intercom entrance panel kit designed for secure and efficient communication between visitors and residents or users in multi-unit residential or commercial buildings. This kit includes an entrance panel with ten call buttons and is used to enable communication and access control at the building's entry point.
Manufacturer's Limited Warranty
- 2 Years
Features
- Hands‑free communication
- Direct dialing, alphabetical scrolling, or “jump” scrolling by letter to select tenant
- Digital panel stores up to 500 tenant names/number locations and 500 unique access codes to activate door release
- Voice annunciation in English, French, German, Spanish, Dutch, and Italian
- Alpha‑numeric room numbers and/or names can be programmed with software
- Scrolling welcome message, up to 160 characters, adjustable scroll speed
- Weather and vandal resistant
- Contains GT-DB audio module and GT-NSB digital display and directory
- GT-10K keypad for direct dialing and access control
- Includes GF-3F frame and the GF-3B flush back box
- VFD screen displays a customizable greeting message, tenant directory, and system status
- Surface mount the GTA-DESB with the steel GT-103HB (sold separately)
Technical Specifications
- Power Source: 24V DC, use specified number of PS-2420UL per system configuration
- Communication: Hands-free from the entrance panel to tenant station
- Capacity: Max. 16 Entry panels per system
Max. 4 Concierge stations per system
Max. 500 Tenant stations per system
Max. 4 Tenant stations per unit - Door Release: Form C dry contact, 24V AC/DC, 4A
- Operating Temp: 14°~140°F (‑10°~60°C)
- Material: Zinc die cast
- Wire: 2-conductor, PE insulation
Aiphone #872002, 2-conductor PE insulated, non-shielded, 11.05 pf/ft (Audio) - Wiring Distance: GT-BC to farthest entrance: 980'
GT-BC to the farthest tenant (audio): 980' - Mounting: Semi‑flush mount with the included GF‑3B or surface mount with GT‑103HB (sold separately)
