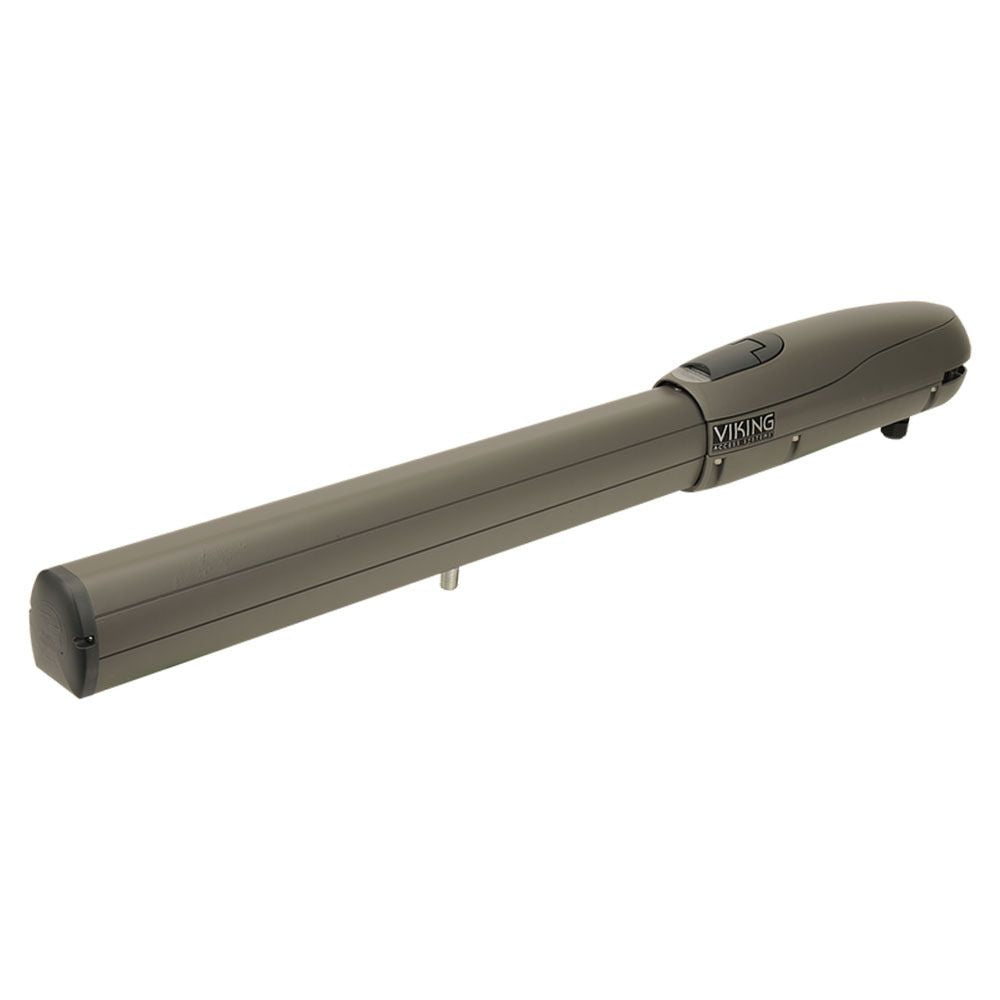

Viking G5 Swing Gate Operator - Operator Only | VIK-VA-G5NX
With its compact, low profile design and the power to support gates up to 2000 lbs. in weight or up to 18 feet in length, the Viking G-5â„¢ has revolutionize the idea of gate operation. This operator is manufactured with the highest quality components and is designed to accent any gate style. The G-5â„¢ is capable of continuous cycles operation and the included battery back-up system provides up to 400 cycles of operation with a maximum capacity gate. The G-5 operator is now powered by the advanced intelligence and simplicity of the new VFlex control board.
Features
- Adaptive motor control
- Built-in thermostat-controlled heater
- Built-in voltmeter
- Lightning strike protection
- Multiple power options
- On-board display
- True battery back-up
- UL325 compliant
- Two monitoring inputs w/ up to 4 devices per input
- (Optional) Large box with 120 V outlet
- Adjustable speed control
- Anti-tailgating feature
- Fail secure mode
- Fail-safe mode
- Large box option
- Lockable cover
- Manual release - electronic
- Multiple power outage options
Technical Specifications
- Maximum Gate Capacity: See fig. 2
- UL 325 Classification: Class I, II, III, IV
- Duty Cycle: 100%
- Operating Voltage: 24VDC
- Voltage Current Specs: 120VAC - 1.5A or 240VAC - 1.0A
- (each motor)
- Main Power Frequency: 50Hz / 60Hz
- Main Power Fuse: 4A Timed
- Alternative Power Source: 24VAC / VDC (60VA) or Solar
- Accessory Power: 24VDC - 750mA
- Power Consumption - Sleep: 28mA
- Motor Current (Typical: 3.0A
- Operating Temperature: -20°F (-28°C) to 160°F (71°C)
- Opening Angle: 135°
- Gate Speed: 15-18 sec./90°
- Battery Backup: 400 Continuous Cycles

Manufacturer's Warranty Period
- 3 Years
