USAutomatic Ranger HD II SOLAR Charged Dual Swing Gate Opener Kit 020519 with Standard Plastic Enclosure For Gates Up To 16 Feet and 800 lbs
Heavy duty – 12 Vdc - 24in stroke linear actuator for residential, light commercial, farm and ranch use.
Why buy the new ranger HD by USAutomatic?
The ranger HD includes a radio receiver, two transmitters / remotes, photo beam, 3 years warranty, basic plug & play board, soft stop / start and limits on control board that will never have to reset! The gate industry is loving the ranger HD!

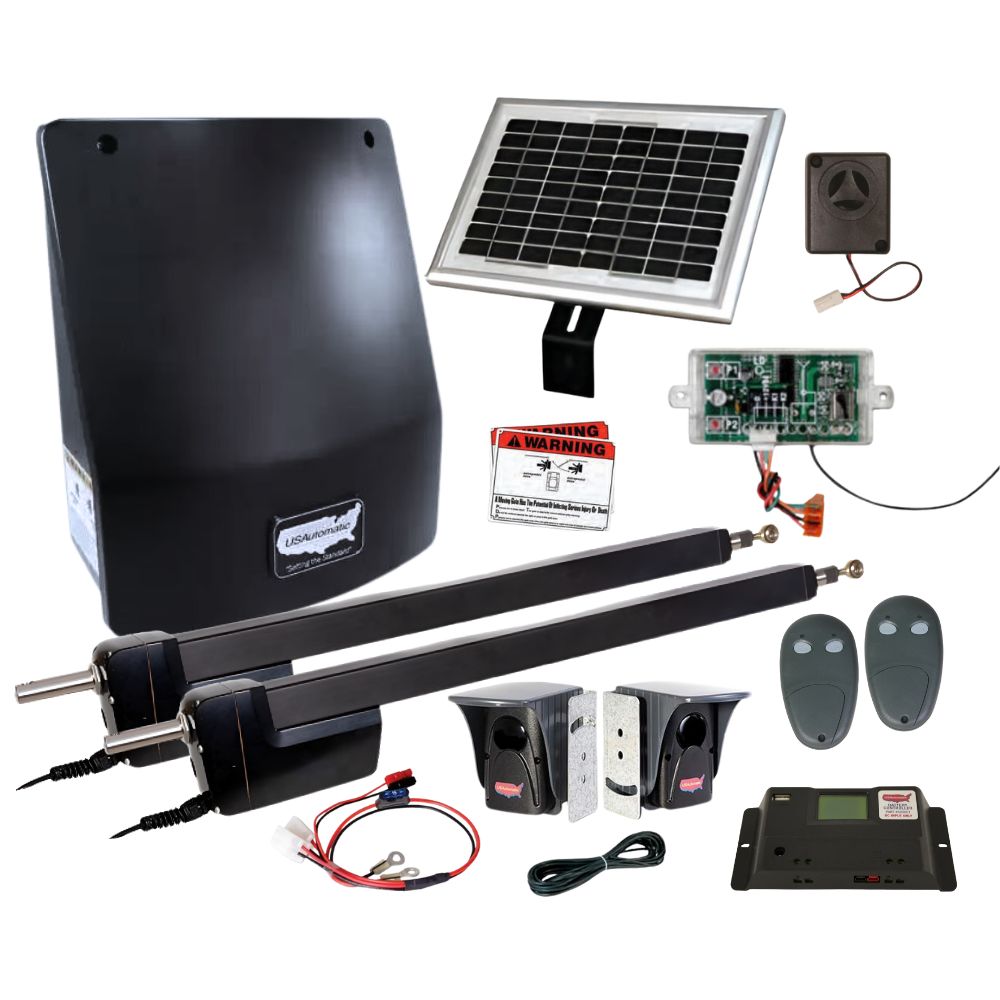

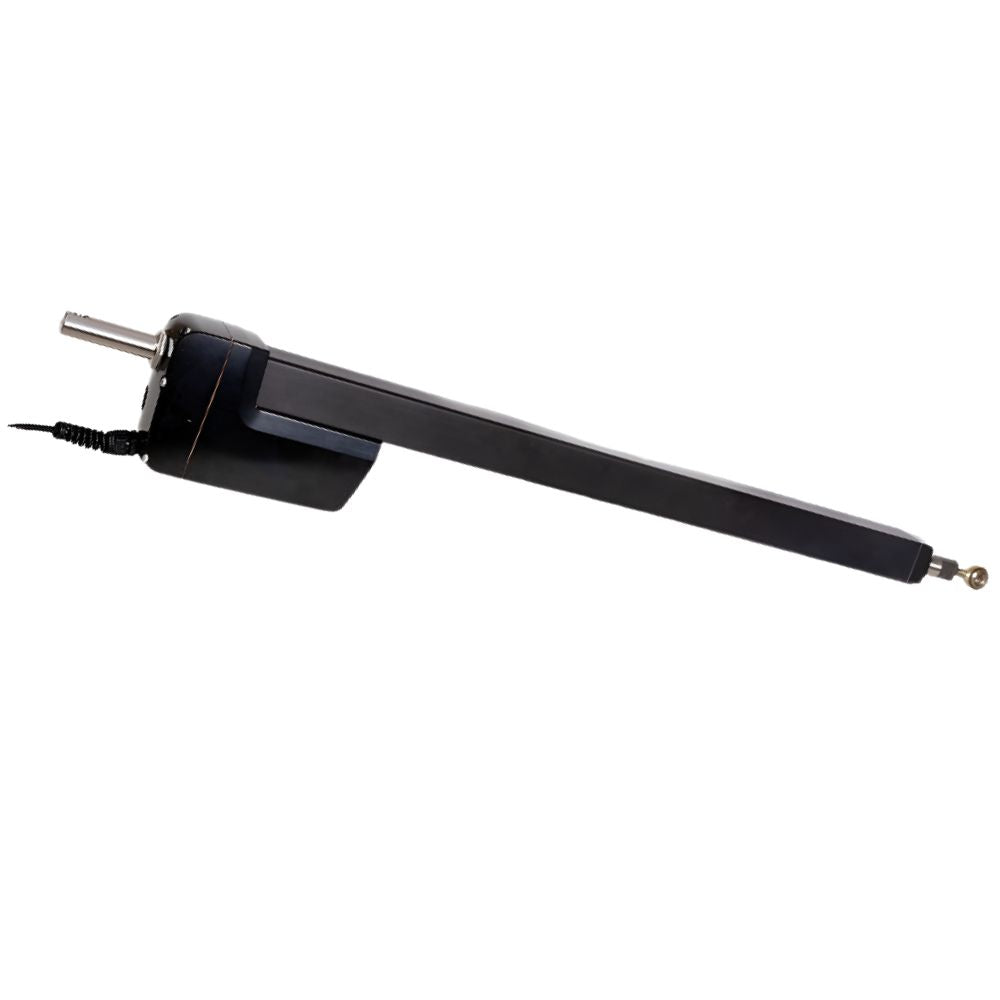

- 2 ranger HD actuator 510006
- 1 40’ dual gate actuator extension cable 630020
- 1 control board 500021

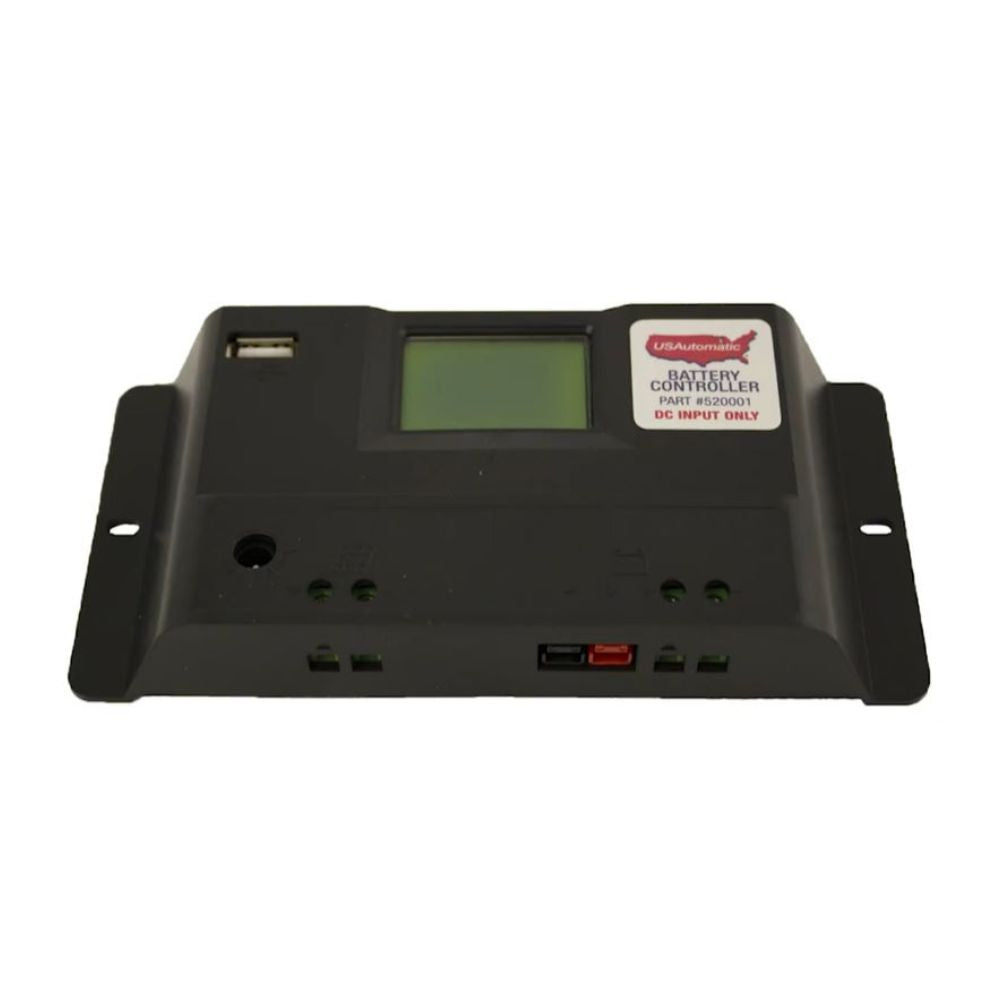

- 1 battery controller 520001

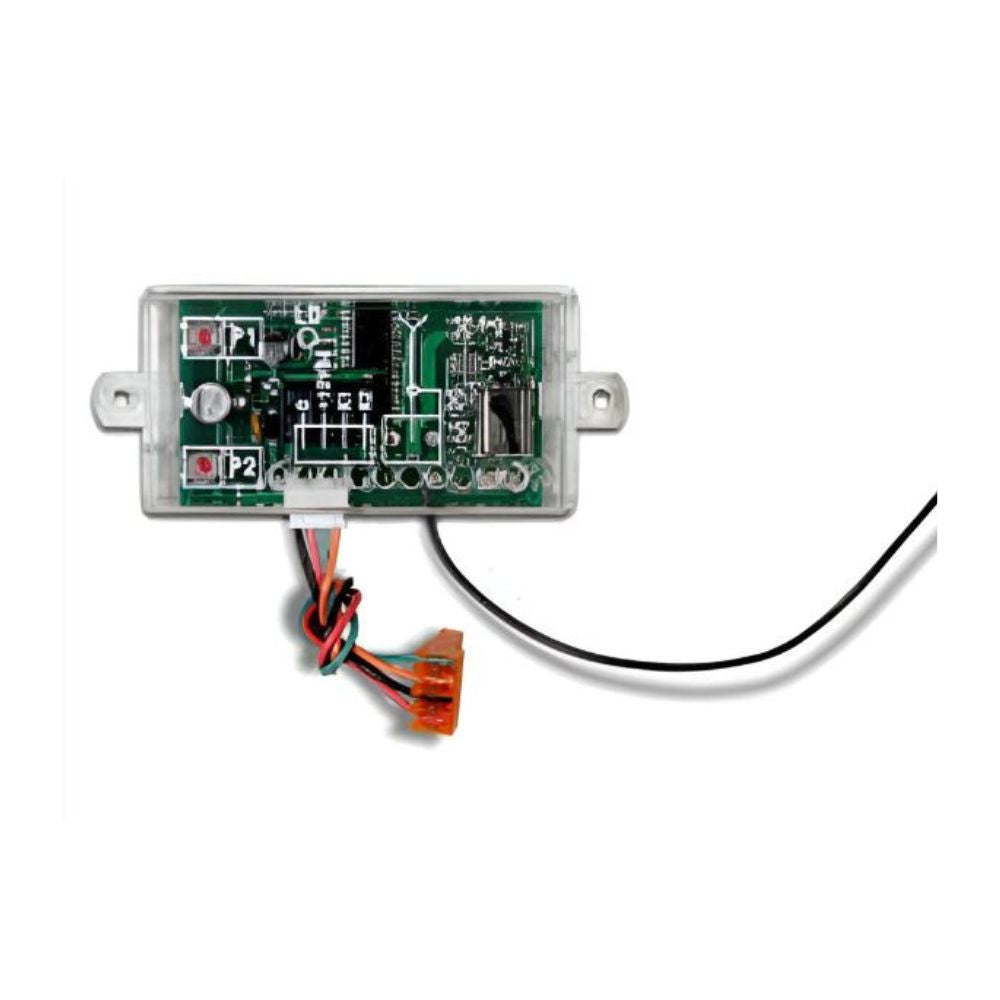

- 1 radio receiver w/harness 030200

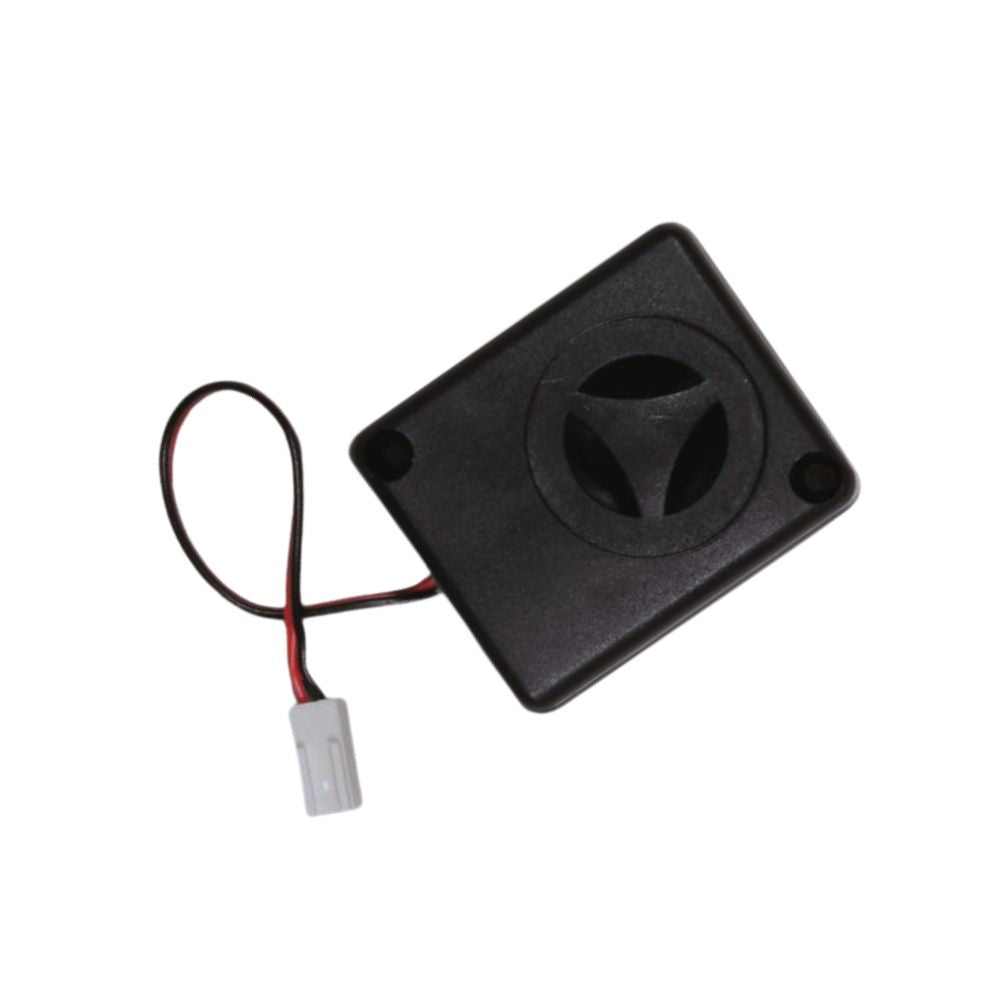

- 1 secondary entrapment siren 530015

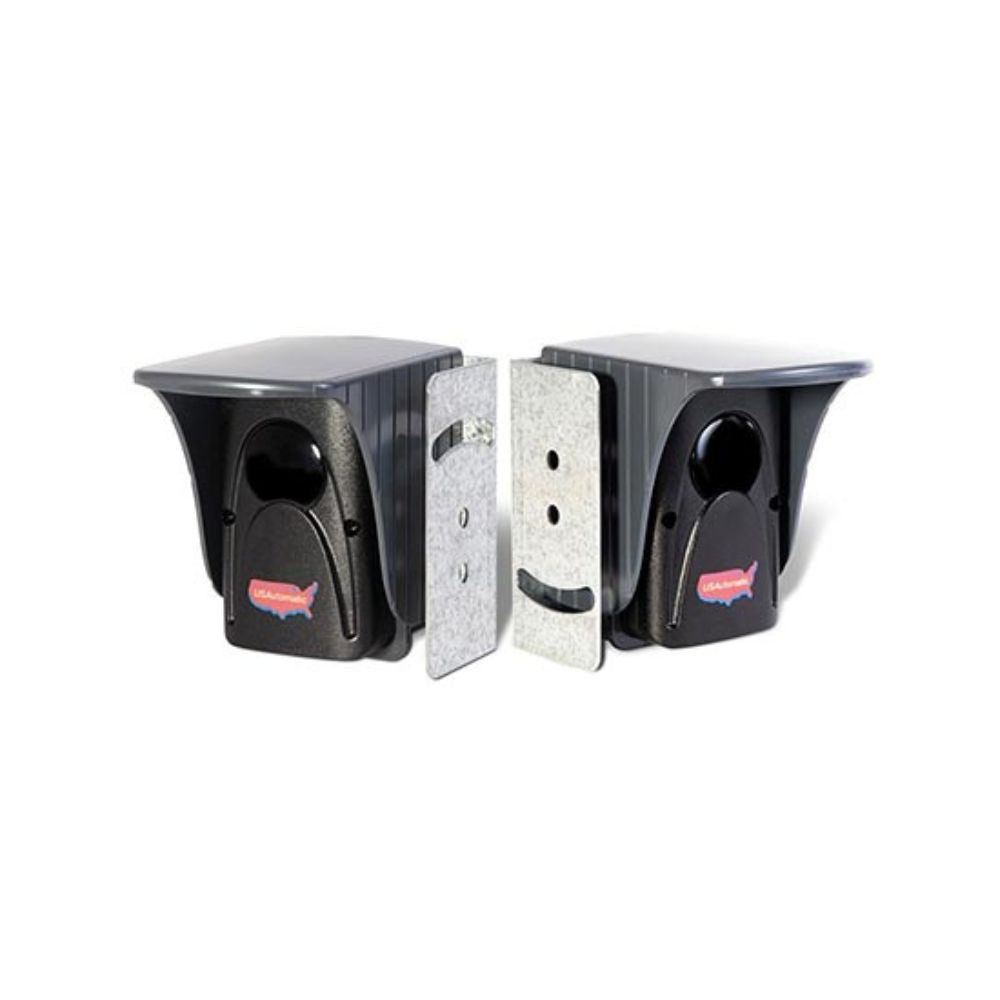

- 1 set of photo eyes 550011

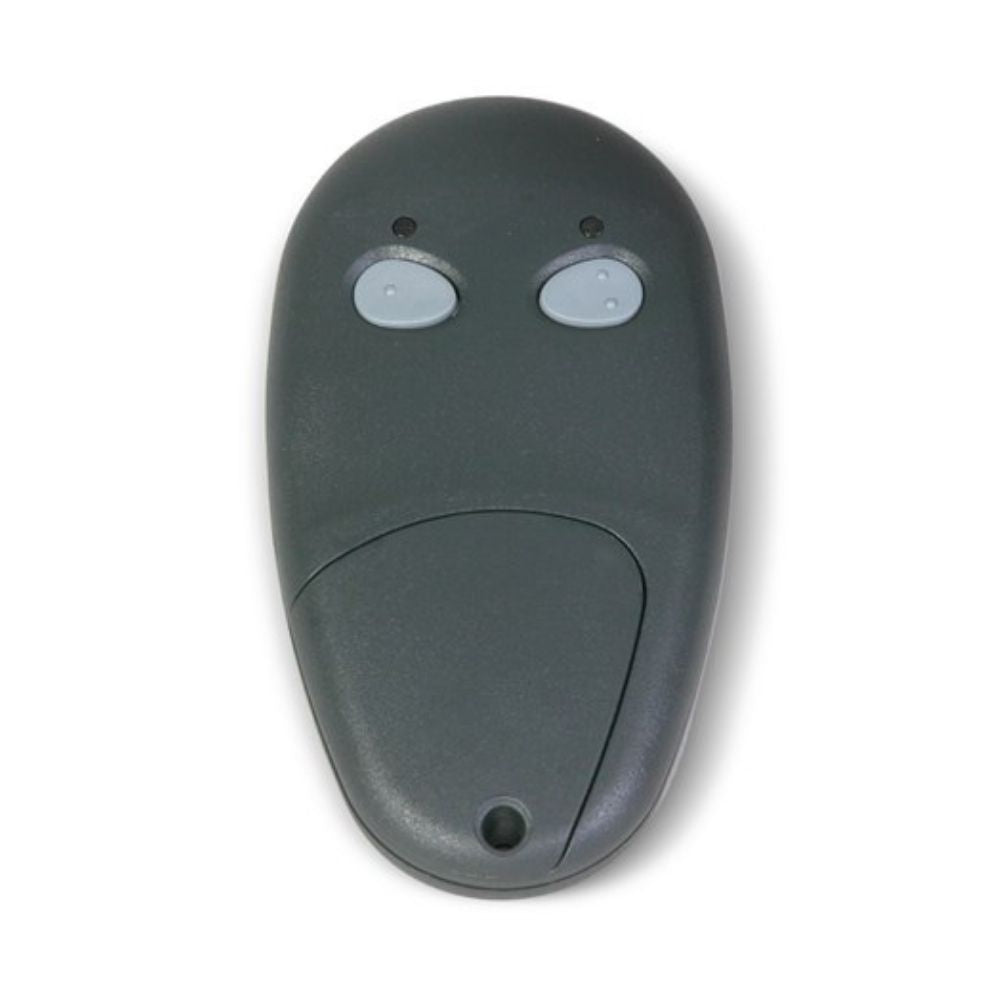

- 2 wireless two button remotes 030210
- 1 10 watts solar panel kit 520026

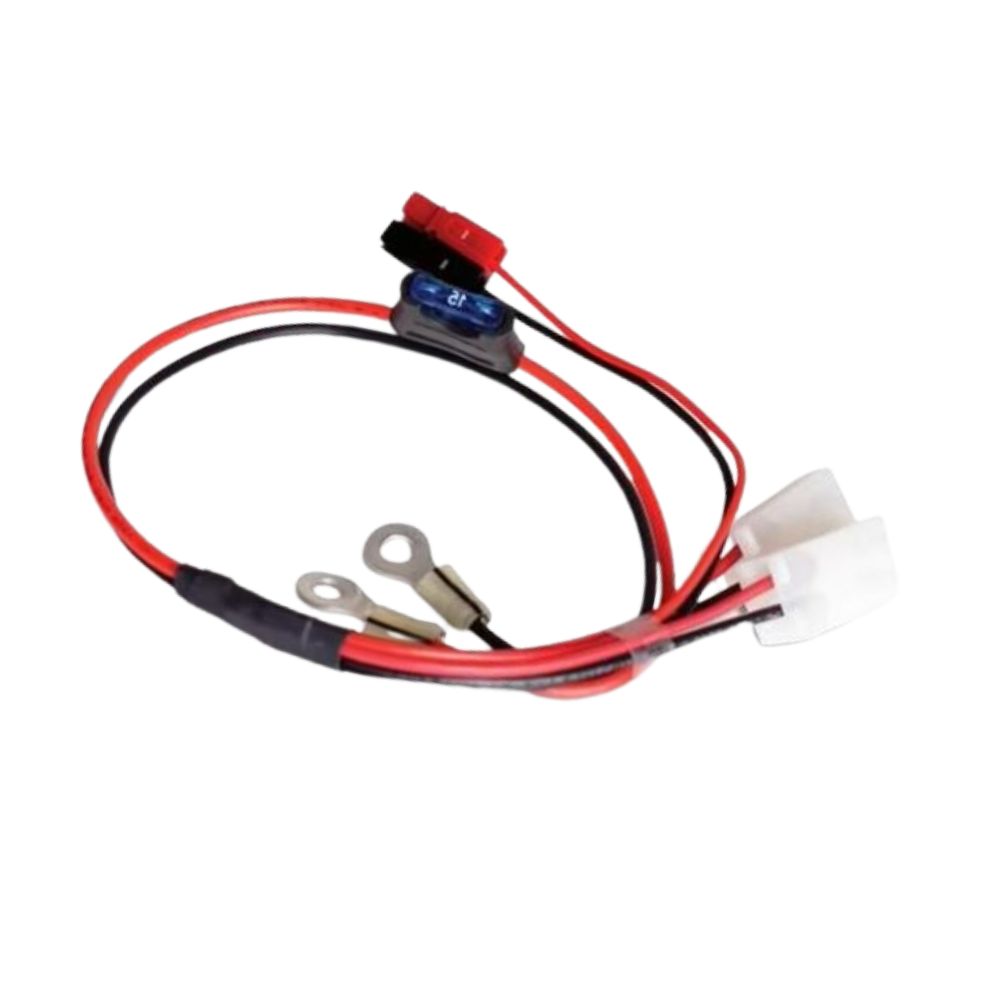

- 1 wiring harness 630041

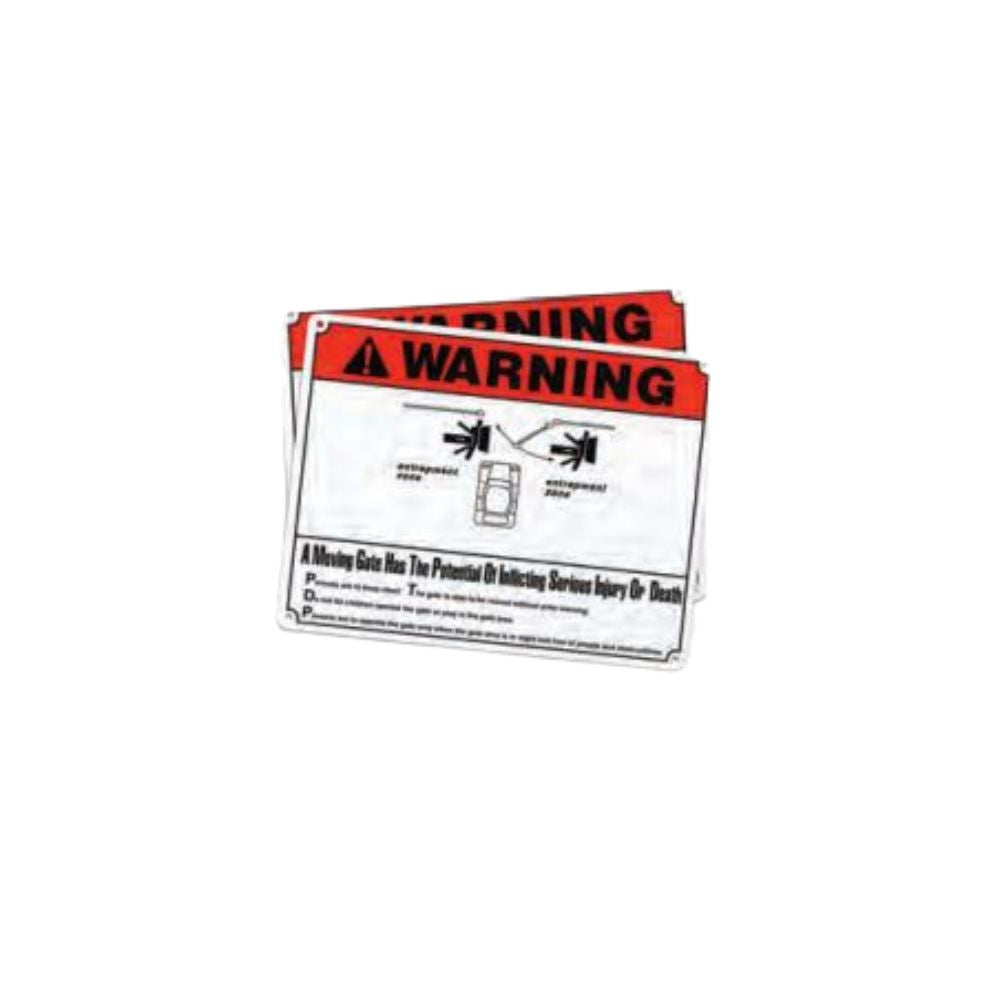

- 2 safety signs 601020
- Proudly made in the USA!
- 3 year manufacturer warranty

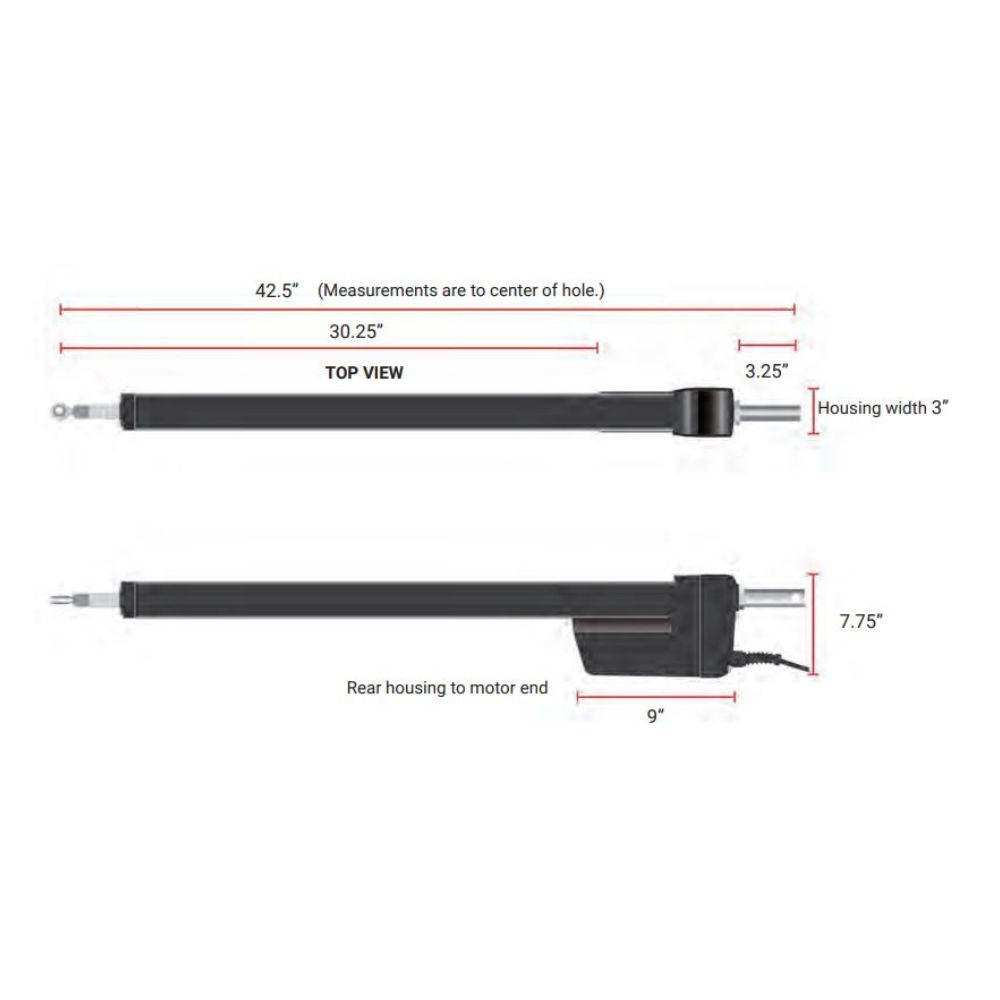

- Heavy duty – 12 Vdc - 24in stroke linear actuator
- Gate travel speed ~12 seconds
- Can be operated remotely with the NEW USAutomatic NexxGate App.

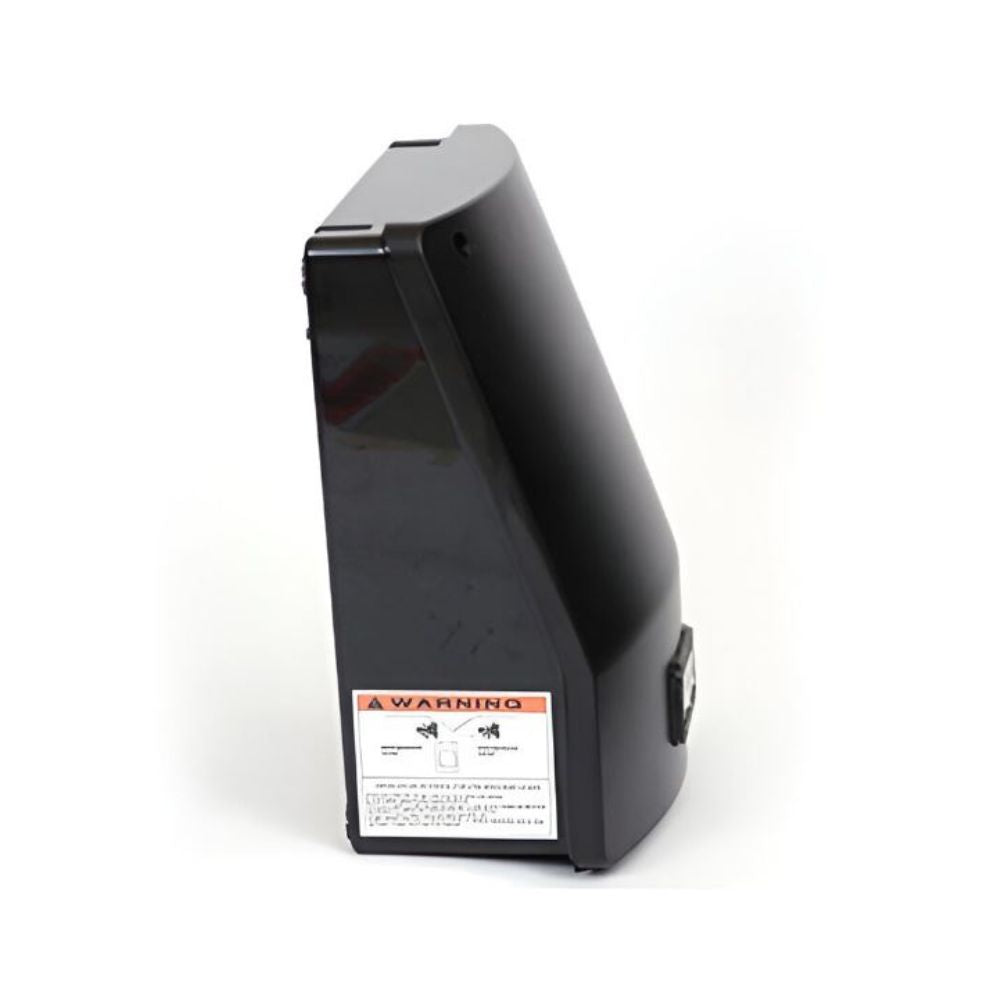

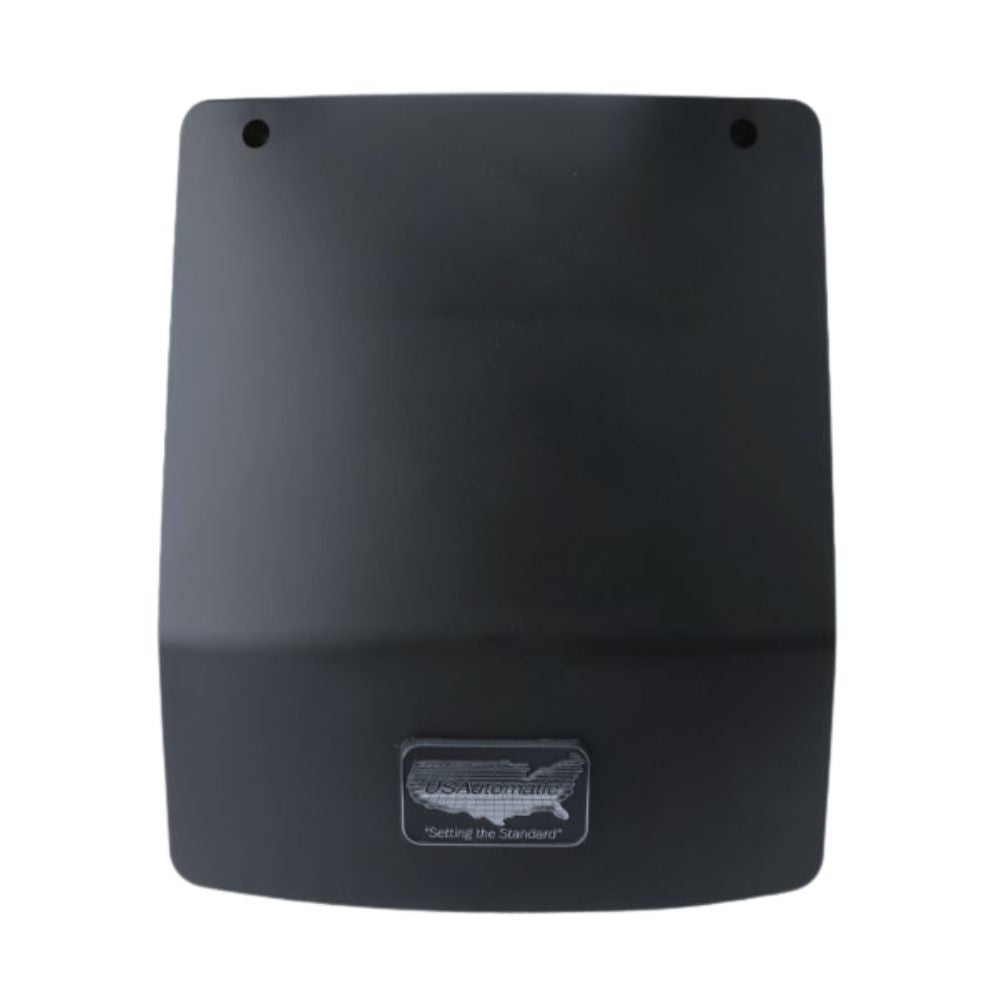

- Non-corrosive actuator and control box
- Photo Eye - through beam for reliability
- Electronic limit control on board
- PWM soft start and soft stop
- Battery powered charged with AC or solar
- Optional galvanized box available
- For residential, light commercial, farm and ranch use
- Power Input: Solar charged
- Maximum Gate Length: 16 feet
- Maximum Gate Weight: 800 pounds
Battery Required For Operation (Battery not included)
Recommended Battery Type:
Battery 12-volt, Group U-1; sealed (maintenance free); 30 amp hour minimum. Using a smaller amp hour battery may cause damage to the charging system. The wiring harness has two 1/4” ring terminals to connect to battery posts.
Caution!!! Do not install wet cell battery into control box; this type of battery usually has removable caps used for service and will vent into control box.
