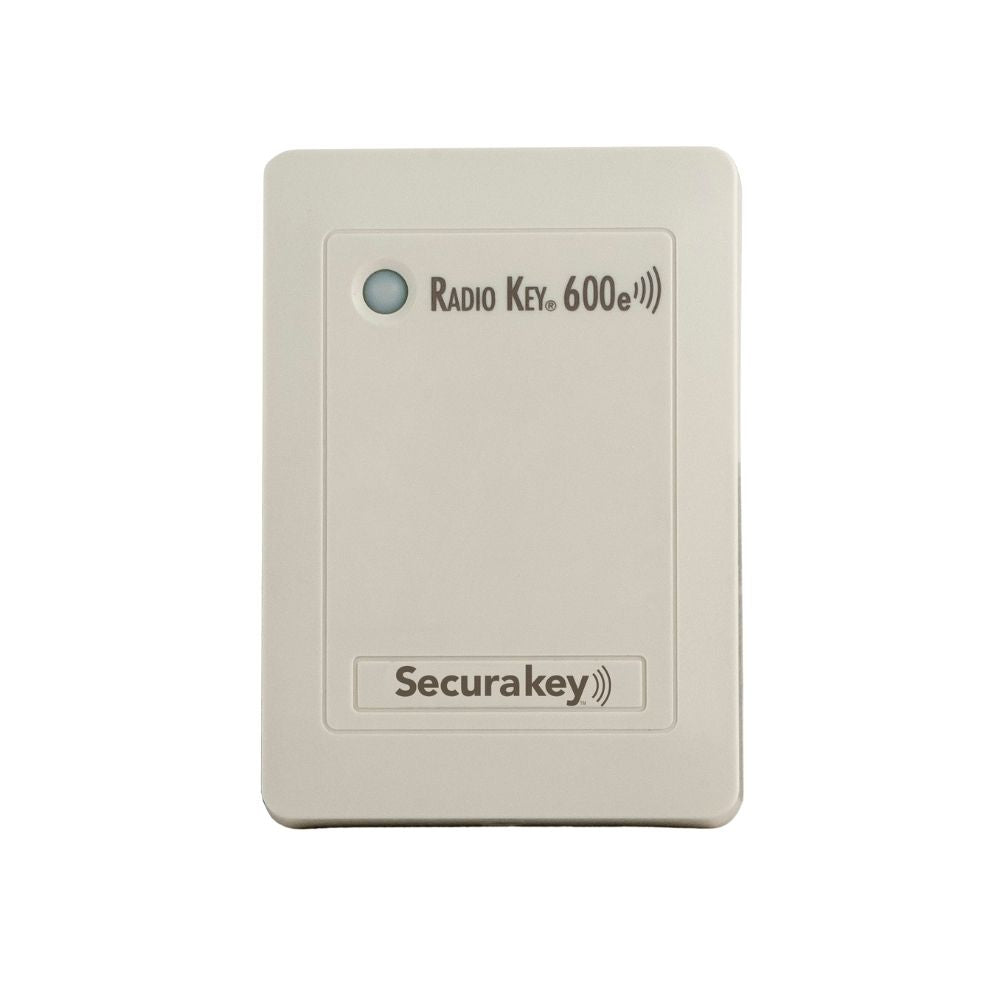

SecuraKey Access Control Unit without Keypad Beige | SKY-RK600e

SecuraKeySKU: SKY-RK600E

Sale price$275.71

Estimate shipping

SecuraKey Access Control Unit without Keypad Beige | SKY-RK600e

The RK600e provides access control for up to 600 users, using random-numbered cards or key tags, and can be programmed easily with an RK-HHP handheld programmer or an RK-PD1 program card deck

Radio Key® standalone proximity card readers manage from 600 to 65,000 individual users. They are fully programmable, standalone single-door access control systems. They are compact, weather-resistant, surface-mounted units. They have an internal reader and can be used alone for most applications. Patented Dynascan® automatic tuning optimizes each reader to its environment, assuring superior read range.

  • Low Priced Single Door Proximity Entry System
  • Weather Resistant Units for Outdoor Locations: RK600e conformal coated, RK65K epoxy potted
  • 125 kHz Proximity Technology • Dynascan® Auto-Tuning for Superior Read Range
  • Up to 6” Read Distance • No Control Panel Required
  • Program with Handheld Programmer or Proximity Card Deck (RK600e/RK65K/RK65KS)
  • Wiegand Output for Future Expansion (RK65K)
  • Connect PC or Serial Printer with Optional Audit Trail Module (RK600, RK600e)
  • Optional Auxiliary Reader for High-Security / Extreme Weather Conditions (RK600, RK600e)
  • UL294, FCC and CE Regulatory Approvals
Technical Specification
  • Dimensions (H, W, D): Wall switch: 4.5” x 3.2” x 0.84” 11.43 x 8.12 x 2.13 cm
  • Mounting: US single-gang box, wall, post, pedestal
  • Weight: 5.0 oz (141.75 gm)
  • Material: Lexan
  • Color: Beige
  • Power Requirements: 50 mA / 100 mA avg/peak @ 9-14VDC
  • Latch Relay: DPDT 0.5A max @250VAC, 2A max @ 24VAC/DC
  • Shunt Relay: DPDT 0.5A max @250VAC, 2A max @ 24VAC/DC
  • Inputs: Request to Exit (Requires SPST contact closure)
  • Communications: RS-232 to PC or Printer with optional RKAT
  • Cable required: Serial: 4-cond., shielded 18-24 AWG Aux Reader: 2 cond. non-tw. / non-shield, and 4 cond. shielded
  • Environmental: Operating Temperature: -40° to +158° F(-40° to +70° C) Relative Humidity: 0-100% Non-Condensing
  • Operating Frequency: 125 kHz
  • Read Range: Molded Card up to 6” (15.24 cm), ISO Card/key tag up to 5” (12.70 cm)
  • User Capacity: 600 PINs or random numbered cards
  • Memory: Non-Volatile (Programming retained, even if power is lost)
  • Operating Modes: Card Only
  • Latch Timer: Programmable: 0.25 – 30 seconds
  • Programming: HHP handheld programmer keypad or RK-PD1 programming deck.
  • Reports: Card/Keytag/PIN Status, Last 150 Events
  • Compatible Cards: RKCM-01 (Molded Clamshell); RKCI-01 (ISO); RKKT-01 (Key tag) Random Numbered Cards – no FC
  • Regulatory: Approvals UL/cUL294, Part 15 Class B FCC, CE Mark
  • Warranty: These Secura Key products are warranted against defects in materials and workmanship for life. Secura Key will replace any Secura Key manufactured product that fails to perform as intended. This warranty does not include freight, taxes, duties, or installation expenses.
