SecuraKey Proximity Molded Card Random Numbering Bag of 25 | SKY-RKCM-01-25

SecuraKeySKU: SKY-RKCM-01-25

Sale price$68.21
Add to cart
  • Final sale. No returns or exchanges.


SecuraKey Proximity Molded Card Random Numbering Bag of 25 | SKY-RKCM-01-25

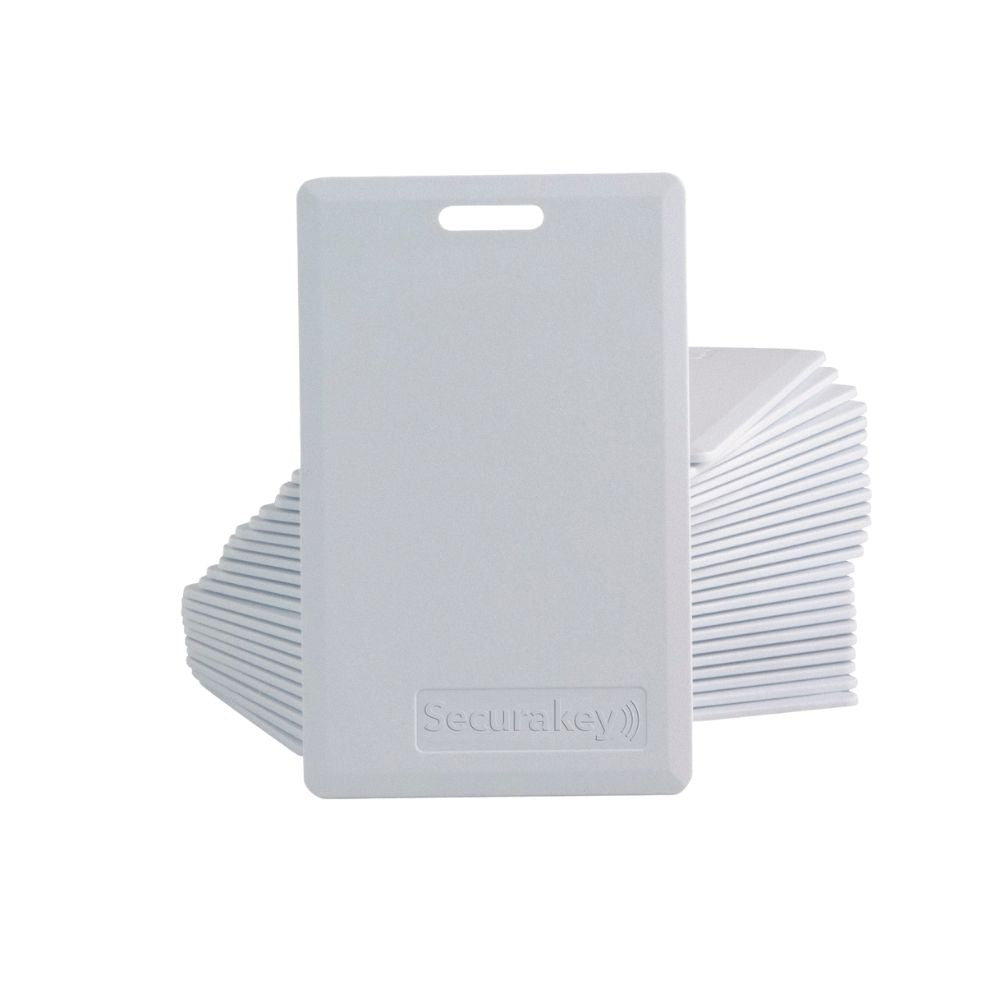

The Radio Key® “Clamshell” Card (RKCM) can stand up to rough usage while providing superior read range. The clamshell card has a standard CR80 form factor, with a thicker rugged ABS card body which also allows thicker antenna windings than the ISO card, resulting in superior read range. The clamshell card can be carried with credit cards in a wallet or purse. It includes a molded slot for a strap and clip allowing it to be used as an ID badge in a vertical orientation. Available options include an adhesive-backed graphics quality PVC label, which can be used with direct image and thermal transfer printers to add photo ID capability to the card. External laser-engraved card numbering is included.

Note: This card consists of random numbers, and there is no need for a facility code or sequential number.

This product is non-returnable and non-refundable.

  • 125 kHz proven, reliable proximity technology.
  • Any existing card data format up to 40 bits can be factory programmed into the credential
  • Offers universal compatibility with all SecuraKey proximity readers
  • Provides an external number for easy identification and control
  • Supports formats up to 40 bits, with over 1 trillion possible codes
 Clamshell Card Features
  • Rugged shell withstands rough use
  • Heavy gauge antenna coil provides superior read range

Note: This product is non-returnable and non-refundable.

Technical Specifications
  • Base Part Numbers: RKCM-01 (Random Numbering)
  • Max Read Range** RK-WM RK-WS RK-WL: Up to 6.0” (15.24 cm) Up to 8.0” (20.32 cm) Up to 36.0” (91.44 cm)
  • Dimensions: 2.125” x 3.375” x 0.065” max. (5.40 x 8.57 x 0.17 cm)
  • Weight: 0.31oz (8.79 gm)
  • Card Construction: Rugged ABS card body with PVC top label
  • Operating Temperature: -40° to 158° F (-40° to 70° C)
  • Operating Humidity: 5-95% non-condensing
  • RF Interface: Amplitude Shift Keying, 125 kHz
  • Transaction Time: <100 ms typical
  • Memory Type: EEPROM, read-only
  • Data Retention: 10 years
  • Warranty: Lifetime warranty. See the complete warranty policy for details.
  • Card Data: 40 bits max
  • Magnetic Stripe (optional): NA
  • * Random numbering required for RK600, RK600e, and RK100 standalone readers only
  • **Dependent upon installation conditions
