LiftMaster LA500PKGUL Dual Swing Gate Opener
The LiftMaster LA500PKGUL is a dual swing-gate opening system with everything you need to get started. It features durable, reliable construction that is rated for large gates and commercial use.
Performance Specs
- POWER - Full-time AC-run operation 120V/230V Single Phase
- ACCESSORY POWER - 24VDC 500mA output. Switched and unswitched power
- MONITORED SAFETY INPUTS - 3 Main Board, 3 Expansion Board
- TEMPERATURE SPECIFICATIONS - -4°F (-20°C) to 140°F (60°C)
- UL USAGE CLASSIFICATION - I, II, III, and IV
- GATE TRAVEL SPEED - 90-degree opening in 15-17 seconds
Construction Specs
- P3 MOTOR® - 24VDC continuous-duty motor
- OPERATOR WEIGHT - Actuator arm 35 lbs. Standard control box 13 lbs. Includes (2) 7Ah batteries
- CHASSIS - Commercial-duty aluminum die-cast housing
- WORM GEAR REDUCTION - Precision-machined all-metal gear in contained lubrication housing
Product Description
The LiftMaster LA500PKGUL is a dual swing-gate opener with a wealth of impressive features. This package includes everything you need to get set-up – including a primary & secondary arm, a battery backup, a photo eye, and two FREE remotes with visor clip (transmitter/remote picture is for demonstration purpose only, compatible remote model will be shipped depending on availability).
These dual-swing gate openers have a surprising amount of functionality and customization options, including:
- Open/Close Customization: Gate openers can be adjusted to close gates simultaneously, or to ensure that the primary gate closes last.
- Warning Alarm: Gate can sound a “warning alarm” three seconds prior to opening, to ensure vehicles can stay back.
- Anti-Tailgate: The anti-tailgate feature closes the gate quickly so that no unauthorized vehicles can follow. Only authorized access.
- Security +2.0 Radio Receiver: The built in Security +2.0 Receiver encrypts signals to eliminate interference and also extend signal range. It’s compatible with up to 50 remote controls.
- Photo Eye with Safety Reversing: Photo eye detects obstructions to reverse the gate’s course to be sure that the gate doesn’t close on vehicles or people.
- App Integration: The gate features full integration with LiftMaster’s “MyQ” App for remote control of your gate from anywhere.
Overall, this gate opener is built well and built to last. It is made with aluminum die-cast housing and can handle larger gates - rated for gates up to 18 ft. long or weighing up to 1,600 lbs. It can comfortably handle 300 cycles per day. The battery backup can provide up to 500 cycles or 24 days standby power if it’s needed.
Notes:
- *Warning: The capacities stated by the manufacturer are calculated without a wind factor. Depending on the force of the wind and the gate design, your gate operator capabilities can be drastically affected up to the point of causing irreversible damage. If you know your location is subject to regular windy conditions, we highly recommend using a pad mount operator such as the CSW24UL. If you are unsure about which operator to choose in regards to your weather conditions, please give us a call at 1-800-730-8382 to speak to one of our sales advisors. Damages caused by wind are not covered under warranty.
Capacity*
LiftMaster LA500PKGUL Swing Gate Operator Unboxing Video
Product Literature
Find answers to our most frequently asked questions below. Got more questions? Reach out to our friendly customer service team, they will be more than happy to assist you.
Estimate shipping
You may also like
Recently viewed
- Reviews
- Questions
Easy to install. Consider doing it yourself!

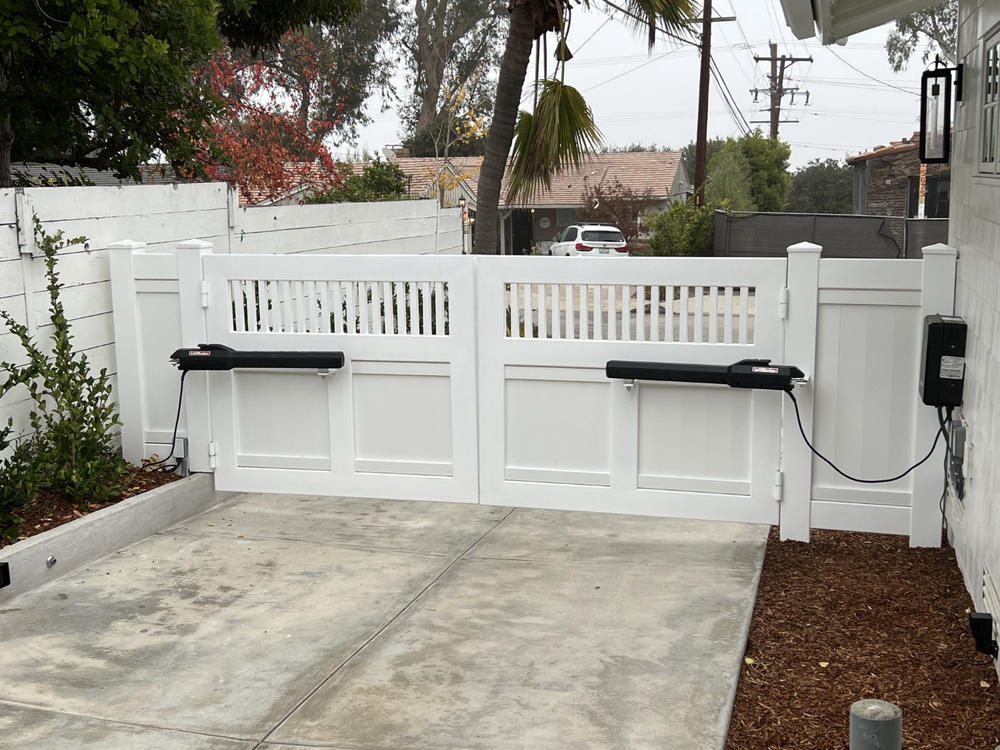

The openers are great. My local garage door guy wanted $4000 to install them but I did it myself in one day. I gave my gate guy the instructions on where to weld the brackets, which were pretty easy to follow. The hardest part was running the wires. The controller unit itself is so easy to set up. Accessing my property through my gates is so easy now. I can't imagine not having them!
All Security Equipment
Thank you for your amazing review and for sharing your experience (and the picture)! It’s incredible to see the LiftMaster LA500PKGUL Dual Swing Gate Opener in action and hear how much it has transformed accessing your property. We’re glad the instructions and setup were straightforward for you. If you ever need assistance or additional products, we’re always here to help. Thanks for choosing All Security Equipment and for sharing your success with us!
LA500PKGUL Dual Swing Gate Opener
This is a perfect gate opener, I'm amazed at the quiet way it works, and the accurate door timing when opening and closing.
All Security Equipment
We're thrilled to hear that you're delighted with your LiftMaster LA500PKGUL Dual Swing Gate Opener! At All Security Equipment, we aim to provide top-notch products that deliver on both performance and reliability. Should you have any questions or need further assistance, feel free to reach out. Thanks for choosing us for your security needs!
Liftmaster LA500PKGUL-DUAL
I installed this system myself. The install was easy and straight forward and after finishing it all. The system has worked flawlessly. Would definitely recommend this to anyone.
All Security Equipment
Hi Paul, thank you for choosing the LiftMaster LA500PKGUL Dual Swing Gate Opener and taking the time to review your experience. We are delighted to hear that the installation was easy and straight forward, and that it has been working flawlessly afterwards. We appreciate your feedback and are thankful for your recommendation.
LA500
Love this System!! Easy to install, superior operating performance, and adaptable to my gates and other equipment.
All Security Equipment
Thanks for your review, Chris. We are thrilled that the LiftMaster LA500PKGUL Dual Swing Gate Opener was able to meet your specific needs. If there is anything else we can do for you, please do not hesitate to reach out - we are more than happy to help.
Quick and fast
My experience was very smooth and easy.great communication
All Security Equipment
Thank you for your positive review of the LiftMaster LA500PKGUL Dual Swing Gate Opener, Calvin. We're glad to hear that you had a smooth and easy experience and that you were pleased with the communication.
