DoorBird IP Video Door Station Classic Surface Mount | DBR-D1101KH-C/S

The DoorBird IP Video Door Station Classic Surface Mount (Model: DBR-D1101KH-C/S) is a high-quality and stylish video doorbell and intercom system designed for residential and commercial applications. Here are the key features and information about this product:

  • Automatic door buzzer
  • Free visitor history
  • Individual action schedules
  • Geofencing
  • Night vision
  • HDTV Video
  • Light sensor
  • One freely configurable bistable latching relay
  • Easy self-install
  • Configurable stainless steel button
  • Motion sensor with 4D technology
  • Noise reduction and echo cancellation (AEC, ANR)
  • Keypad Module
  • Easy connection to the network
  • Microphone
Technical Specifications
  • Front panel: 3 mm (0.12 in) Available in brushed stainless steel V2A / V4A
  • Mounting housing (backbox): Stainless steel
  • Mounting type: Surface-mounted, flush-mounted version sold separately
  • Call button: Stainless-steel button with illuminated LED Ring
  • Keypad Module: 12 keys, illuminated, configurable via App, e.g.
    • Individual PIN codes
    • Individual events (e.g. switch a relay, HTTP(s) request)
    • Individual schedules
    • Up to 1000 PIN codes are manageable
  • Power supply: 15 V DC (max. 15 W) or Power over Ethernet (PoE 802.3af Mode-A)
  • Connectors
    • LAN/PoE (T+, T-, R+, R-)
    • Bistable latching relay, max. 1-24 V DC/AC, 1 A, e.g. for an electric door opener
    • External input for external door opener button
    • 15 V DC input (+, -), max. 15 W
  • Weatherproof: Yes, IP65
  • Approvals: IP65, CE, FCC, IC, RoHS, REACH, IEC/EN 62368, IEC/EN 62471

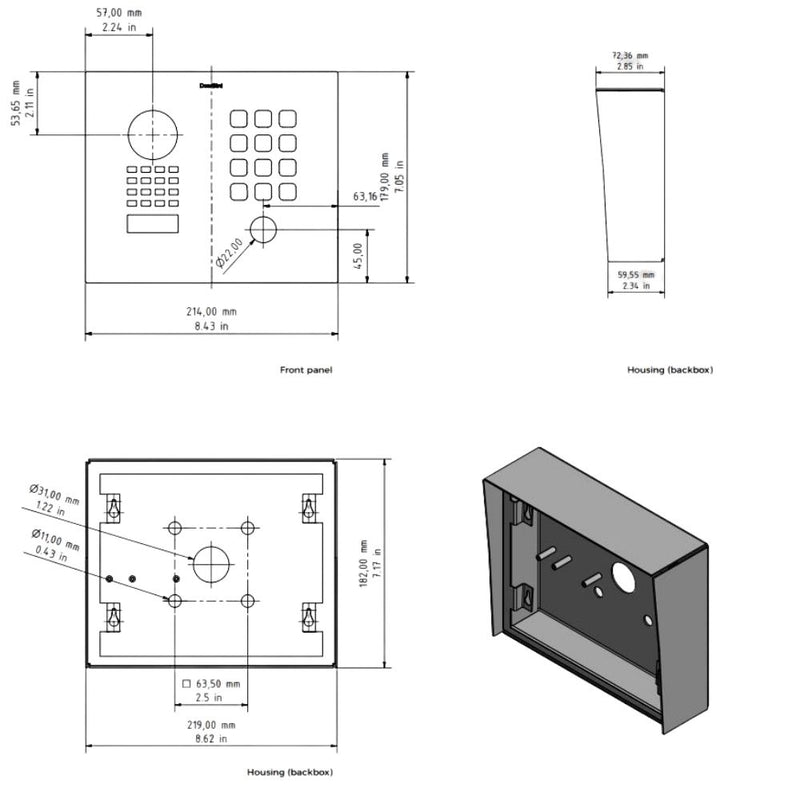

  • Dimensions: 7.17 x 8.62 x 2.85 in (H x W x D)
  • Operating conditions: -25 to +55°C / -13 to 131°F Humidity 10 to 85 % RH (non-condensing)
  • Scope of Delivery
    • 1x Main Electrical Unit
    • 1x Front panel
    • 1x Surface-mounting housing (backbox)
    • 1x Power supply unit (mains adaptor) with 4 country-specific outlet adaptors
    • (110 - 240 V AC to 15 V DC)
    • 1x RJ45 adapter
    • 1x Screwdriver
    • 1x Quick start guide with Digital Passport
    • 1x Installation manual
    • 1x Small parts
  • System Requirements
    • Mobile device: Newest iOS on iPhone/iPad, newest Android on Smartphone/Tablet
    • Internet: High-Speed Landline Broadband Internet connection, DSL, cable or fiber optic, no socks or proxy server
    • Network: Ethernet Network, with DHCP
  • Recommended installation height: The camera lens should be at a min. height of 145 cm (57 in). Before the installation please determine your optimal installation height
  • Video
    • Camera: HDTV 1080p, dynamic (VGA – HDTV)
    • Lens: High-end ultra-wide-angle hemispheric lens 180° (D), 150° (H), 82° (V), straightened, IR-capable
    • Night vision: Yes, light sensor, automatic IR-cut filter, Infrared LEDs (850 nm)
  • Audio
    • Audio components: Speaker and microphone, noise reduction, and echo cancellation (ANR, AEC)
    • Audio streaming: Two-way, full-duplex
  • Network
    • Ethernet: PoE 802.3af Mode-A, 10/100 Base-T
    • Supported protocols: HTTP, HTTPS, SSL/TLS, Bonjour, DNS, RTSP, RTP, TCP, UDP, RTCP, ICMP, DHCP, ARP, SIP, DTMF (RTP [RFC-2833], SIP INFO [RFC-2976]), STM
  • Motion Sensor
    • Type: Active
    • Detection angle: 80° (H), 50° (V)
    • Range: 1 - 6 m (3.3 - 19.7 ft), depending on the environment, configurable in 1 m (3.3 ft) steps.
    • Technology: 4D. Based on multiple integrated sensors and algorithms, e.g. Radio Frequency Energy (RFE)
  • Configuration: Via App, e.g.
    • Range (1 - 6 m / 3.3 - 19.7 ft)
    • Movement direction (coming, leaving, both)
    • Individual events (e.g. switch a relay, push notification, SIP call [audio/video], HTTP(s) requests)
    • Individual schedules
  • Integrated Wireless Modules
    • Bluetooth: Bluetooth Low Energy (BLE), enabled with future firmware and App update
    • Sensor: 24 GHz, can be disabled
  • Simultaneous video streams: One, for event-based recording
