Phobos BT A40 Swing Gate Opener Kit by BFT For Swing Gates Up To 17 feet & Up to 850lbs.
The BFT Phobos opener is an electromechanical operator 24 V. This gate opener comes with a magnetic limit switch and pin. The magnetic limit switch system ensures maximum precision of movement and quick and easy adjustment. On the other hand, the magnetic pin is an exclusive feature of BFT operators enabling quicker installation steps, making them easier, and always ensuring correct rear locking of the operator.

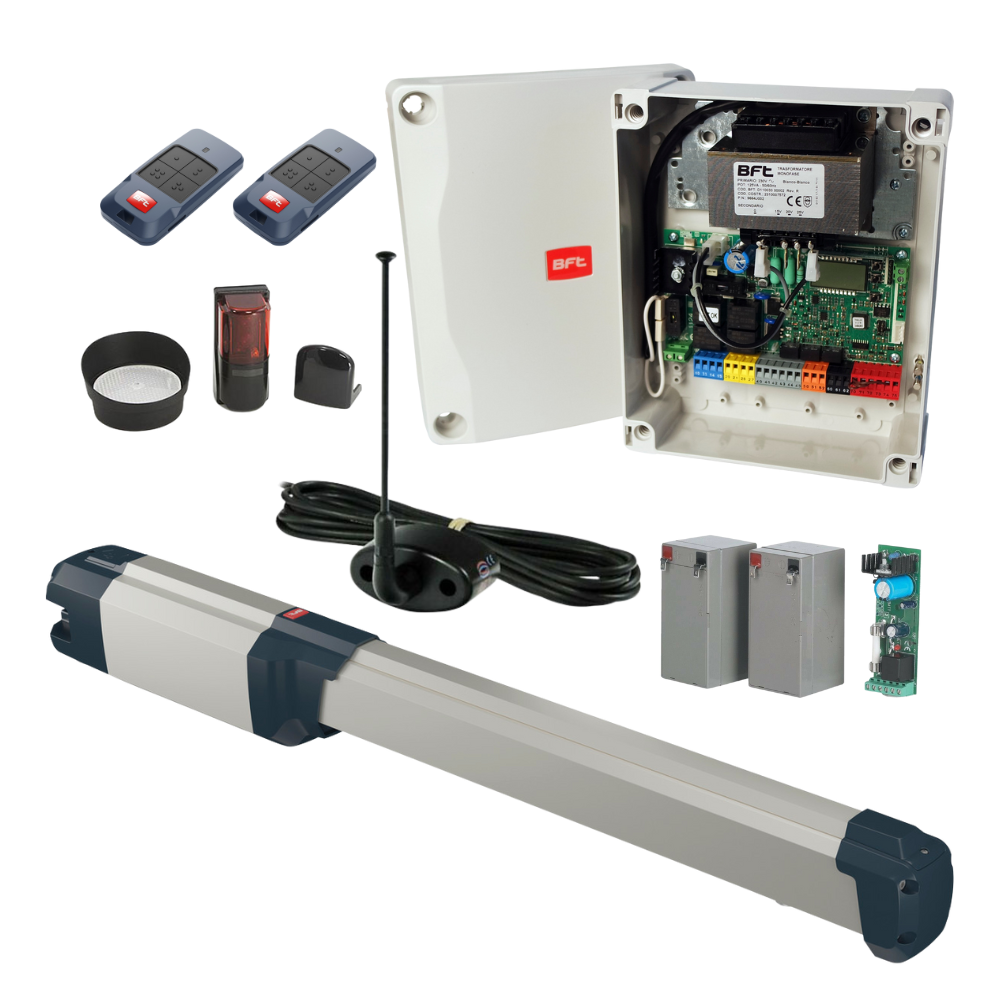

Includes
- 1 Phobos BT A40 Single Kit R935245 00011

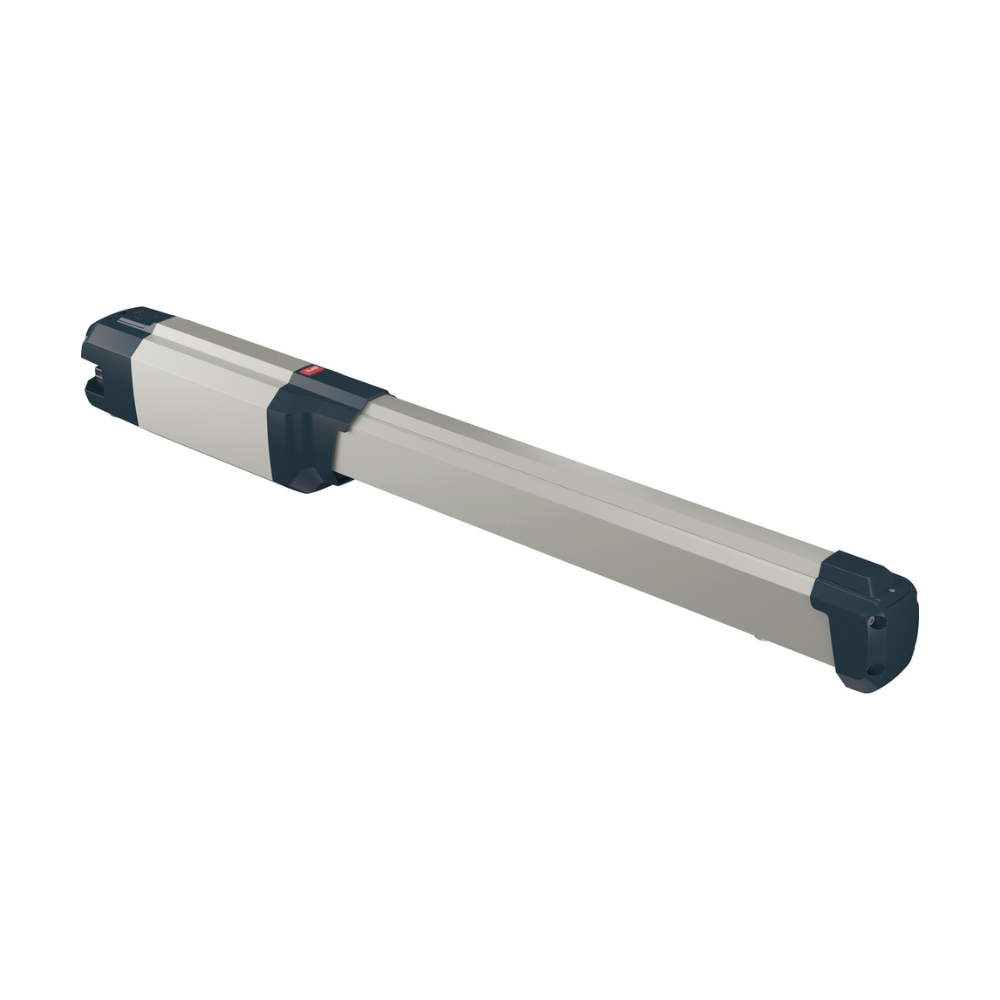

- BFT Phobos BT A40 Operator

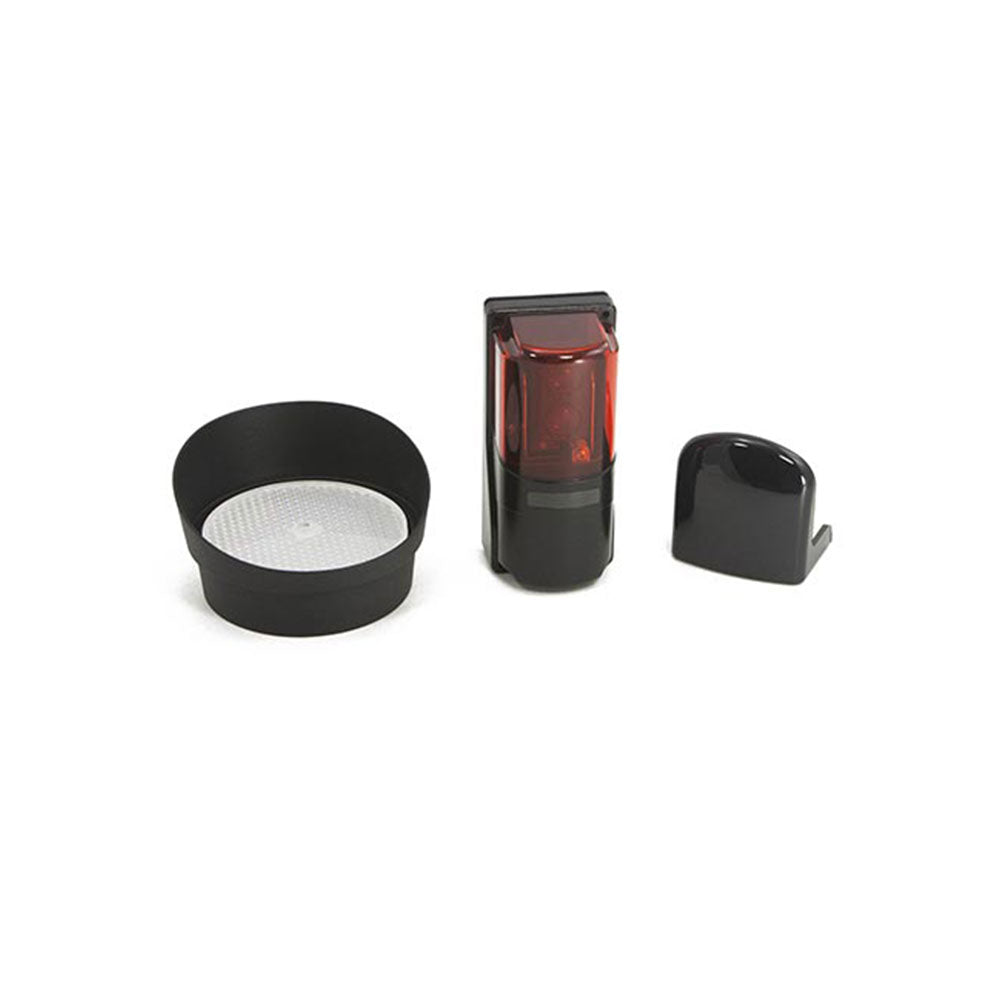

- Wired Photocell

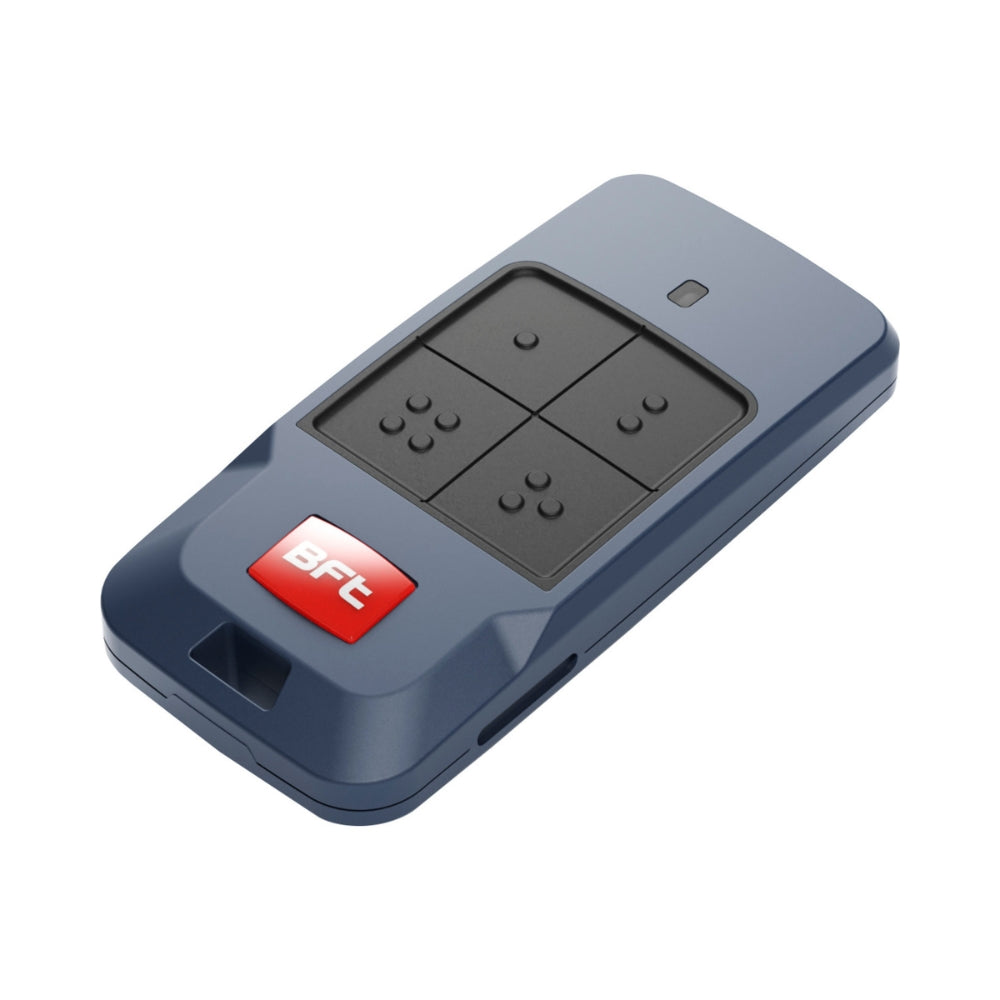

- 2 Mitto Remote Controls
- 6ft. Cable

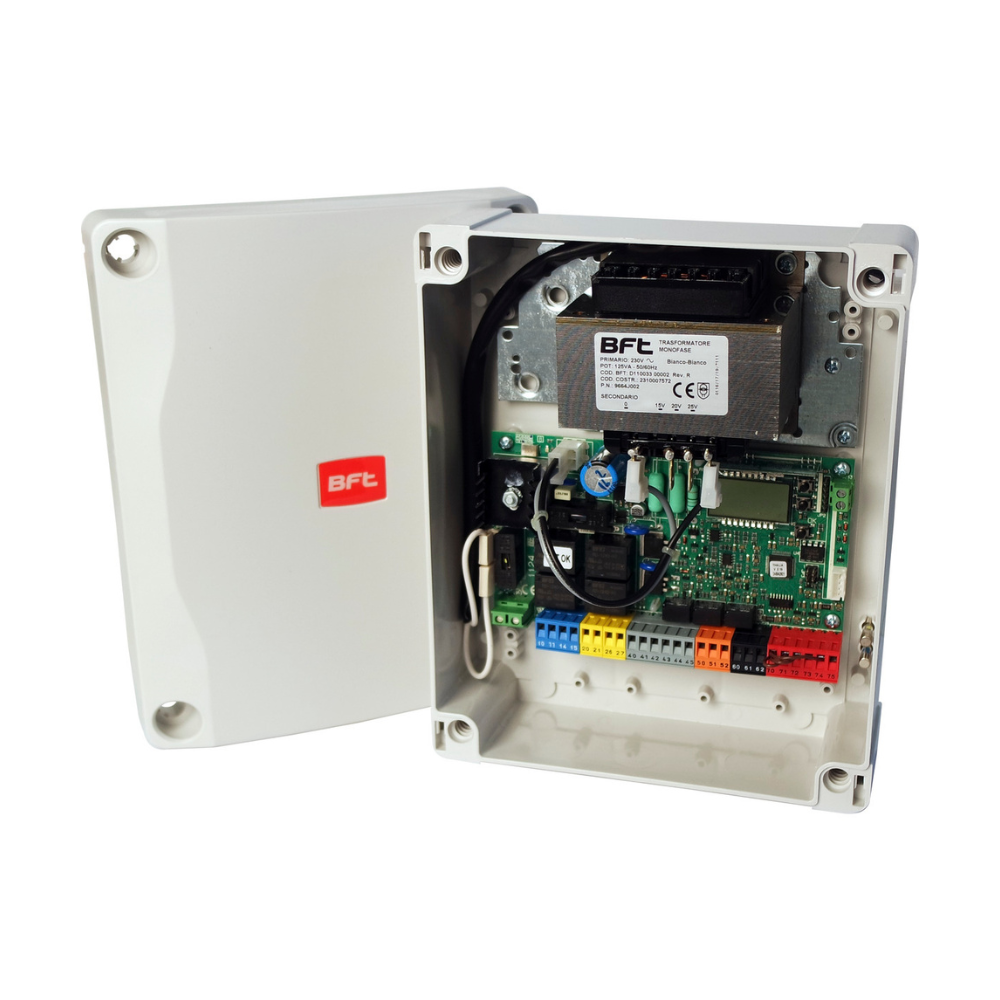

- Thalia Board QSG 120V D113745 00001
- QB Wireless Keypad - 10 Channels/100 Codes P121024
- B EBA Wi-fi Gateway (For use with Ultra Boards) P111494
Features
- Designed For Swing Gates
- Standard 20 Second Open/Close Time
- For Residential Or Commercial Applications
- D-Track System Serves Enhanced Functionality
- High-Quality Safety Devices By BFT Included
- Photocell Has A Reliable 32 ft
- Sensing Range
- Transmitter Can Be Added To A Key Ring Or Car Visor
- Single Operator For Gates Up To 850 lbs And 17 ft Long
- Rolling Code Technology Prevents Transmitter Cloning
- Kit Contains All Components For Functioning Gate System
Click here to see dual kit option
Specifications
- Control unit: Thalia
- Board power supply: 120 V
- Operator type: 24 V
- Power input: 40 W
- Useful rod stroke: 15.74 inch
- Maximum angle: 124 °
- Cycle time: 20 s
- Type of limit switch: Magnetic
- Slowdown: Yes
- Locking: Mechanical
- Release: Personal Key
- Impact reaction: D-Track
- Frequency of use: Intensive
- Protection rating: IPX4
- Environmental conditions: from -4 °F to 131 °F
- U-Link: No
Notes:
- *Warning: The capacities stated by the manufacturer are calculated without a wind factor. Depending on the force of the wind and the gate design, your gate operator capabilities can be drastically affected up to the point of causing irreversible damage. If you know your location is subject to regular windy conditions, we highly recommend using a pad mount operator such as the CSW24UL. If you are unsure about which operator to choose in regards to your weather conditions, please give us a call at 1-800-730-8382 to speak to one of our sales advisors. Damages caused by wind are not covered under warranty.
Manuals
BFT Phobos BT A40 Swing Gate Opener Installation Manual
BFT Q-Box Manual
