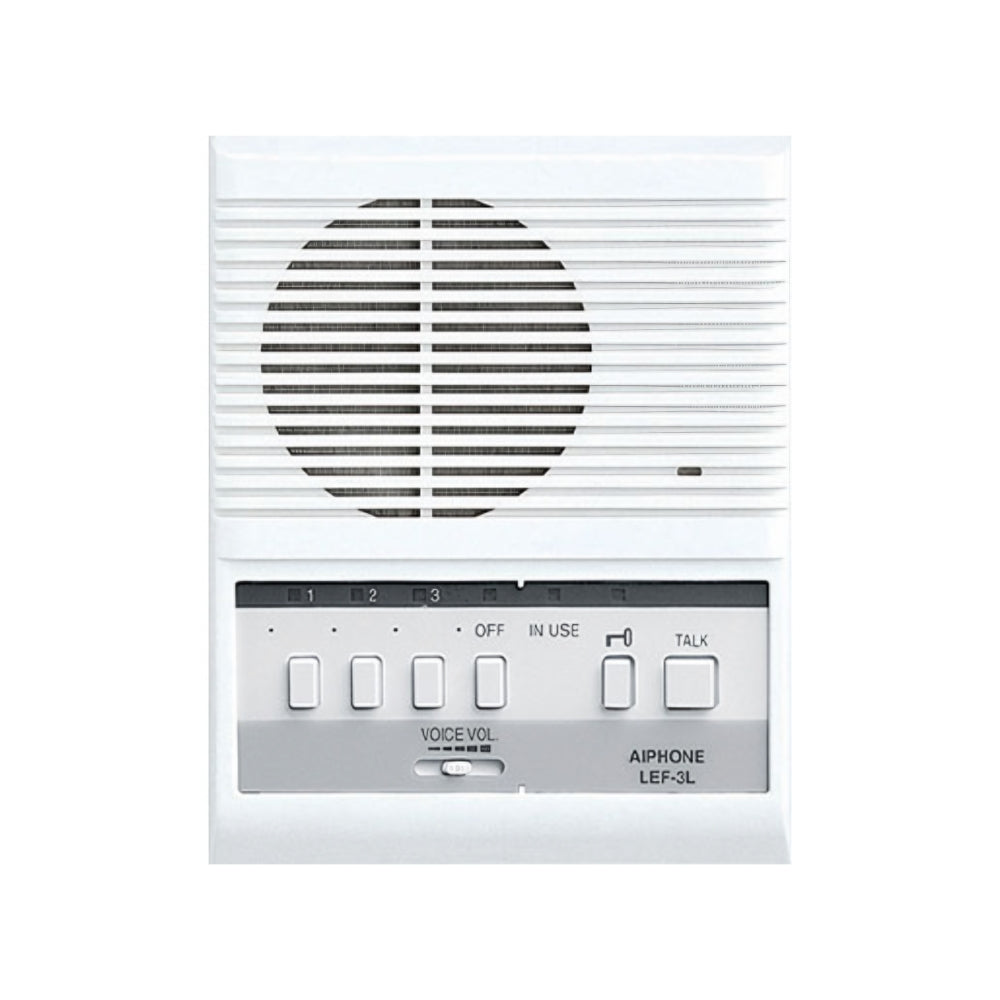

The Aiphone LEF-3L is an intercom master station with that can hold a total of 4 intercoms. Any combination of subs and masters can be used up to its maximum capacity.
Aiphone LEF-3L Description
The Aiphone LEF-3L is a selective call open voice style master station with the capacity of up to 4 total stations.Any combination of subs and masters can be used up to its maximum capacity.
Aiphone LEF-3L Features
- 3, 5, and 10-call masters
- Intermixable system with any number of masters and subs to maximum capacity
- Selective calling, monitoring, and optional All Call
- Push-to-talk at master, hands-free reply at called station
- Call tone and LED annunciation at master
- Selective door release(w/ RY-PA per door) on LEF 3L/5/10 Call Masters
- All Call with LEF-10S and all LEF-C masters (requires BG-10C)
Aiphone LEF-3L Specifications
- Power Source: 12V DC - Use PS-1225UL
- Communication: Sub calls in with call-tone and LED, 20 sec. Depress the LED selector button, use TALK/LISTEN switch. Master calls in with tone or voice (no LED lit), reply hands-free. To call, depress a selector, and call by voice or tone Chime available with BG-10C
- Communication Output: 500mW
- Door Release: RY-PA Contact rating: 24V DC, 1A Use 1 RY-PA per door being released
- Wiring: Varies by system, see instruction manual or contact technical support
Aiphone LEF-3L Manuals
