USAutomatic Ranger HD 1 AC Charged Single Swing Operator with LCR | USA-020516
The USAutomatic Ranger HD I AC Charged Single Swing Gate Opener Kit 020516 features a durable plastic enclosure and is designed to operate gates up to 16 feet in length and weighing up to 800 lbs.
Note: Battery Required for Operation (Battery not included)
If you need a dual gate operator system, click here.
Manufacturer's Warranty Period
- 3 years for components / 5 years for control board

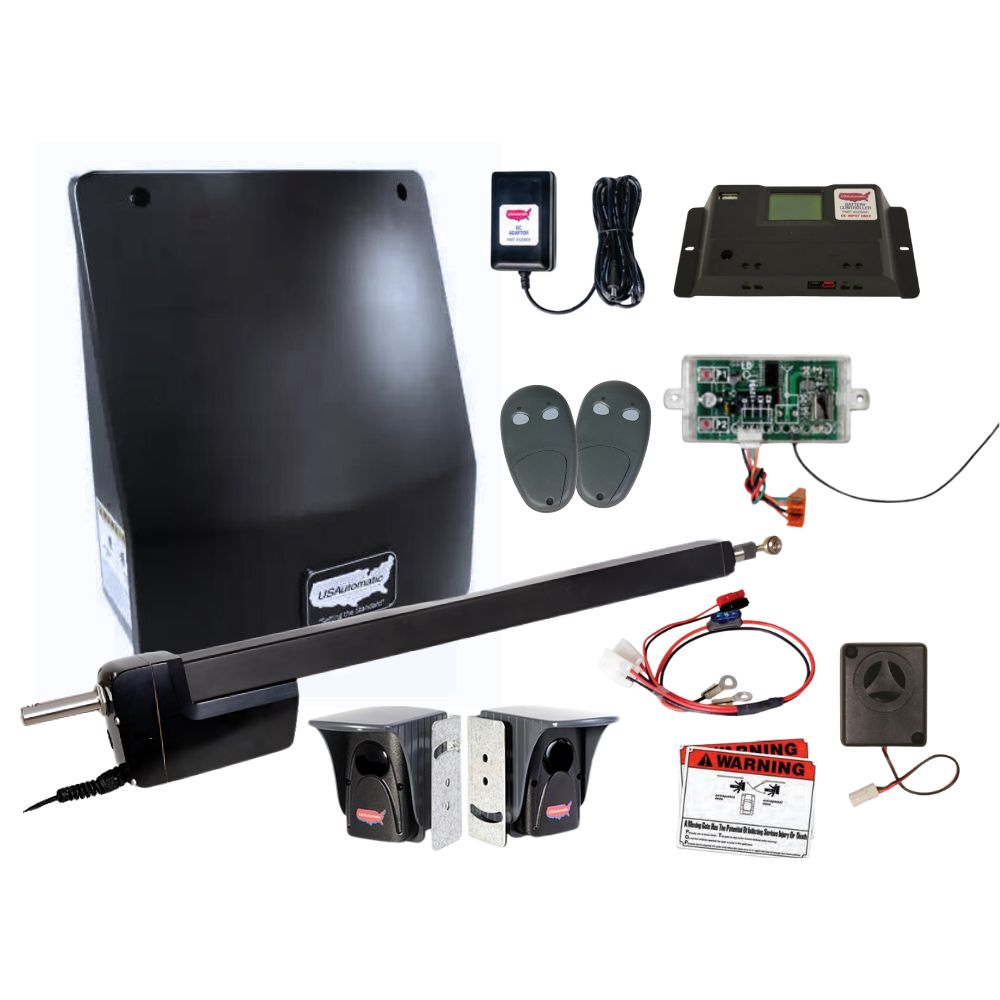

Includes

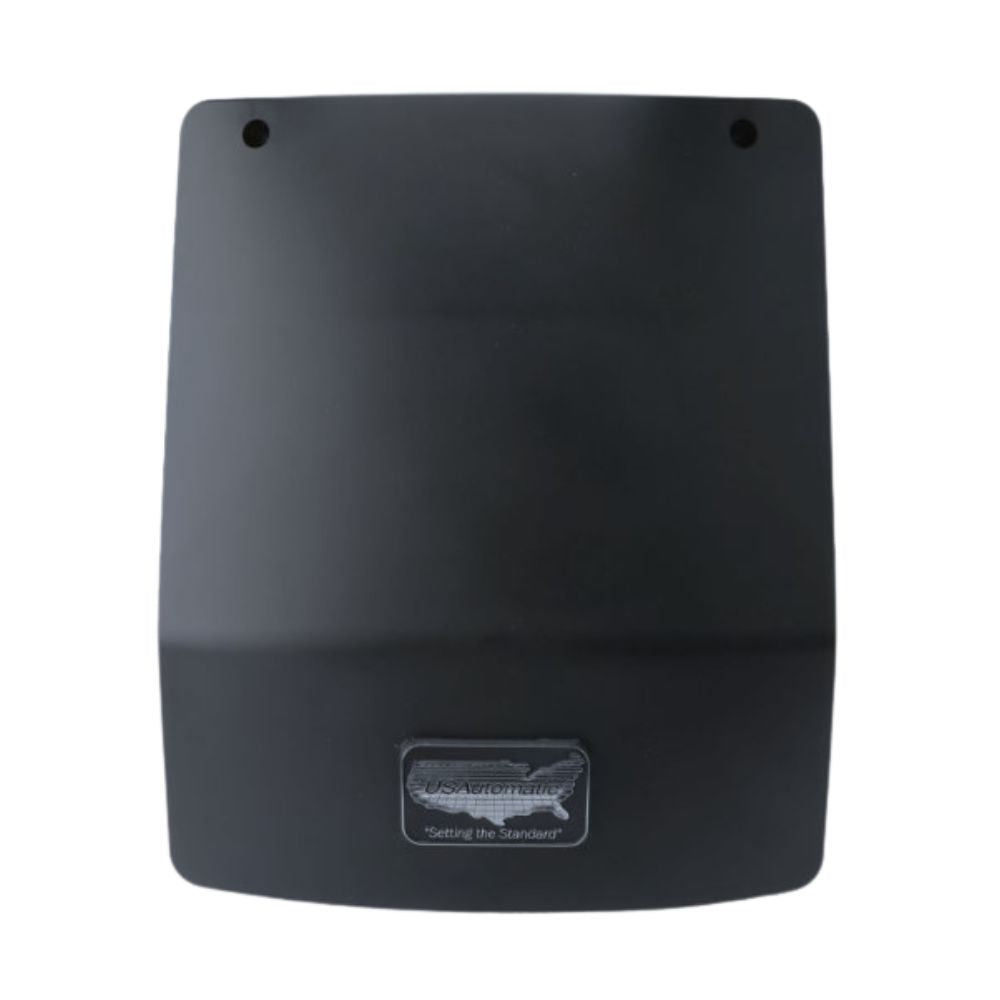

- 1 Plastic Control Box and Cover 020570
- 1 Battery Controller 520001
- 1 LCR Dual Channel Receiver w/ Harness 030200

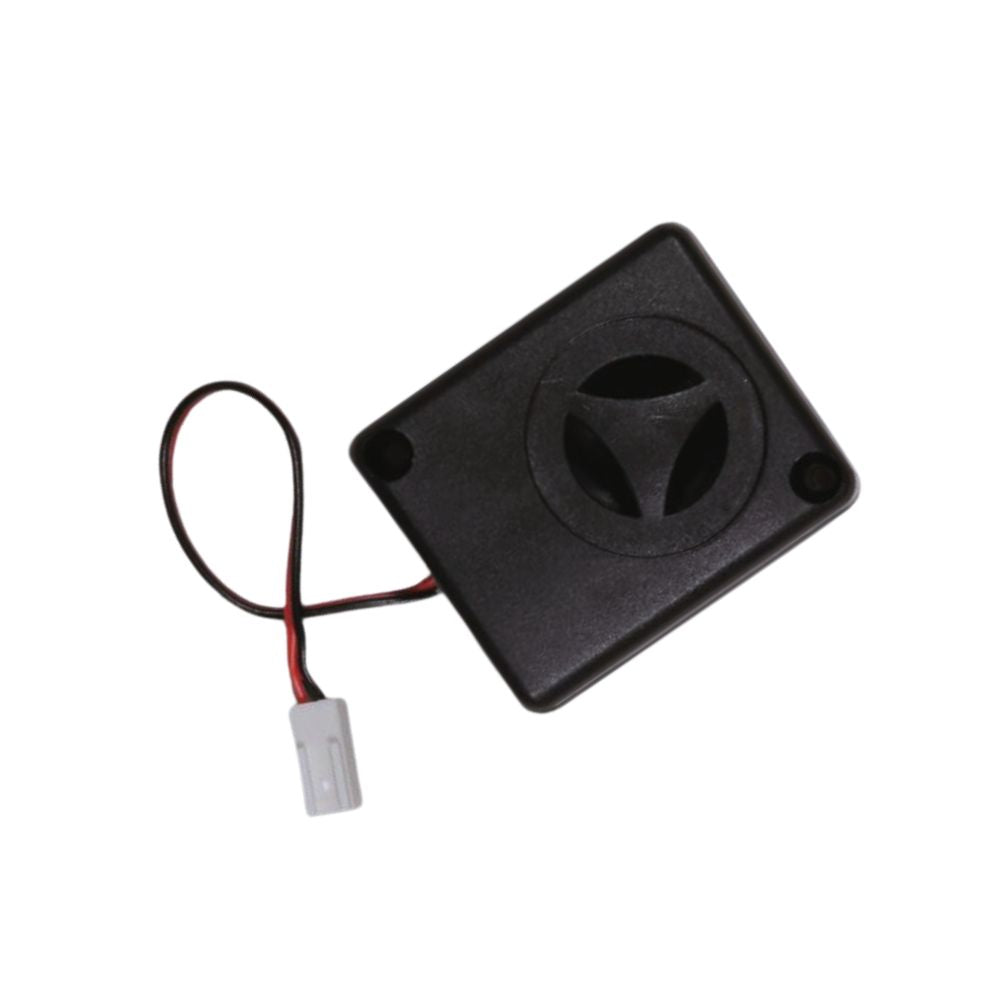

- 1 Secondary Entrapment Siren 530015

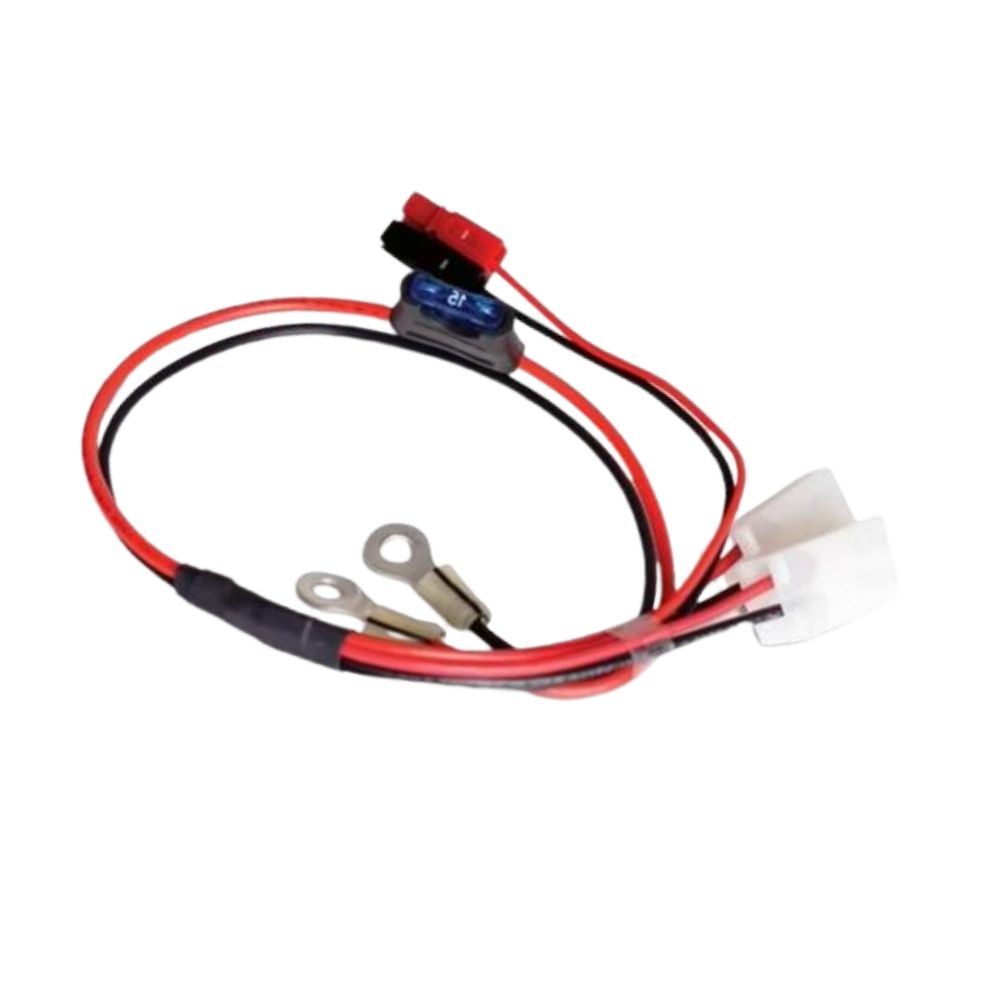

- 1 Quick Connect Plug and Go Harness 630041

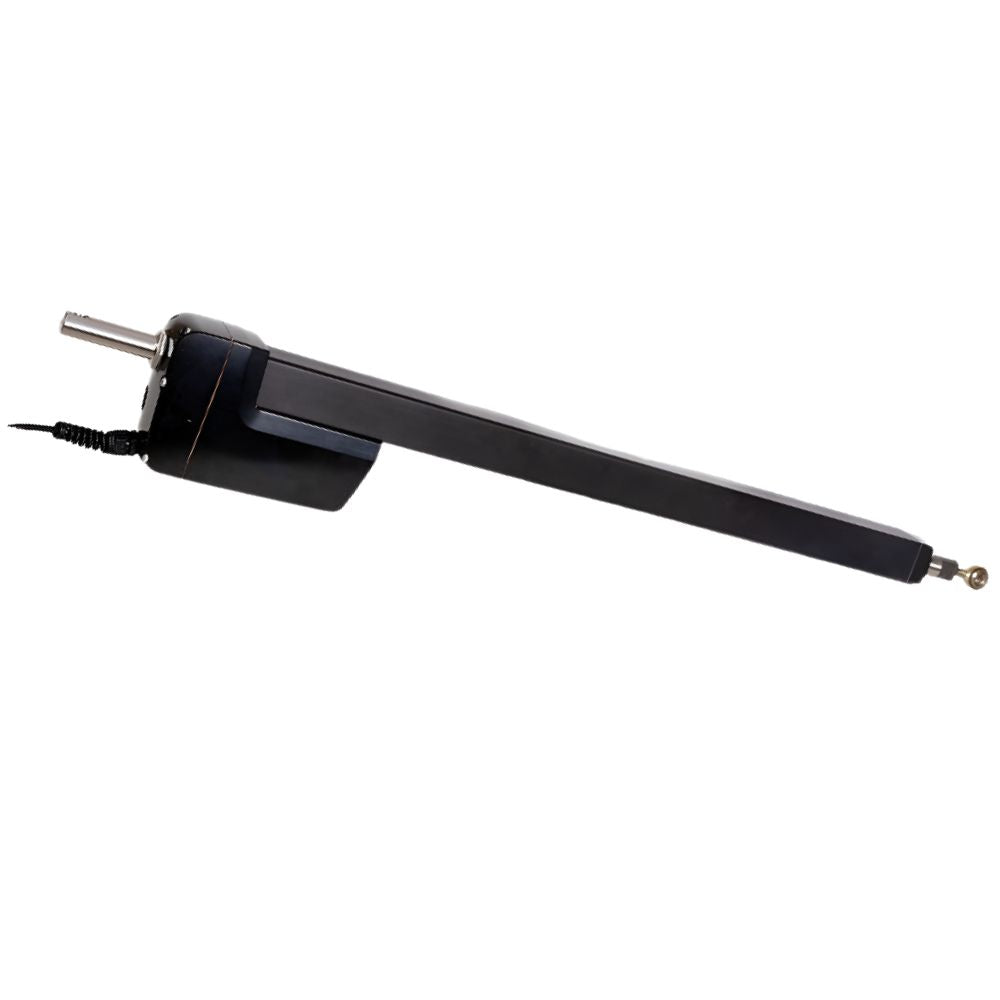

- 1 Ranger HD Actuator 510006
- 2 LCR 2 Button Transmitter 030210

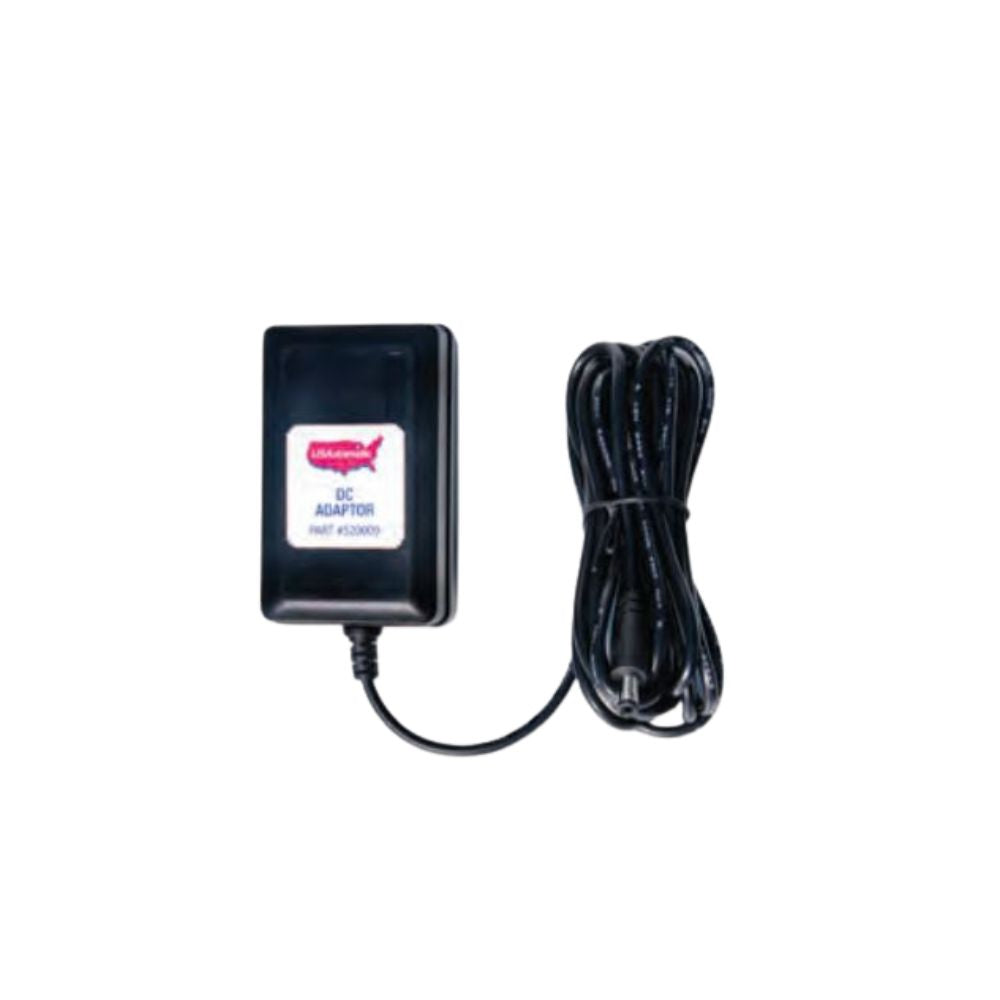

- 1 DC Adapter (20vdc and 1.2 Amps) 520009

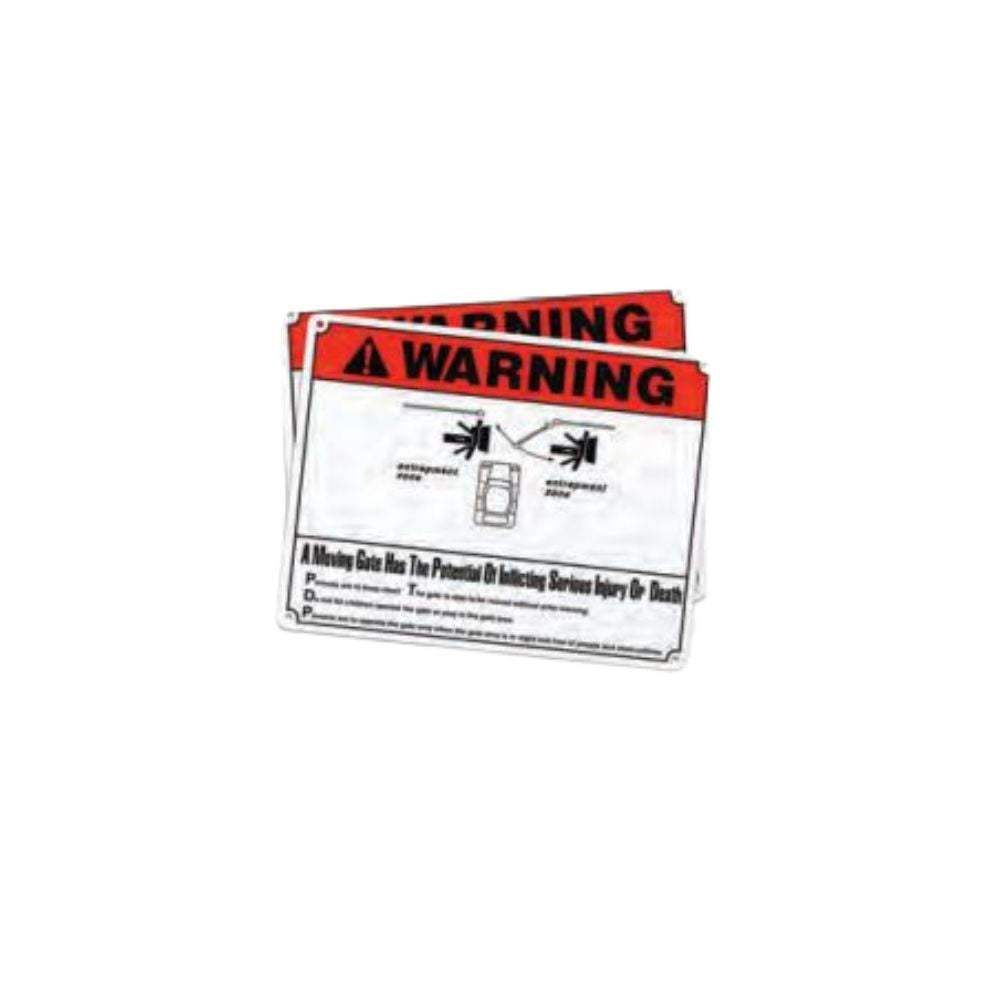

- 2 Safety Signs 601020
- 1 Set of Photo Eye Kit with Batteries 550011
Features
- Non-corrosive actuator and standard plastic control box
- PWM soft start and soft stop
- Battery under load monitoring
- Low battery audible notification
- Compatible with the USAutomatic Gate App
- Gate opening speed - 12 seconds
- Electronic limit control on board
- Designed to operate with a variety of common accessories
- Photo eye power management solar-friendly software
- Tested and certified to meet the current UL325 gate operator safety standards

Technical Specifications
- Style: Swing
- Gate Setup: Single
- Applications: Residential, light commercial, farm, ranch
- Max. Swing Angle: 120°
- Max. Gate Width: 16’ each leaf
- Max. Gate Weight: 800 lbs. each leaf
- Power Input: 12-volt DC battery, AC charged
- Drive: Non-corrosive 24" linear actuator
- Speed: 12-second cycle (90° opening)
- Dynamic Thrust: 580 pound force
- Static Load Hold Rating: 4,000 pound force
- Radio Receiver: Pre-wired solar-friendly LCR dual-channel receiver
- Remote Control: Two 2-button remotes included
- Adjustable Soft/Start/Stop: Yes, using pulse width modulation software
- Limit Control Type: Electronic adjusted on the control board
- Independent Adjustments: Independent gate safety sensitivity adjustments
- Timer to Close: Built-in, adjustable from 2 to 120 seconds
- Safety Photo Eyes: 1 set included
- Control Box Enclosure: UV-resistant non-corrosive plastic with hinged cover
- Installation: Push-to-open and push-to-close brackets included
- Safety: ETL tested and certified to meet UL 325 safety regulations for Class I, II, III, and IV installations
- Country of Manufacture: United States
Recommended Battery Type
Battery 12-volt, Group U-1; sealed (maintenance-free); 30 amp hour minimum. Using a smaller amp-hour battery may cause damage to the charging system. The wiring harness has two 1/4” ring terminals to connect to battery posts.
CAUTION!!! Do not install a wet cell battery into the control box; this type of battery usually has removable caps used for service and will vent into the control box.
