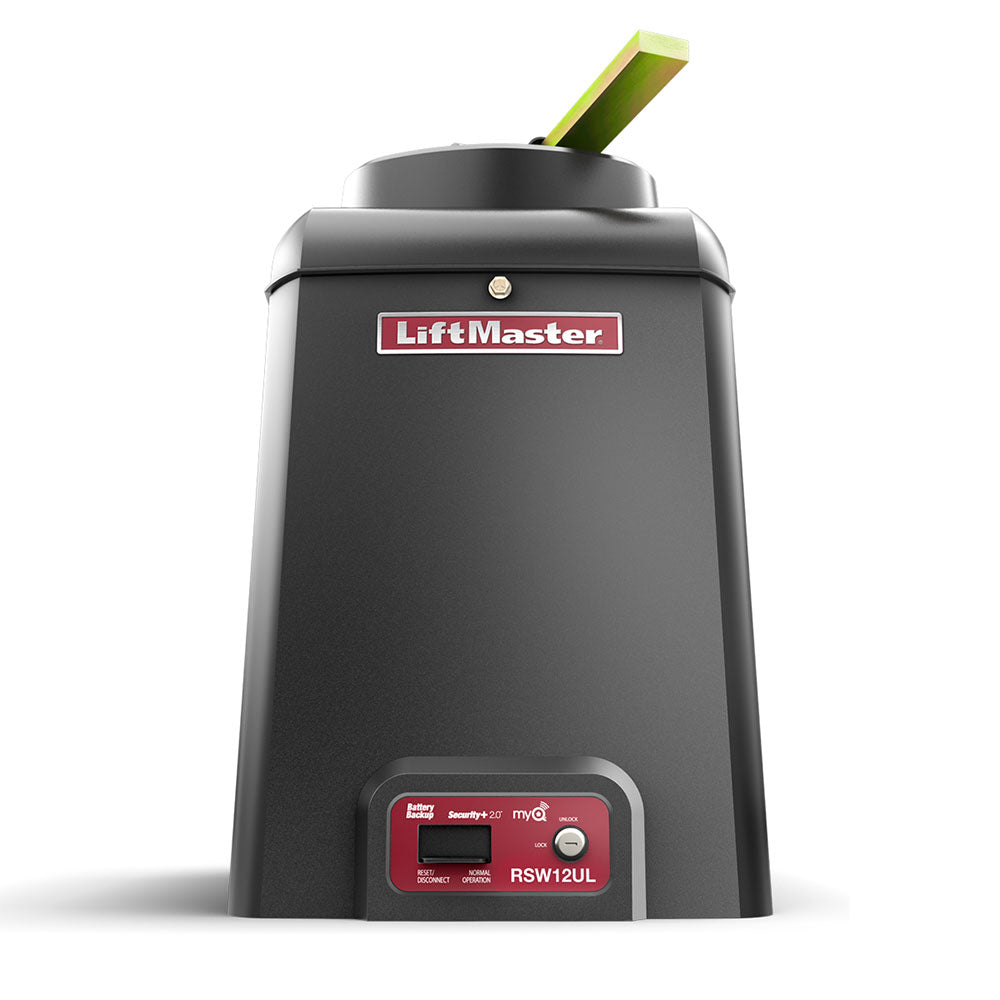

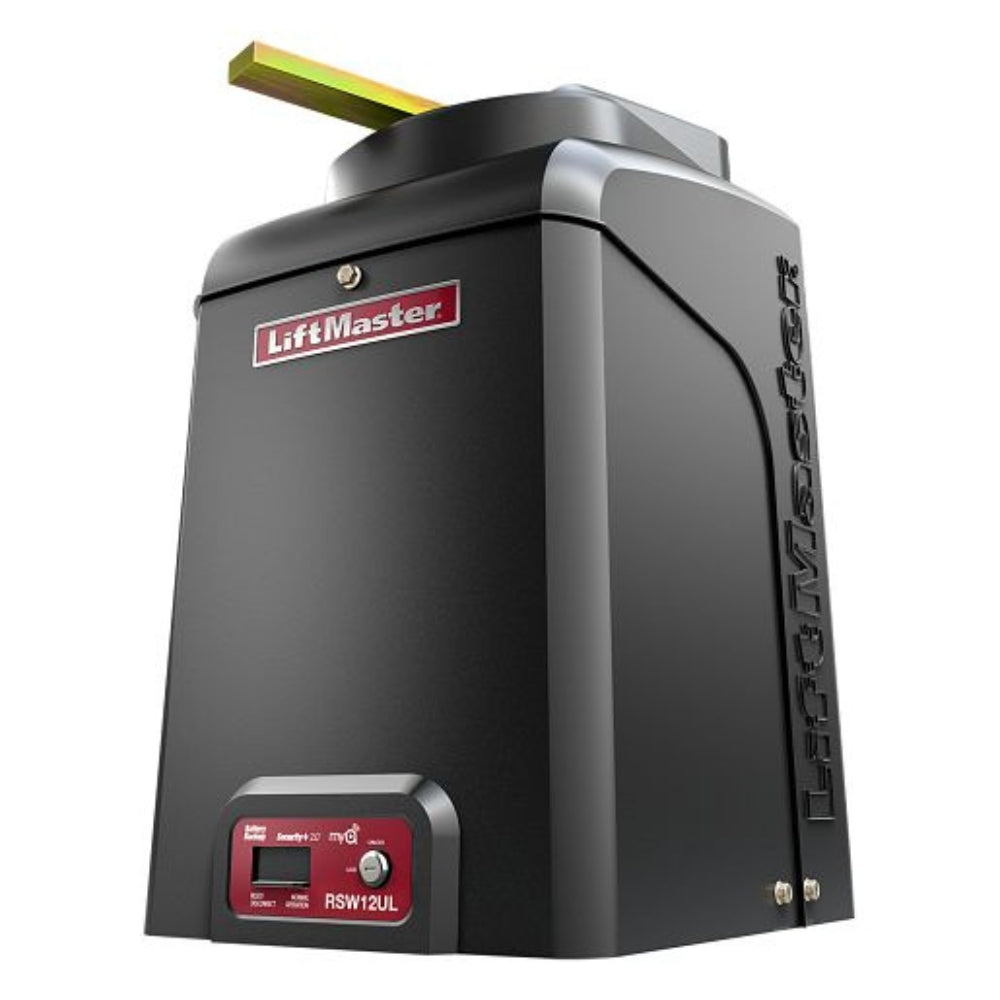

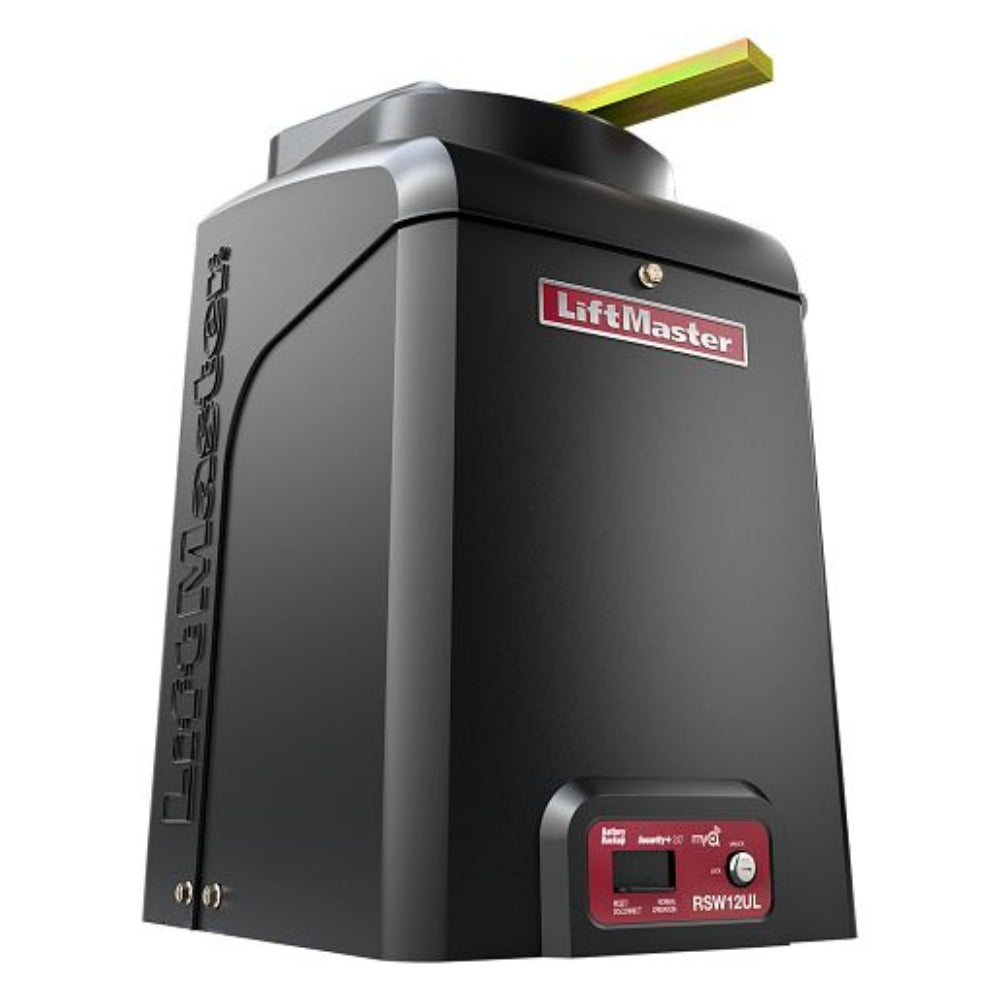

LiftMaster RSW12UL 12VDC Residential Light Commercial Swing Gate Operator
PLEASE NOTE: This is LiftMaster’s most recent version of this model (previously RSW12U) which is now UL325 Compliant. To be UL325 Compliant it is mandatory for each swing gate opener/motor/operator to have at least one functioning SAFETY DEVICE. Therefore LiftMaster’s new control board and improved photo eye sensor (Model LMRRUL) are included (with protective hoods) at no additional cost.

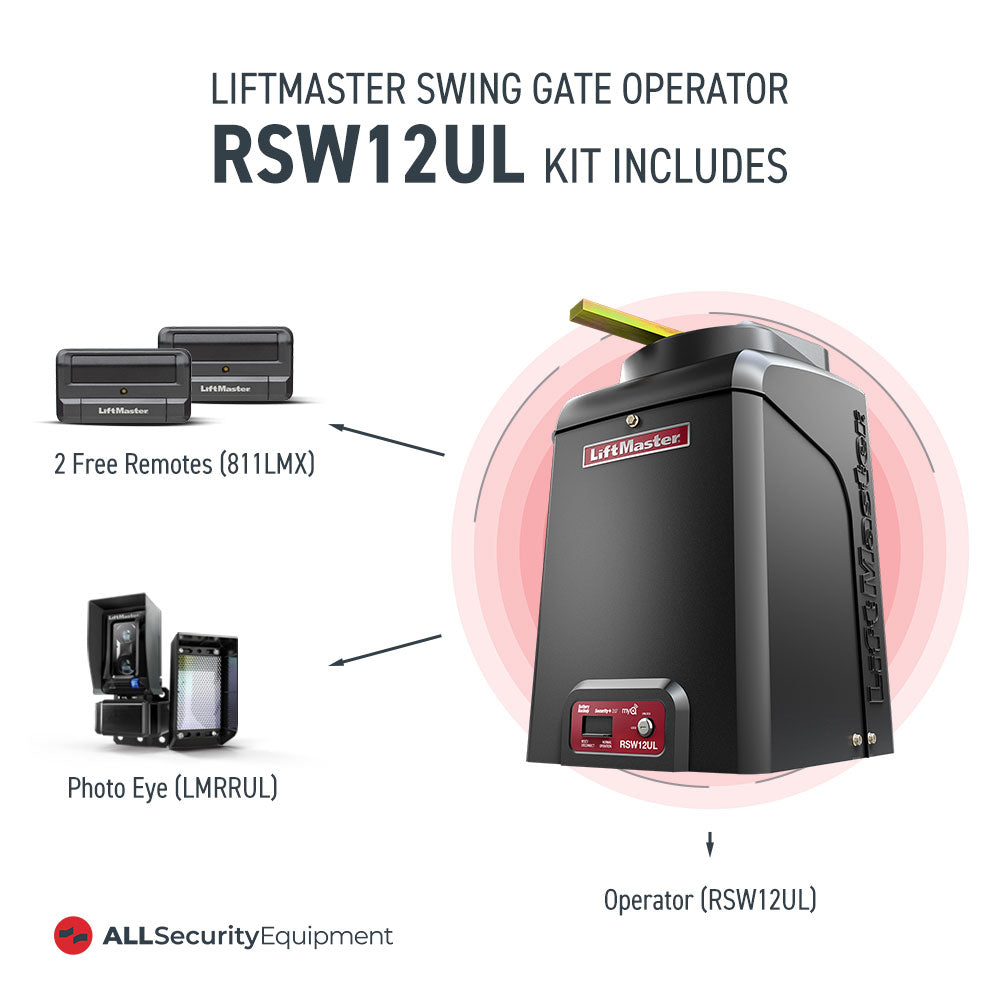

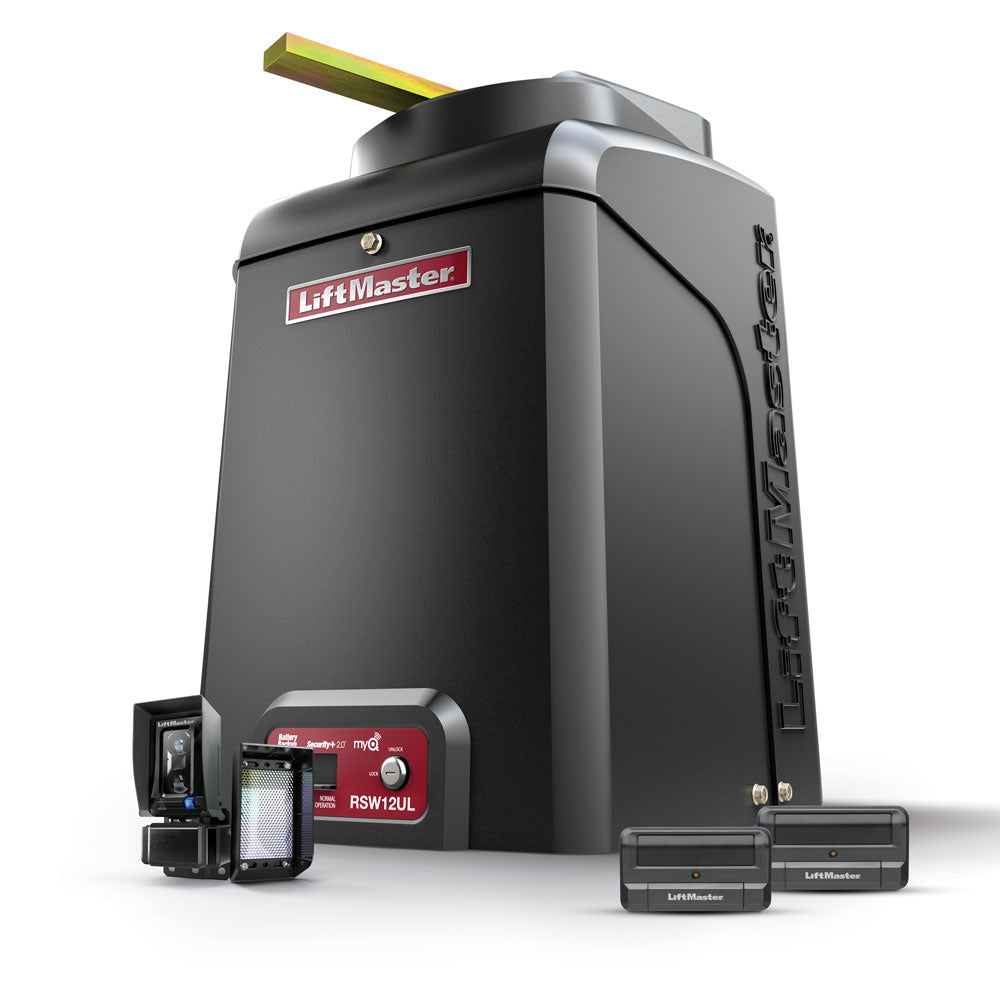

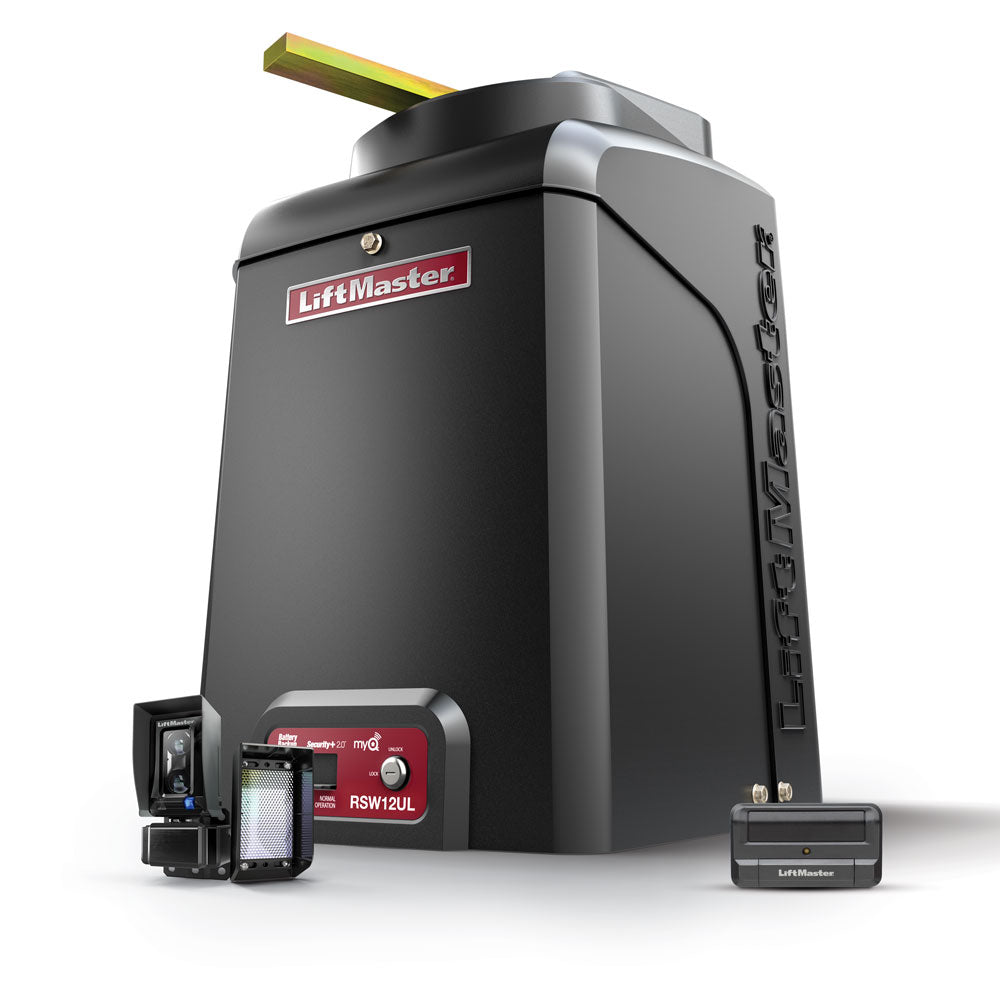

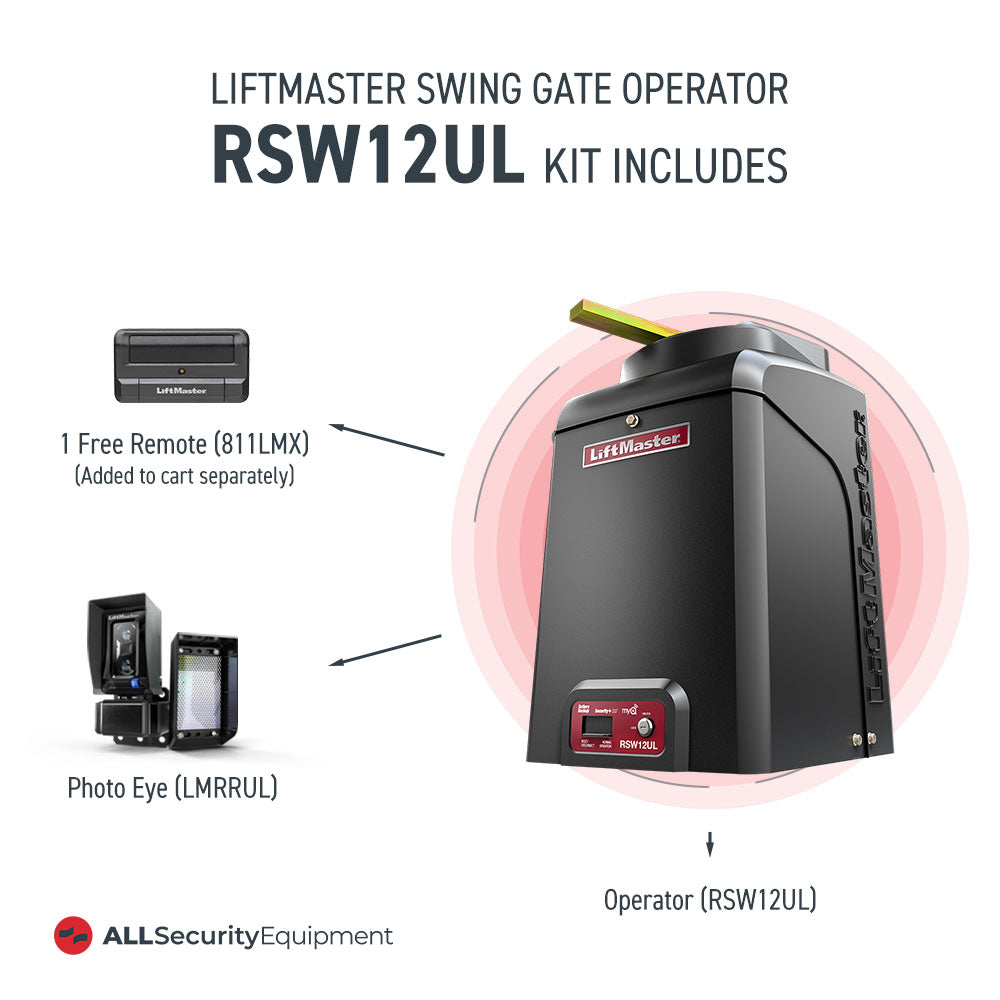

Includes

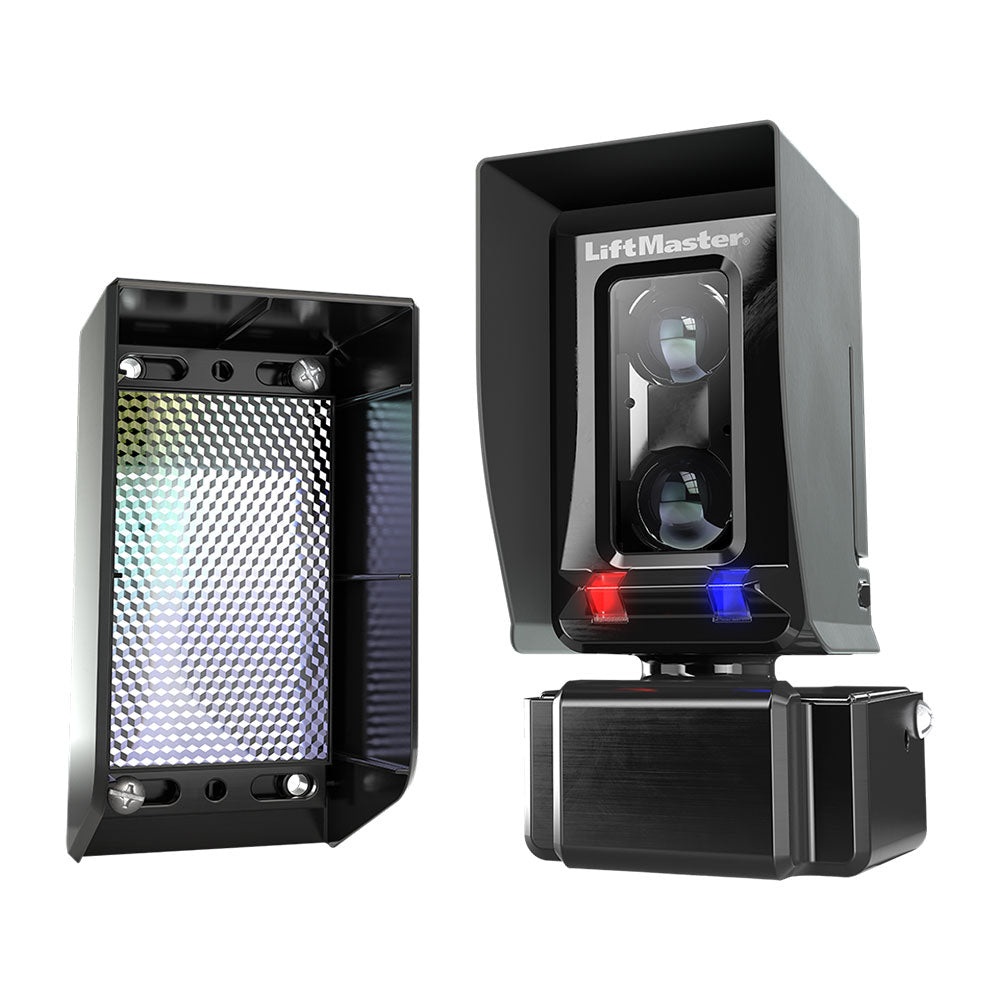

- Monitored Retroreflective Photo Eye (LMRRUL) Enhanced retro-reflective photo eye now with heater and wider beam, engineered to stay aligned; max. range: 50 ft.
- Two FREE Remotes with Visor Clip (transmitter/remote picture is for demonstration purpose only, compatible remote model will be shipped depending on availability).
- FREE Digital Multimeter
Features
- Inherent Reversing Sensor detects obstructions and reverses gate when closing or stops/reverses gate when opening
- Bi-Part Delay monitors and adjusts the speed and position of each wing to ensure the primary gate closes last
- Monitored Safety Inputs: 3 mainboards, 3 optional expansion board
- Security+ 2.0® On-Board Radio Receiver Tri-band 310/315/390 MHz frequency up to 50 remote controls (unlimited with 811lm/813lm)
- LED Diagnostic Display simplifies installation and troubleshooting
- Programmable Auxiliary Relays make adding additional features easy
- Homelink® Compatible version 4.0 or higher
Manufacturer's Warranty
- Operator Warranty: 3 Years
Reliable:
-
Battery backup provides seamless access by providing standby power when the power is down.
-
Smooth start/stop operation and mid-travel reversal extend operator and hardware life.
-
The heavy-duty commercial gear-driven transmission provides unsurpassed reliability.
-
MyQ® Technology enables you to securely control and monitor your gate operator from anywhere.
- Wireless dual-gate communication synchronizes gate opening/closing and eliminates expensive driveway trenching costs.
- Solar-ready, ultra-reliable system delivers power when and where you need it most.
Safe And Secure:
-
Security+ 2.0® safeguards access with an encrypted tri-band signal to virtually eliminate interference and offer an extended range.
-
Emergency disconnect: simple-to-use release handle allows the gate to be operated manually and maintain a limited position once reengaged.
-
Fire department compliance allows the gate to auto-open upon loss of ac power or battery depletion.
-
Quick close and anti-tailgate quickly secures property, preventing unauthorized access(requires optional expansion board).
- UL® listed gate operators with monitored safety entrapment protection devices.
Technical Specifications
- 12VDC continuous-duty motor
- Operator Duty Rating: 250 cycles per day
- Wormgear Reduction: 2 commercial oil-bath gearboxes providing 900:1 Wormgear reduction
- Power: 115VAC Solar-Ready, Ultra-Reliable System delivers power when and where you need it
- Accessory Power: 12VDC 500mA Output
- Chassis: constructed with 1/4 in. gold zinc-plated steel for rust prevention
- Cover: High-density, UV-resistant polycarbonate 2-piece for excellent heat and corrosion resistance
- UL® Usage Classification: I, II, III and IV
- Operator Weight: 180 lbs.
- Dimensions: (H x W x D) 27.99” x 15.55” x 19.63”
Capacity
