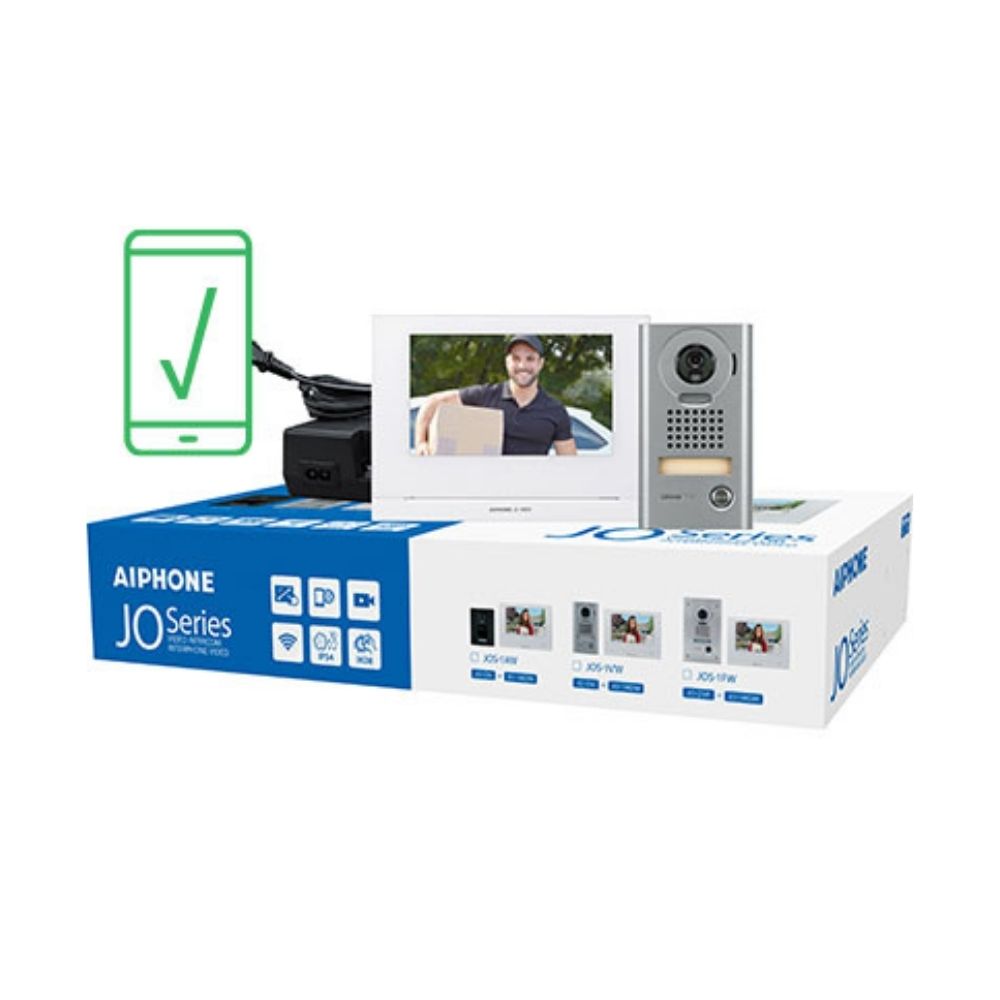

Aiphone Mobile-Ready Box Set with Surface-Mount Door Station | AIP-JOS-1VW

This boxed set contains all the equipment needed for an app-enabled entry security system. A call from the zinc die-cast video doorbell rings the on-site monitor and up to eight smartphones or tablets. After answering the call, you can see and speak with your visitor then easily unlock the door with the touchscreen monitor or using the slider button on the app.

Our unique hardwired monitor ensures calls can be answered even when the internet is down or slow and the mobile app ensures you stay connected when you're on the go. The monitor features built-in memory that can be manually activated to record video from the doorbell or set to automatically record all calls. Expand storage using the MicroSD card slot and view recorded calls on both the monitor and the app.

All this security and convenience is backed by Aiphone's quality and award-winning customer support. Our commitment to your satisfaction is equivalent to our commitment to supplying quality products. Second to none.

Use Aiphone when you need unparalleled product quality. Use the JO Series when you need on-the-go security and convenience in a single package.

    • Box set includes all you need for an app capable video intercom system
    • Answer and open your door from the on-site master or your mobile device
    • Connect up to 8 smartphones or tablets per system
    • The on-site monitor ensures calls get answered or recorded
    • The store calls with no added fees using onboard memory
    • Adding a MicroSD card to the on-site monitor increases call storage
    • Watch recorded calls from the on-site master or on the mobile app
    • Large 7” touchscreen provides crisp, clear detail of your caller
    • The vandal-resistant surface mount video door intercom faceplate is crafted using die-cast zinc
    • Video door intercom automatical activates white LED lights to see clearly at night
    • Replace standard doorbells to add the security of seeing and speaking with visitors
    Technical Specifications
    Inside Monitor
    • Model: JO-1MDW
    • Video Display: 7" TFT Touchscreen
    • Mounting: Surface wall mount or desk mount with MCW-S stand
    • Internal Call Recording: 10 calls max. @ 10 seconds/call
    • Memory Expansion: micro SDHC card slot, 32GB max.
    • Call Recording with max memory: 1,000 calls max. @ 10 seconds/call
    • Door Release: N/O dry contact, 24V AC/DC, 500mA
    • Communication style: Handsfree or PTT
    • Wireless Frequency: 2.4 GHz
    • Wireless Protocol: 802.11b, 802.11g, and 802.11n (Wireless B/G/N)
    • Model: Intercom App Type B
    • Max per system: 8 devices
    • Door Release: In-app slider activates contacts at JO-1MDW
    • Available at: Apple App Store℠ or Google Play™

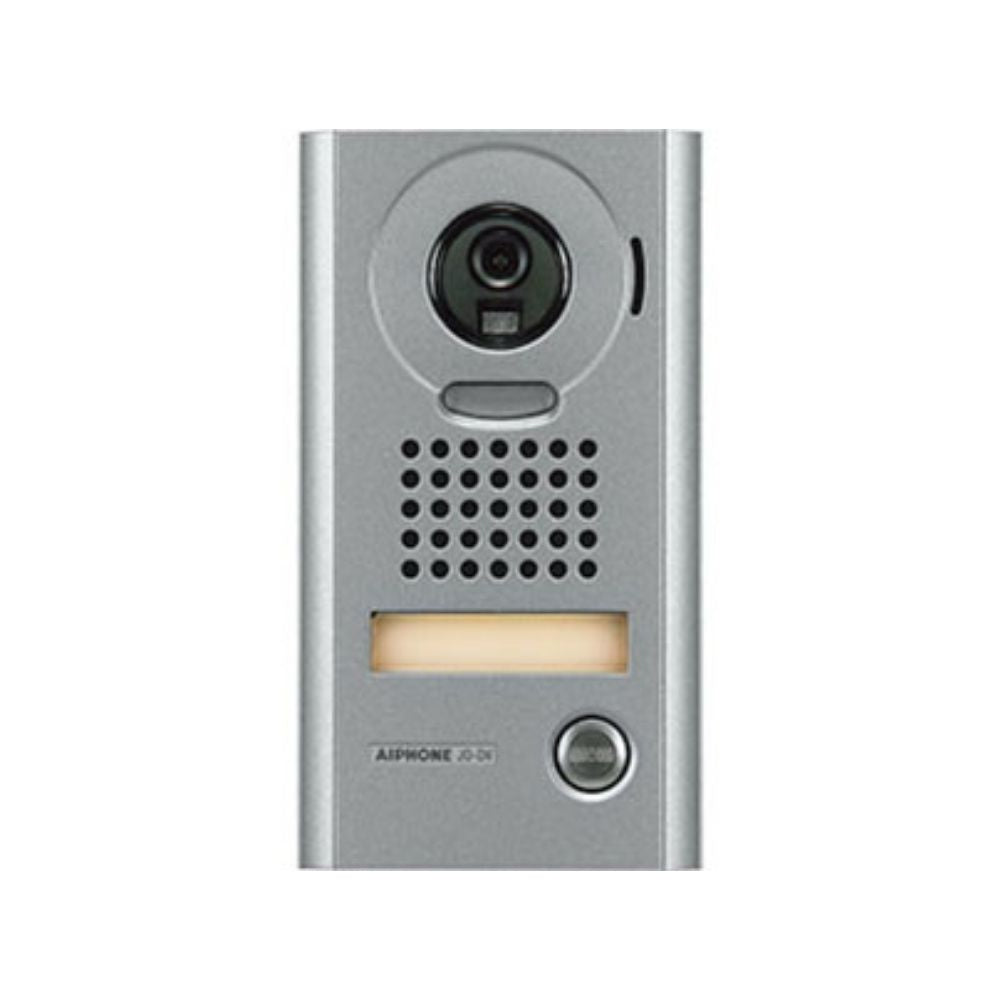

    Video Door Station
    • Model: JO-DV
    • Power Source: Supplied by inside monitor
    • Camera: 1/4 inch color CMOS
    • Mounting: Surface wall mount using a 1 gang electrical box
    • Faceplate Material: Zinc die cast
    • Enclosure Rating: IP54
    • Impact Rating: IK08
    • Communication style: Handsfree
    • Operational Temperature: -40°~140° F (-40° ~ 60° C)
    • Wiring to master: 2-cond., low cap, solid, non-shielded
    • Max. Wire distance: 165' (22AWG) 330' (18AWG)

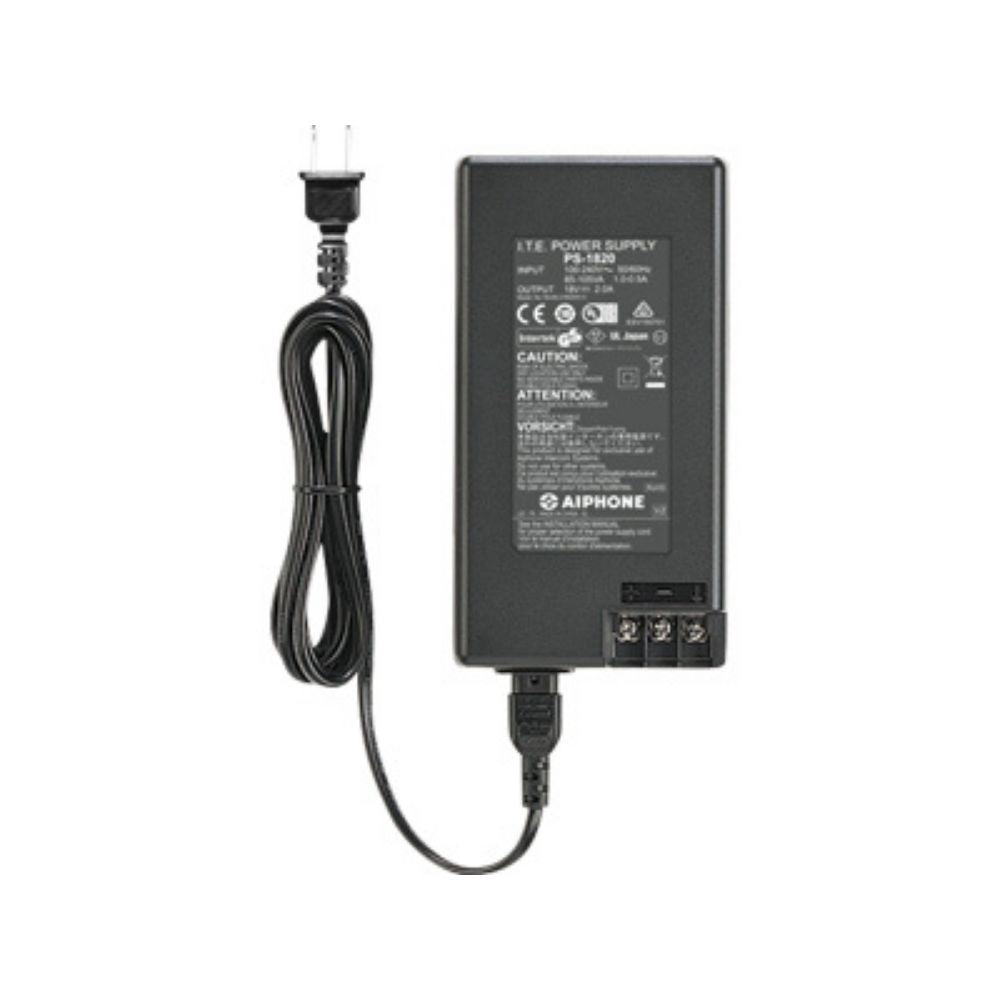

    Power Supply
    • Model: PS-1820UL
    • Power Source: AC 100~240V 50/60Hz
    • Power Output: DC 18V 2A
