EMX IRB-325 RX and TX in Explosion Proof Housing | EMX-IRB-EXP

The IRB-EXP photocell is used as a safety, reversing, or opening device in conjunction with automatic operators. The IRB-EXP will work with any control board that accepts dry contact on the input. The easy-to-install IRBEXP is used with garage doors, rolling doors, parking barriers, and other equipment located in explosive environments.

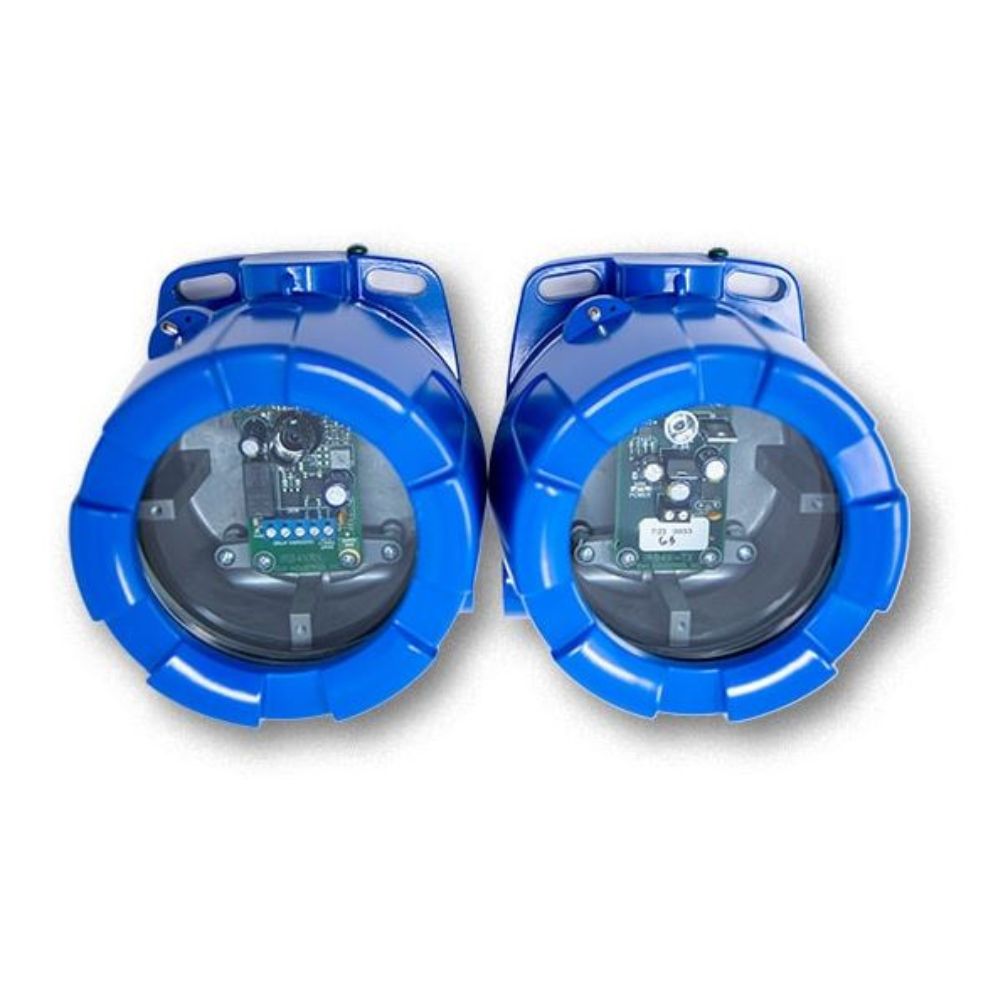

Designed for explosive environments, the rugged IRB-EXP thru beam photoeye is used as a safety, reversing or opening device with automatic gate and door operators. The photoeye provides a signal to the operator that the beam is or is not obstructed. The IRB EXP operates up to 115 feet in a cast aluminum housing. A red alignment indicator on the receiver provides status information at a glance, making set-up and alignment easy.

Features
  • Designed to operate in areas with explosive environments
  • NEMA 4 and 7 housing
  • NEC Class I, Groups B, C & D,Class II, Groups E, F & G CSA certified, CENELEC certified, EExd IIC
  • Copper free aluminum with epoxy finish
  • Potentiometer range adjustment to allow more precise tuning to site
  • Easy alignment and increased reliability
  • Through beam design is not affected by shiny surfaces
  • Modulated infrared to reduce the effect of sunlight, fog, rain, dust and dirt
  • No focusing lens
Manufacturer's Warranty
  • 2 Years
Technical Specifications
  • Power: 12- 24volts AC or DC
  • Current: TX = < 21mA, RX = 23mA standby 17mA detect
  • Range: 3 - 115 feet
  • Operating Temp: -40o F to +170o F
  • Relay Contact Rating: 1A @ 24VDC or 120VAC

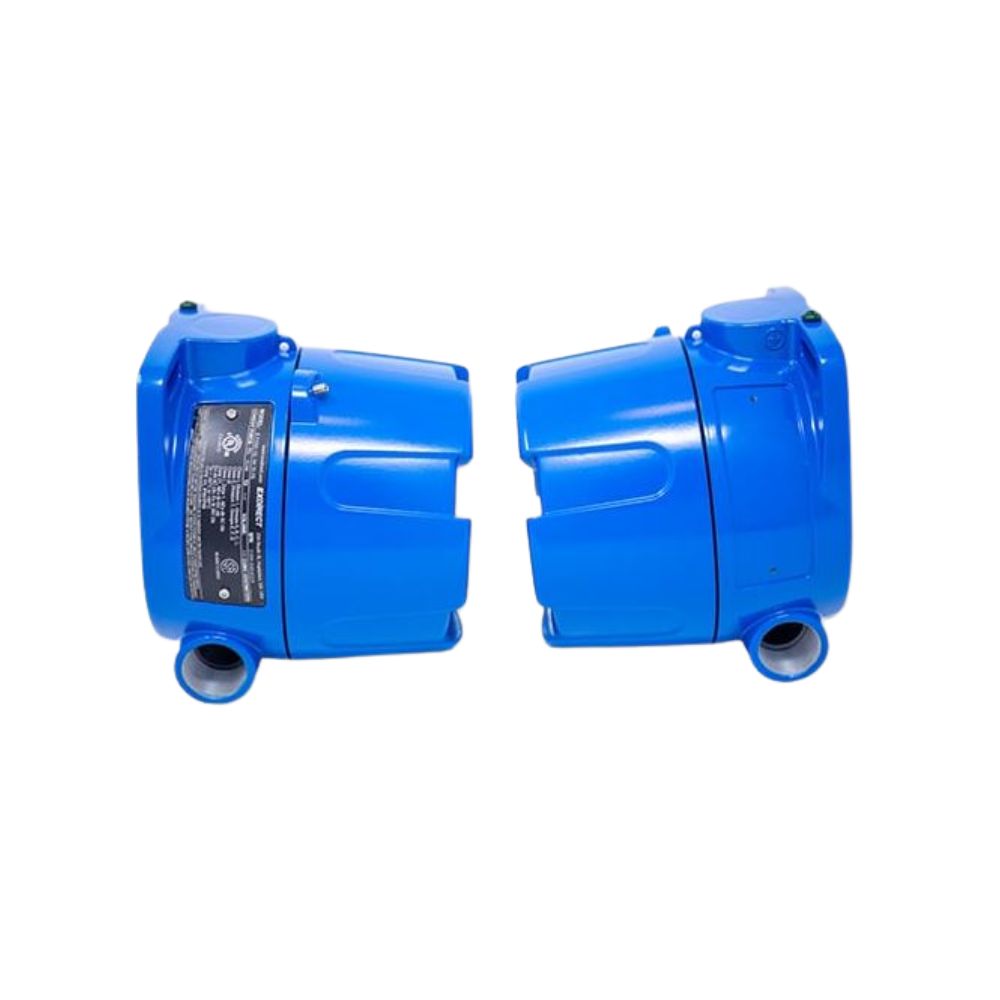

  • Housing Material: NEMA 4 & 7 Cast Aluminum
  • Dimensions: W – 4.69” x H – 4.5” x D – 3.44”
  • Detection Angle: 18 degrees
  • Gain Adjustment: Potentiometer
  • Certifications: CLASS I Groups B, C & D, CLASS II Groups E, F & G, CSA, CENELEC, EExd IIC
Cautions and Warnings
  • This product is an accessory or part of a system. Install the IRB-EXP according to the instructions from the gate or door operator manufacturer. Comply with all applicable codes and safety regulations.
