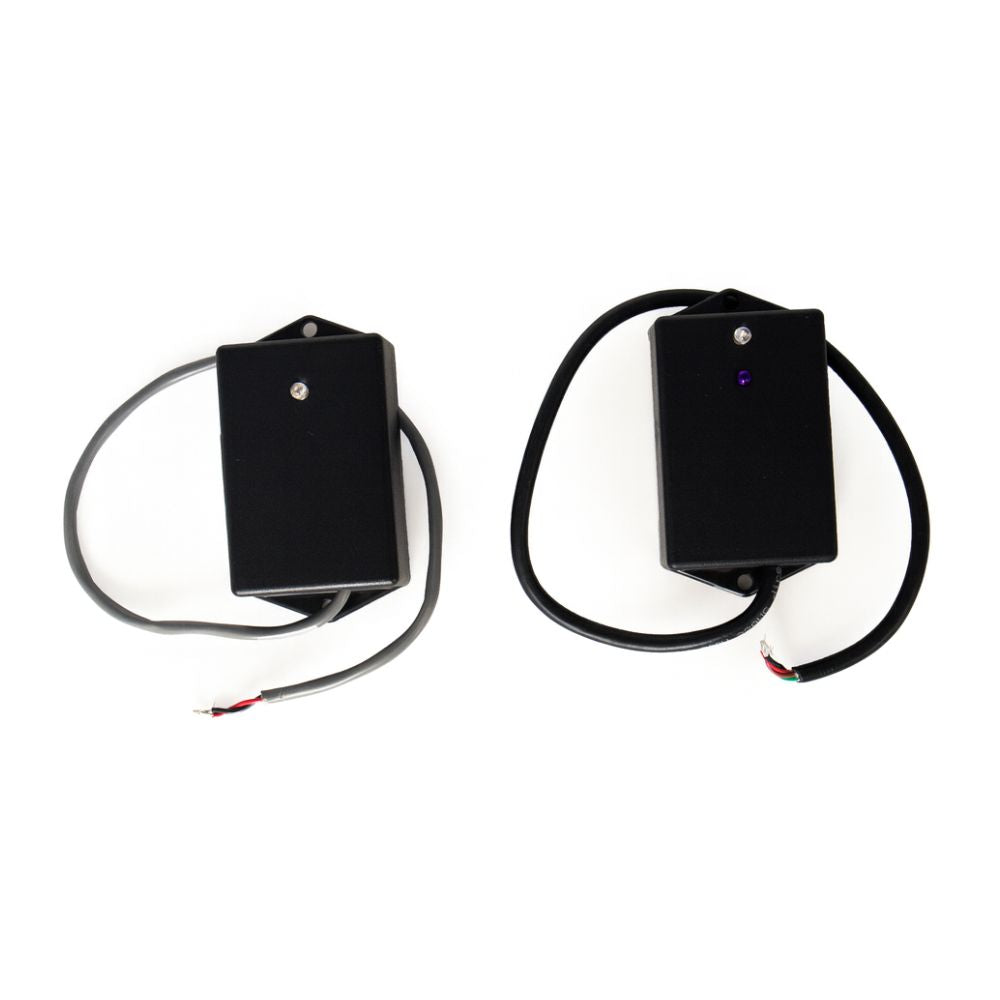

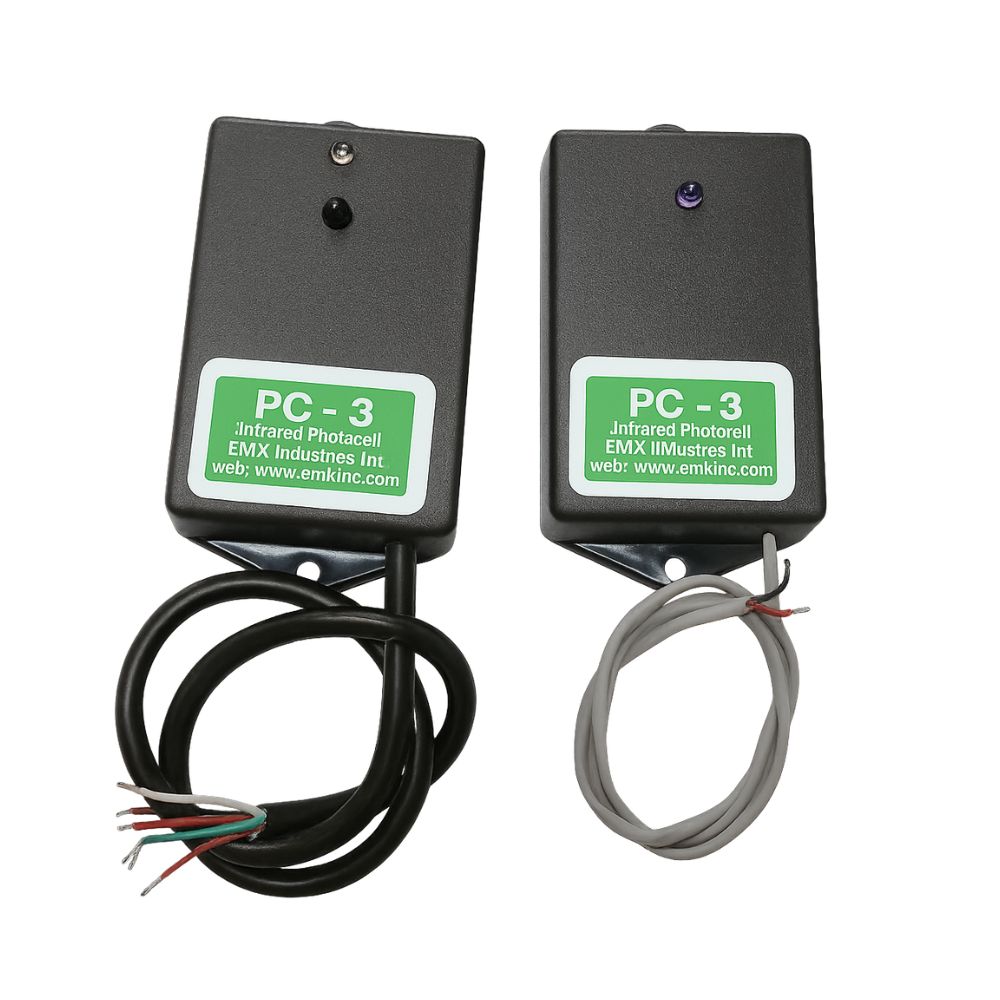

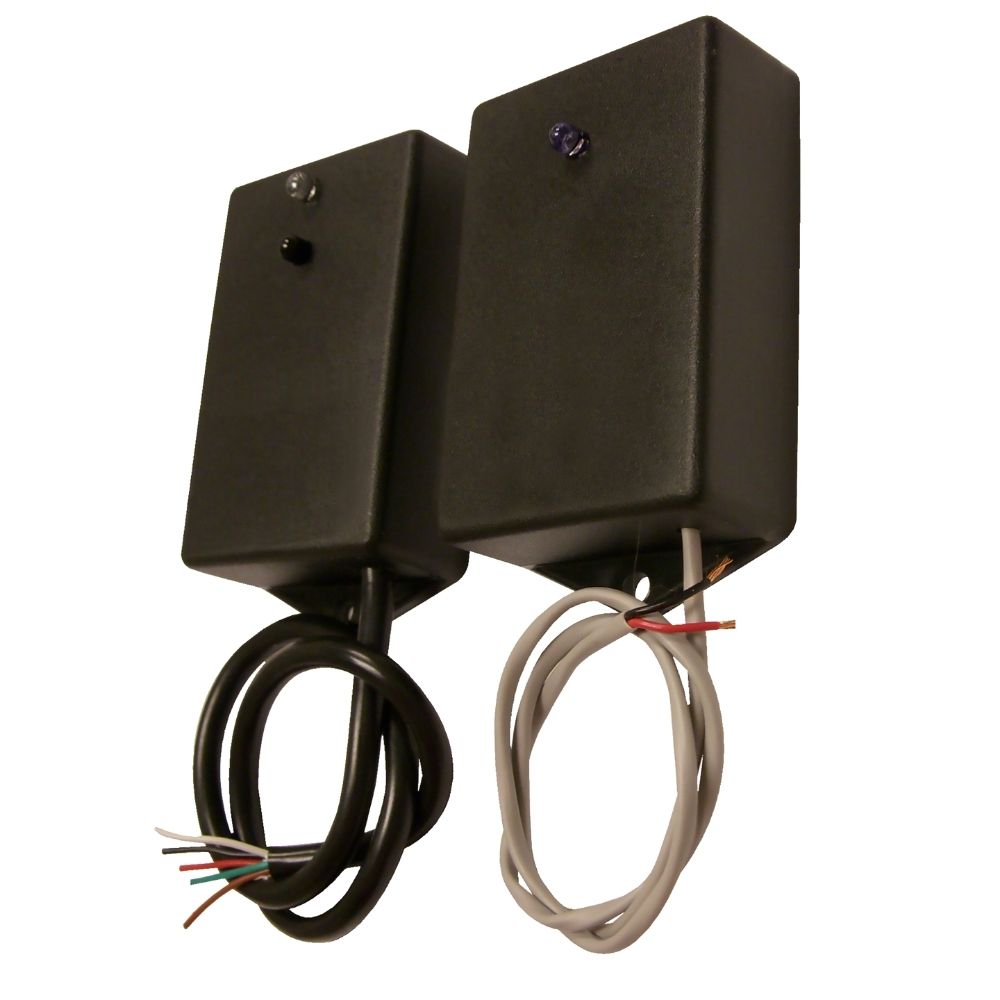

EMX Infrared Modulated Photoeye (Receiver and Transmitter) | EMX-PC-3

EMXSKU: EMX-PC-3

Price:
Sale price$97.21

Estimate shipping

EMX Infrared Modulated Photoeye (Receiver and Transmitter) | EMX-PC-3

The PC-3 photocell is used as a safety device in conjunction with the automatic operator. The PC-3 will work with any control board that accepts dry contacts on the safety input. This easy-to-install, cost-effective photocell is used with garage doors and rolling doors. For sliding gates, swinging gates, and parking barriers the IRB-4X is recommended.

Features
  • LED alignment indicator simplifies installation.
  • Supervised relay output provides an “open” signal in case of power failure.
  • The non-reflective through-beam system is not affected by shiny surfaces.
  • The modulated infrared beam is not affected by sunlight, rain, dust, or dirt.
  • No calibration or sensitivity adjustments are necessary.
  • A wide detection angle of 24o simplifies installation and increases the reliability of operation.
  • Indoor or protected outdoor operation of 30 feet.
Manufacturer's Warranty
  • 2 Years
Technical Specification
  • Range: 30 feet
  • Power: 12V – 24V AC or DC
  • Relay Contacts: 1A @ 24VDC or 120VAC
  • Dimensions: 4 in. x 2 in. x 1.5 in. 18” lead wire
  • Housing: Black PVC * Not watertight
Product Literature
