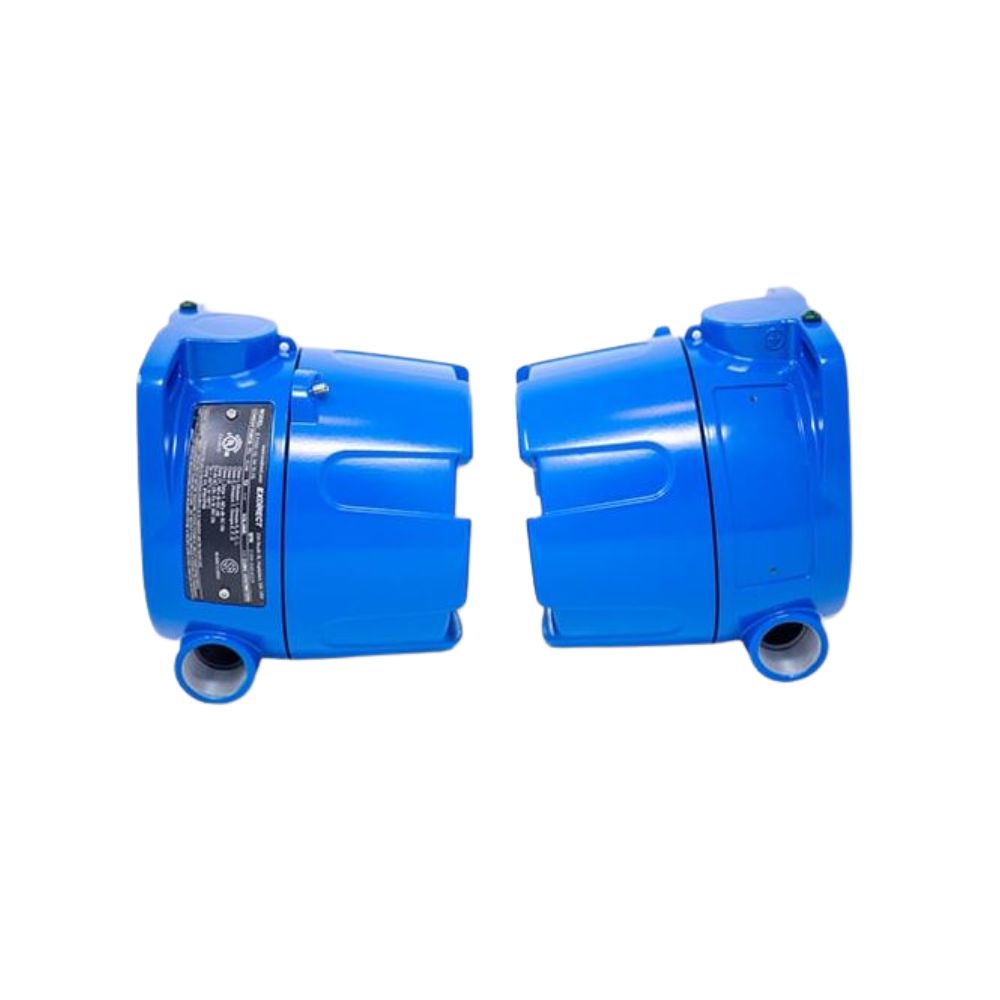

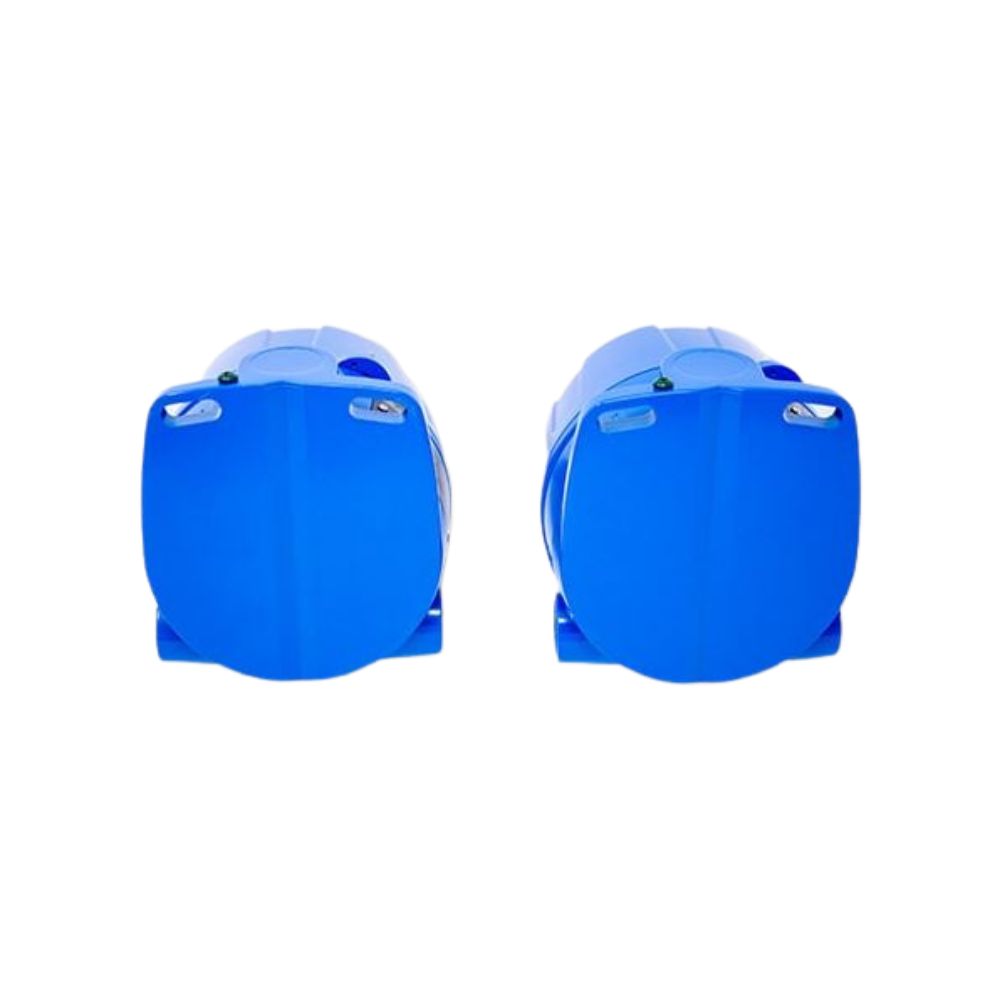

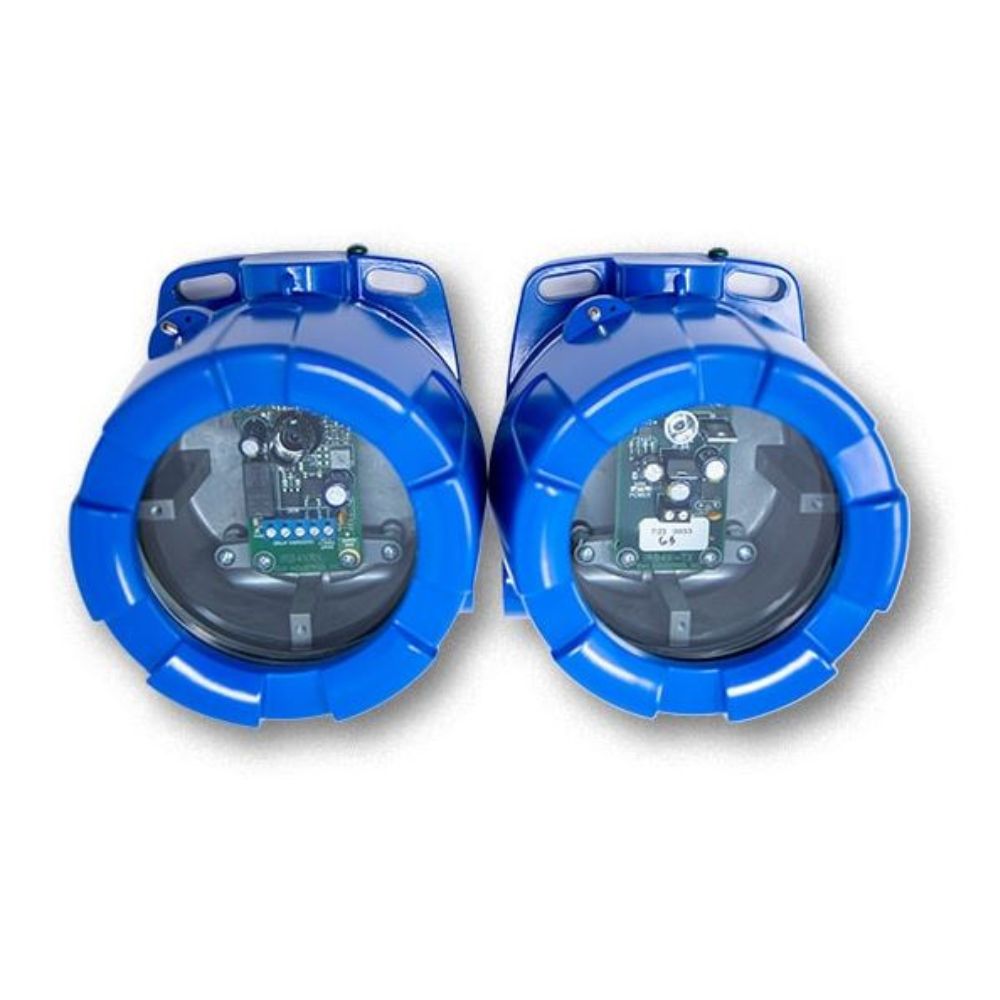

EMX IRB-325 RX and TX in Explosion Proof Housing | EMX-IRB-EXP
The IRB-EXP photocell is used as a safety, reversing, or opening device in conjunction with automatic operators. The IRB-EXP will work with any control board that accepts dry contact on the input. The easy-to-install IRBEXP is used with garage doors, rolling doors, parking barriers, and other equipment located in explosive environments.
Features
- Designed to operate in areas with explosive environments
- NEMA 4 and 7 housing
- NEC Class I, Groups B, C & D, Class II, Groups E, F & G CSA certified, CENELEC certified, EExd IIC
- Copper-free aluminum with epoxy finish
- Potentiometer range adjustment to allow more precise tuning to site
- Easy alignment and increased reliability
- Through-beam design is not affected by shiny surfaces
- Modulated infrared to reduce the effect of sunlight, fog, rain, dust, and dirt
- No focusing lens
Manufacturer's Warranty
- 2 Years
Technical Specifications
- Power: 12- 24volts AC or DC
- Current: TX = < 21mA, RX = 23mA standby 17mA detect
- Range: 3 - 115 feet
- Operating Temp: -40o F to +170o F
- Relay Contact Rating: 1A @ 24VDC or 120VAC
- Housing Material: NEMA 4 & 7 Cast Aluminum
- Dimensions: W – 4.69” x H – 4.5” x D – 3.44”
- Detection Angle: 18 degrees
- Gain Adjustment: Potentiometer
- Certifications: CLASS I Groups B, C & D, CLASS II Groups E, F & G, CSA, CENELEC, EExd IIC
