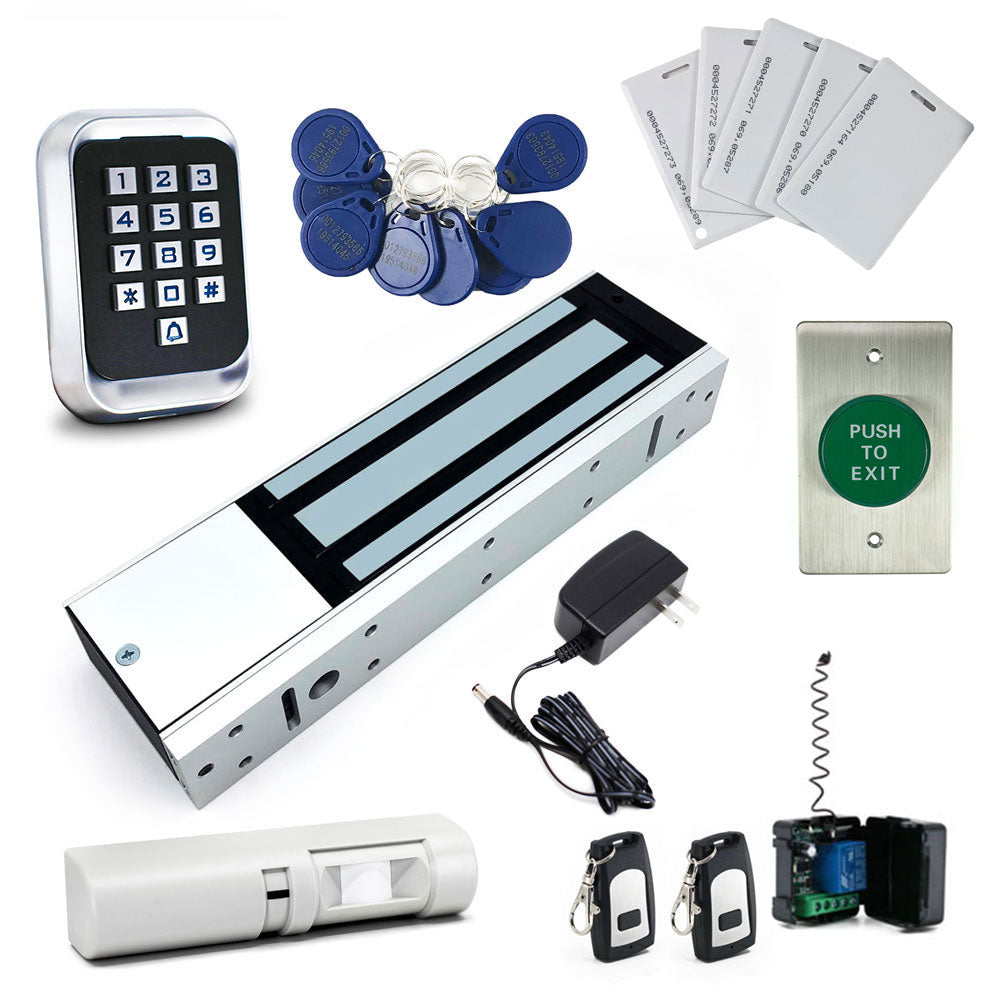

ASE Deluxe Wireless Entry Magnetic Lock Kit | FAS-KITMAGDELUXE
Introducing the ASE Deluxe Wireless Entry Magnetic Lock Kit– a comprehensive and cutting-edge access control solution that combines convenience, security, and versatility. Manufactured by ASE, a reputable name in the access control industry, this kit is designed to provide seamless entry management for your property.
Includes

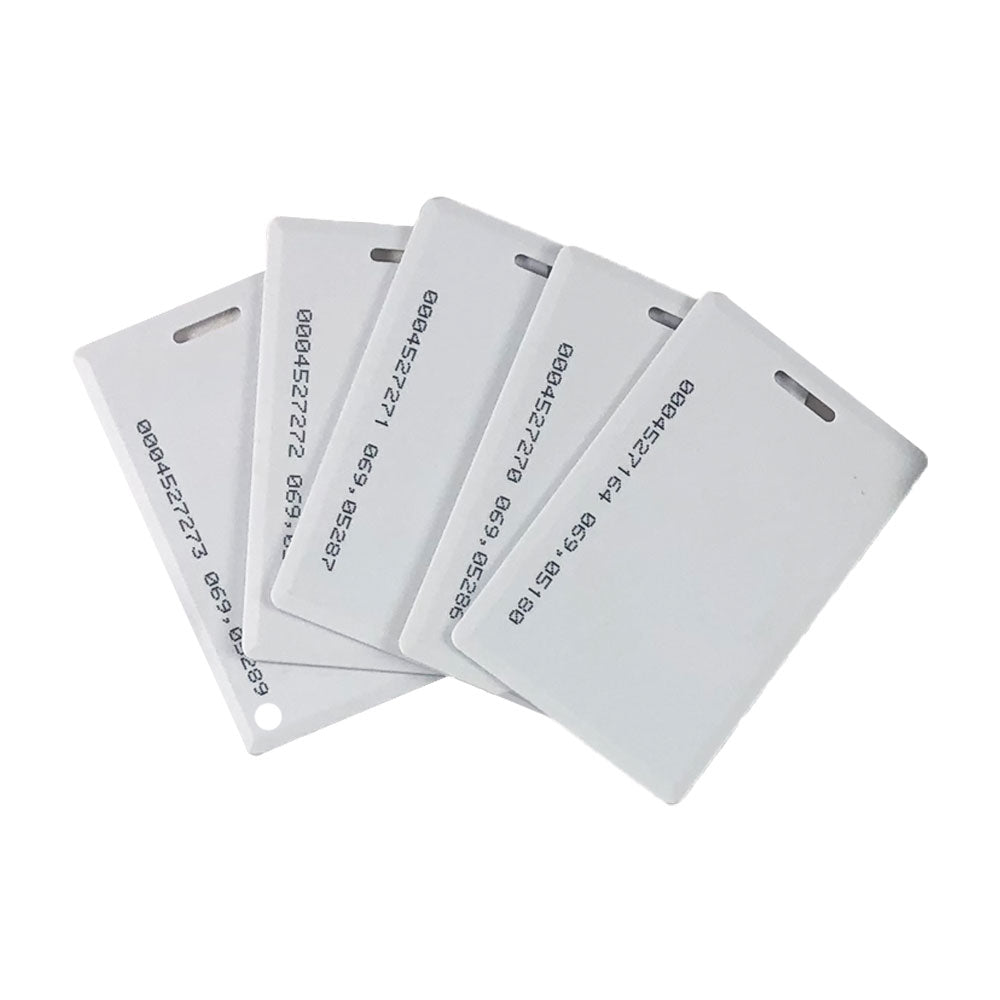

- 10 FAS-SS-CARD-SEQ Prox Cards

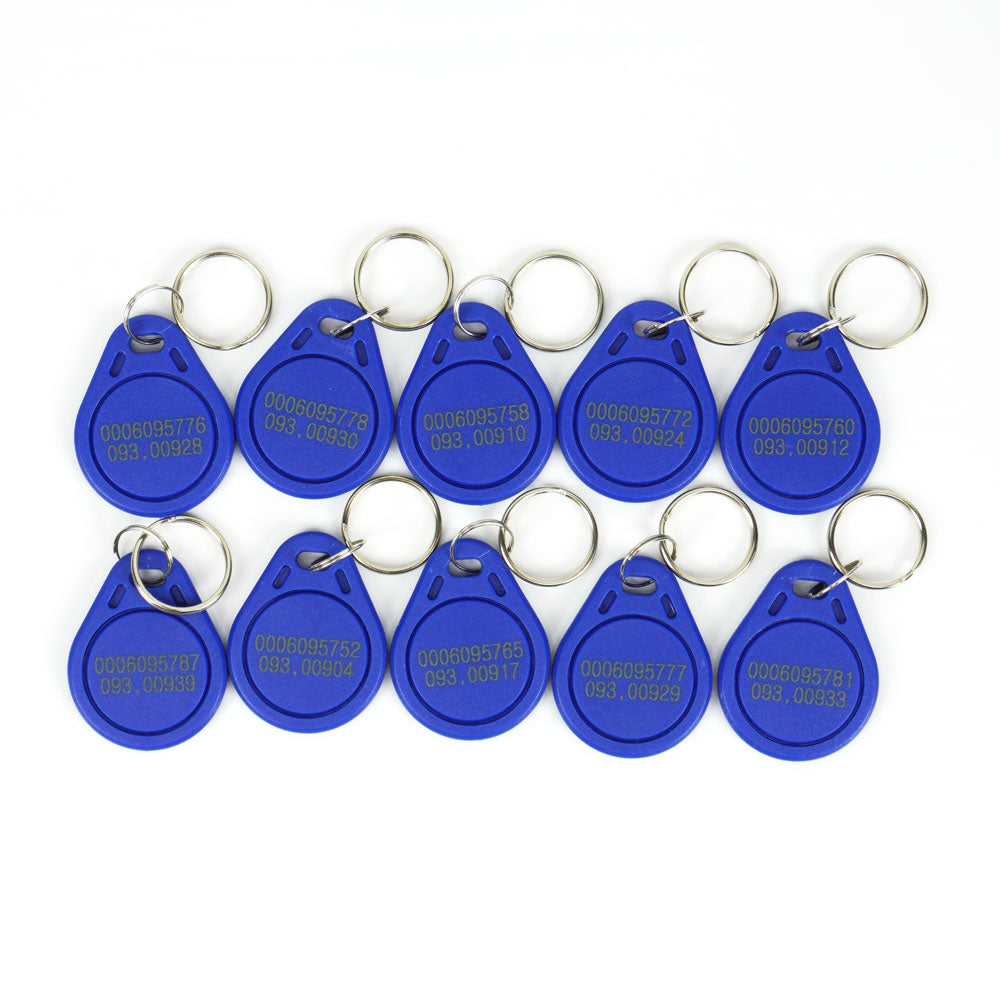

- 10 FAS-SS-FOB Key Fobs

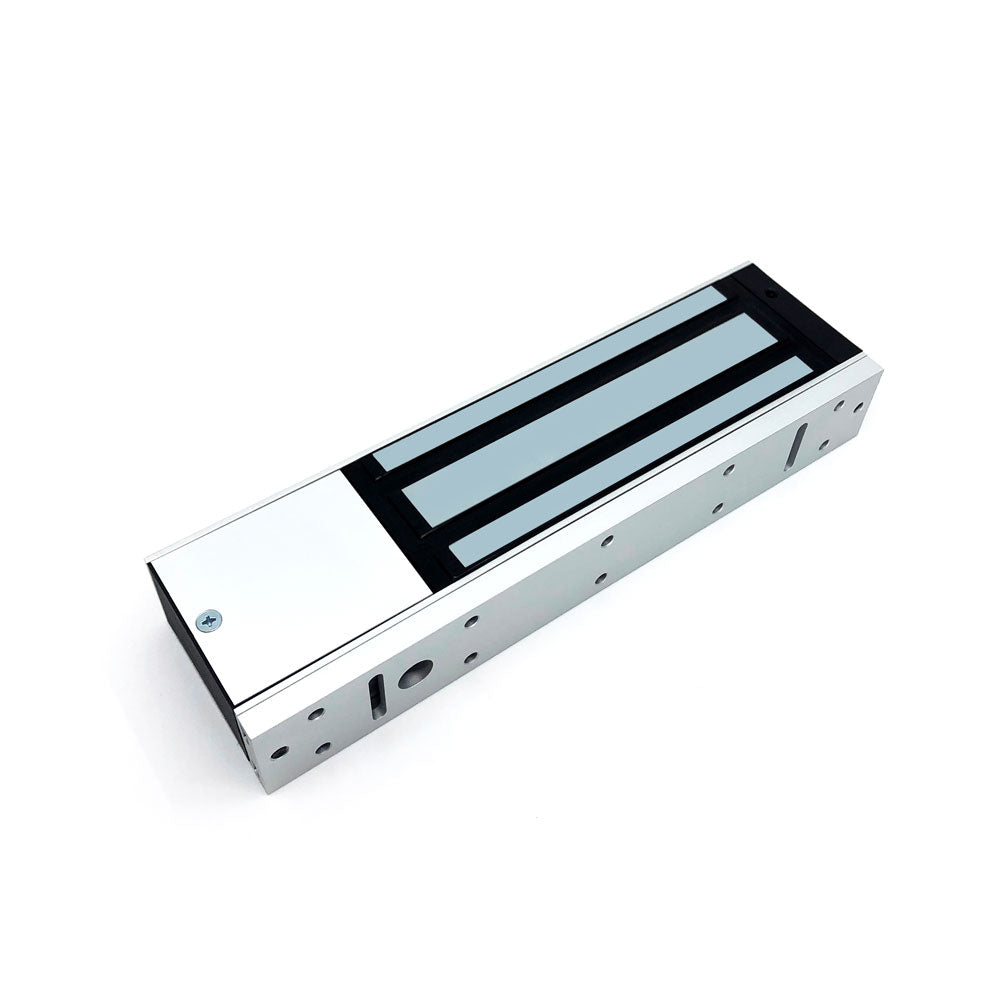

- 1 Magnetic Lock HUL1200LSDM
- 1 Mini Receiver 1 Channel MINIRX1CH
- 2 FAS Mini Remote 1 Channel MINITX1CH
- 1 C2-15-12V2AMP 2AMP Power Supply

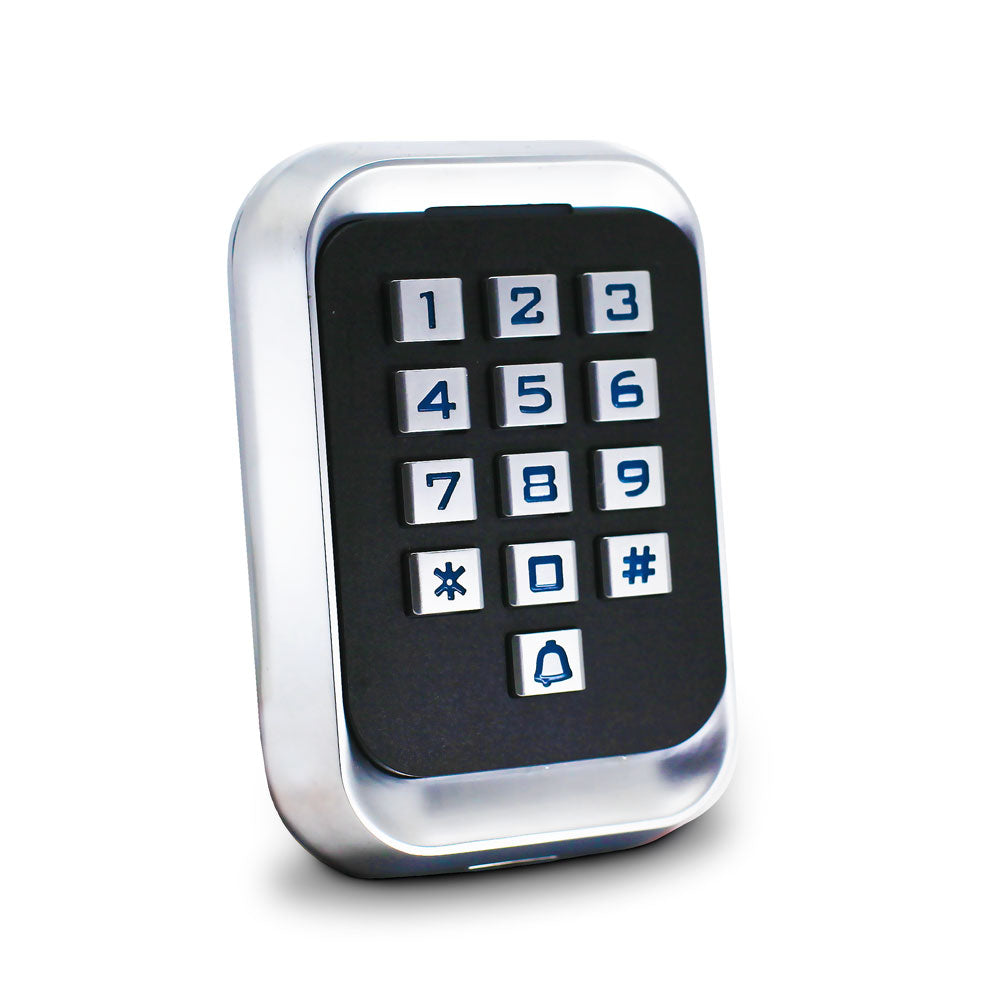

- 1 FAS-KP70 Illuminated Outdoor Keypad with WG26 and RFID

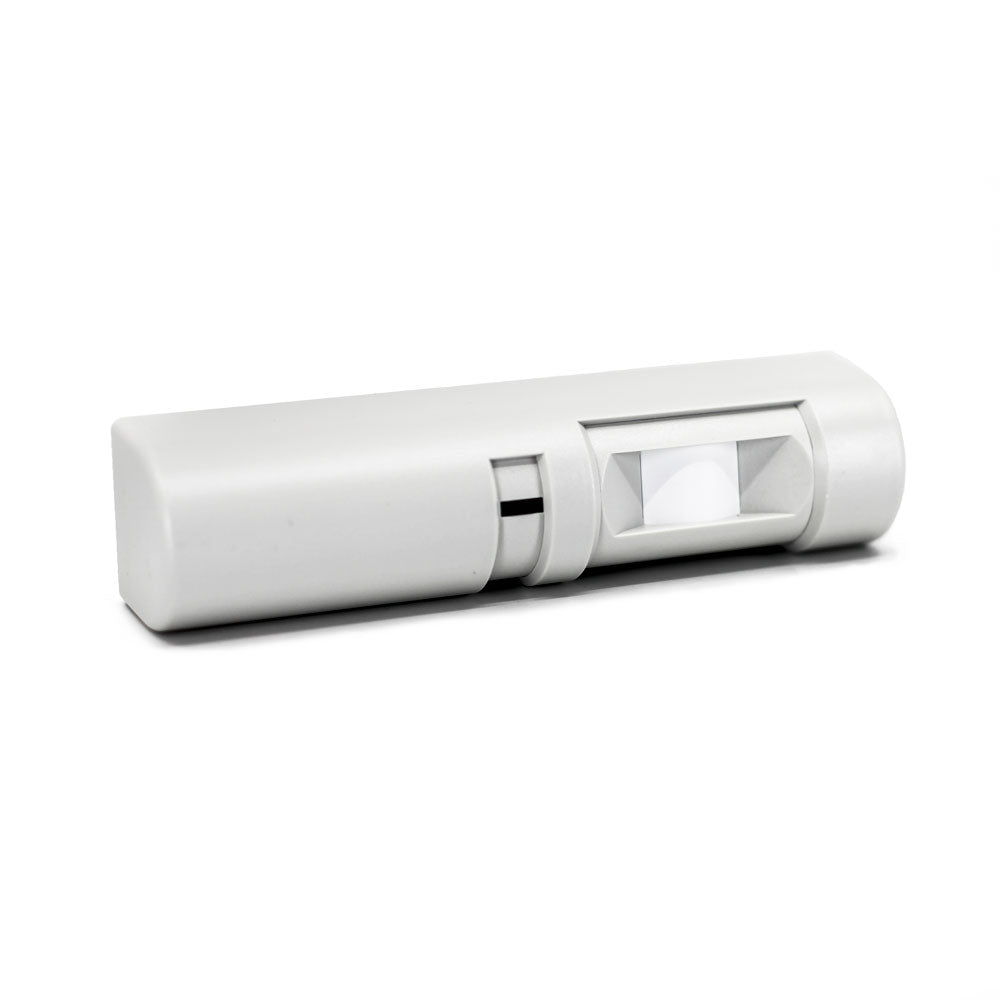

- 1 Bosch Motion Sensor DS150i

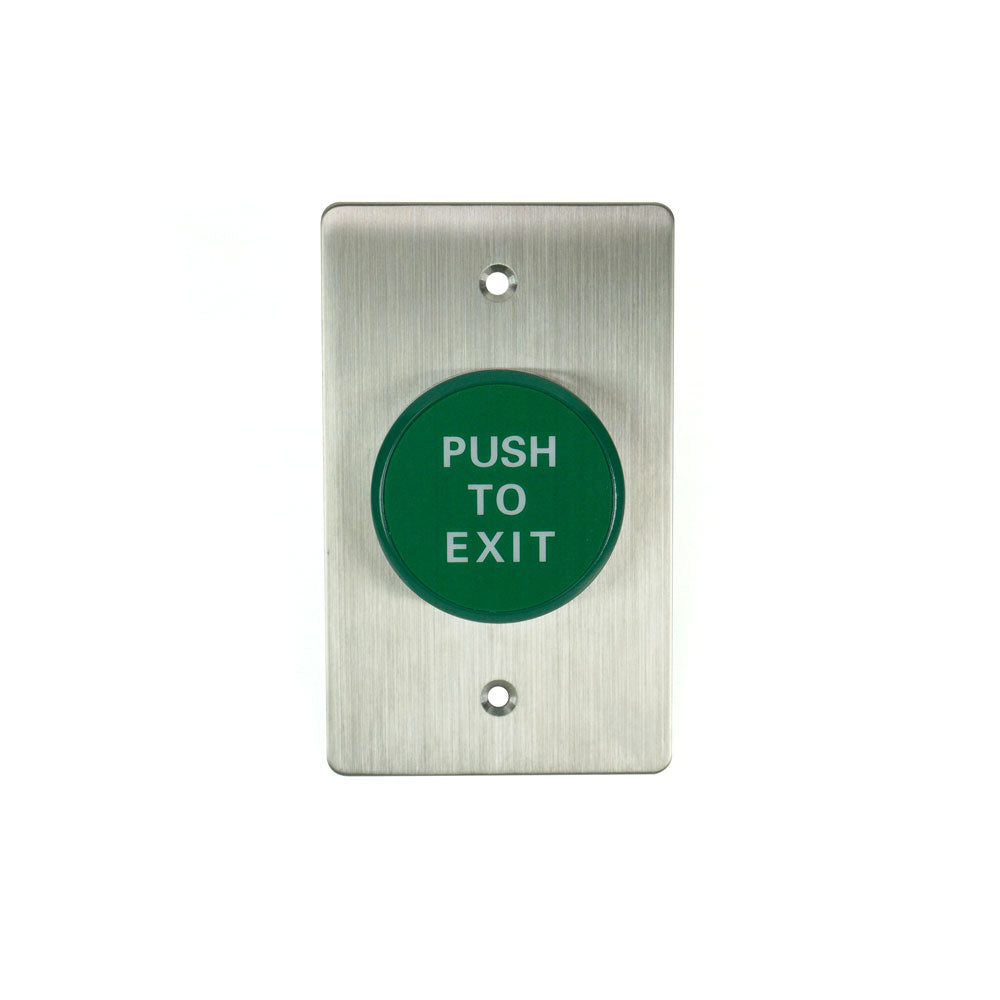

- 1 Green Request to Exit Stainless Steel Button FAS-PBRGN
Features
- 1200 lbs holding force
- Surface mount
- Single door lock
- Delay
- Monitoring
- LED
- Spike suppressor
- UL listed
- CE approved
Technical Specifications
- Holding force per door: up to 1200lbs
- Dual voltage = 12Vdc 500mA / 24Vdc 250mA (selected)
- Voltage tolerance: +/-15%
- Operating temp: -10°C to +55°C
- Magnet :266(L) X 76(W) X40mm(T)
- Armature zinc plated:185(L) X61(W) X16.5mm(T)
- Weight: 10 lbs(approx)
Magnetic Lock 12V 1000mA Power Supply Features
- Small size and easy to conceal
- Input: 100-120V-50/60Hz 0.5A
- Output: +12VDC --- 1A
- UL Listed / Approved
Illuminated Outdoor Keypad with WG26 and RFID FAS-KP70 Features
- Card Type: EM Card
- Digital backlit touch keypad
- WG interface: WG26 Input / output
- Capacity: 2000 cards / codes
- Three accesses: card, pin, card + pin
Bosch DS150i Motion Sensor Features
- Single or Double Door Use
- Wall and Ceiling Mountable
- Internal Vertical Pointability
- Wrap-Around Coverage Pattern
- 12 or 24 AC or DC Operation
- Up to 60 Second Adjustable Latch Time
- Selectable Relay Trigger Mode
- Selectable Fail Safe/Fail Secure
- UL Listed
- CE Approved
FAS-PBRGN Push To Open Button Features
- Stainless Steel Face Plate
- Micro Switch: NO / NC / COM
- 1 Gang Size
Note
- Mag Lock Bracket Set FAS-H-B1002 is required for Inswing Door Applications.
