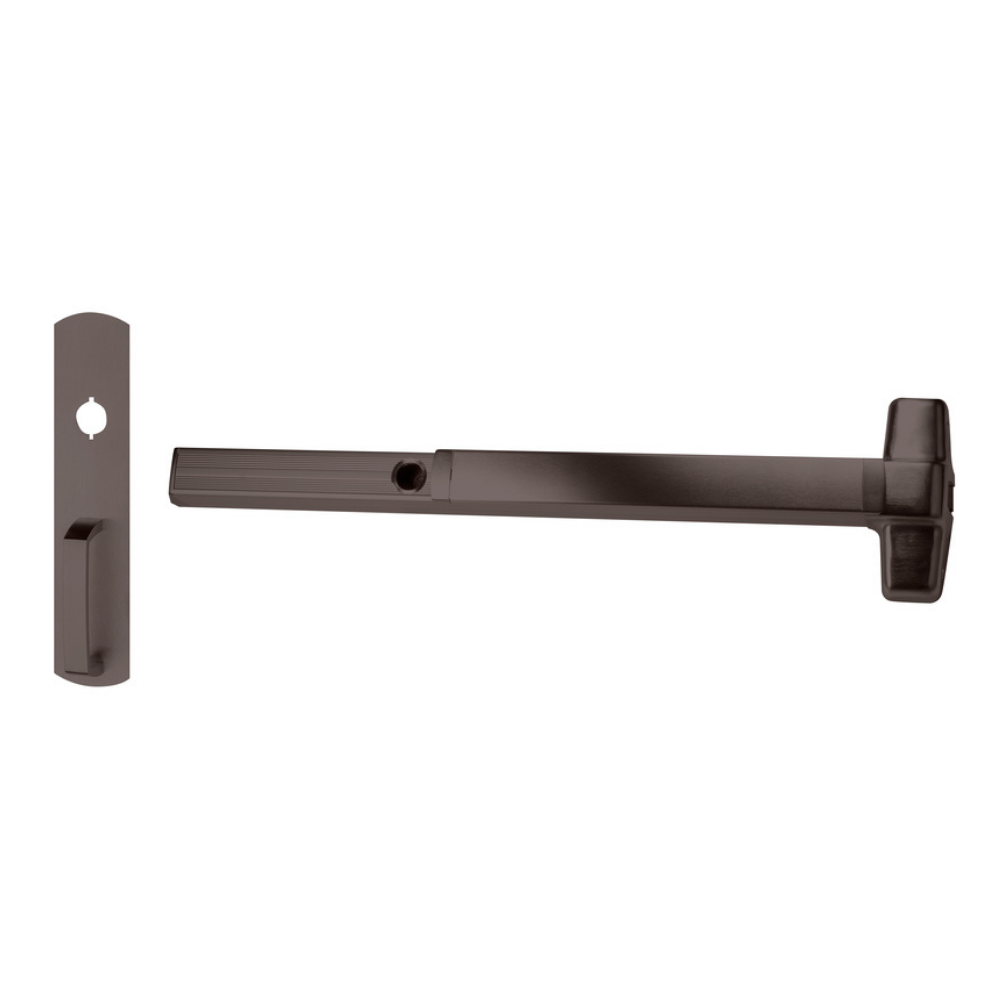

Von Duprin Grade 1 Rim Exit Bar (Wide Stile Pushpad, 36 in., Dark Bronze Anodized Aluminum Finish) | VON-99NL 3 313

Heavy-duty exit device with grooved mechanism cases for all types of single and double doors. The rim device is non-handed except when the following device options are used: SD (special dogging), -2 (double cylinder), or SS (signal switch).

Features
  • Device functions: Device ships EO/DT/NL. Field selectable. For TP, K or L remove the NL drive screw from the device.
  • Physical Appearance: Wide Stile Pushpad
  • Dogging Options: Hex Key Dogging
  • Fasteners & sex bolts (SNB): Includes screw pack for 1 3/4" (44mm) and 2 1/4" (57mm) thick metal or wood doors. Optional 425 SNB available, see page 9 for quantities.
  • Hand: Field Reversible
  • Includes Trim: Yes
  • Includes Cylinder(s): No
  • Fire Rated: No
  • Burglar Rated: No
  • ADA Compliance: No
  • UL Listing Type: UL 305
  • ANSI Number: A156.3
  • Restrictions: None
  • BAA Qualified: Yes
  • Limited Warranty: 3 Years
Technical Specifications
  • Product Type: Rim Exit Devices
  • Mechanical Function: Classroom
  • Finish: 313
  • Finish Description: Dark Bronze Anodized Aluminum
  • Finish Family: Dark Bronze
  • Device Type: Rim
  • Device Length: 36"
  • Device centerline from finished floor: 39 13/16" (1011 mm) 39 11/16" (1008 mm) with mullion
  • Center case dimensions: 8" x 2 3/4" x2 3/8" (203mm x 70mm x 60mm)
  • Mechanism case dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)
  • Projection: Pushbar Neutral – 3 13/16" (97 mm) Pushbar depressed – 3 1/16" (78 mm)
  • Latch bolt: Deadlocking, 3/4" (19mm) throw
  • Trim Type: Lever
  • Trim Design: Lever with Escutcheon
  • Trim Part No.: 996L-06-R/V 26D LHR
  • Cylinder Type: Rim
  • Minimum Stile Size: 4-1/2"
  • Door Material: Metal or Wood
  • Door Width: 28" - 36"
  • Door Thickness: 1-3/4" - 2-1/4"
  • Product Width: 3.75"
  • Product Height: 8"
