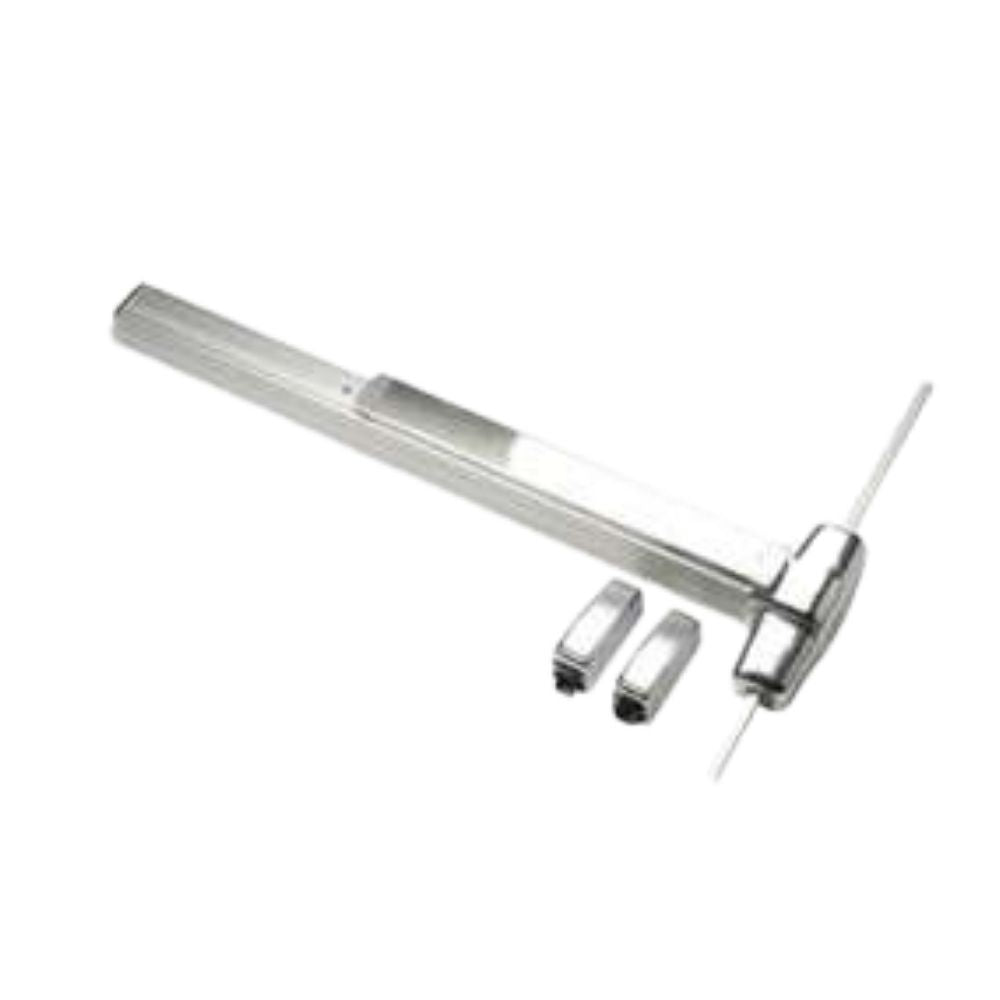

Von Duprin Grade 1 Surface Vertical Rod Exit Bar (Wide Stile Pushpad, 48 in., Satin Chrome Finish) | VON-9927EO 4 26D

Von DuprinSKU: VON-9927EO 4 26D

Price:
Sale price$1,443.60
Add to cart

Von Duprin Grade 1 Surface Vertical Rod Exit Bar (Wide Stile Pushpad, 48 in., Satin Chrome Finish) | VON-9927EO 4 26D

The Von Duprin Grade 1 Surface Vertical Rod Exit Bar is perfect for high-traffic areas. With its sturdy construction and sleek satin chrome finish, it's sure to provide the security you need and the style you want.

Features
  • Device functions: EO/Exit Only, Accepts Various Trim
  • Dogging Options: Hex Key Dogging
  • Extension rods available in 1' (205mm) or 3' (914mm) for doors over 7'. One piece top rod is available for 8' (2438mm) and 10' (3048mm) doors.
  • Fasteners & sex bolts: (SNB) Includes screw pack for 1 3/4" (44mm) to 2 1/4" (57mm) thick metal or wood doors, and 325 SNB for top and bottom latch. Optional 425 SNB is available.
  • Door undercut 1 /4" (7mm) recommended
  • Physical Appearance: Wide Stile Pushpad
  • Restrictions: None
  • BAA Qualified: Yes
  • Hand: Field Reversible
  • Fire Rated: No
  • Burglar Rated: No
  • Includes Trim: No
  • Trim Type: Less trim
  • Includes Cylinder(s): No
  • UL Listing Type: UL 305
  • Limited Warranty: 3 Years
Technical Specifications
  • Finish: 626/US26D
  • Finish Description: Satin Chrome
  • Finish Family: Matte Silver
  • Device Type: Surface Vertical Rod
  • Device centerline from finished floor: 395 /8" (1006 mm)
  • Center case dimensions: 8" x 2 3/4" x2 3/8" (203mm x 70mm x 60mm)
  • Mechanism case dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)
  • Projection: Pushbar neutral – 3 13/16" (97 mm) Pushbar depressed – 3 1/16" (78 mm)
  • Latch bolt: Deadlocking anti-friction top & bottom bolt, 5 /8" (16mm) throw
  • Top & bottom Latch case: 4 1/2" x 2 1/8" x 1 1/2" (114mm x 54mm x 38mm)
  • Vertical rods: 1 /2" square tubing, standard rods accommodate 7' (2134mm) doors. Top rod length: 34 15/16" (887mm); Bottom rod length: 31 1/2" (794mm)
  • Device Length: 48"
  • Top Strike: 299
  • Strike Bottom: 248L4 / 304L
  • Cylinder Type: Non-Keyed
  • Minimum Stile Size: 3-11/16"
  • Door Material: All Types
  • Door Width: 34" - 48"
  • Door Height: 84"
  • Door Thickness: 1-3/4"
