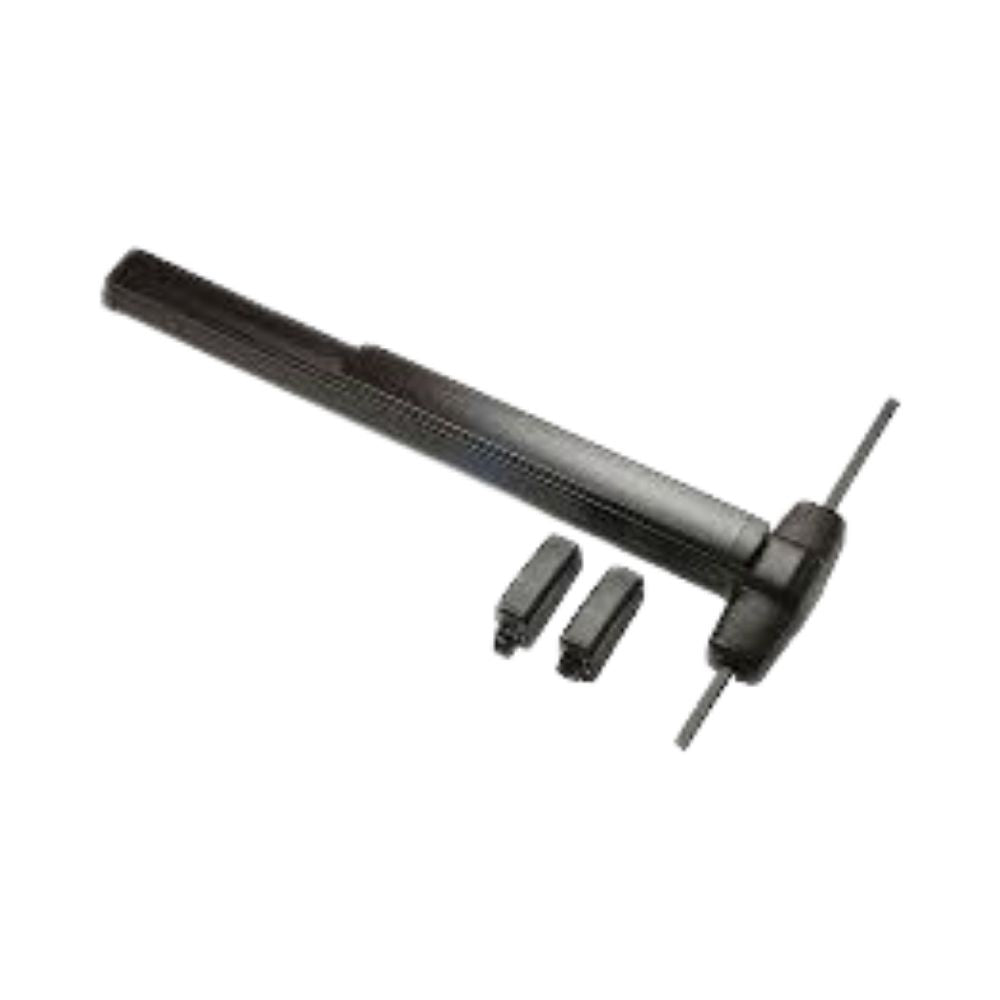

Von Duprin Grade 1 Surface Vertical Rod Exit Bar (Wide Stile Pushpad, 36", Dark Bronze Anodized Aluminum Finish) | VON-9927EO 3 313

Von DuprinSKU: VON-9927EO 3 313

Price:
Sale price$1,858.99

Estimate shipping

Von Duprin Grade 1 Surface Vertical Rod Exit Bar (Wide Stile Pushpad, 36 in., Dark Bronze Anodized Aluminum Finish) | VON-9927EO 3 313

9927 series surface vertical rod exits are made for high traffic environments.

Features
  • Device functions: EO/ Exit Only. Accepts Various Trim
  • Physical Appearance: Wide Stile Pushpad
  • Dogging Options: Hex Key Dogging
  • Vertical rods: 1 /2" square tubing, standard rods accommodate 7' (2134mm) doors. Top rod length: 34 15/16" (887mm); Bottom rod length: 31 1/2" (794mm) Extension rods available in 1' (205mm) or 3' (914mm) for doors over 7'. One piece top rod is available for 8' (2438mm) and 10' (3048mm) doors.
  • Fasteners & sex bolts: (SNB) Includes screw pack for 1 3/4" (44mm) to 2 1/4" (57mm) thick metal or wood doors, and 325 SNB for top and bottom latch. Optional 425 SNB is available.
  • UL Listing- UL 305
  • Includes Trim: No
  • Trim Type: Less trim
  • Includes Cylinder(s): No
  • Field Reversible: Yes
  • Fire Rated: No
  • Burglar Rated: No
  • Restrictions: None
  • BAA Qualified: Yes
  • Limited Warranty: 3 Years
Technical Specifications
  • Finish: 313
  • Finish Description: Dark Bronze Anodized Aluminum
  • Finish Family: Dark Bronze
  • Device Type: Surface Vertical Rod
  • Device Length: 36"
  • Hand: Field Reversible
  • Top Strike: 299
  • Strike Bottom: 248L4 / 304L
  • Cylinder Type: Non-Keyed
  • Minimum Stile Size: 3-11/16"
  • Door Material: All Types
  • Door Width: 28" - 36"
  • Door Height: 84"
  • Door Thickness: 1-3/4"
  • Device centerline from finished floor: 395 /8" (1006 mm)
  • Center case dimensions: 8" x 2 3/4" x2 3/8" (203mm x 70mm x 60mm)
  • Mechanism case dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)
  • Projection: Pushbar neutral – 3 13/16" (97 mm) Pushbar depressed – 3 1/16" (78 mm)
  • Latch bolt: Deadlocking anti-friction top & bottom bolt, 5 /8" (16mm) throw
  • Door undercut 1 /4" (7mm) recommended
  • Top & bottom Latch case: 4 1/2" x 2 1/8" x 1 1/2" (114mm x 54mm x 38mm)
