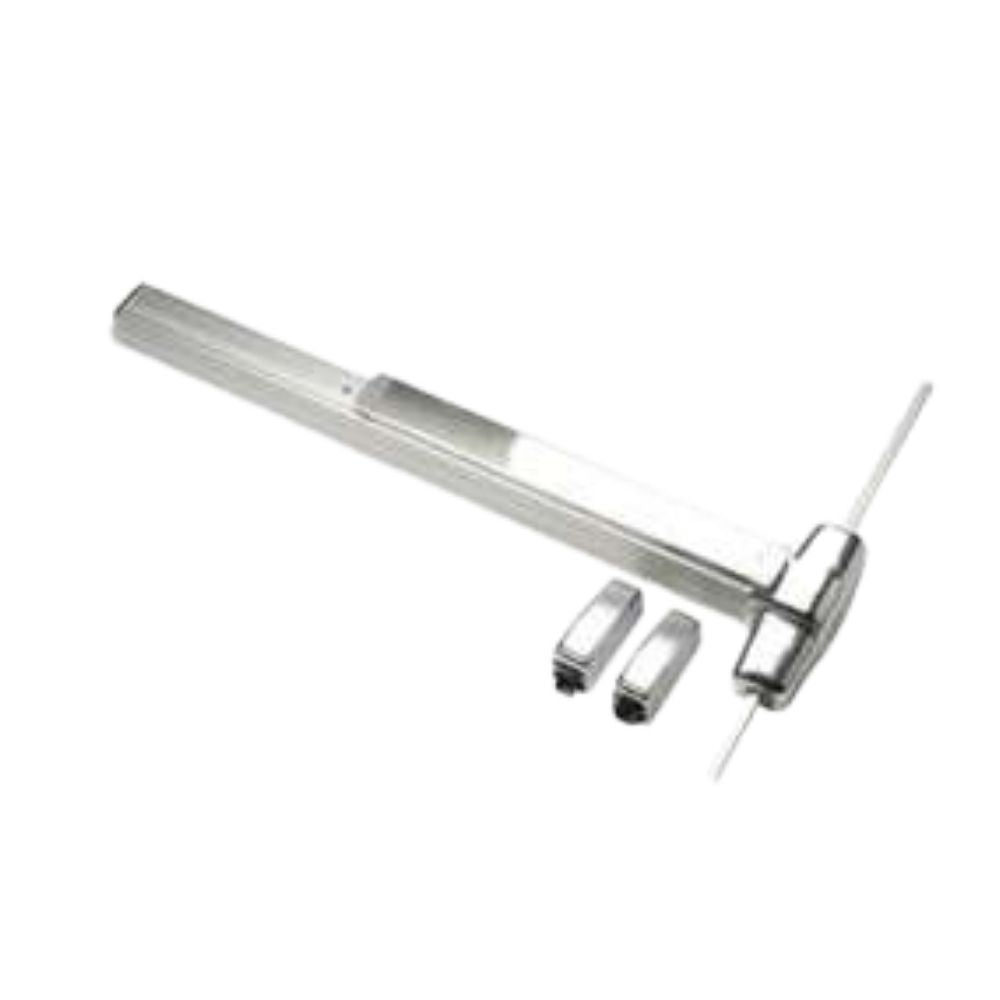

Von Duprin Grade 1 Surface Vertical Rod Exit Bar, Wide Stile Pushpad (36 in., Satin Chrome Finish) | VON-9927EO 3 26D
9927 series surface vertical rod exits are made for high traffic environments.
Features
- Device functions: EO (Exit Only) / Accepts Various Trim
- Device centerline from finished floor: 395 /8" (1006 mm)
- Center case dimensions: 8" x 2 3/4" x2 3/8" (203mm x 70mm x 60mm)
- Mechanism case dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)
- Projection: Pushbar neutral – 3 13/16" (97 mm) Pushbar depressed – 3 1/16" (78 mm)
- Latch bolt: Deadlocking anti-friction top & bottom bolt, 5 /8" (16mm) throw
- Door undercut 1 /4" (7mm) recommended
- Top & bottom Latch case: 4 1/2" x 2 1/8" x 1 1/2" (114mm x 54mm x 38mm)
- Vertical rods: 1 /2" square tubing, standard rods accommodate 7' (2134mm) doors. Top rod length: 34 15/16" (887mm); Bottom rod length: 31 1/2" (794mm) Extension rods available in 1' (205mm) or 3' (914mm) for doors over 7'. One piece top rod is available for 8' (2438mm) and 10' (3048mm) doors.
- Fasteners & sex bolts: (SNB) Includes screw pack for 1 3/4" (44mm) to 2 1/4" (57mm) thick metal or wood doors, and 325 SNB for top and bottom latch. Optional 425 SNB is available.
- BAA Qualified: Yes
- Fire Rated: No
- Burglar Rated: No
- Limited Warranty: 3 Years
Technical Specifications
- UL Listing Type: UL 305
- ANSI Number: A156.3 2014, Grade 1
- Finish: 626/US26D
- Finish Description: Satin Chrome
- Finish Family: Matte Silver
- Physical Appearance: Wide Stile Pushpad
- Device Type: Surface Vertical Rod
- Device Length: 36"
- Hand: Field Reversible
- Dogging Options: Hex Key Dogging
- Top Strike: 299
- Strike Bottom: 248L4 / 304L
- Includes Trim: No
- Trim Type: Less trim
- Includes Cylinder(s): No
- Cylinder Type: Non-Keyed
- Minimum Stile Size: 3-11/16"
- Door Material: All Types
- Door Width: 28" - 36"
- Door Height: 84"
- Door Thickness: 1-3/4"
- Reversible: Yesvon
- Product Type: Surface Vertical Rod Exit Devices
