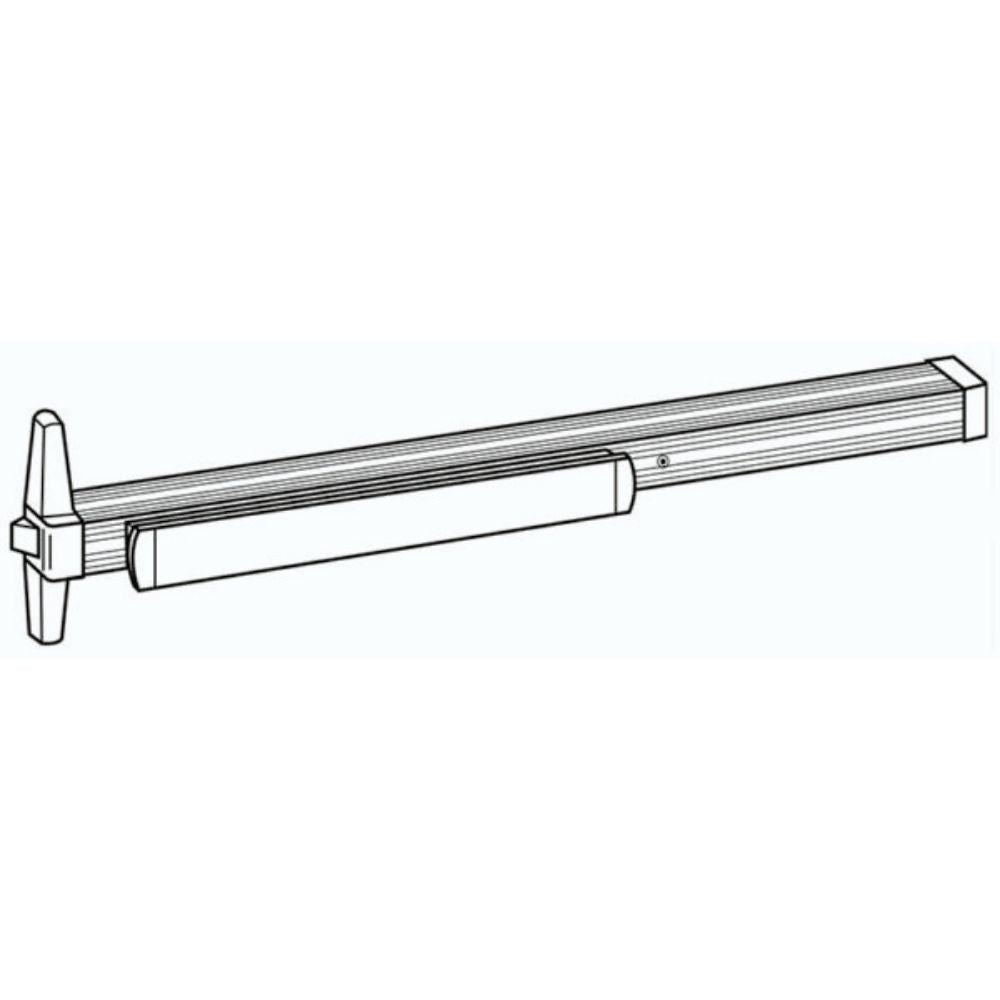

Von Duprin Rim Exit Device (Narrow Style, Black Anodized Aluminum) | VON-33AEO 3 315

Von DuprinSKU: VON-33AEO 3 315

Price:
Sale price$1,515.60
Add to cart

Rim Exit Device (Narrow Style, Black Anodized Aluminum) | VON-33AEO 3 315

The 33A Series is UL listed for Panic Exit Device Hardware and has a deadlocking latch bolt that prevents forced latch bolt retraction providing higher security for your openings.

Features
  • Physical Appearance: Narrow Stile Pushpad
  • Strikes: 1439 – Dull Black
  • Dogging Feature: Hex key dogging standard
  • Dogging Options: CD Cylinder Dogging; LD Less Dogging
  • Electric Options: LX Latchbolt Monitor Switch; RX Pushpad Monitor Switch; RX2 Double Pushpad Monitor Switch; SS Signal Switch; EL Electric Latch Retraction; ALK Alarm Exit Kit
  • Miscellaneous Options: PN Pneumatic Latch Retraction; GBK Glass Bead Kit
  • Fasteners & Includes Sex Bolts (SNB): 1 3/4" (44mm) – 2 1/4" (57mm) Wood & Metal Doors; #425 SNB furnished standard for end case; #325 SNB furnished standard for EO (exit only device)
  • Fire Rated: No
  • Hand: Non-Handed
  • Includes Trim: No
  • Limited Warranty: 3 Years
Technical Specifications
  • Product Type: Rim Exit Devices
  • Mechanical Function: Exit Only
  • Base Material: Aluminum
  • Finish: 313/315
  • Finish Description: Black Anodized Aluminum
  • Device Length: 36 In.
  • Minimum Stile Size: Narrow
  • Door Material: Metal or Wood
  • Door Width: 26 In. - 36 In.
  • Door Thickness: 1-3/4 In.
  • Latch Bolt: Deadlocking, 3/4" (19mm) throw
  • Device Centerline from Finished Floor: 39 13/16" (1011 mm); 39 11/16" (1008 mm) with Mullion
  • Center Case Dimensions: 8 3/16" x 2 13/32" x 1 9/16" (208mm x 62mm x 40mm)
  • Mechanism Case Dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)
  • Projection: Pushbar Neutral – 3 13/16" (97 mm); Pushbar Depressed – 3 1/16" (78 mm)
