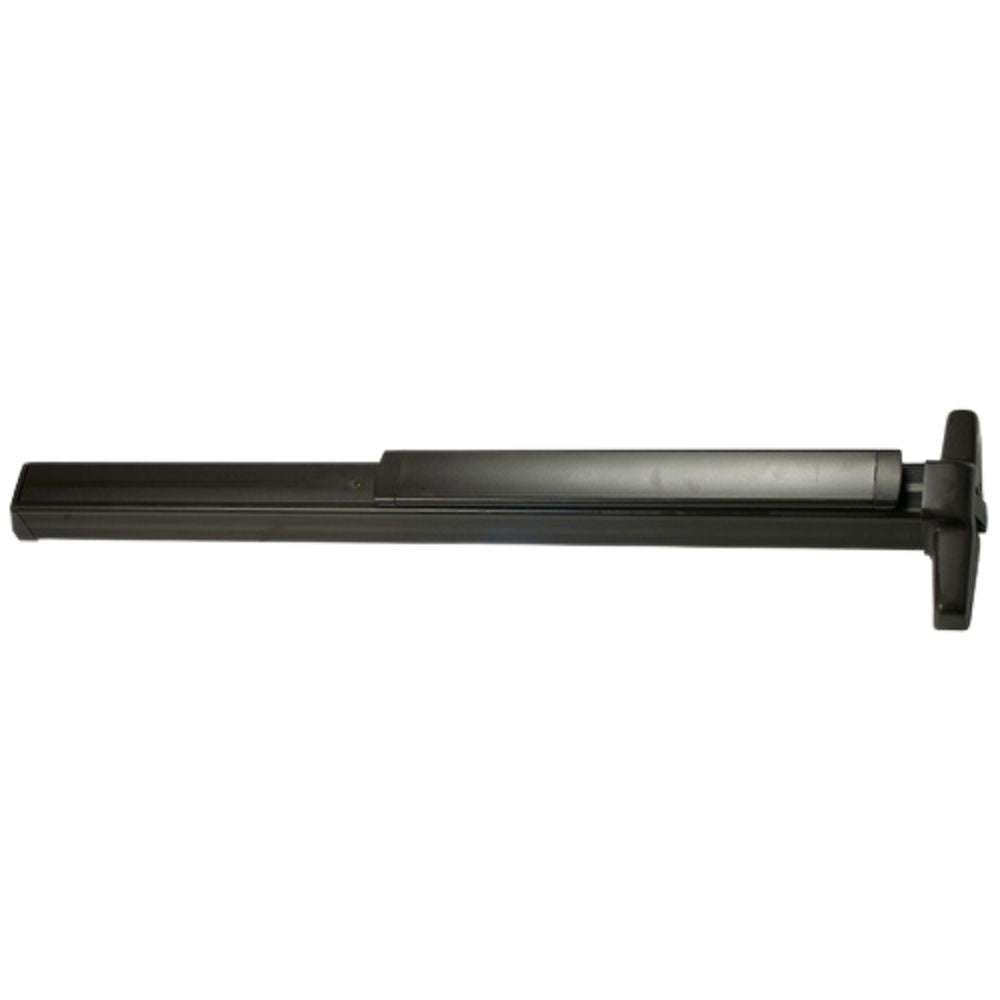

Von Duprin Rim Exit Device (Narrow Style, Dark Bronze Anodized Aluminum) | VON-33AEO-3-313
The 33A Series is UL listed for Panic Exit Device Hardware and has a deadlocking latch bolt that prevents forced latch bolt retraction providing higher security for your openings.
Features
- Physical Appearance: Narrow Stile Pushpad
- Strikes: 1439 – Dull Black
- Dogging Feature: Hex key dogging standard
- Dogging Options: CD Cylinder Dogging; LD Less Dogging
- Electric Options: LX Latchbolt Monitor Switch; RX Pushpad Monitor Switch; RX2 Double Pushpad Monitor Switch; SS Signal Switch; EL Electric Latch Retraction; ALK Alarm Exit Kit
- Miscellaneous Options: PN Pneumatic Latch Retraction; GBK Glass Bead Kit
- Fasteners & Includes Sex Bolts (SNB): 1 3/4" (44mm) – 2 1/4" (57mm) Wood & Metal Doors; #425 SNB furnished standard for end case; #325 SNB furnished standard for EO (exit only device)
- Device Type: Rim
- Includes Trim: No
- Fire Rated: No
- Hand: Non-Handed
- Limited Warranty: 3 Years
Technical Specifications
- Mechanical Function: Exit Only
- Product Type: Rim Exit Devices
- Base Material: Aluminum
- Finish: 313
- Finish Description: Dark Bronze Anodized Aluminum
- Minimum Stile Size: Narrow
- Device Length: 36 In.
- Door Material: Metal or Wood
- Door Width: 26 In. - 36 In.
- Door Thickness: 1-3/4 In.
- Latch Bolt: Deadlocking, 3/4" (19mm) throw
- Device Centerline from Finished Floor: 39 13/16" (1011 mm); 39 11/16" (1008 mm) with Mullion
- Center Case Dimensions: 8 3/16" x 2 13/32" x 1 9/16" (208mm x 62mm x 40mm)
- Mechanism Case Dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)
- Projection: Pushbar Neutral – 3 13/16" (97 mm); Pushbar Depressed – 3 1/16" (78 mm)
Product Video
Product Literature
- Von Duprin 33AEO 3 313 Series Catalog
- Von Duprin 33AEO 3 313 EL for Exit Devices Data Sheet
- Von Duprin 33AEO 3 313 QEL Data Sheet
- Von Duprin 33AEO 3 313 (33A/35A) Rim Installation Instructions
- Von Duprin 33AEO 3 313 Exit Device Fire Label Specifications
- Von Duprin 33AEO 3 313 Quiet Electric Latch FAQ
- Von Duprin 33AEO 3 313 QEL Sell Sheet
- Von Duprin 33AEO 3 313 Exit Alarm Kit Sell Sheet
- Von Duprin 33AEO 3 313 (33A/35A) Rim Exit Device Service Manual
- Von Duprin 33AEO 3 313 (33A/35A) Series Wood Door Template
- Von Duprin 33AEO 3 313 Series Device Hinge Stile Preparation Wood Door Template
