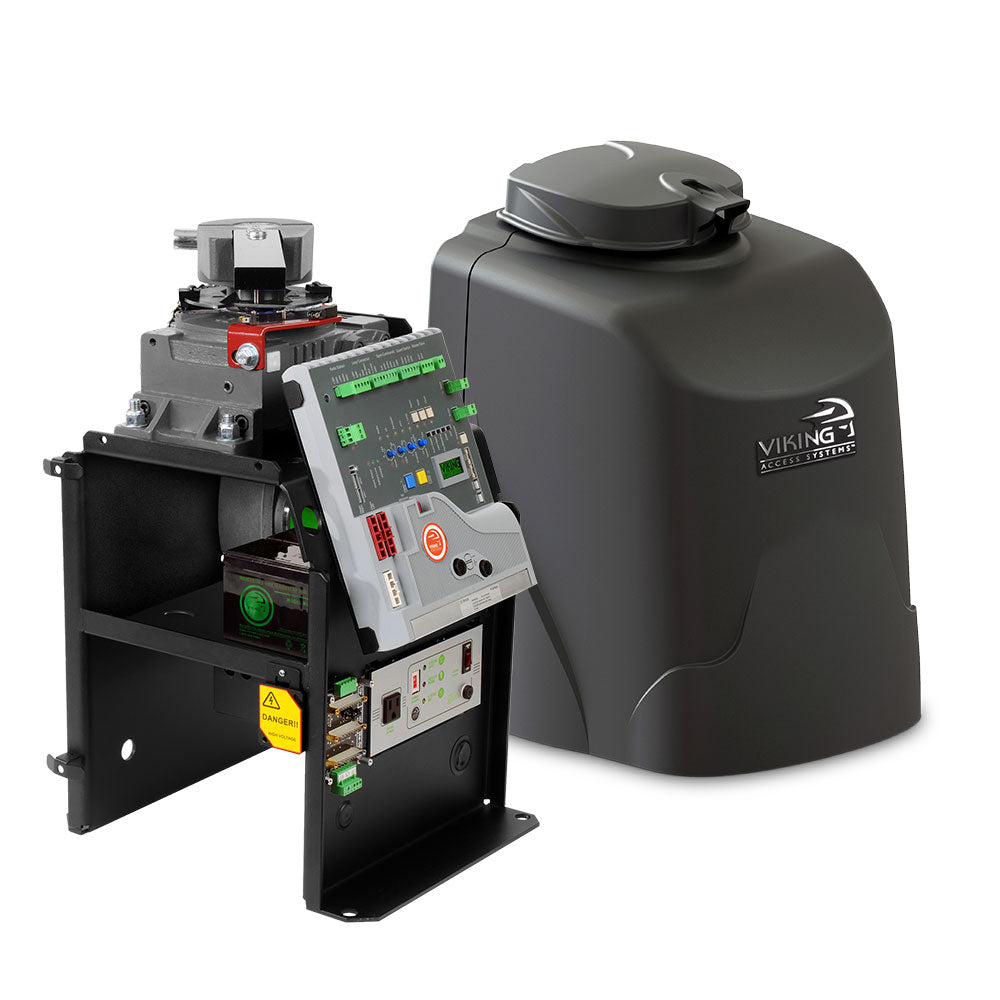

Viking F1 Residential & Commercial Swing Gate Operator Complete Kit | VIK-VA-F1NX-KIT
The Viking F1 Residential & Commercial Swing Gate Complete Kit is perfect for any homeowner or business looking for a secure and reliable system for their entrance gate. This kit includes everything you need to get up and running in no time. It includes the powerful Viking F1 swing operator, a dependable photoeye for reversing the gate if something unexpected should pass through, as well as a 2-channel universal receiver.
Includes:
- Viking F1 Swing Gate Operator VIK-VA-F1NX
- Polarized Safety Photo-Eye BFT-KIRPOLAPHOTO1UL
- ASE Long Range 2-Channel Universal Receiver FAS-RC
The F1 Swing Gate Operator includes the V-Flex control board and a removable power supply box for low-voltage wiring. The removable power supply box allows you to run low voltage to the gate operator rather than high voltage which removes the need to trench high voltage wires. This can save the home or business owner thousands in labor and permit costs.
The V-Flex control board provides an LCD display for diagnostics and operator status.
The new 1/4" steel chassis allows an increased handling capacity for gates up to 1500 lbs.
The F1 operator also features Viking's soft-start / soft-stop, built-in heater, and Viking's true battery backup system.
Smooth gate operation, compliant with both ETL and UL standards with a 5-year commercial or 7-year residential warranty makes the F1 operator the ideal choice for your gate automation needs.
Features
-
MAX GATE CAPACITY
1500 lbs/12ft or 1000 lbs/16ft
This is the maximum amount of weight and length that the gate operator model can push/pull. -
MAX OPERATING SPEED
13 - 16 Seconds per 90 degrees
Based on the speed selected when installing, this will be the speed your operator pushes/pulls your gate. -
REMOVABLE POWER BOX
For Remote 24VDC Power Supply
Convenient fuse access, L.E.D. status indicators, power switch, E-Z access power outlet & set-up 115V/230V -
OPERATING TEMP
-20 °F up to 160 °F
The Viking gate operator will continue to function within this temperature range. -
WARRANTY
5 Yr Commercial / 7 Yr Residential
Please refer to Warranty Policy on Viking website for more information. -
STRIKE PROTECTION
10,000 Amps / 20,000 Volts
Leading the industry with the best in-unit lightning and surge protection.
Manufacturer's Warranty Period
- 3 Years
