Viking X390 Swing Gate Operator Single Kit | VIK-VA-X390SLK

Viking Access SystemsSKU: VIK-VA-X390SLK

Price:
Sale price$1,979.00

Estimate shipping

Viking X390 Swing Gate Operator Single Kit | VIK-VA-X390SLK

The X-390 Swing Gate Operator features an adjustable timer for automatic closure, a high-efficiency power supply, a built-in three-push button station, a built-in battery backup capable of 800 cycles in case of power failure, and onboard lightning protection.

The X-390 is powered by the V-Flex control board, including speed control and diagnostic LCD display. This aesthetic operator is solar efficient and ready to be powered with low voltage wiring, allowing versatility of installations.

This operator can be mounted directly to a column, making it a very popular option for homeowners who do not have the space for a pad-mounted gate opener. The X-390 has UL 325 and 991 safety listings.

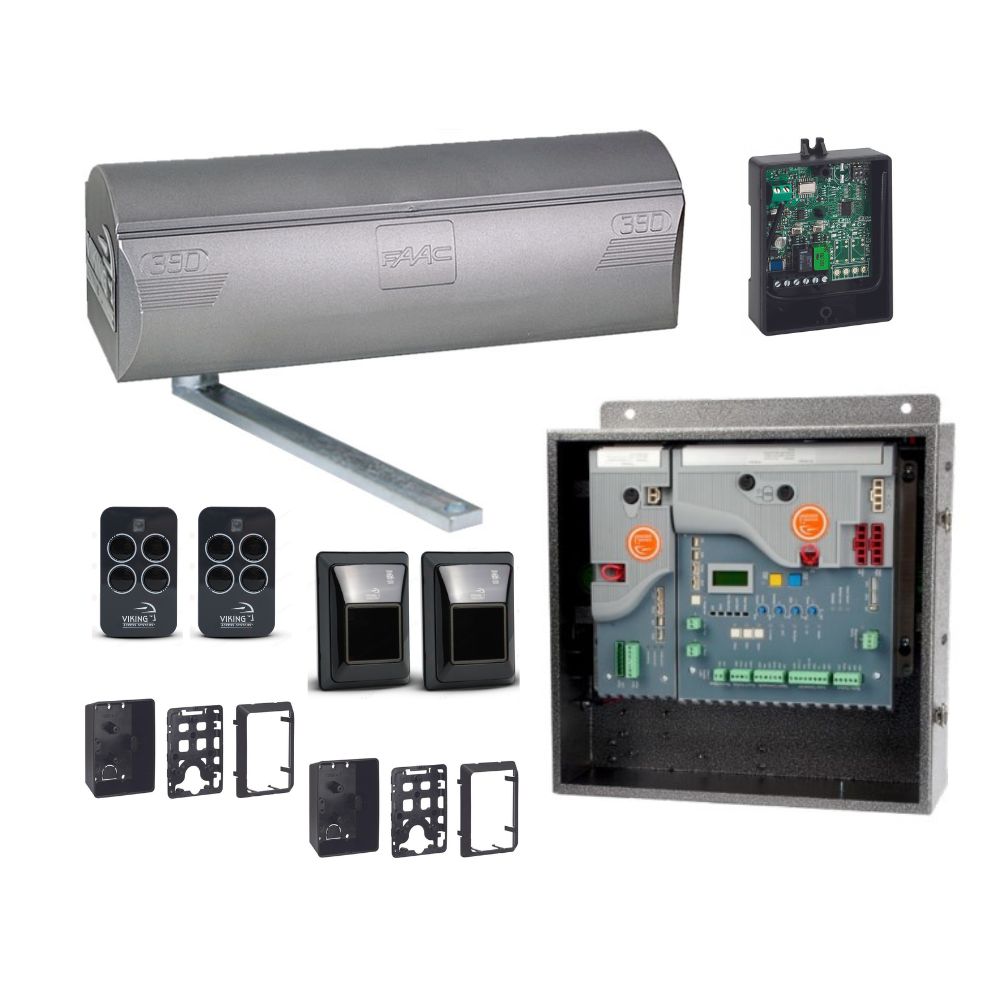

Kit Includes

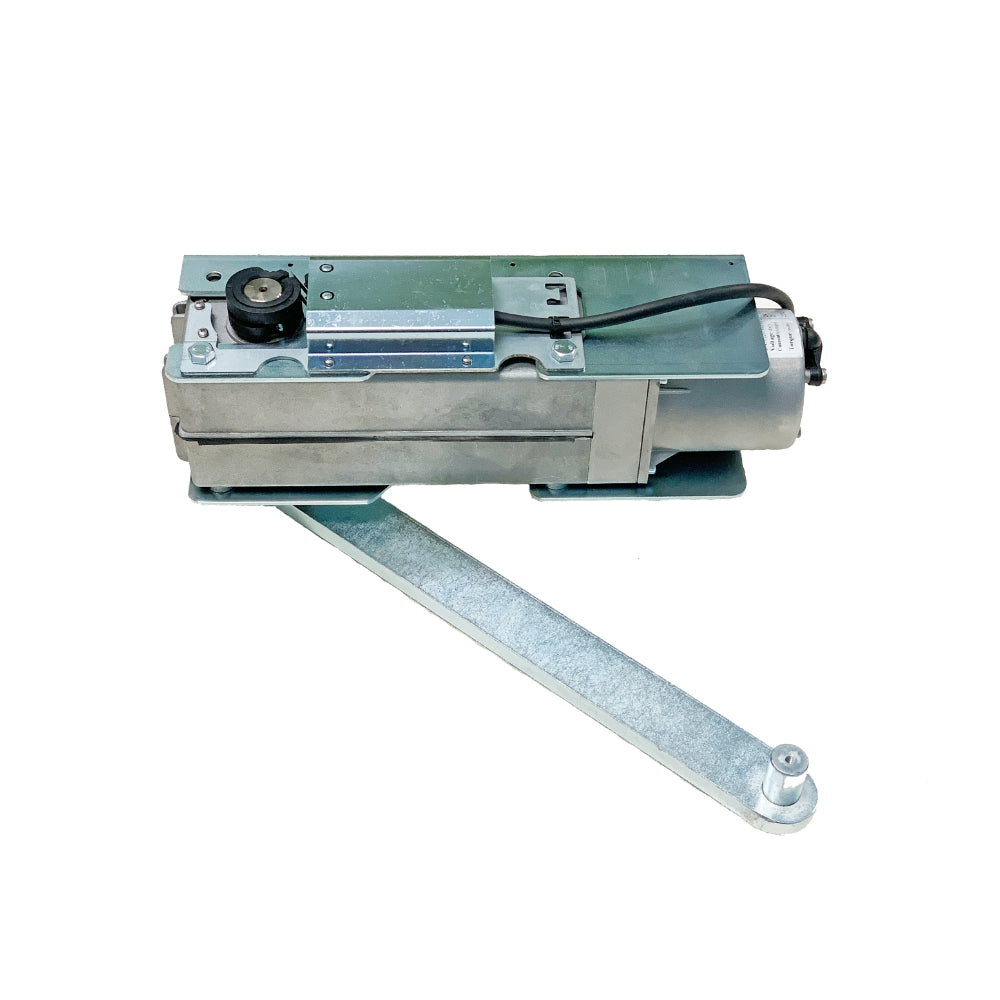

  • 1 X390 Swing Gate Operator VA-X390

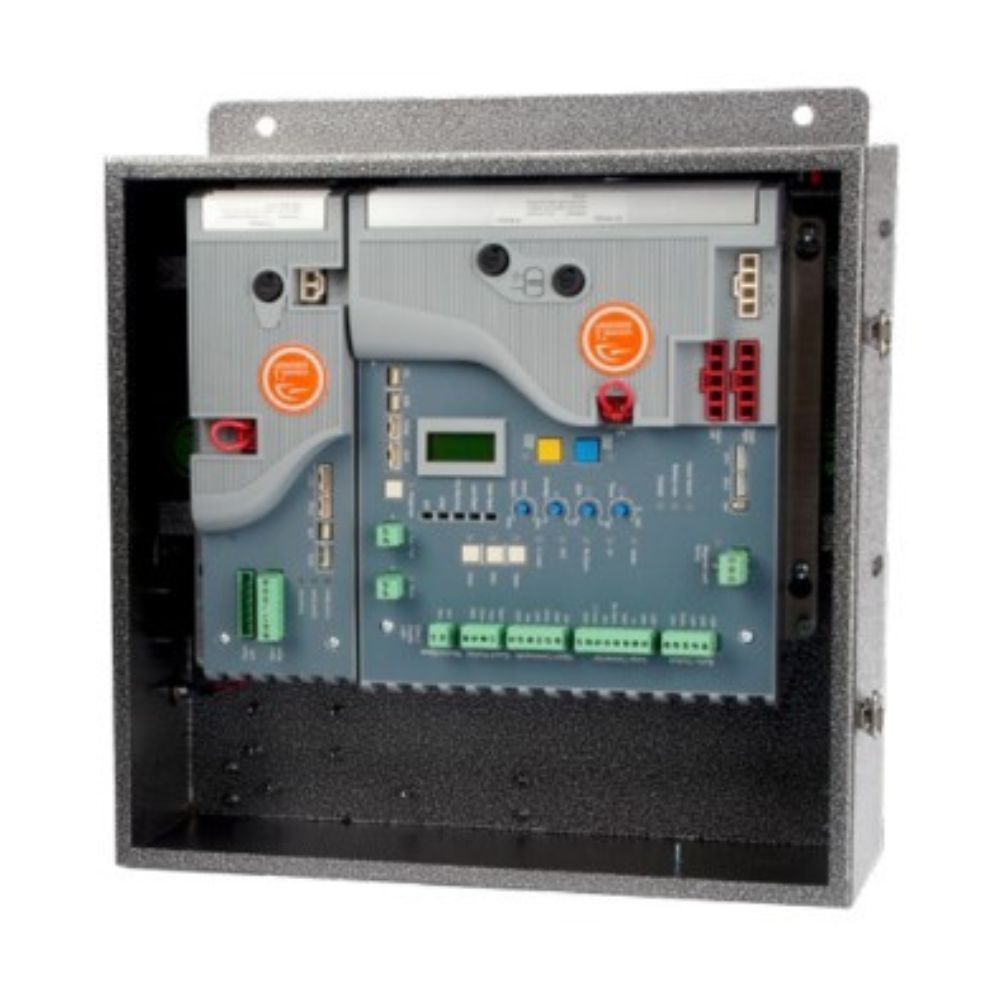

  • 1 ECU Single VA-ECUS2

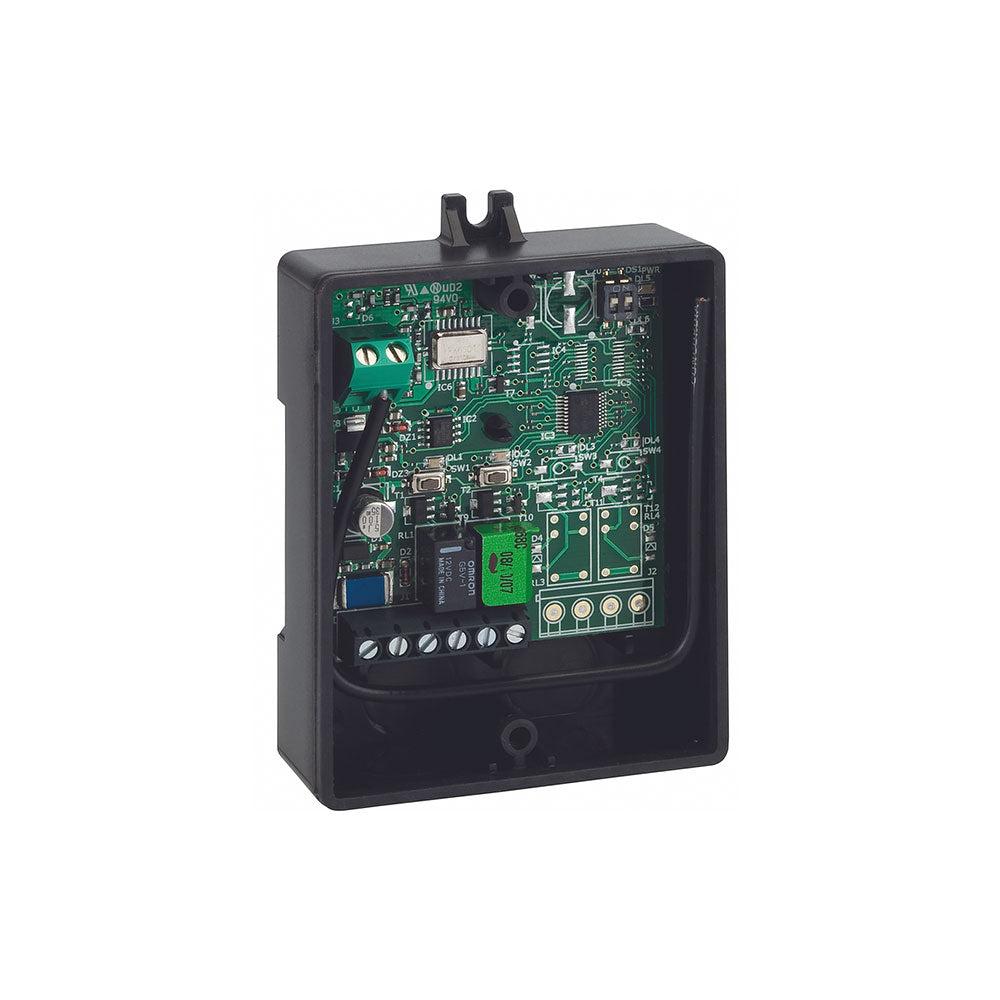

  • 1 433 Mhz Receiver FA-XR2C

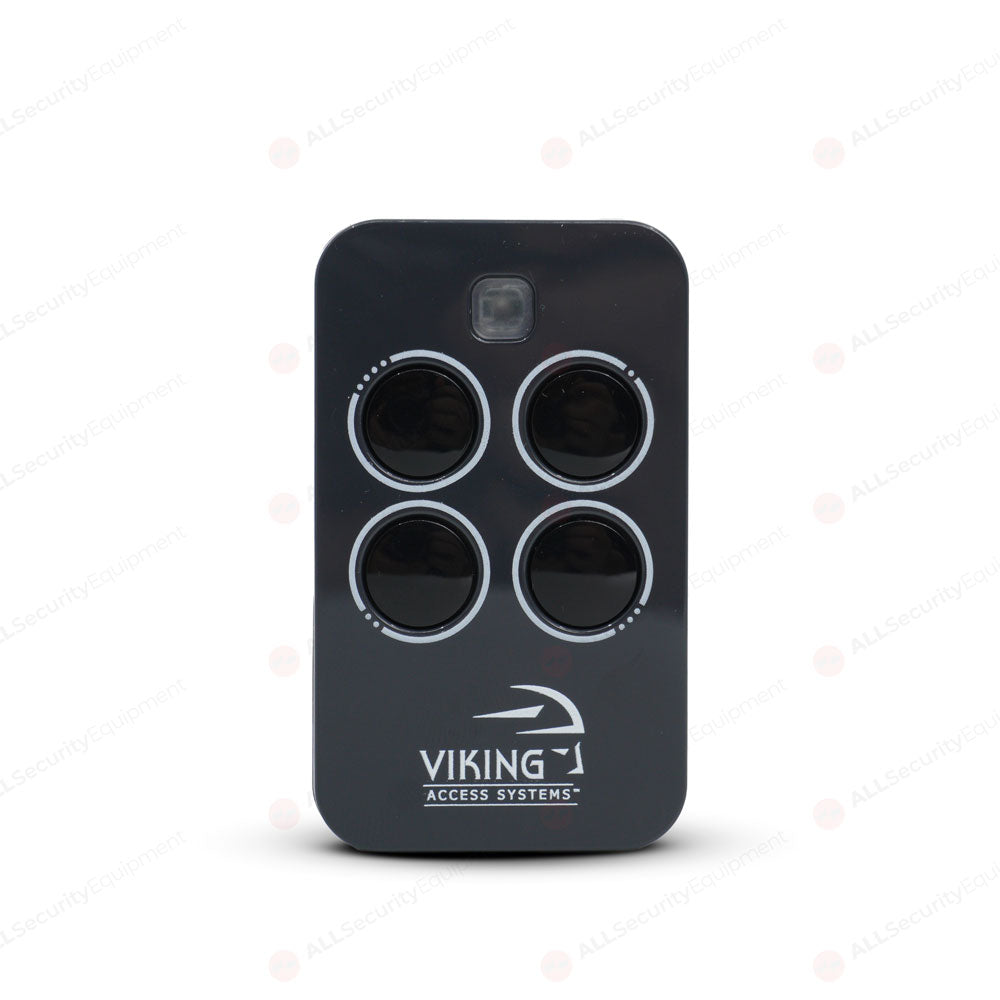

  • 2 433 Mhz RC Transmitter FA-XT4RC

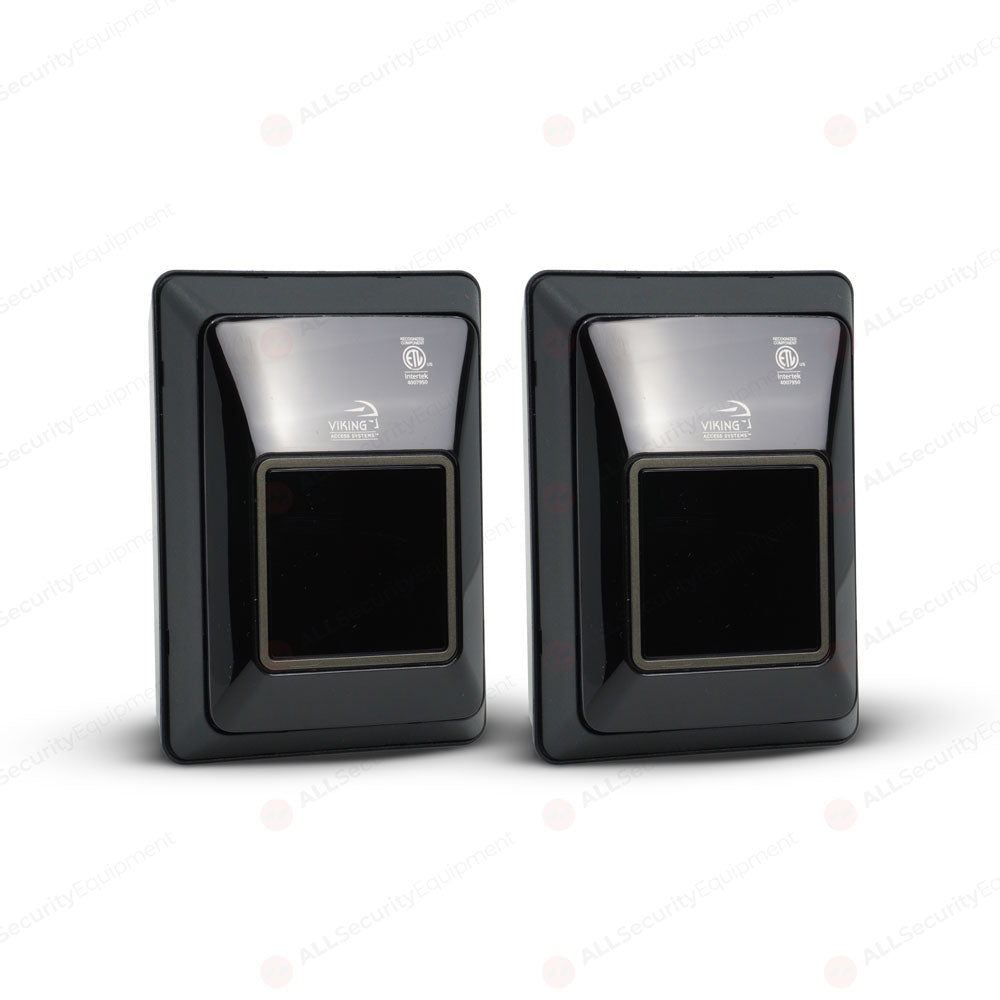

  • 1 Photocell 10K Resistor FA-XP30-10K

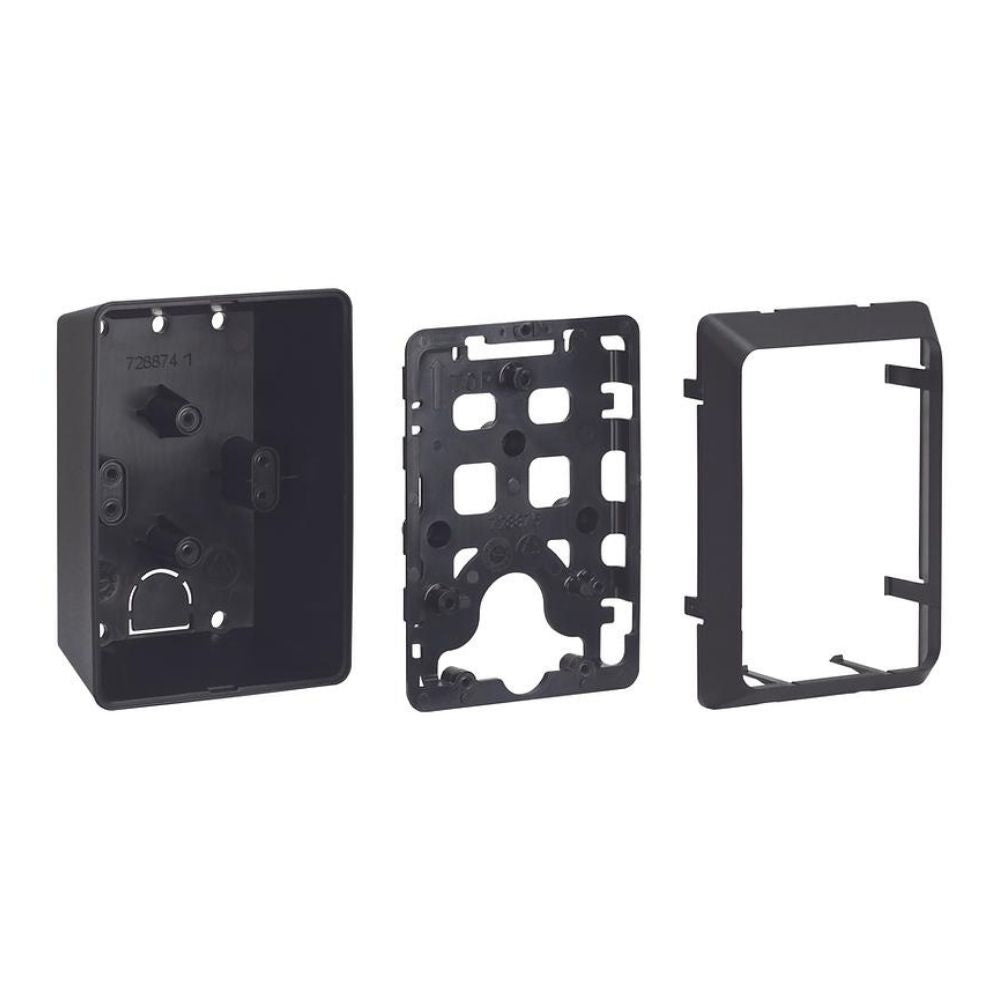

  • 2 Photocell adapter FA-XP30AC
  • FREE Digital Multimeter
Features
  • Adaptive motor control
  • Built-in thermostat-controlled heater
  • Built-in voltmeter
  • Lightning strike protection
  • Multiple power options
  • On-board display
  • True battery back-up
  • UL325 compliant
  • Two monitoring inputs with up to 4 devices per input
  • Adjustable speed control
  • Anti-tailgating feature
  • Fail secure mode
  • Large box option
  • Manual release - mechanical
  • Multiple power outage options
  • Two 4Ah batteries included
  • Positive stops included
Technical Specifications
  • Maximum Gate Capacity: 14 ft at 600 lb
  • UL 325 Classification: Class I, II, III, IV
  • Duty Cycle: 100%
  • Operating Voltage: 24VDC
  • Voltage Current Specs: 120VAC - 1.5A or 240VAC - 1.0A (each motor)
  • Main Power Frequency: 50Hz / 60Hz
  • Main Power Fuse: 4A Timed
  • Alternative Power Source: 24VAC / VDC (60VA) or Solar
  • Accessory Power: 24VDC - 750mA
  • Power Consumption: - Sleep 28mA
  • Motor Current (Typical): 2.0A
  • Operating Temperature: -20°F (-28°C) to 131°F (55°C)
  • Opening Angle: 120°
  • Gate Speed: 10-13 sec./90°
  • Battery Backup: 400 Continuous Cycles

    Viking X-390 Dual Swing Gate Operator Demonstration
