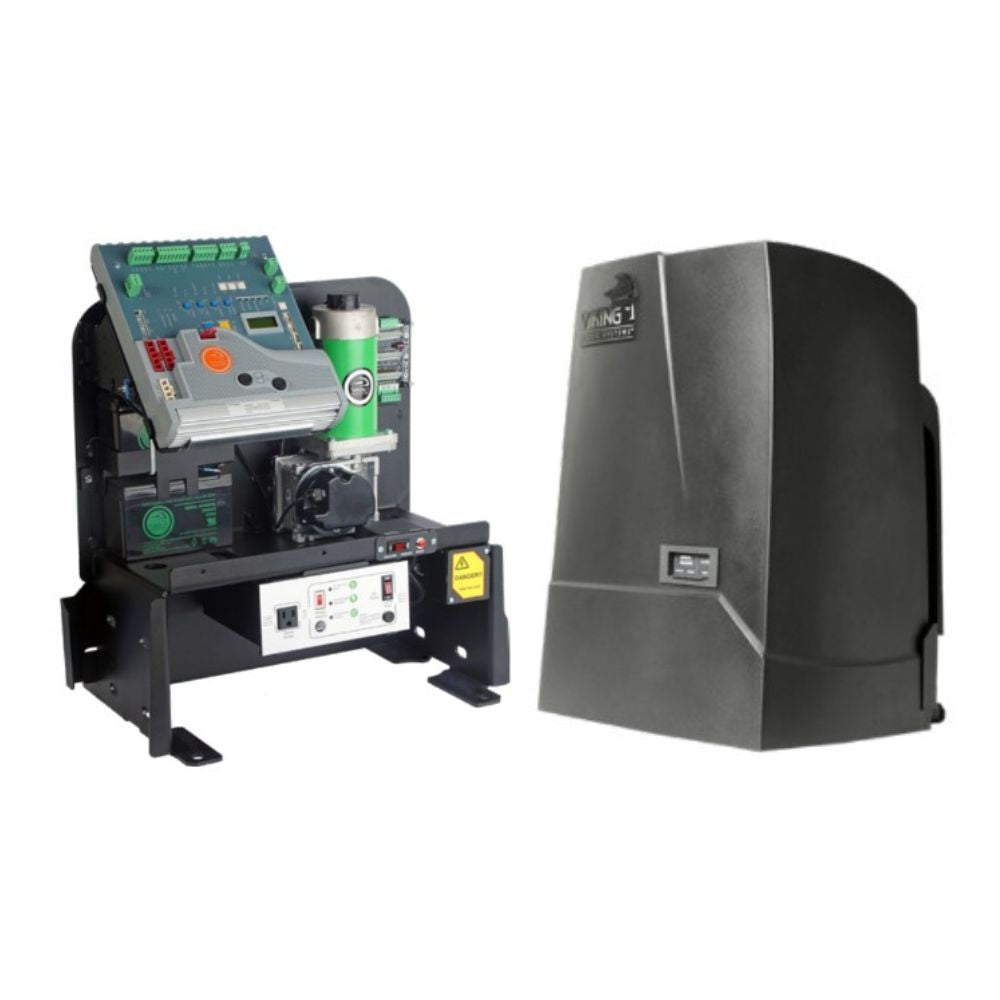

Viking L3 Residential / Commercial Slide Gate Operator | VIK-VA-L3SPS
The L-3 gate operator has the capacity to operate slide gates up to 1600 lbs. and 60 ft. in length at 100% duty cycle under extreme conditions. This efficient operator provides a solution for high-traffic residential and commercial slide gate applications. The Viking L-3 gate operator offers efficiency and technology combined in a single package. It features a V-Flex control board with an onboard diagnostics LCD display and a removable power supply box for low-voltage wiring. The new chassis design provides easy viewing of the controls and integrated post-mount provisions allowing it to be raised from the ground if needed.
Note: Operator includes 25’ #40 nickel plated chain with chain bolts.
Features
- Adaptive motor control
- Built-in loop rack
- Built-in thermostat-controlled heater
- Built-in voltmeter
- Lightning strike protection
- Multiple power options
- On-board display
- True battery back-up
- UL325 compliant
- Two monitoring inputs w/ up to 4 devices per input
- 120VAC outlet provided
- Adjustable speed control
- Anti-tailgating feature
- New: Smart Positioning System
- Fail secure mode
- Fail-safe mode
- Lockable cover
- Manual release - electronic
- Multiple power outage options
- Two 6Ah batteries included
- Chassis with post mount provisions
Manufacturer's Warranty Period
- 5 Yr Commercial / 7 Yr Residential. Please refer to warranty policy on Viking website for more information.
Technical Specifications
- Maximum Gate Capacity: 60 ft. at 1600 lbs.
- UL 325 Classification: Class I, II, III, IV
- Duty Cycle: 100%
- Operating Voltage: 24VDC
- Voltage Current Specs: 120VAC - 3.0A or 240VAC - 1.5A
- Main Power Frequency: 50Hz / 60Hz
- Main Power Fuse: 4A Timed
- Alternative Power Source: 24VAC / VDC (60VA) or Solar
- Accessory Power: 24VDC - 750mA
- Power Consumption - Idle: 75mA
- Motor Current (Typical): 6.0A
- Operating Temperature: -20°F (-28°C) to 160°F (71°C)
- Gate Speed: 12 in./sec.
- Battery Backup: 100 Continuous Cycles
Please Note: Viking L3 Residential / Commercial slide gate operator must have a photo beam to function. It is recommended you add a photo beam for convenience and/or to minimize complications. This accessory is available in the product options.
