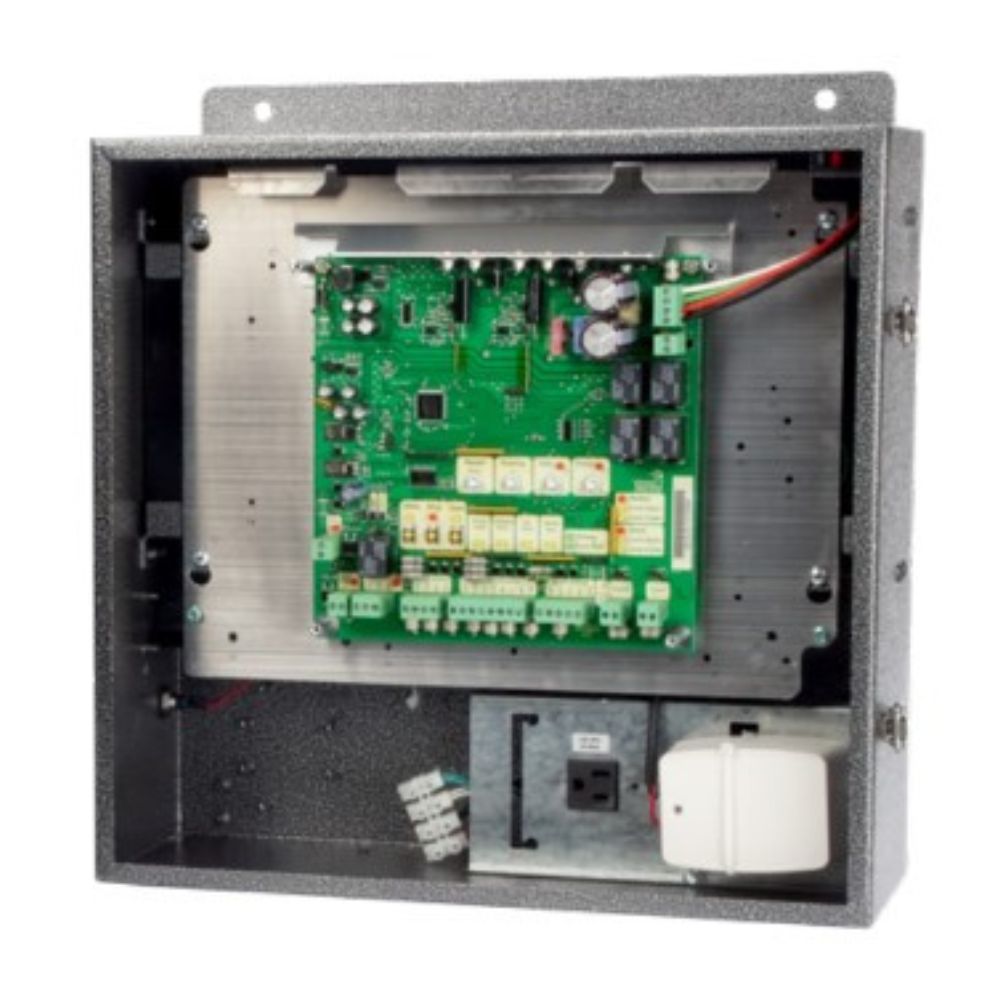

Viking E4 Big Electronic Control Unit | VIK-VA-ECUBE4
The new E-4™ Residential Swing Gate Operator leads the industry in being the best, most cost-effective residential linear arm actuator. This new design allows for a maximum gate capacity of 850 Lbs/10' or 550 Lbs /16'. Featuring a convenient manual release handle and pre-wiring for an easy and quick installation. It is ready to be powered with low voltage wiring, allowing installation versatility and accuracy. The E-4™ offers a 3 year limited Manufacturer Warranty and UL compliance.
Includes
- FREE Digital Multimeter
Features
- UL 325 compliant
- Two monitoring inputs with up to 4 devices per input
- Lightning strike protection
- 24V Solar panel input
- 24V Battery charger
- Low voltage plug-in transformer included
- Two AC receptacles
- 120V toroid transformer optional
- Sleep mode
- Adaptive motor control
- Adjustable speed control
- Two 6Ah batteries included
- Enclosure
- Aluminum construction
- Powder-coated
- Post-mount options built-in
- Pre-punched holes for conduit
- Padlock latch
- IP54-certified ingress protection
Manufacturer's Warranty Period
- 3 years
Technical Specifications
- Compatible Models: E4
- Operating Voltage: 24VDC
- Voltage Current Specs: 120VAC - 2.0A or 240VAC - 1.0A (each motor)
- Main Power Frequency: 50Hz / 60Hz
- Main Power Fuse: 4A Timed (only with 120V option)
- Alternative Power Source: 24VAC / VDC (60VA) or Solar
- Accessory Power: 24VDC - 750mA
- Power Consumption - Sleep: 6mA
- Motor Current (Typical): 2.0A
- Operating Temperature: -20°F (-28°C) to 131°F (55°C)
- Dimensions Standard Box (L x D x H): 16.375 x 6.25 x 17.875 in
- Dimensions Big Box (L x D x H): 18.75 x 8.125 x 18.2 in
