Viking I770 Underground Swing Gate Operator Dual Kit - Steel | VIK-VA-I770DLK

The I-770 Underground Swing Gate Operator offers the solution to home and property owners who want to center all their attention on their gate. Nearly invisible, the I-770 is ETL Listed, as UL325, and UL991 compliant.

The direct-drive DC gearhead unit is IP67 water-resistant and has a convenient manual release mechanism. The I-770 comes standard with a steel chassis and a battery backup capable of 250 continuous cycles.

The I-770 is powered by the V-Flex control board, including speed control and diagnostic LCD display. This intuitive operator is solar efficient and ready to be powered with low voltage wiring, allowing versatility of installations.

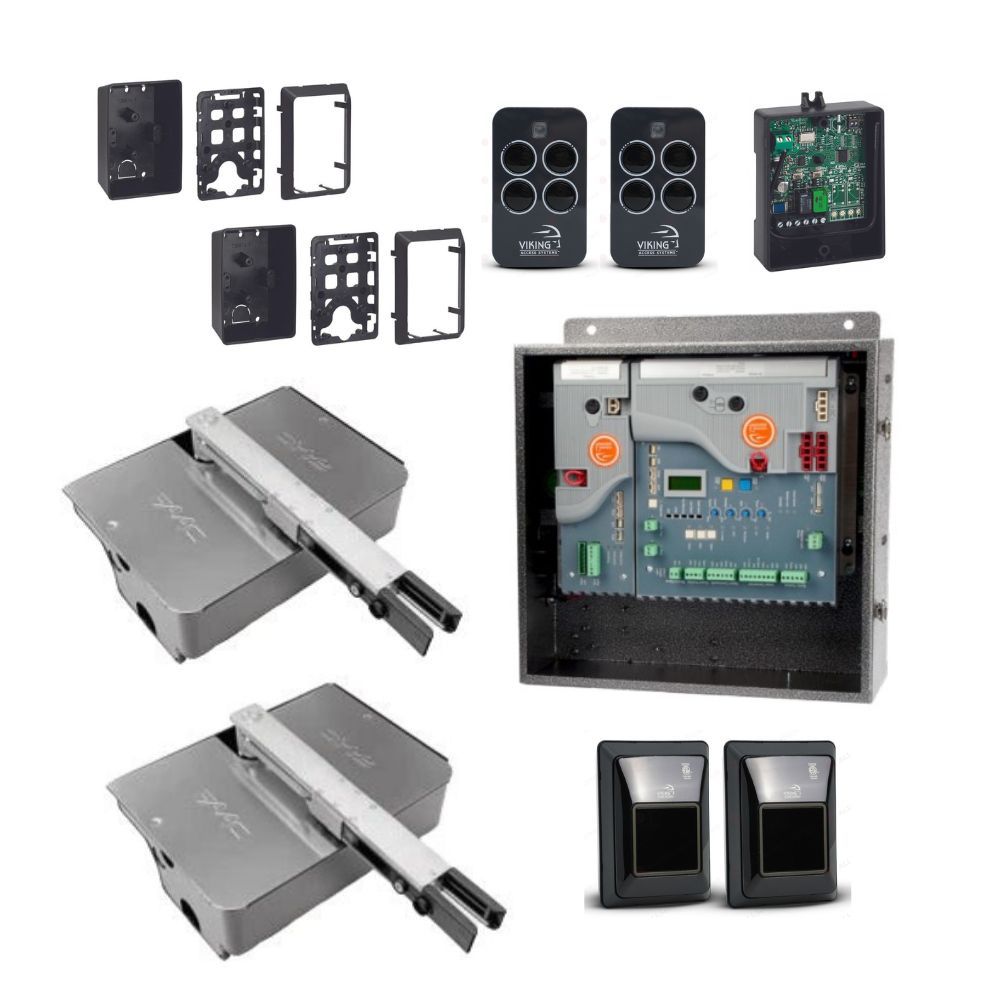

Includes
  • 2 VA-I770 or VA-I770S Inground Swing Gate Operator
  • 1 VA-ECUD2 ECU Dual
  • 1 FA-XR2C 433 Mhz Receiver
  • 2 FA-XT4RC 433 Mhz RC Transmitter
  • 1 FA-XP30-10K Photocell 10K Resistor
  • 2 FA-XP30AC Photocell adapter
  • 1 DJBK Junction box
  • 40 VA-CB16 6 conductor Cable, 16 AWG shielded
  • FREE Digital Multimeter
Features
  • Adaptive motor control
  • Built-in thermostat-controlled heater
  • Built-in voltmeter
  • Lightning strike protection
  • Multiple power options
  • On-board display
  • True battery back-up
  • UL325 compliant
  • Two monitoring inputs with up to 4 devices per input
  • Adjustable speed control
  • Anti-tailgating feature
  • Fail secure mode
  • Large box option
  • Manual release - mechanical
  • Multiple power outage options
  • Positive stop limits
Manufacturer's Warranty Period
  • 3 Years
Technical Specifications
  • Maximum Gate Capacity: 12 ft at 650 lb
  • UL 325 Classification: Class I, II, III, IV
  • Duty Cycle: 100%
  • Operating Voltage: 24VDC
  • Voltage Current Specs: 120VAC - 1.5A or 240VAC - 1.0A (each motor)
  • Main Power Frequency: 50Hz / 60Hz
  • Main Power Fuse: 4A Timed
  • Alternative Power Source: 24VAC / VDC (60VA) or Solar
  • Accessory Power: 24VDC - 750mA
  • Power Consumption - Sleep: 28mA
  • Motor Current (Typical): 3.0A
  • Operating Temperature: -20°F (-28°C) to 131°F (55°C)
  • Opening Angle: 110°
  • Gate Speed: 13-15 sec./90°
  • Battery Backup: 400 Continuous Cycles
