USAutomatic 12/24 VDC Universal Dual Channel Receiver | USA-030207
The 12/24V basic receiver is a 2 relay output receiver, operating at 433,92
Mhz in AM/ASK modulation. It is designed for automatic closing systems and anti-burglar systems. The operating frequency is among the European harmonized frequencies; The antenna is connected with an F- type connector.

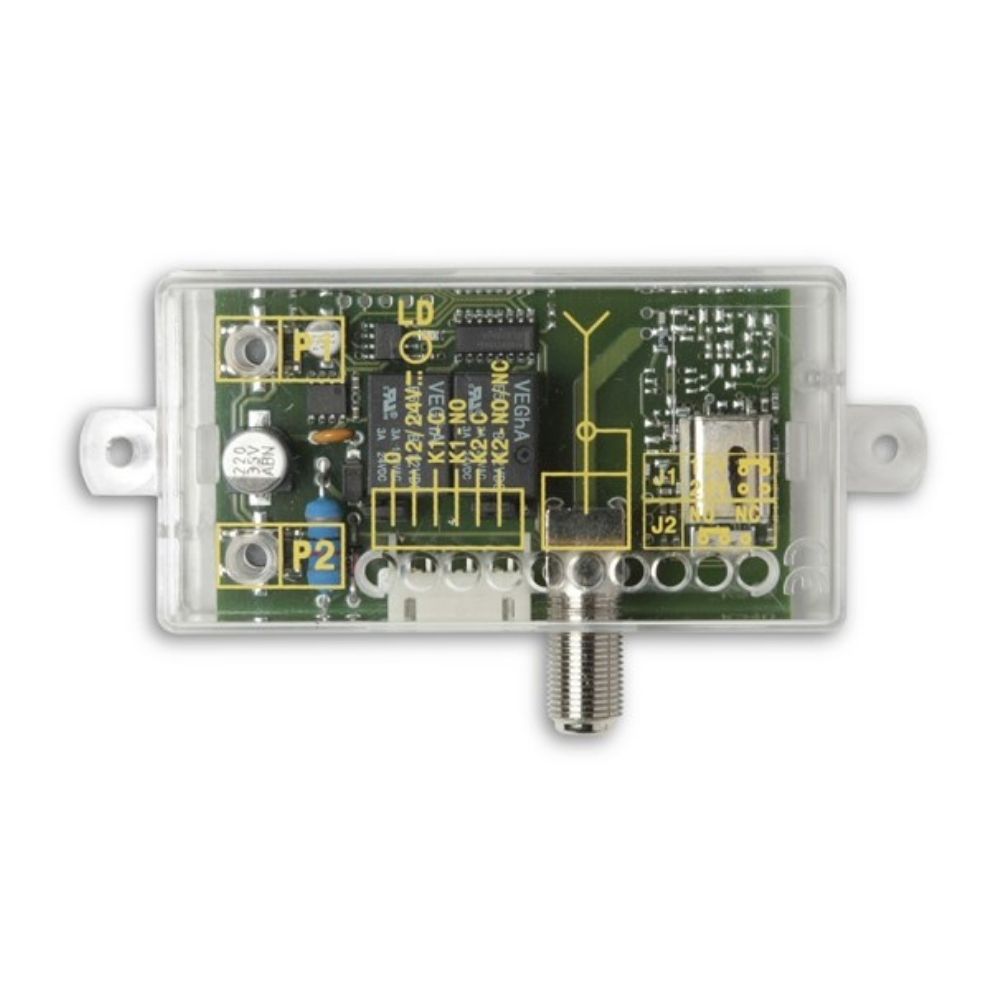

The relay outputs are 2: P1 and P2. P1 with relay contacts C and N/O
P2 with relay contacts C and N/C or N/O according to the selection of J2 ( see par. 1H).
The operating mode of P1 is Pulse and of P2 can be Pulse or Latch. The power supply is 12 or 24 Vdc or Vac ( see par. 1F). The IP grade of 2X allows only indoor installations. The product fully complies with the EMC European Regulations (CE) and the FCC Part 15 Regulations.
Features
- 42 storable transmitter keys
- Single transmitter key or Full memory erasure
- Programmable operation mode of the P2: momentary or latching
- Easy transmitter memorization
Technical Specifications
- Receiver Type: Super heterodyne
- Demodulation: Operating AM/ASK
- Frequency: Local Oscillator 433,92 MHz
- Frequency: Intermediate 6,6128 MHz
- Frequency: Sensitivity (for good signal): Input 10,7 MHz -115 dBm
- Impedance: 75 Ohm
- Supply voltage: 12 / 24 Vdc ( ± 10% )
- Current Absorption:
- At rest: 11 mA
- With 1 relay excited: 30 mA
- Number of relays: 2 (1NO, 1NO/NC )
- Relay Operating Mode Pulse / Latch Commutable Max Power: 24W or 24VA
- Memory capacity ( tx keys ): 42
- Operating temperature: -4 ÷+158 °F
- Dimensions: 4.13 x 1.77 x 1.1 in.
- Weight: 2.29 oz.
- IP Protection grade: 2X
