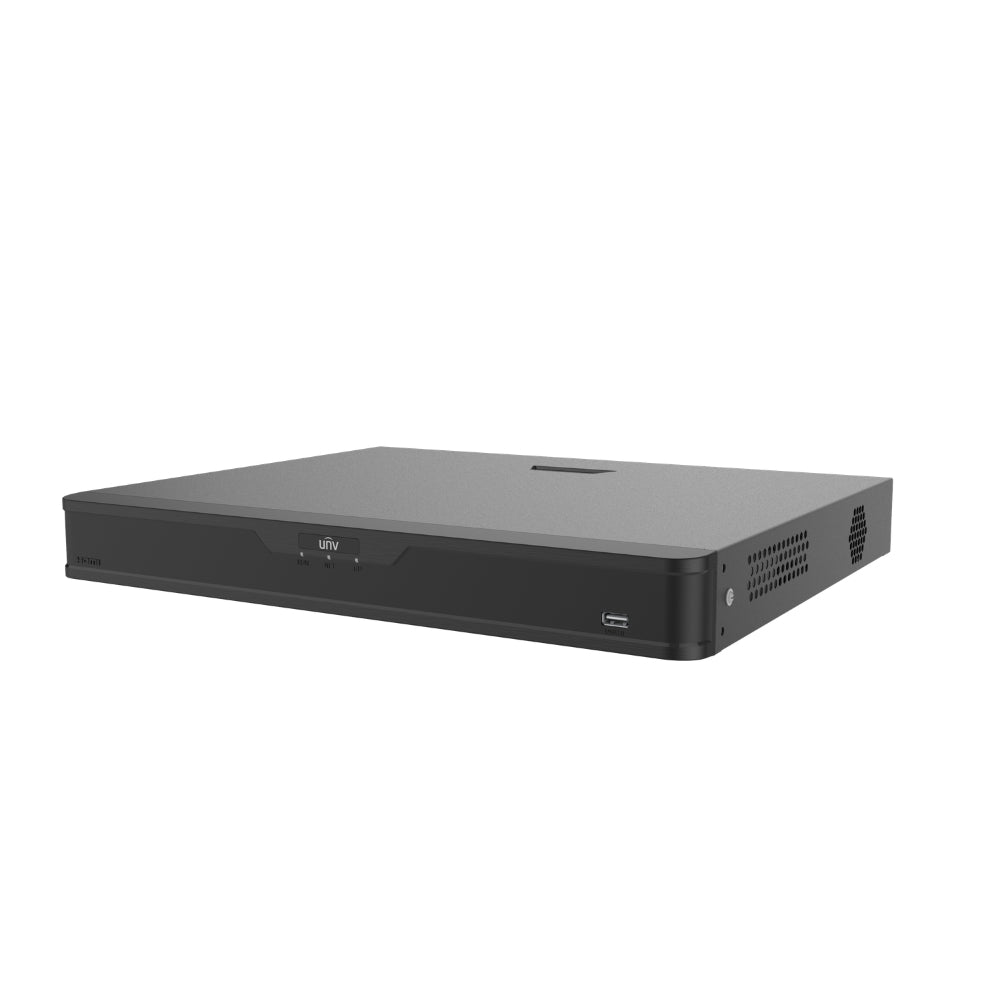

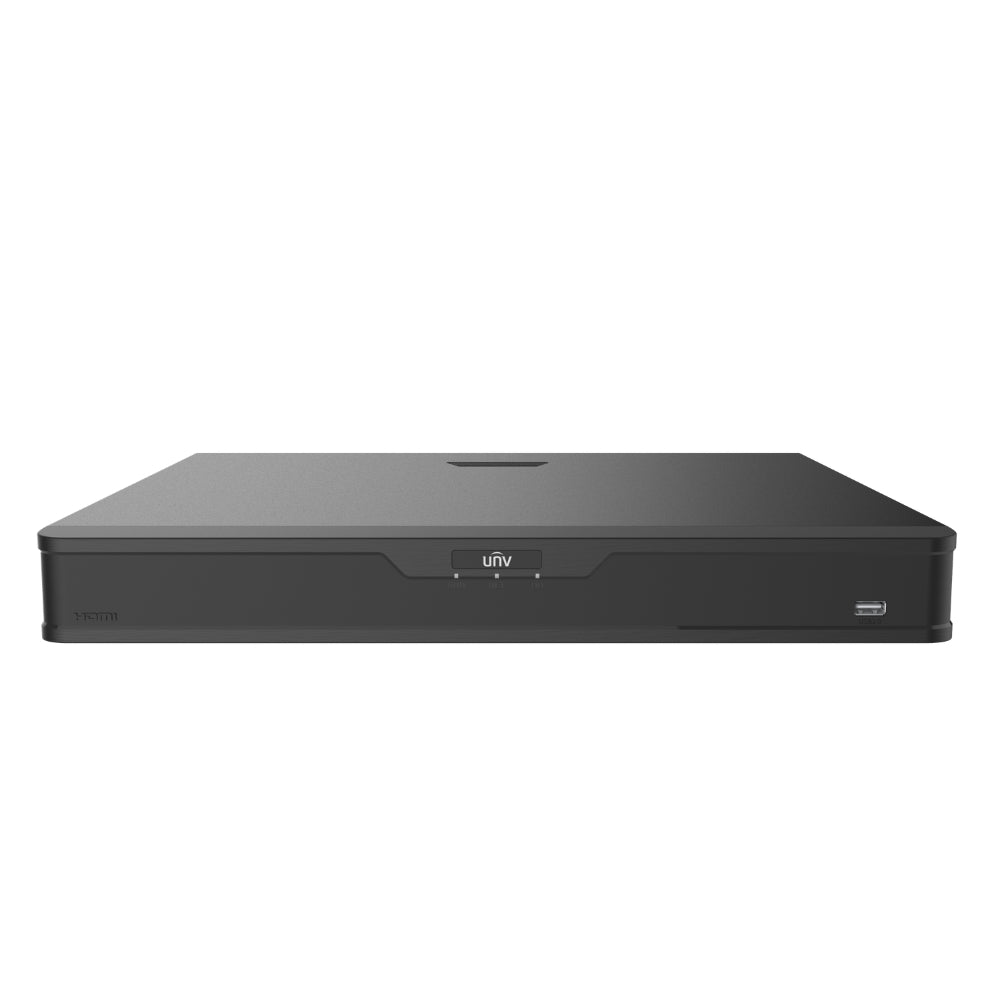

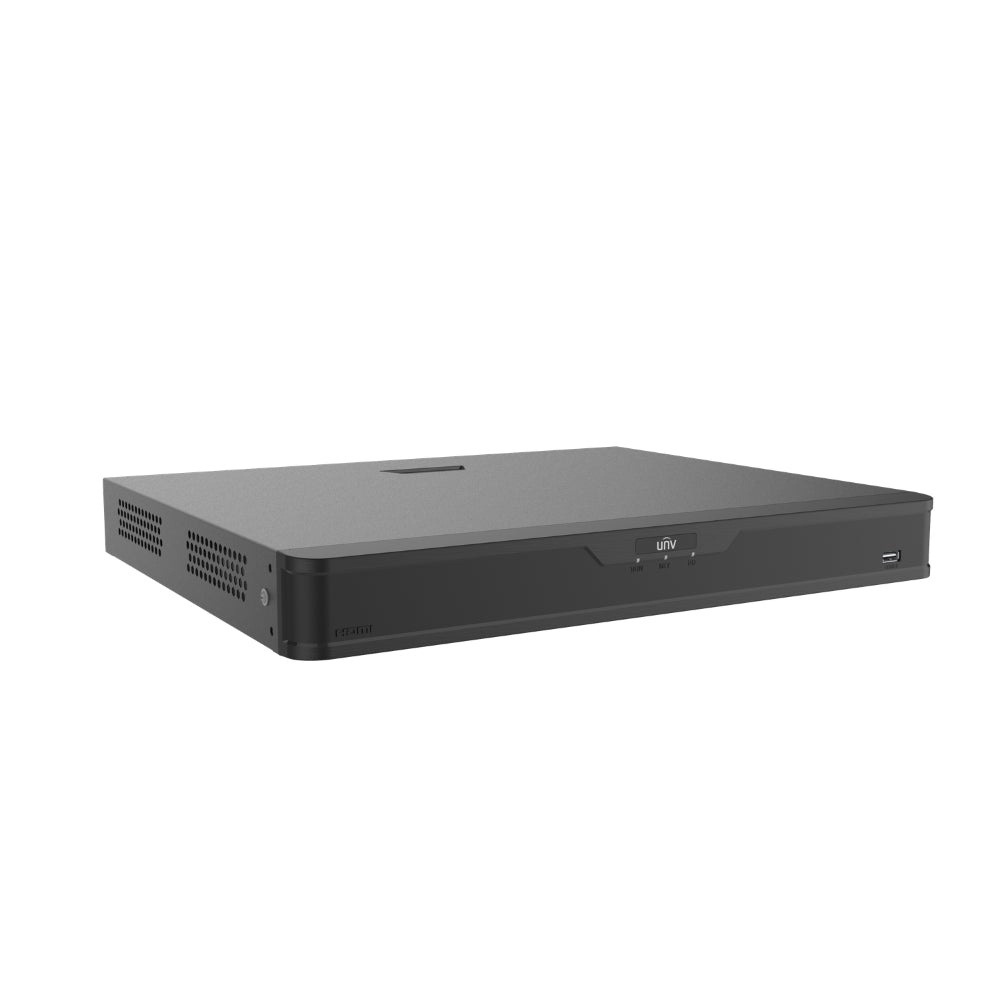

UNV XVR302-32Q3 2 HDDs 32-CH Hybrid Digital Video Recorder

The UNV XVR302-32Q3 is a 32-channel hybrid DVR designed for large-scale surveillance installations. This Penta-brid system offers ultimate flexibility, supporting TVI, AHD, CVI, CVBS, and IP cameras with adaptive access. Whether you are upgrading an existing analog system or building a new high-definition network, this XVR provides the bandwidth and processing power to manage up to 36 cameras (32 analog + 4 IP) simultaneously.

Equipped with Audio over Coax technology, the XVR302-32Q3 can receive audio signals from compatible cameras. With H.265 compression and dual-SATA interfaces supporting up to 24TB of total storage, this recorder is built for long-term reliability and efficient data management in demanding environments.

Video/Audio Input

IP Video Input: 4-ch
Analog Video Input: 32-ch, BNC
Max IP Video Input: 36-ch
Supported Analog Camera Types: Support AHD input:
8MP@15fps
5MP@20fps
4MP@30fps
1080P@30fps
720P@30fps
Support TVI input:
8MP@15fps
5MP@20fps
4MP@30fps
1080P@30fps
720P@30fps
Support CVI input:
8MP@15fps
5MP@25fps
4MP@30fps
1080P@30fps
720P@30fps
Support CVBS input
BNC Audio Input: 32-ch, channel audio
RCA Audio Input: 1-ch

Video/Audio Output

HDMI Output: HDMI: 4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
VGA Output: VGA: 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
BNC Video Output: 1-ch
RCA Audio Output: 1-ch
Live View Display: HDMI/VGA: 1/4/6/8/9/25/36

Encoding/Decoding

Recording Resolution: 8MP Lite/5MP Lite/4MP Lite/1080P/720P/D1
Recording Frame Rate: Main stream: 8MP Lite@8fps Sub stream: D1@8fps
Main stream: 5MP Lite@12fps Sub stream: D1@12fps
Main stream: 4MP Lite@15fps Sub stream: D1@15fps
Main stream: 1080P@15fps Sub stream: D1@15fps
Main stream: 720P@30fps Sub stream: D1@30fps
Audio Sample Rate: 8 kHz, 16-bit per channel
Audio Bit Rate: 64 Kbps per channel
Decoding Capability: Analog: 16 x 8MP Lite@8, 16 x 5MP Lite@12, 16 x 4MP Lite@15, 16 x 1080P@15, 16 x 720@30
IP: 2 x 8MP@30, 4 x 4MP@30, 8 x 1080P@30, 16 x 720P@30
Num of Concurrent Playbacks in Local: 16-ch

Coaxial Cable

Audio over Coaxial Cable(Form): 32-ch, One-way Audio(only for Uniview CVI protocol cameras)

Two-way Audio

Two-way Audio: 1-ch, RCA (Using the audio input and output)

Analog Snapshot

FTP/Schedule/Event Snapshot: Schedule/FTP/Event snapshot:32-ch snapshot, up to 3840*2160 resolution

Network

Incoming Bandwidth: 80Mbps (Up to 144Mbps after all analog channel conversion)
Outgoing Bandwidth: 160Mbps
Remote Users: 128
Protocols: TCP/IP, P2P, UPnP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP, NTP
Browser(Plugin): IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+

Smart

Analog Smart by XVR: Ultra Motion Detection (UMD), SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Face Detection
IP Smart by IPC: Face Detection, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Defocus Detection, Scene Change Detection, Object Removed, Object Left Behind, Auto Tracking, People Flow Counting
VCA Search: Face Search, Behavior Search, People Counting Report
Smart Functions by XVR: 16-ch (UMD), 8-ch (SIP), 2-ch (Face Detection)

Alarm

General Alarm: Motion
Alert Alarm: IP Conflict, Network Disconnected, Disk offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal

GUI Language

GUI Language: 38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian

Hard Disk

SATA: 2 SATA interfaces
Capacity: Up to 24 TB for each HDD (The maximum HDD capacity varies with environmental temperature and hard disk size. The environmental temperature for use should not exceed 40°C)

External Interface

Network Interface: 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface
USB: Rear panel: 1 × USB3.0, Front panel: 1 × USB2.0
RS485: 1
Alarm In: 4-ch
Alarm Out: 1-ch
Power Supply: DC 12 V/5 A

Working Environment

Working Temperature: -10 ℃ to 55 ℃ (14 ℉ to 131 ℉ )
Working Humidity: ≤ 90% RH (non-condensing)
Power Consumption (without HDD): ≤ 38W

Dimensions

Weight (without HDD): ≤2.6 Kg ( 5.72lb )

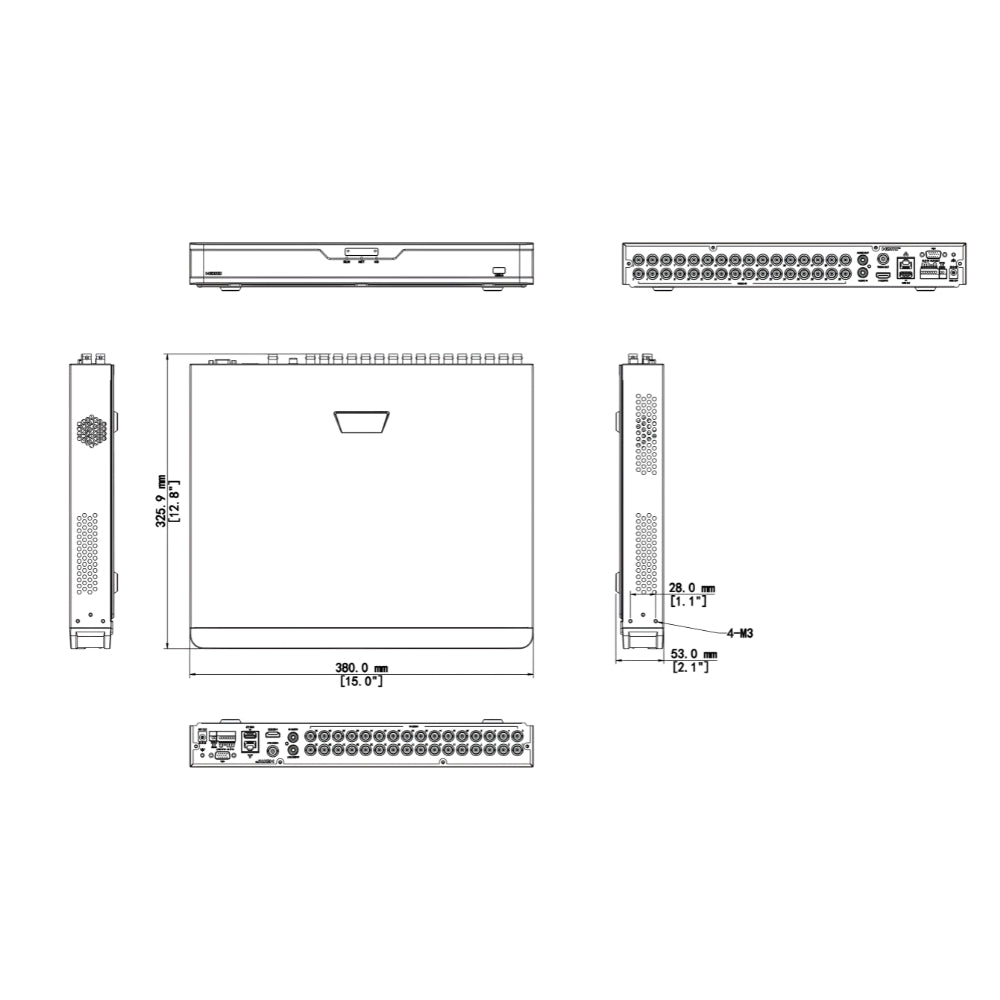

Dimensions: 380mm ×326mm× 53mm (15.0" × 12.8"×2.1")

Certification

Certification: CE, FCC, UL, RoHS, WEEE
CE: EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035
FCC: Part 15 Subpart B
