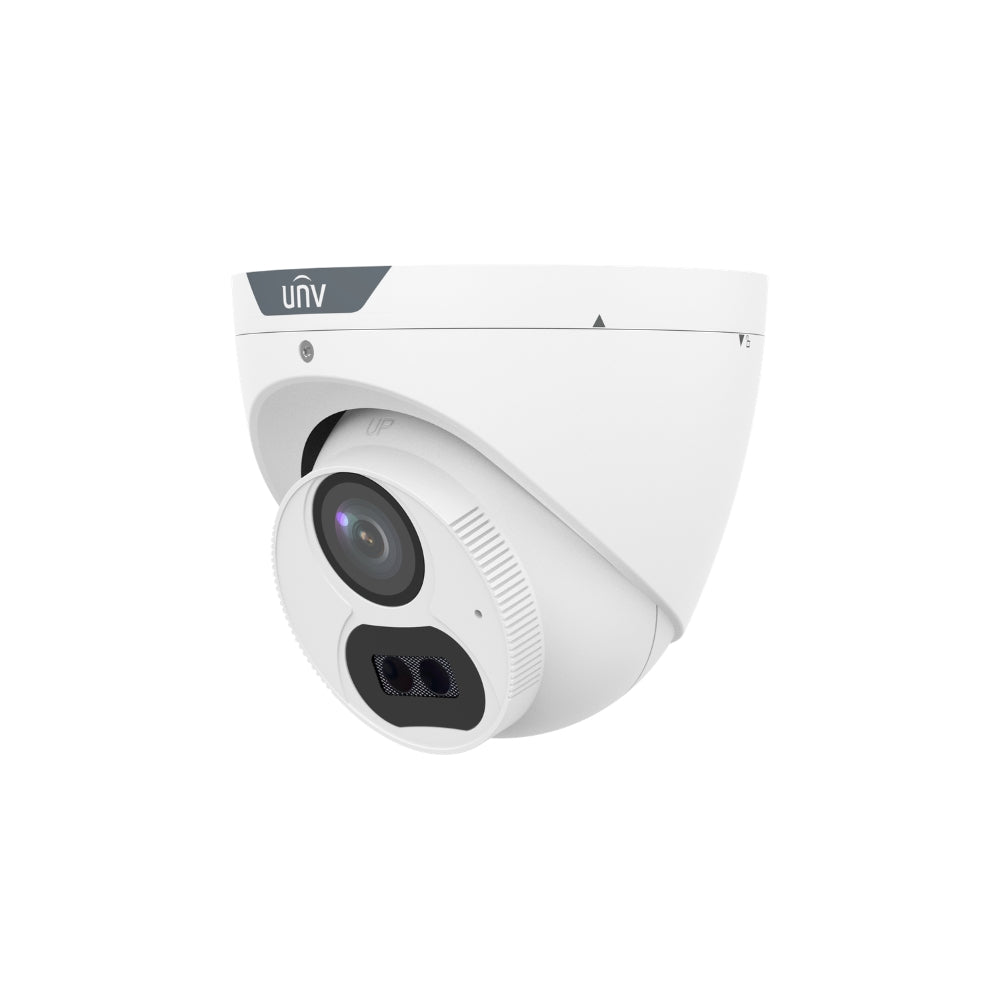

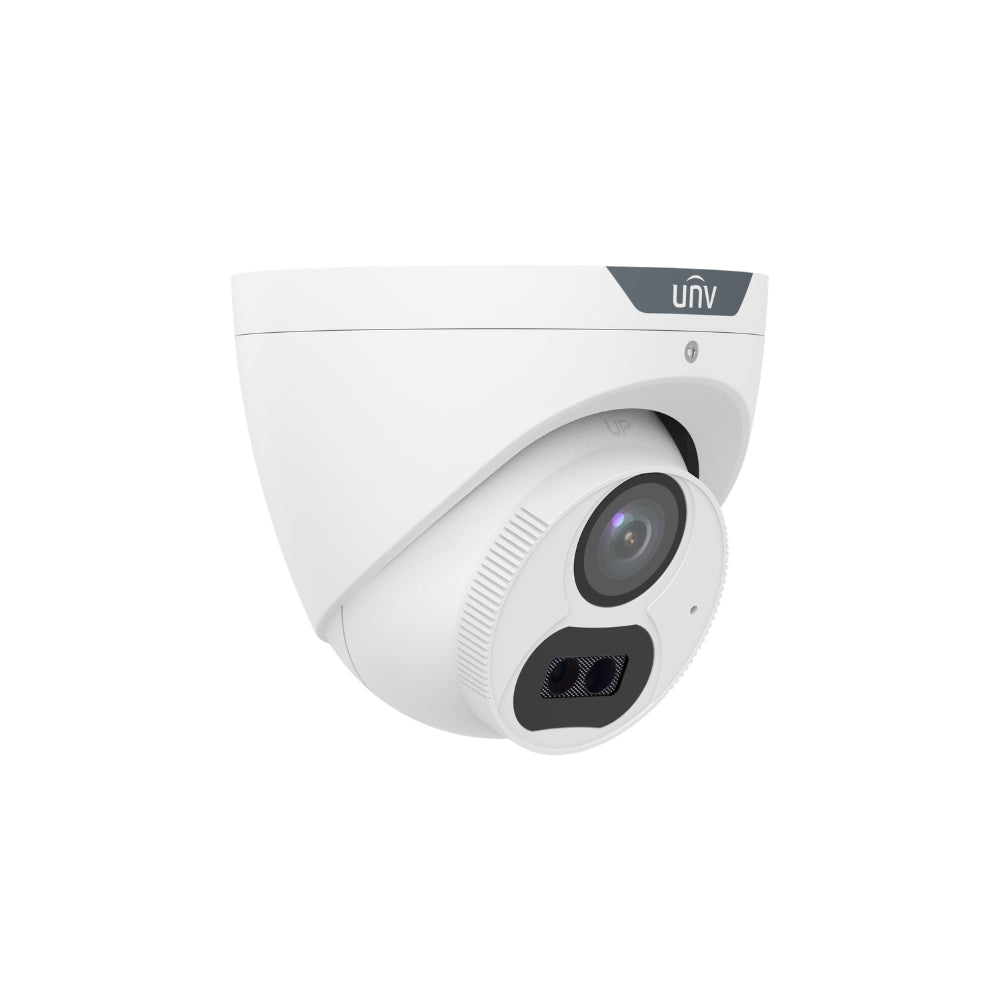

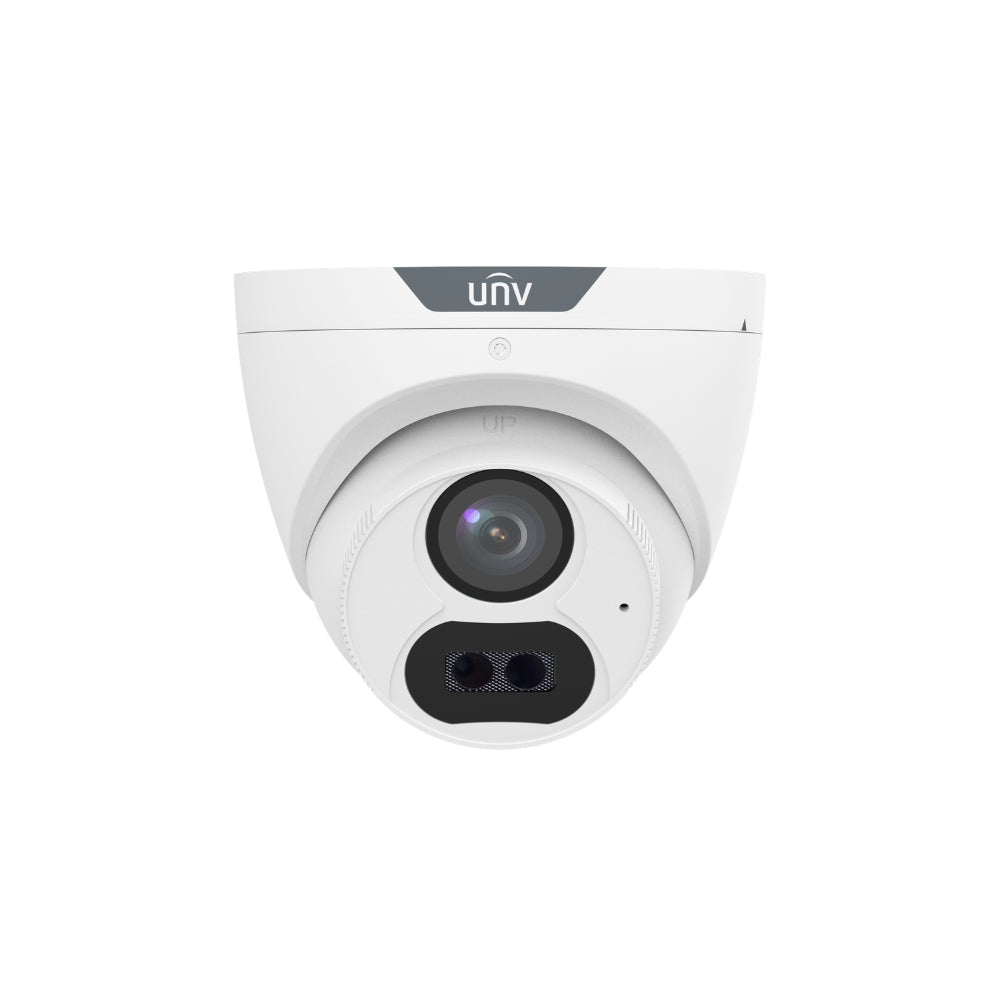

UNV 8MP LightHunter Fixed IR Turret Analog Camera 2.8mm | UNV-UAC-T128-ADF28MS
UAC-T128-ADF28MS is an 8MP LightHunter fixed IR turret analog camera with a high-performance 1/2.7-inch CMOS sensor and 3D noise reduction technology. It supports flexible switch among TVI/CVI/AHD/CVBS through DIP switches, effectively enhancing product adaptability and diversity of networking solutions. With SYV-75-3 or other coaxial cable types, the camera can achieve low-cost, long-distance, and anti-interference mega-pixel HD video transmission without time delay. It supports IRcut filter with auto-switch (ICR) and provides color images at daytime and black/white images at night. The camera also supports audio input and synchronous transmission of audio and video.
Features
- High-quality imaging with 8MP resolution
- TVI/CVI/AHD/CVBS
- Supports IR-cut filter with auto-switch (ICR)
- LightHunter monitoring with high-sensitivity sensor
- 3D noise reduction technology delivers clean and sharp images
- Supports 180° horizontal flip, 180° vertical flip
- OSD configuration menu, easy to operate
- IP67 waterproof and dustproof design, high reliability
- OSD configuration menu in 11 languages
- Built-in microphone for high-quality audio transmission via coaxial cables
- 120dB true WDR technology enables clear images in a strong light scene
Technical Specifications
Sensor
- Pixel: 8MP
- Sensor Size: 1/2.7"
- Min. Illumination
- 0.005 lux (F1.6, AGC ON)
- 0 lux (IR ON)
Lens
- Focus
- UAC-T128-ADF28MS:2.8mm
- Lens Mount: M12
- Angle of View (H)
- UAC-T128-ADF28MS: 109.1°
- Angle of View (V)
- UAC-T128-ADF28MS:61.0°
- Angle of View (D)
- UAC-T128-ADF28MS:126.7°
Illuminator
- Illuminator Number: Two IR illuminators
- Illumination Distance: 40m
- Lifetime: ≥60000 hours
Video
- Resolution
- 4K: 3840(H) × 2160(V)
- 5MP@20fps: 2592(H)×1944(V); 5MP@12.5fps: 2592(H)×1944(V)
- 4MP: 2560(H)×1440(V)
- Frame Rate
- CVI: 4K@15fps (default), 5MP@20fps, 4MP@25fps, 4MP@30fps
- TVI/AHD: 4K@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps
- CVBS: PAL, NTSC
- Shutter Time
- PAL: 1/25s-1/50000s
- NTSC: 1/30s-1/50000s
- Exposure Mode: Four modes: Global(default),BLC,HLC,WDR
- Day/Night: Three modes: Auto (default), Day, Night
- Digital Noise Reduction: 2D/3D
- White Balance: Two modes: Auto (default), Manual
- WDR: 120dB WDR
- Smart IR: Support
- Flip: Supports 180°horizontal flip, 180°vertical flip
- Digital Defog: N/A
Audio
- Built-in Mic: Support
- Camera Audio: CVI: 4K@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps
Interface
- Power Interface: 5.5mm Power Interface
- Video Output: BNC, supports TVI/AHD/CVI/CVBS
Operating Environment
- Temperature: -30℃ to 60℃(-22°F to 140°F)
- Humidity: ≤95% RH (non-condensing)
- Surge Protection: 4kV for power&4kV for video output interfaces
General
- Power: DC12V±25%
- Power Consumption: MAX 4.8W
- Mount: Wall Mount, Pole Mount, Corner Mount, Pendant Mount

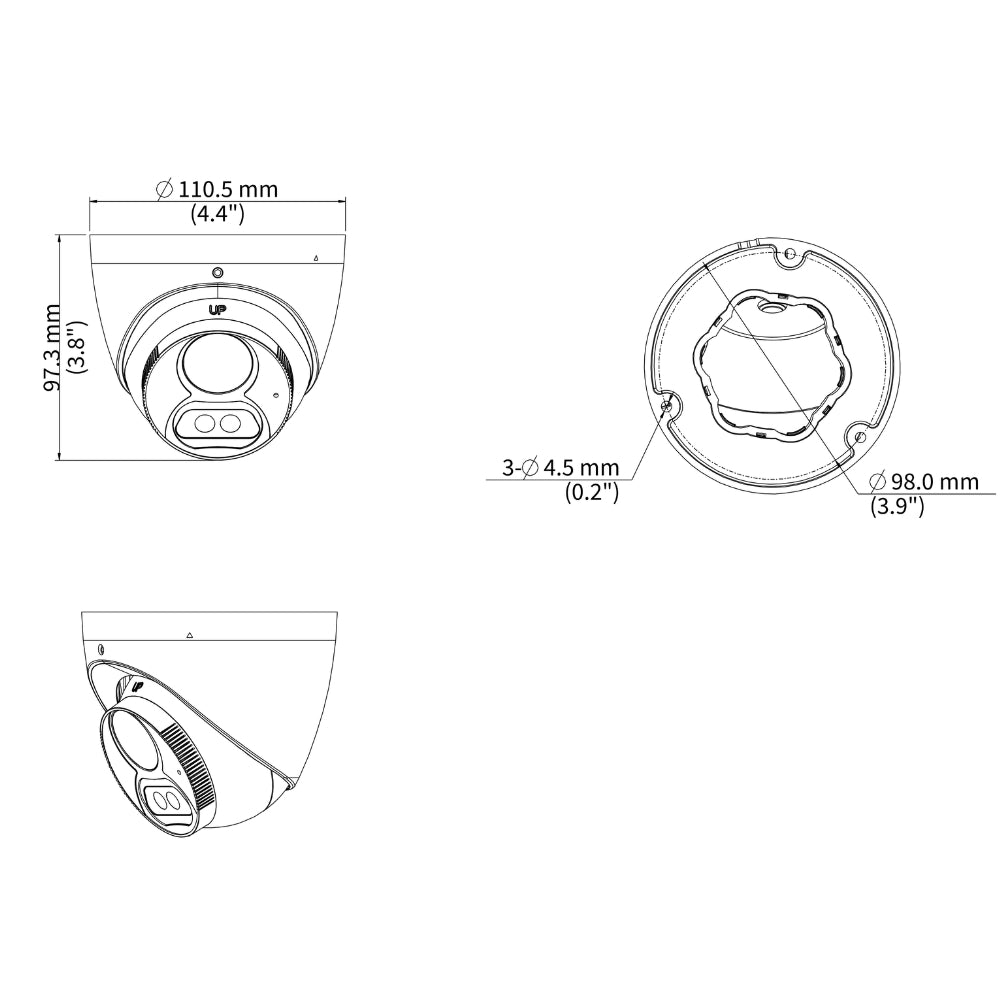

- Dimensions: Φ111mm*98mm (diameter*height)
- Material: Metal
- Weight: 417g (0.92lb)
- OSD Menu Language: 11 Languages English, German, Spanish (Latin America), French, Italian, Japanese, Korean, Polish, Portuguese (Brazil), Russian, Turkish
Certification
- EMC: CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3- 2, EN 55035)FCC (FCC 47 CFR part15 B)
- Safety: CE-LVD (EN 62368-1)
- Environment: CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
- Protection: IP67 (IEC 60529)
