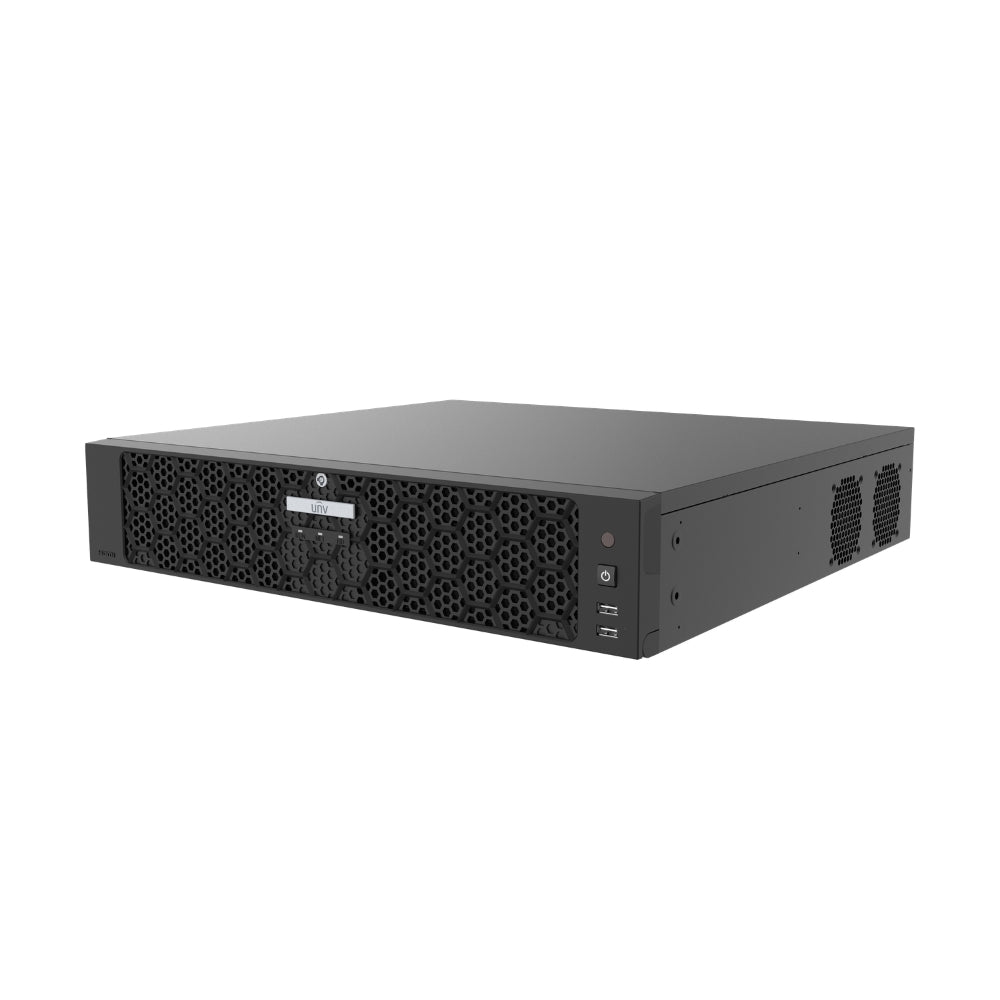

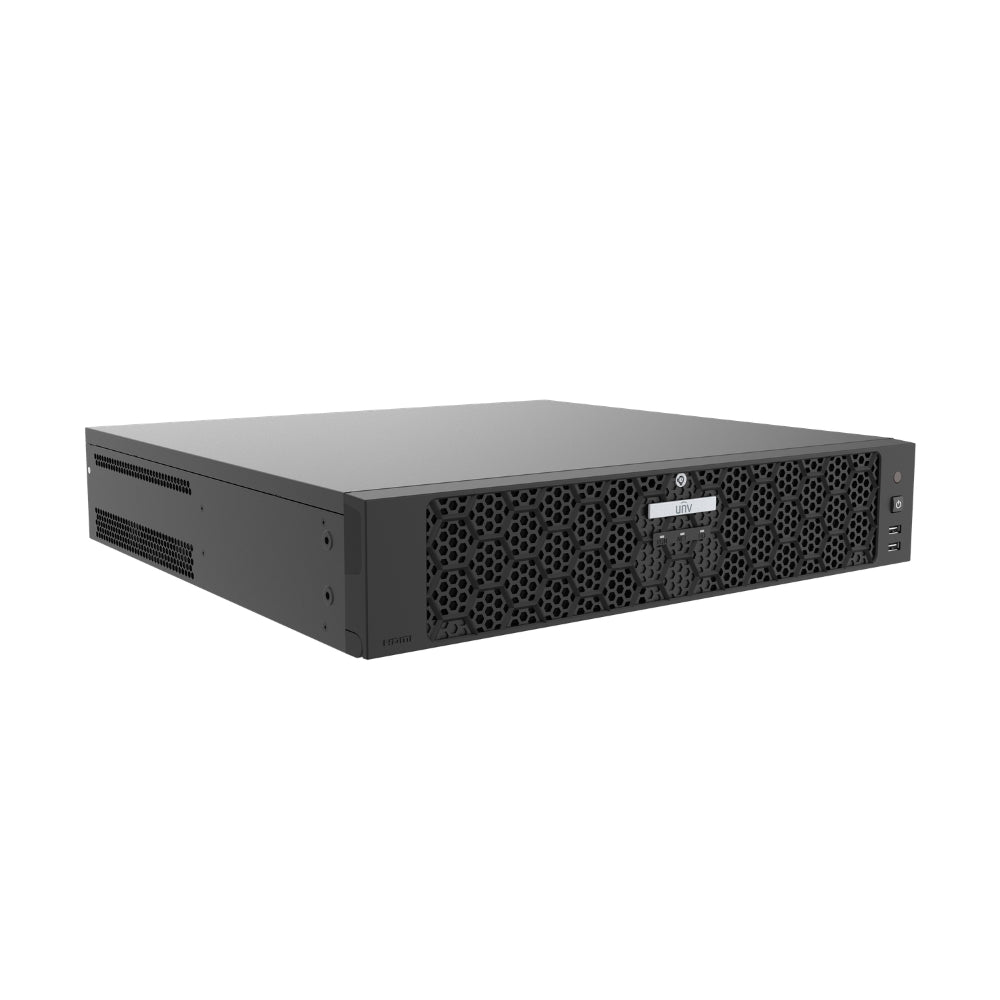

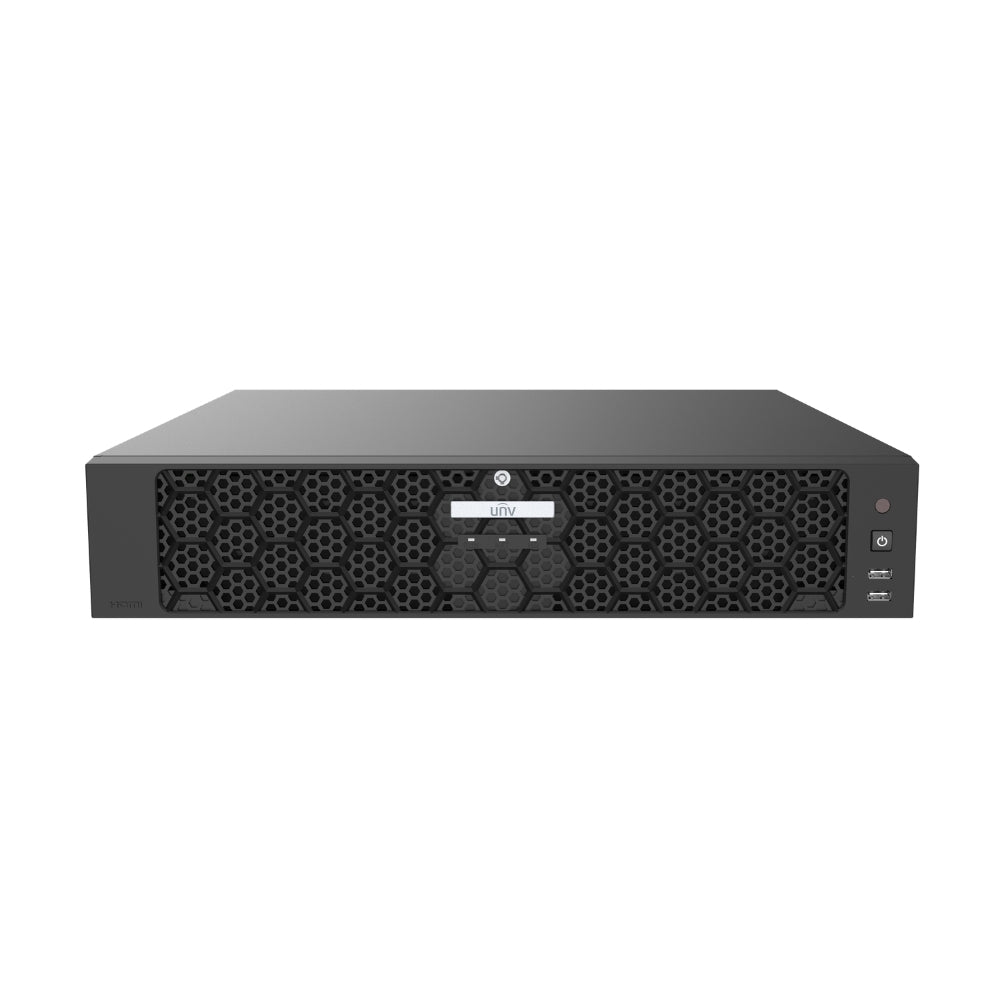

UNV NVR508-64E-R 8 HDDs 64CH 4K Network Video Recorder

The UNV NVR508-64E-R is an enterprise-level 64-channel 4K NVR designed for high-capacity, mission-critical surveillance. As part of Uniview’s Prime range, this 2U rack-mount recorder features a robust 384Mbps bandwidth and supports ultra-high-definition recording up to 32MP.

Built for maximum data security and uptime, the "R" series supports RAID 0, 1, 5, 6, and 10 storage schemes and features hot-swappable HDD bays. This allows for continuous operation even during hard drive maintenance.

Decoding

Decoding Format: Ultra 265, H.265, H.264
Decoding Capability: 2 x 32MP@30, 4 x 16MP@30, 5 x 12MP@30, 8 x 4K@30, 16 x 4MP@30, 32 x 1080P@30, 54 x 960P@25, 64 x 720P@30
Decoding Capability Description: The resolution of each channel cannot exceed 8192 pixels in length or width
Audio Compression: G.711A, G.711U

Network

Incoming Bandwidth: 384 Mbps
Outgoing Bandwidth: 384 Mbps
Remote Users: 128
Protocols: TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, NFS, RTSP, 802.1x, IPv6, IPv4
Browser (Plugin): IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+

Video/Audio Input

RCA Audio Input: 1-ch
HDMI Output: 4K (3840 × 2160)/60 Hz, 4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
VGA Output: 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
RCA Audio Output: 2-ch
Liveview Display: HDMI1/VGA1:1/4/6/8/9/16/25/36/64, HDMI2/VGA2:1/4/6/8/9/16/25/36
Corridor Mode Screen: 3/4/5/7/9/10/12/16/32

Two-way Audio

Two-way Audio: 1-ch, RCA (Using the audio input and output)

Snapshot

FTP/Schedule/Event Snapshot: 16-ch snapshot (max. 8 MP (3840 × 2160) video resolution, with 1080P snapshot resolution)

Recording

Recording Resolution: 32 MP/16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF
Synchronous Playback in Local: 16-ch

Smart

Smart by IPC: All channels (up to 16 images/s in total), Face Detection, Vehicle Detection (LPR), Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring
VCA Search: Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map
Vehicle Picture Library: Up to 5 vehicle picture libraries, with up to 25,000 vehicle pictures in total

Alarm

General Alarm: Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection
Alert Alarm: IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal

GUI Language

GUI Language: 38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian

Hard Disk

SATA: 8 SATA Interfaces
Capacity: Up to 24 TB for each HDD (The maximum HDD capacity varies with environmental temperature and hard disk size. The environmental temperature for use should not exceed 40°C)
Disk Group: Support
Disk Array Type: RAID 0, 1, 5, 6, 10
Hot Swap: Support

External Interface

Network Interface: 2 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface
USB: Front panel: 2 × USB2.0, Rear panel: 2 × USB3.0
RS485: 1
RS232: 1
Alarm In: 16-ch
Alarm Out: 10-ch
eSATA: 1
Power Output: 12 V
Power Supply: AC 100 to 240 V

Working Environment

Working Temperature: -10 ℃ to 55 ℃ (14 ℉ to 131 ℉)
Working Humidity: ≤ 90% RH (non-condensing)
Power Consumption (without HDD): ≤ 35W

Dimensions

Weight (without HDD): ≤ 6Kg (13.23lb)

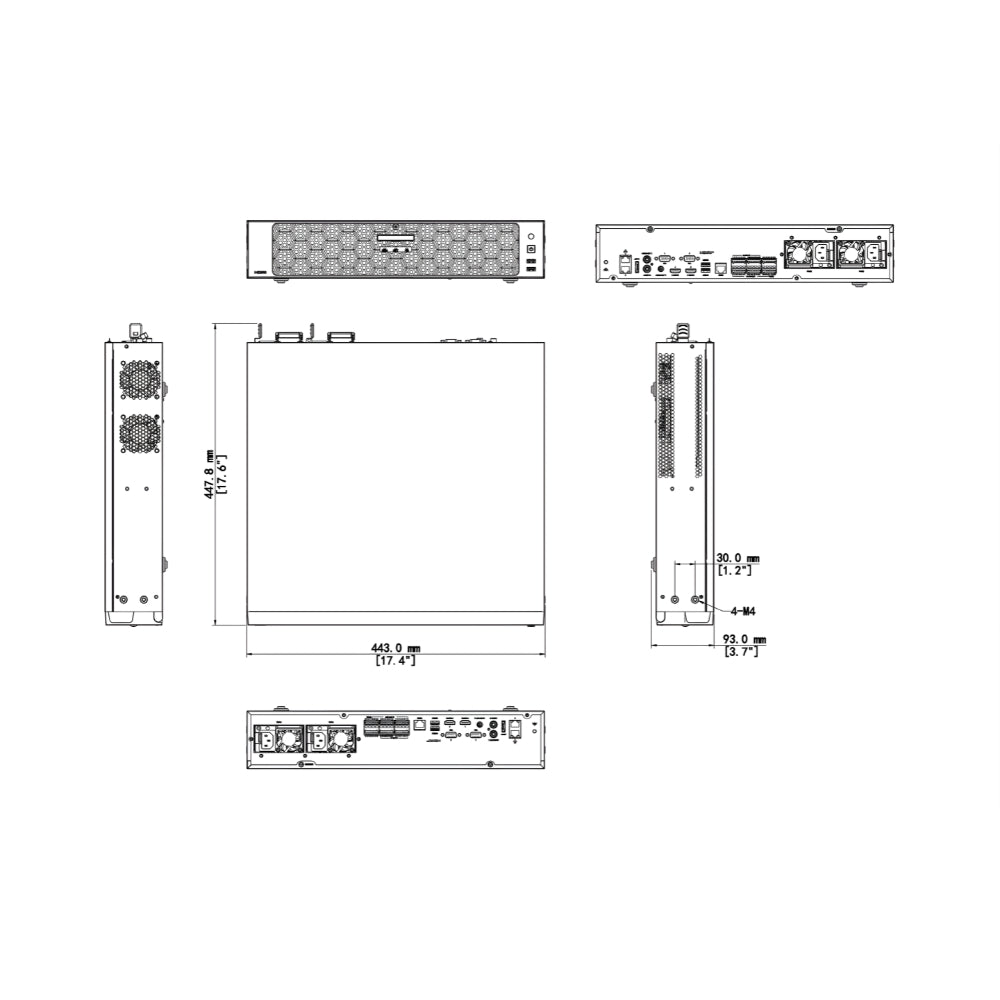

Dimensions: 442mm × 448mm × 93mm (17.4" × 17.6" × 3.7")

Certification

Certification: CE; FCC; UL; RoHS; WEEE
CE: EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035
FCC: Part 15 Subpart B
