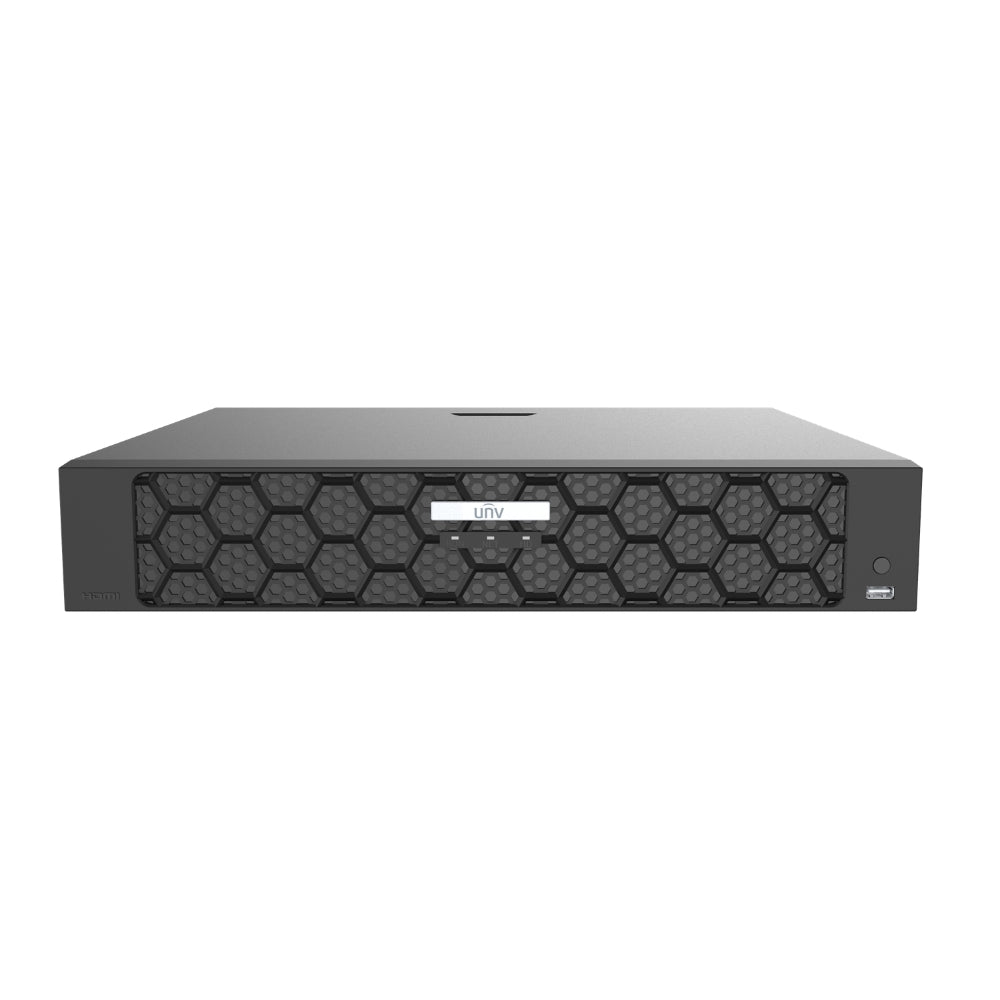

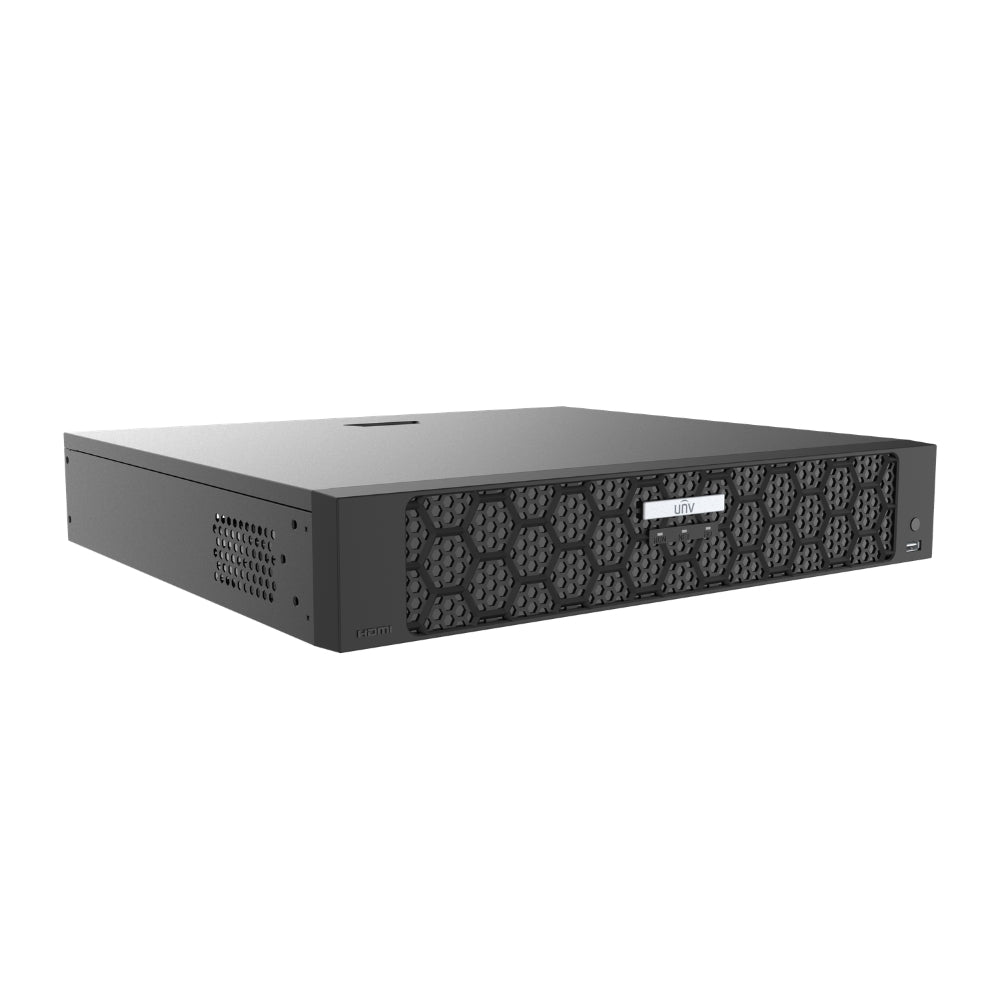

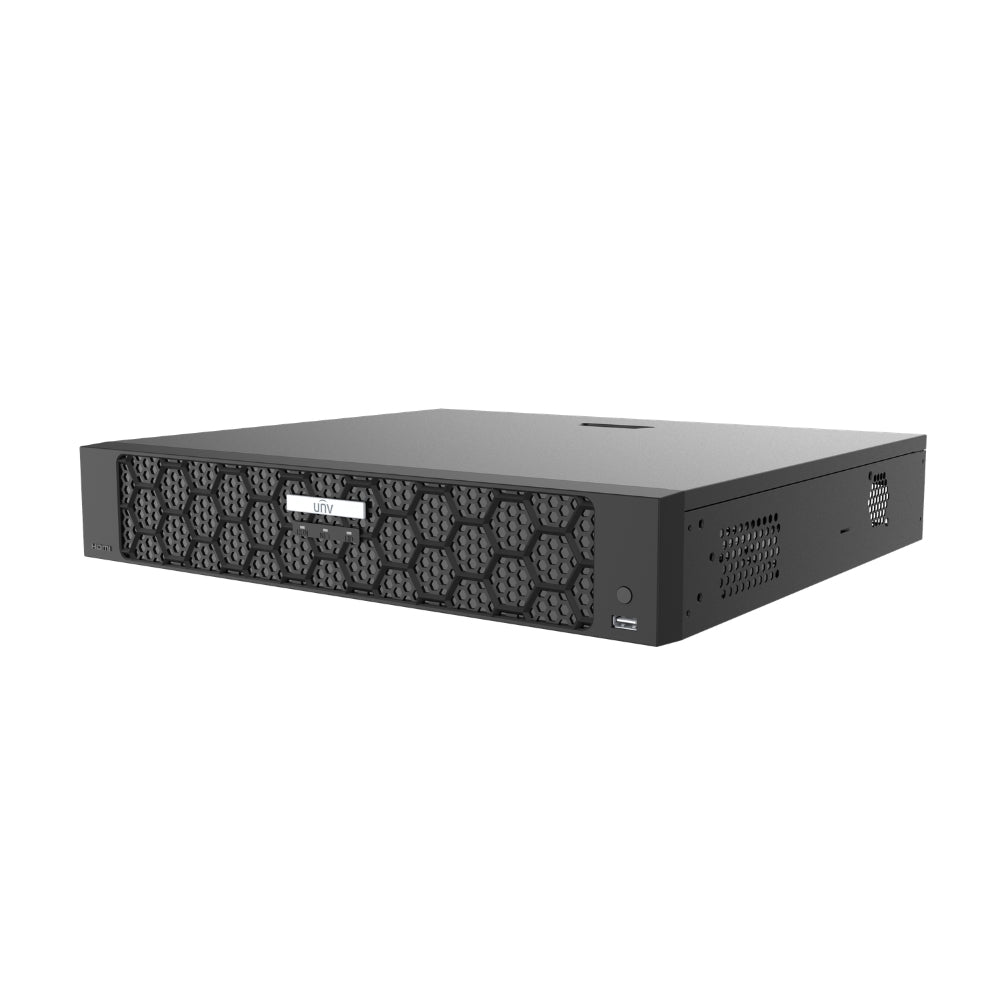

UNV NVR504-32B-P16-IQ 4 HDDs 32CH Network Video Recorder

The UNV NVR504-32B-P16 is a 32-channel Network Video Recorder designed for large-scale surveillance deployments that require massive storage and high-bandwidth processing. As a centerpiece of the series, this NVR supports up to 32 IP cameras, with 16 integrated PoE+ ports for immediate plug-and-play connectivity for your primary camera runs.

What sets this unit apart is its massive storage expandability and processing power. With 4 SATA bays, it is engineered for long-term data retention of high-resolution 4K footage. It features a robust 1.5U rack-mount chassis and high incoming bandwidth, making it the ideal solution that requires a mix of local PoE power and networked camera management.

Decoding

Decoding Format: Ultra 265, H.265, H.264
Decoding Capability: Smart Off：2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 8 x 4MP@30, 10 x 3MP@30, 16 x 1080P@30, 32 x 720P@30
Smart On：2 x 12MP@30, 2 x 4K@30, 6 x 4MP@30, 8 x 3MP@30, 12 x 1080P@30, 24 x 720P@30, 32 x D1
Decoding Capability Description: The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width. For VGA/HDMI independent output, the VGA live video is output by default. To output the highest resolution video from the HDMI port, please clear the VGA video on the preview page.
Audio Compression: G.711A, G.711U

Network

Incoming Bandwidth: Smart Off：320Mbps; Smart On：160Mbps
Outgoing Bandwidth: 160 Mbps
Remote Users: 128
Protocols: TCP/IP, P2P, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, NFS, RTSP, 802.1x, IPv6, IPv4
Browser (Plugin): IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+

Video/Audio Input

IP Video Input: 32-ch
RCA Audio Input: 1-ch

Peripheral Input

Ip Speaker: 16-ch
POS: All channels

Video/Audio Output

HDMI Output: 4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
VGA Output: 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
RCA Audio Output: 1-ch
Liveview Display: 1/4/6/8/9/16/25/32
Corridor Mode Screen: 3/4/5/7/9/10/12/16/32

Two-way Audio

Two-way Audio: 1-ch, RCA (Using the audio input and output)

Snapshot

FTP/Schedule/Event Snapshot: 4-ch snapshot (max. 8 MP (3840 × 2160) video resolution, with 1080P snapshot resolution)

Recording

Recording Resolution: 16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF
Synchronous Playback in Local: 16-ch

Smart

Smart by IPC: All channels (up to 8 images/s in total) Face Detection, Vehicle Detection (LPR), Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring
Smart by NVR: Face Detection, Smart Intrusion Prevention (SIP), Ultra Motion Detection (UMD)
Smart by NVR Analyzer Mode: Single Mode (), Single Mode (SIP), Single Mode (UMD), Single Mode (AcuSearch/AcuTrack). Modes cannot be active simultaneously, only one mode can be active at a time.
VCA Search: AcuSearch, AcuTrack, Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map
AcuSearch: All channels with UNV SIP/UMD Camera
AcuTrack: All channels with UNV SIP/UMD Camera
by NVR: Up to 8-ch with UNV Face Detection Camera, Up to 2-ch with normal camera (UNV and Third-party brand, 2-ch 2MP, 1-ch 4MP)
Search by Image: Support
Vehicle Picture Library: Up to 5 vehicle picture libraries, with up to 25,000 vehicle pictures in total
SIP by NVR with normal cameras: Up to 4-ch with normal camera (UNV and Third-party brand, 4-ch 2MP, 2-ch 4MP, 1-ch 4K)
UMD by NVR with normal cameras: Up to 8-ch with normal camera (UNV and Third-party brand, 8-ch 2MP, 4-ch 4MP, 2-ch 4K)
Capacity of Snapshot Records: 2 million records for face snapshot, 2 million records for vehicle snapshot, 3 million records for SIP, 2 million records for video Metadata

Alarm

General Alarm: Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection
Alert Alarm: IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal, Array Damaged, Array Degraded

GUI Language

GUI Language: 38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian

Hard Disk

SATA: 4 SATA Interfaces
Capacity: Up to 24 TB for each HDD (The maximum HDD capacity varies with environmental temperature and hard disk size, The environmental temperature for use should not exceed 40°C)
Disk Group: Support
Redundant Storage: Support
Disk Array Type: RAID 1, 5

External Interface

Network Interface: 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface
USB: Front panel: 1 × USB2.0, Rear panel: 1 × USB3.0
RS485: 1
RS232: N/A
Alarm In: 16-ch
Alarm Out: 4-ch
Power Supply: AC 100~240V
Power Switch: Support

PoE

PoE Interface: 16 RJ45 10 M/100 M self-adaptive Ethernet Interface
Max Power: Max 30 W for a single port, Max 150 W in total
Supported Standards: IEEE 802.3at, IEEE 802.3af

Working Environment

Working Temperature: -10 ℃ to 50 ℃ (14 ℉ to 122 ℉)
Working Humidity: ≤ 90% RH (non-condensing)
Power Consumption (without HDD): ≤ 12W

Dimensions

Weight (without HDD): ≤ 4Kg (8.8lb)
Height: 1.5U

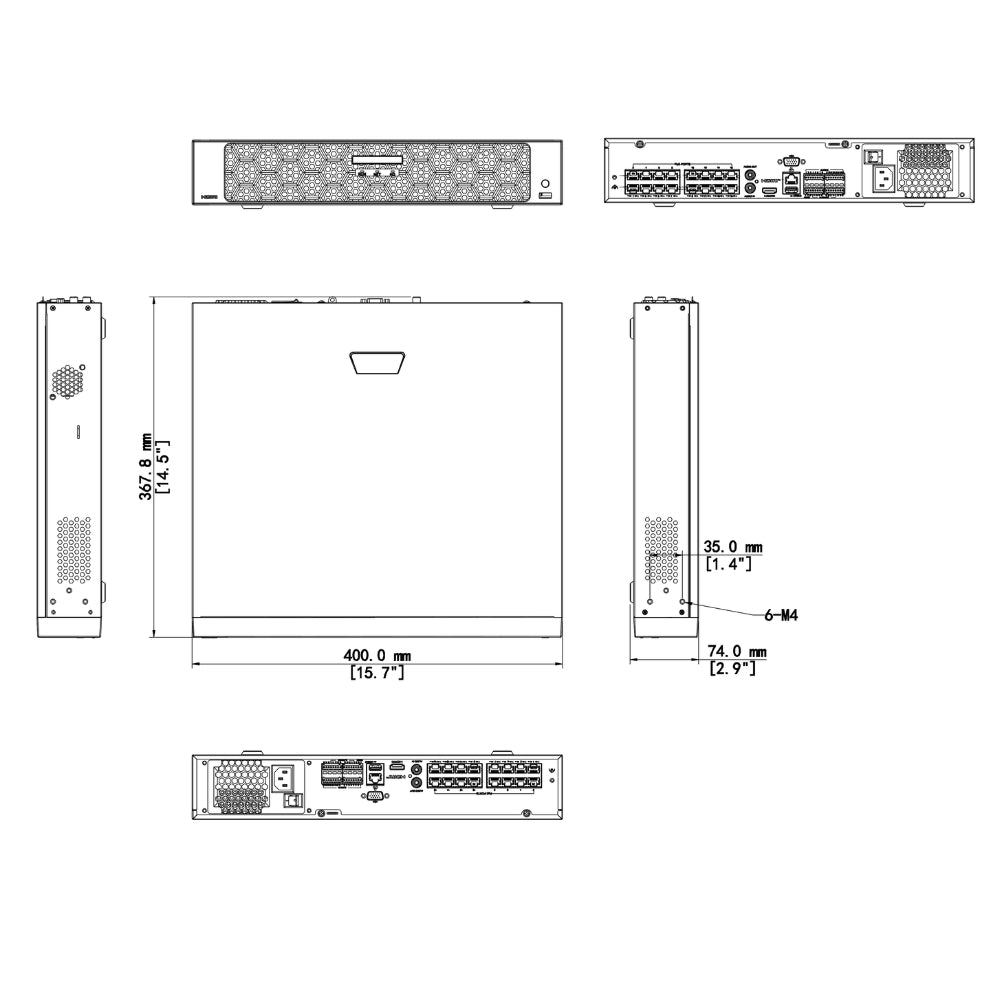

Dimensions: 400mm × 368mm × 74mm (15.7"×14.5"×2.9")

Certification

Certification: CE; FCC; UL; RoHS; WEEE
CE: EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035
FCC: Part 15 Subpart B
