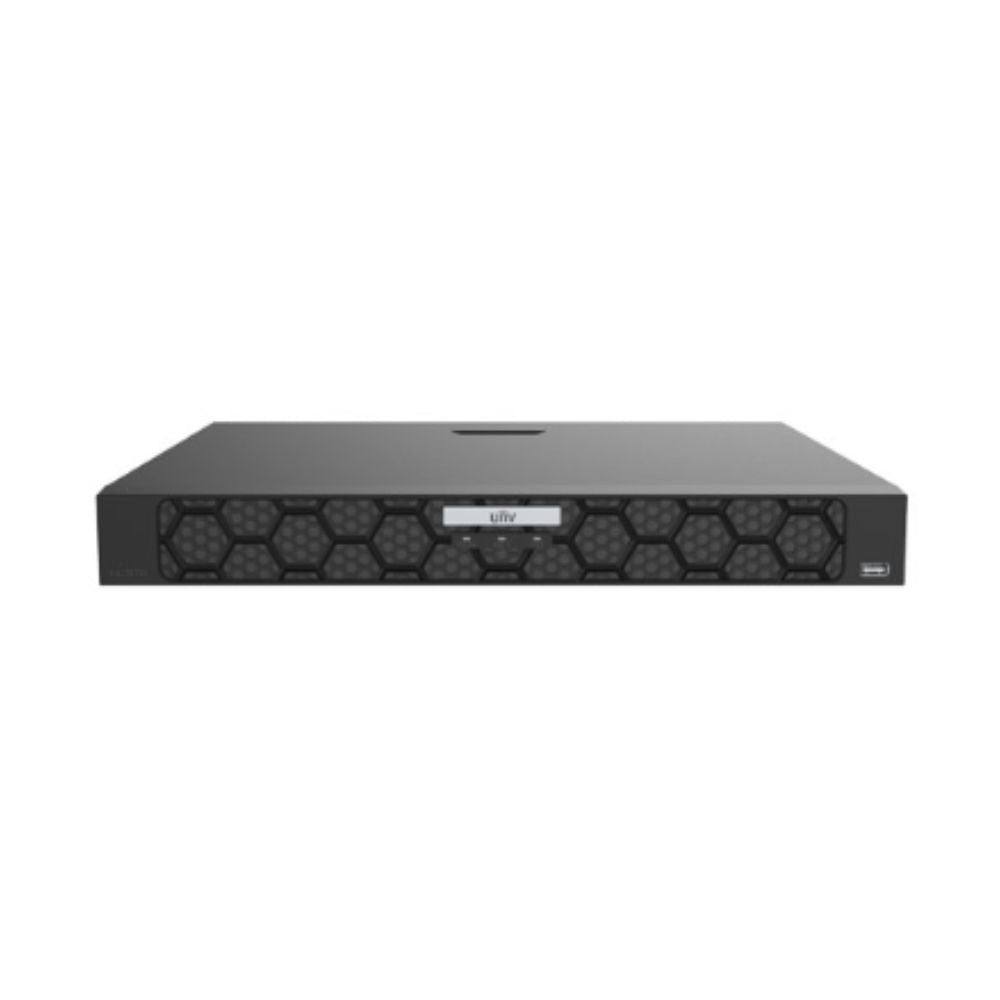

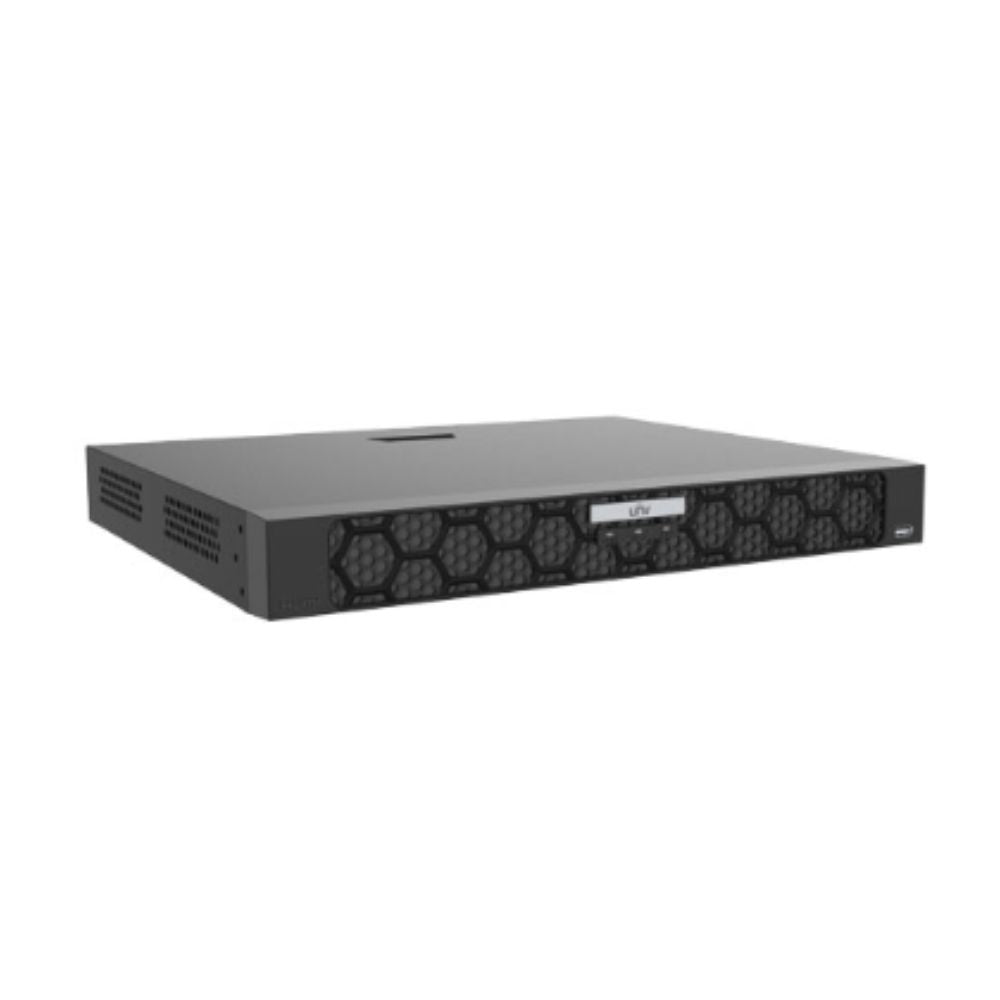

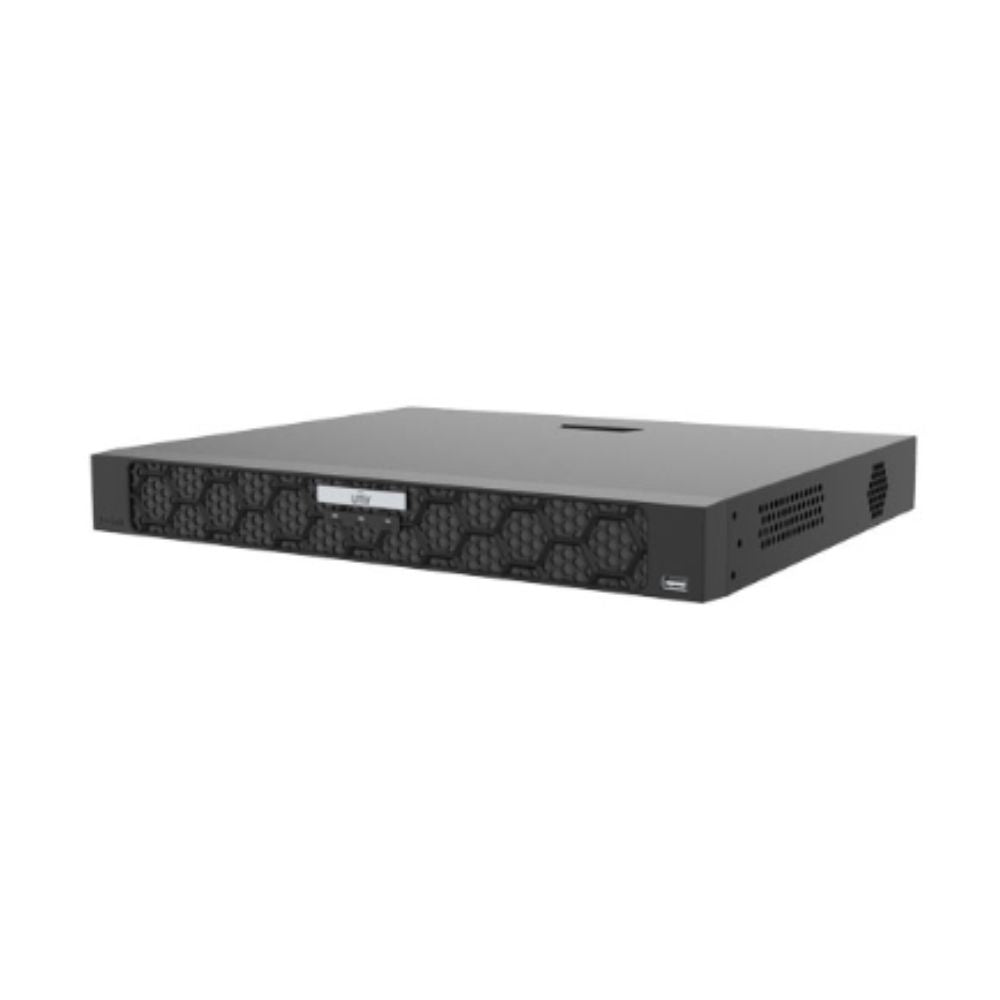

UNV NVR502-32B Network Video Recorder

Name: UNV NVR502-32B Network Video Recorder
Brand: UNV
SKU: UNV-NVR502-32B
Price: 809.0 USD
Availability: OutOfStock

Write a review

Free US Shipping

UNVSKU: UNV-NVR502-32B

Price:

$809.00

Quantity:

Required fence width (Linear feet):

Share this product

UNV NVR502-32B Network Video Recorder

Enhance your security with this high-capacity surveillance system. Featuring 32-channel recording, H.265+ compression, and PoE support, it offers reliable video monitoring. Ideal for large-scale projects, businesses, and critical infrastructure requiring advanced security.

Video/Audio Input: IP Video Input: 8-ch, 16-ch, 32-ch; Audio Input: 1-ch, RCA
Network: Incoming bandwidth: 320Mbps; Outgoing bandwidth: 160Mbps; Remote Users: 128; Protocols: TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, IPV6; Browser: IE(IE10/11) for Windows, Firefox (version 52.0 and above) for Windows, Chrome(version 45 and above) for Windows, Edge(version 79 and above) for Windows
Video/Audio Output: HDMI/VGA Output: HDMI: 4K (3840x2160)@30, 1920x1080p@60, 1920x1080p@50, 1600x1200@60, 1280x1024@60, 1280x720@60, 1024x768@60; VGA: 1920x1080p@60, 1920x1080p@50, 1280x1024@60, 1600x1200@60, 1280x720@60, 1024x768@60
Recording Resolution: 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF; Audio Output: 1-ch, RCA; Two-way Audio: 1-ch, RCA(Using the audio input and output); Audio Compression: G.711A, G.711U
Playback: Synchronous Playback: 8-ch, 16-ch, 16-ch; Liveview display: 1/4/6/8/9, 1/4/6/8/9/16, 1/4/6/8/9/16/25/32; Corridor Mode Screen: 3/4/5/7/9, 3/4/5/7/9/10/12/16, 3/4/5/7/9/10/12/16/32; Snapshot: FTP/Schedule/Event Snapshot: 4-ch snapshot, up to D1 resolution
Decoding: Decoding format: Ultra 265/H.265/H.264; Live view/Playback: 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF; Capability: Ultra 265/H.265: 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 6 x 5MP@30, 8 x 4MP@30, 10 x 3MP@30, 16 x 1080P@30, 32 x 960P@25; H.264: 2 x 16MP(4800 x 2688)@30, 2 x 12MP@30, 2 x 4K@30, 4 x 5MP@30, 6 x 4MP@30, 8 x 3MP@30, 14 x 1080P@30, 30 x 720P@30, 32 x D1
Storage: Hard Disk: SATA2 SATA interfaces, Capacity: Up to 10TB for each disk
Smart Features: SmartVCA Detection by Camera: Vehicle Detection, Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Temperature Detection(Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection), UMD(Ultra Motion Detection), Video Metadata, Traffic Monitoring; VCA Search: Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report; People Counting: People Flow Counting, Crowd Density Monitoring; Smart Intrusion Prevention (SIP), Vehicle Detection, UMD, Video Metadata, Traffic Monitoring by Camera
General: Total 8-ch; General Alarm: Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection; Alert Alarm: IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
External Interface: Network Interface: 1 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface; USB Interface: Front: 1 x USB2.0, Rear panel: 1 x USB3.0; RS232/NARS485: 1; Alarm In: 8-ch; Alarm Out: 2-ch; PoE Interface: 8 RJ-45 10M/100M self-adaptive Ethernet Interface, 16 RJ-45 10M/100M self-adaptive Ethernet Interface; Max Power: Max 30W for single port, Max 130W in total (8-port PoE), Max 30W for single port, Max 240W in total (16-port PoE); Supported Standard: IEEE 802.3af/at
General: Power Supply: 100~240V AC, Power Consumption: ≤ 20W (without HDD); Working Environment: -10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing); Dimensions (W×D×H): 380mm × 322mm × 53mm (15.0"×12.7"×2.1"); Weight (without HDD): ≤ 2.6Kg (5.73lb)
Certification: Certification: CE, FCC, UL, RoHS, WEEECEEN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035; FCC: Part15 Subpart B
