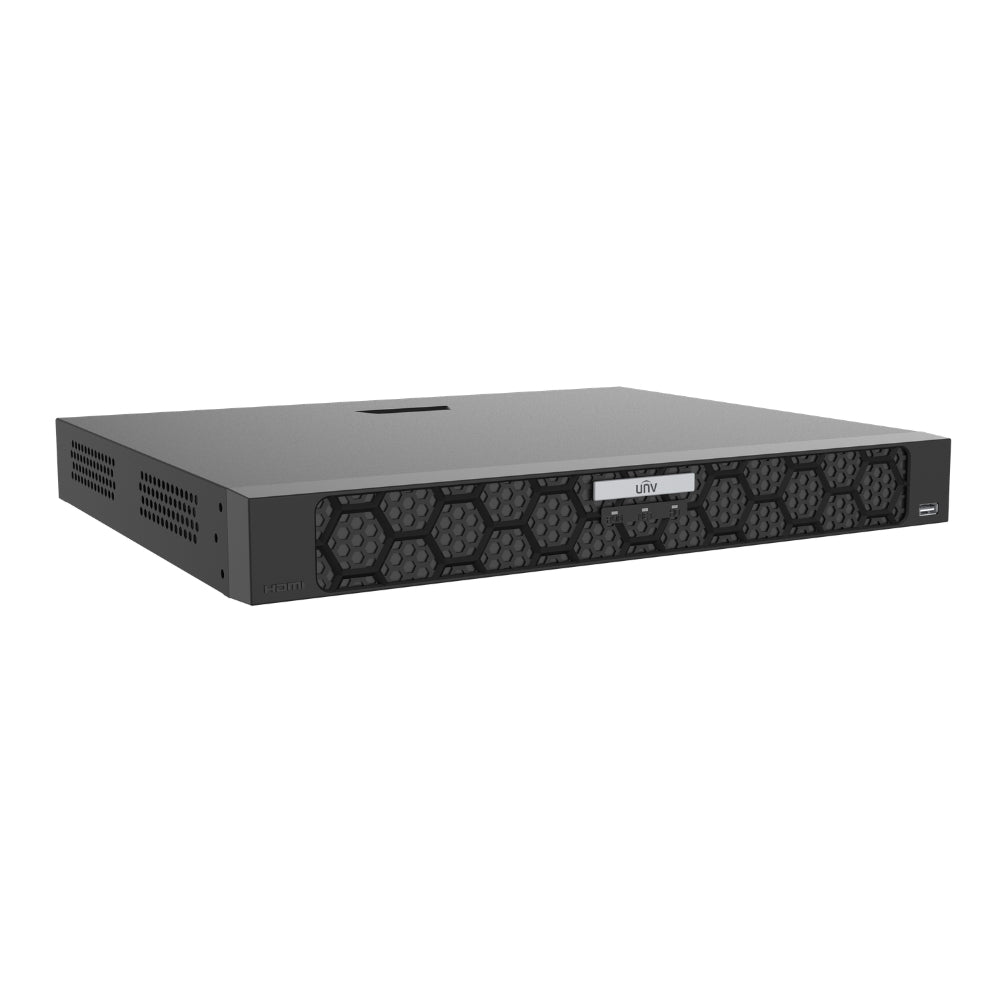

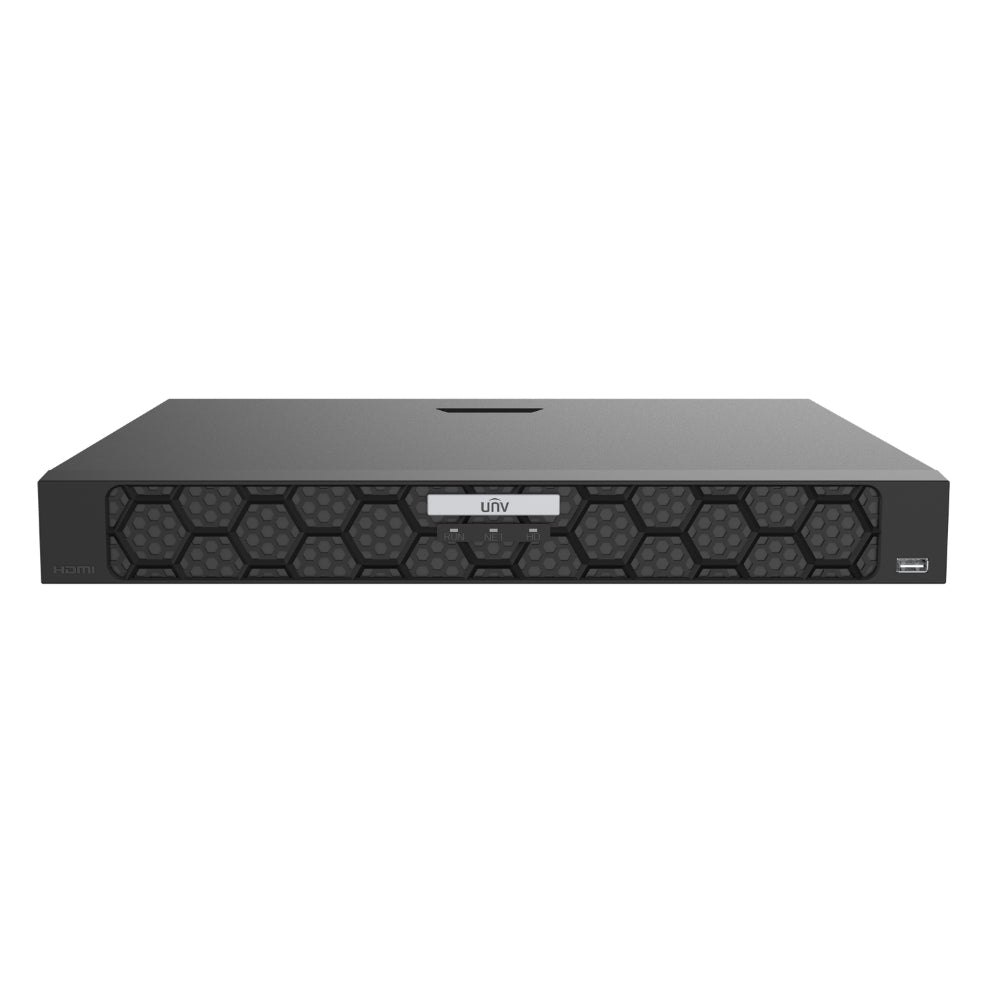

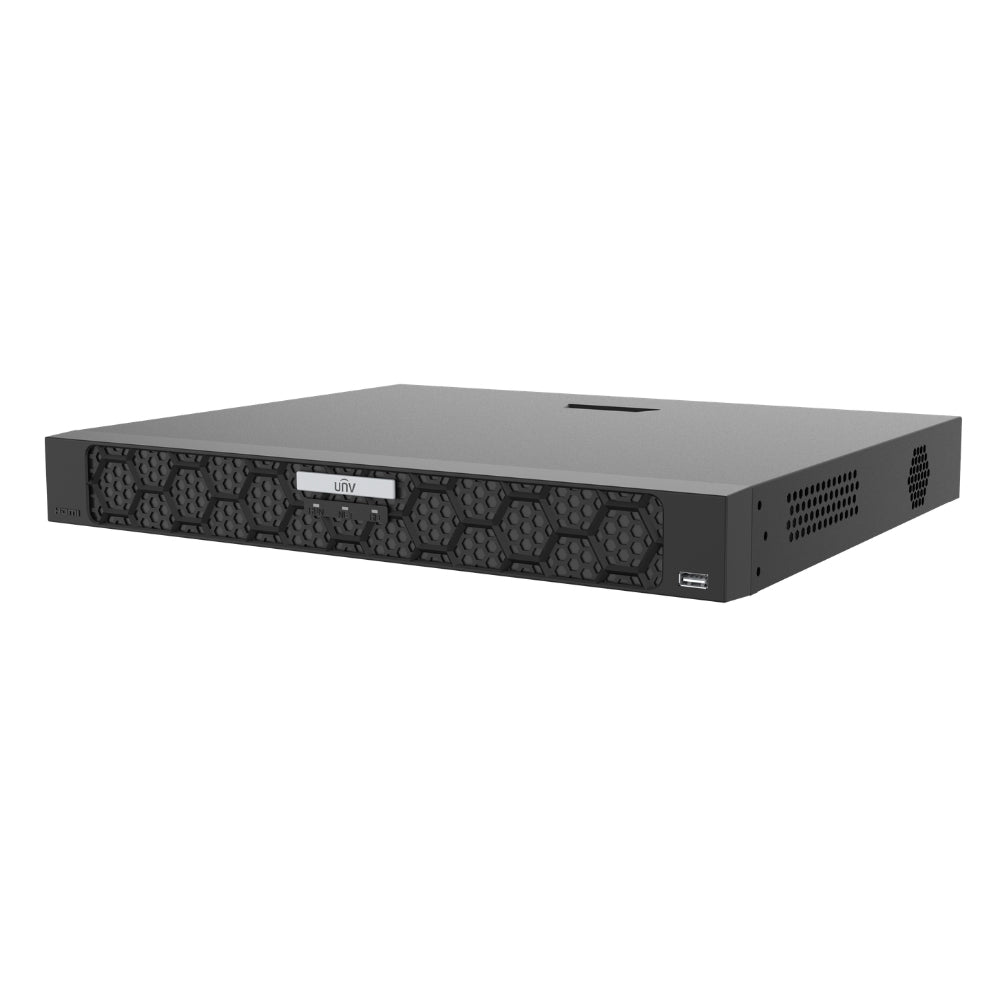

UNV NVR502-08B-P8-IQ 2 HDDs 8CH 8-PoE Network Video Recorder

• Support Ultra 265/H.265/H.264 video formats
• Support 8/16/32-channel input
• Support Plug & Play with 8/16 independent PoE network interfaces
• Support 1-ch HDMI, 1-ch VGA. HDMI up to 4K (3840x2160) resolution
• Support VGA and HDMI independent output
• Support up to 16 Megapixels resolution recording
• Support ANR technology to enhance the storage reliability when the network is disconnected
• Support cloud upgrade

Decoding

• Decoding Format: Ultra 265, H.265, H.264
• Decoding Capability: Smart Off: 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 8 x 4MP@30, 8 x 3MP@30, 8 x 1080P@30
  Smart On：2 x 12MP@30, 2 x 4K@30, 6 x 4MP@30, 8 x 3MP@30, 8 x 1080P@30
• Decoding Capability Description: The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width. For VGA/HDMI independent output, the VGA live video is output by default. To output the highest resolution video from the HDMI port, please clear the VGA video on the preview page.
• Audio Compression: G.711A, G.711U

Network

• Incoming Bandwidth: Smart Off：320Mbps
  Smart On：160Mbps
• Outgoing Bandwidth: 160 Mbps
• Remote Users: 128
• Protocols: TCP/IP, P2P, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, NFS, RTSP, IPv6, IPv4
• Browser (Plugin): IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+

Video/Audio Input

• IP Video Input: 8-ch
• RCA Audio Input: 1-ch

Peripheral Input

• Ip Speaker: 16-ch
• POS: All channels

Video/Audio Output

• HDMI Output: 4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
• VGA Output: 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
• RCA Audio Output: 1-ch
• Liveview Display: 1/4/6/8/9
• Corridor Mode Screen: 3/4/5/7/9

Two-way Audio

• Two-way Audio: 1-ch, RCA (Using the audio input and output)

Snapshot

• FTP/Schedule/Event Snapshot: 4-ch snapshot (max. 8 MP (3840 × 2160) video resolution, with 1080P snapshot resolution)
  Recording
• Recording Resolution: 16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF
• Synchronous Playback in Local: 16-ch

Smart

• Smart by IPC: All channels (up to 8 images/s in total) Face Detection, Vehicle Detection (LPR), Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring
• Smart by NVR: Face Detection, Smart Intrusion Prevention (SIP), Ultra Motion Detection (UMD)
• Smart by NVR Analyzer Mode: Single Mode (), Single Mode (SIP), Single Mode (UMD), Single Mode (AcuSearch/AcuTrack). Modes cannot be active simultaneously, only one mode can be active at a time.
• VCA Search: AcuSearch, AcuTrack, Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map
• AcuSearch: All channels with UNV SIP/UMD Camera
• AcuTrack: All channels with UNV SIP/UMD Camera
• by NVR: Up to 8-ch with UNV Face Detection Camera, Up to 2-ch with normal camera (UNV and Third-party brand, 2-ch 2MP, 1-ch 4MP)
• Search by Image: Support
• Vehicle Picture Library: Up to 5 vehicle picture libraries, with up to 25,000 vehicle pictures in total
• SIP by NVR with normal cameras: Up to 4-ch with normal camera (UNV and Third-party brand, 4-ch 2MP, 2-ch 4MP, 1-ch 4K)
• UMD by NVR with normal cameras: Up to 8-ch with normal camera (UNV and Third-party brand, 8-ch 2MP, 4-ch 4MP, 2-ch 4K)
• Capacity of Snapshot Records: 2 million records for face snapshot, 2 million records for vehicle snapshot, 3 million records for SIP, 2 million records for video Metadata

Alarm

• General Alarm: Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection
• Alert Alarm: IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal, Array Damaged, Array Degraded

GUI Language

• GUI Language: 38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian

Hard Disk

• SATA: 2 SATA Interfaces
• Capacity: Up to 24 TB for each HDD (The maximum HDD capacity varies with environmental temperature and hard disk size. The environmental temperature for use should not exceed 40°C)
• Disk Group: Support
• Redundant Storage: Support
• Disk Array Type: RAID 1

External Interface

• Network Interface: 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface
• USB: Front panel: 1 × USB2.0, Rear panel: 1 × USB3.0
• RS485: 1
• RS232: N/A
• Alarm In: 8-ch
• Alarm Out: 2-ch
• Power Supply: AC 100~240V
• Power Switch: Support

PoE

• PoE Interface: 8 RJ45 10 M/100 M self-adaptive Ethernet Interface
• Max Power: Max 30 W for a single port, Max 130 W in total
• Supported Standards: IEEE 802.3at, IEEE 802.3af

Working Environment

• Working Temperature: -10 ℃ to 50 ℃ (14 ℉ to 122 ℉)
• Working Humidity: ≤ 90% RH (non-condensing)
• Power Consumption (without HDD): ≤ 12W

Dimensions

• Weight (without HDD): ≤ 2.7Kg (6.0lb)
• Height: 1U

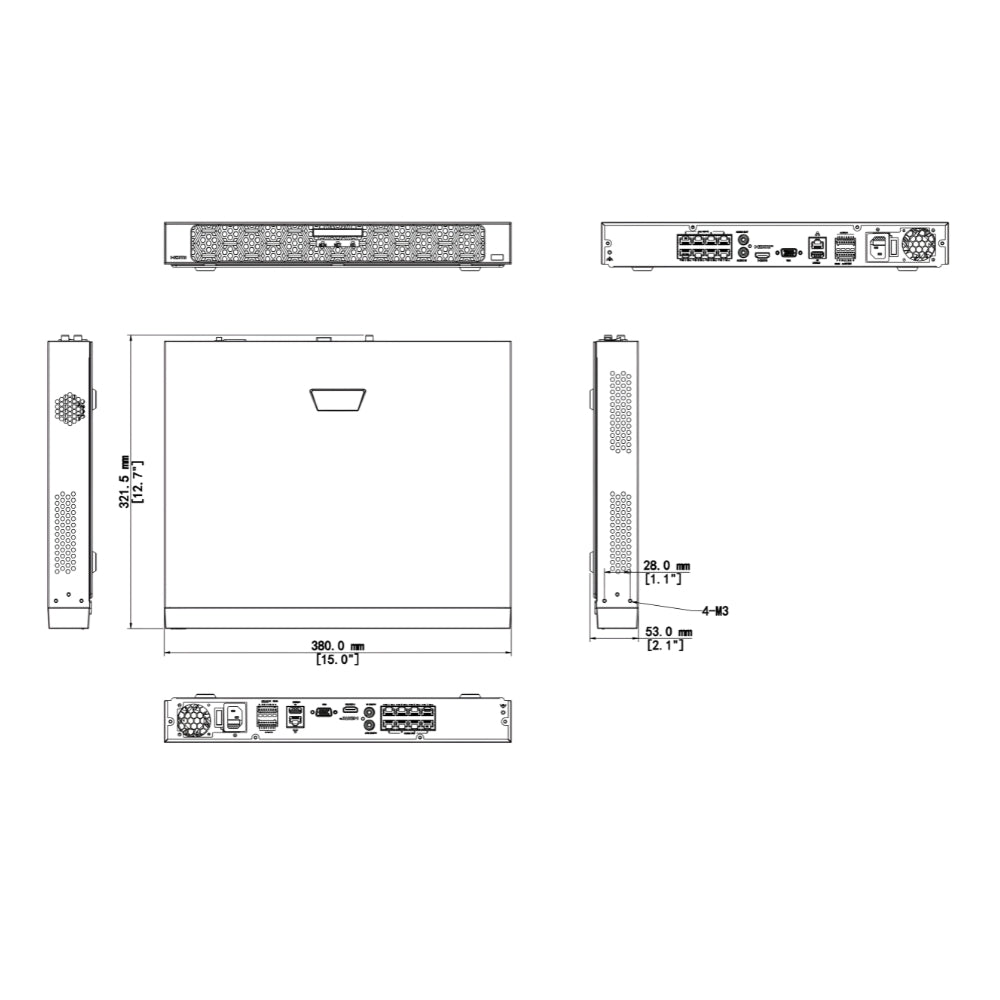

• Dimensions: 380mm × 322mm × 53mm (15.0"×12.7"×2.1")

Certification

• Certification: CE; FCC; UL; RoHS; WEEE
• CE: EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035
• FCC: Part15 Subpart B
