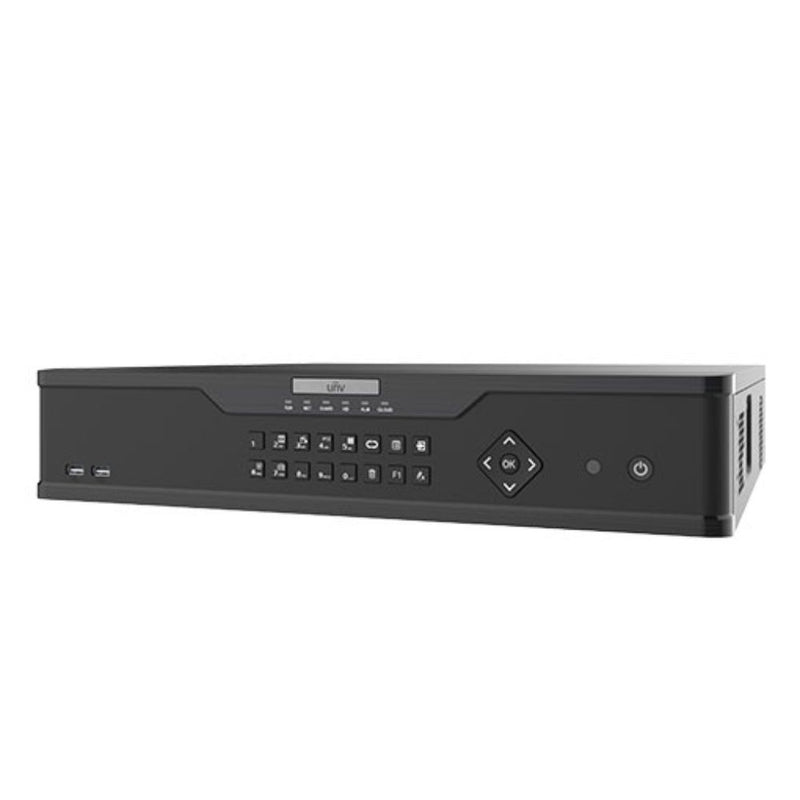

UNV Network Video Recorder | UNV-NVR308-16X

UNV Network Video Recorder | UNV-NVR308-16X

The UNV-NVR308-16X is a high-capacity and feature-rich Network Video Recorder (NVR) designed to meet the demanding requirements of large-scale surveillance systems. With advanced features and extensive technical specifications, this NVR offers a powerful solution for security installations.

Features

• Support Ultra H.265/H.265/H.264 video formats
• 16/32/64-channel input
• Supports mainstream cameras of ONVIF conformance (Profile S, Profile G, Profile T) and RTSP protocols
• Support 2-ch HDMI, 1-ch VGA. HDMI1 and HDMI2 up to 4K (3840x2160) resolution
• HDMI1, HDMI2, and VGA independent outputs provided
• Up to 12 Megapixels resolution recording
• Support RAID 0, 1, 5, 6, 10
• 8 SATA HDDs, Up to 10TB for each HDD
• Various fisheye dewarping modes for live view and playback for both web interface and GUI
• Support N+1 Hot spare
• Support for 12V Power output
• ANR technology enhances the storage reliability when the network is disconnected
• Support cloud upgrade

Technical Specifications

Video/Audio Input

• IP Video Input: 16-ch
• Two-way Audio Input: 1-ch, RCA

Network

• Incoming bandwidth: 384Mbps
• Outgoing bandwidth: 384Mbps
• Remote Users: 128
• Protocols: TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, NFS

• Browser
• IE (IE10/11) for Windows

• Firefox (version 52.0 and above) for Windows

• Chrome (version 45 and above) for Windows

• Edge (version 79 and above) for Windows

Video/Audio Output

• HDMI/VGA Output
• HDMI1/HDMI2(HDMI audio output is not supported): 4K (3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
• VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
• Recording Resolution: 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p /D1/2CIF/CIF
• Audio Output: 1-ch, RCA
• Audio Compression: G.711A, G.711U
• Synchronous Playback: 16-ch
• Live View Display: VGA/HDMI1/HDMI2: 1/4/6/8/9/16
• Corridor Mode Screen: 3/4/5/7/9/10/12/16

Snapshot

• FTP/Schedule/Event Snapshot: 16-ch snapshot, up to 4K resolution

Decoding

• Decoding format: Ultra 265, H.265, H.264
• Live view/Playback: 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/ D1/2CIF/ CIF
• Capability: 2 x 12MP@30, 4 x 4K@30, 8 x 4MP@30, 9 x 4MP@25, 16 x 1080P@30

Hard Disk

• SATA: 8 SATA interfaces

• Capacity: up to 10TB for each HDD

• eSATA: 1 eSATA interface

• Disk Group: Support

Disk Array

• Array Type: RAID 0, 1, 5, 6, 10

Smart

• VCA Detection by Camera: Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Defocus Detection, Scene Change Detection, Auto Tracking, Object Left Behind, Object Removed, Vehicle Control
• VCA Search: Behavior Search, Vehicle Search
• People Counting: People Flow Counting, Crowd Density Monitoring
• Smart Intrusion Prevention (SIP), by Camera: 16-ch

General Alarm

• General Alarm: Motion, Tampering, Human Body Detection, Video Loss, Alarm input, Audio Detection
• Alert Alarm: IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal

External Interface

• Network Interface: 2 RJ45 10M/100M/1000M self-adaptive Ethernet Interfaces
• USB Interface: Front panel: 2 x USB2.0,Rear panel: 1 x USB3.0
• RS232: 1
• RS485: 1
• Alarm In: 16-ch
• Alarm Out: 4-ch

General

• Power Supply: 100~240 VAC
• Power Consumption: ≤ 25 W (without HDD)
• Working Environment: -10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing)
• Dimensions (W×D×H): 442mm × 426mm × 89mm (17.4" × 16.8" × 3.5")
• Weight (without HDD): ≤ 5.7Kg (12.57lb)

Certification

• Certification: CE, FCC, UL, RoHS, WEEE
• CE: EN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017
• FCC: Part15 Subpart B, ANSI C63.4
