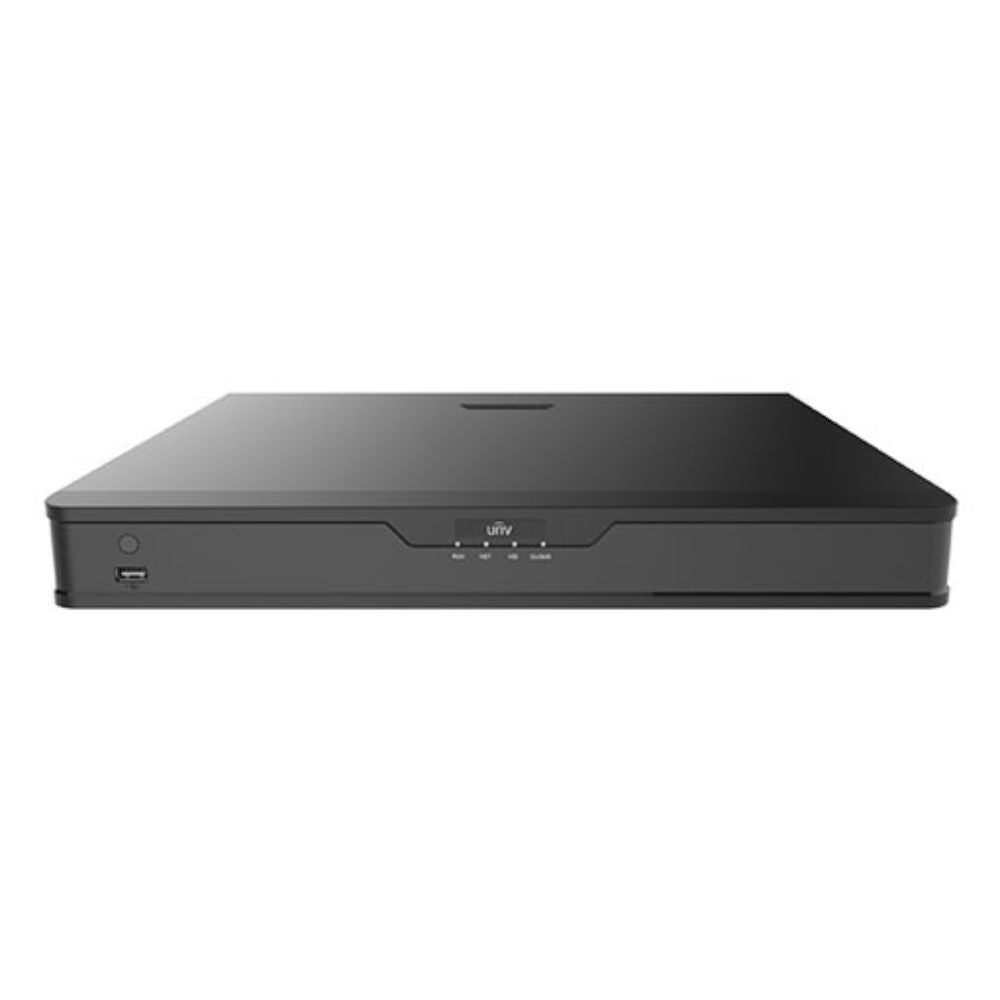

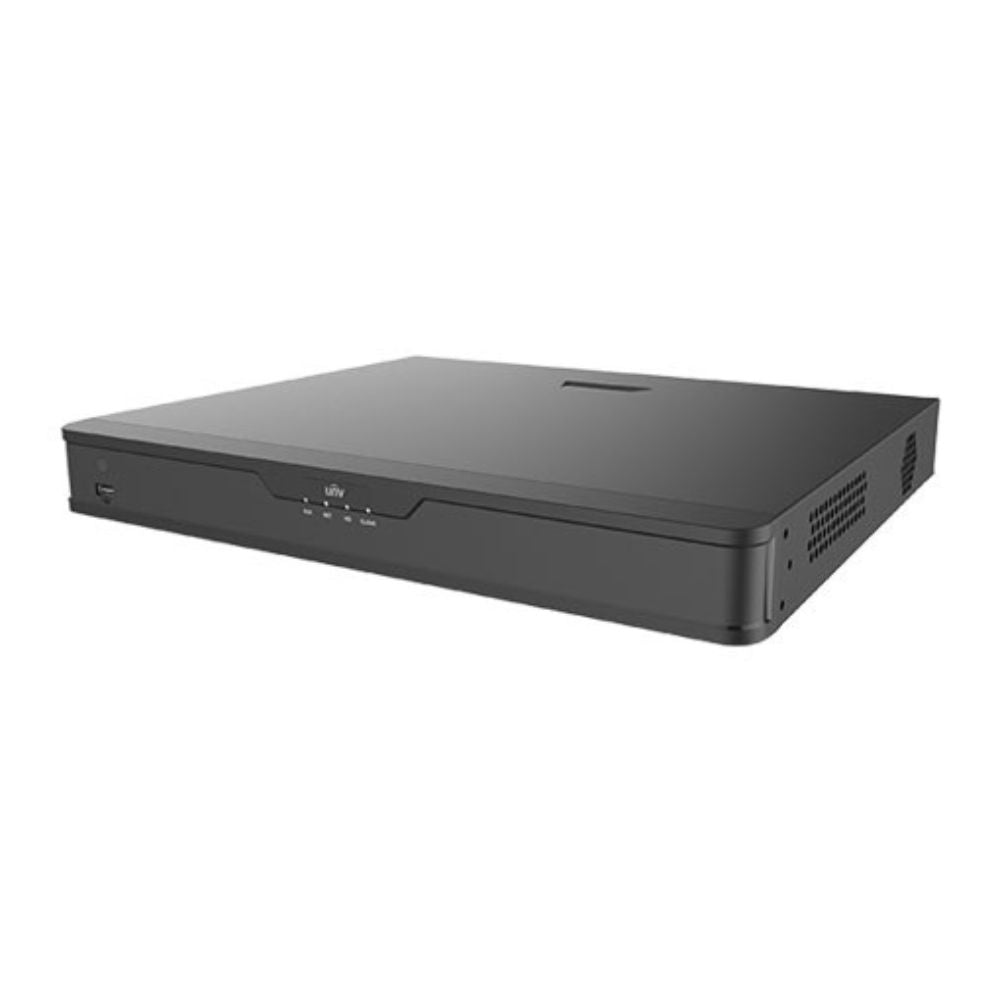

UNV Network Video Recorder | UNV-NVR302-16E2
Introducing the UNV Network Video Recorder UNV-NVR302-16E2, a powerful and feature-rich solution designed to meet the demands of modern video surveillance systems. This NVR offers impressive capabilities and a range of features for high-quality video recording and monitoring.
Features
- Support Ultra H.265/H.265/H.264 video formats
- 16-channel input
- Supports mainstream cameras of ONVIF conformance (Profile S, Profile G, Profile T) and RTSP protocols
- Support 1-ch HDMI, 1-ch VGA. HDMI up to 4K (3840x2160) resolution
- HDMI and VGA independent outputs provided
- Up to 12 Megapixels resolution recording
- 2 SATA HDDs, Up to 8TB for each HDD
- Various fisheye dewarping modes for live view and playback for both web interface and GUI
- ANR technology to enhance the storage reliability when the network is disconnected
- Support cloud upgrade
Technical Specifications
Video/Audio Input
- IP Video Input: 16-ch
- Two-way Audio Input: 1-ch, RCA
Network
- Incoming Bandwidth: 320Mbps
- Outgoing Bandwidth: 320Mbps
- Remote Users: 128
- Protocols: TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, MTP, NFS
- Browser
- IE (IE10/11) for Windows
- Firefox (version 52.0 and above) for Windows
- Chrome (version 45 and above) for Windows
- Edge (version 79 and above) for Windows
Video/Audio Output
- HDMI: 4K (3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
- VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
- Recording Resolution: 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/ D1/2CIF/CIF
- Audio Output: 1-ch, RCA
- Audio Compression: G.711A, G.711U
- Synchronous Playback: 16-ch
- Liveview display: 1/4/6/8/9/16
- Corridor Mode Screen: 3/4/5/7/9/10/12/16
Decoding
- Decoding format: Ultra 265, H.265, H.264
- Liveview/Playback: 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/ 2CIF/CIF
- Capability: 1 x 12MP@30, 2 x 4K@30, 5 x 4MP@30, 10 x 1080P@30, 16 x 720P@30
Snapshot
- FTP/Schedule/Event Snapshot: 16-ch snapshot, up to 1080P resolution
Hard Disk
- SATA: 2 SATA interfaces
- Capacity: Up to 8TB for each disk (The maximum HDD capacity varies with environment temperature)
- eSATA: NA
- Disk Group: Support
Smart
- VCA Detection by Camera: Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking
- VCA Search: Behavior Search, Vehicle Search
- People counting: People Flow Counting, Crowd Density Monitoring
- Smart Intrusion Prevention (SIP) Vehicle Detection by Camera: Total 8-ch
General Alarm
- General Alarm: Motion, Tampering, Human Body Detection, Video Loss, Input Alarm, Audio Detection
- Alert Alarm: IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
External Interface
- Network Interface: 2 RJ45 10M/100M/1000M self-adaptive Ethernet Interfaces
- USB Interface: Front panel: 1 x USB2.0,Rear panel: 1 x USB2.0 1 x USB3.0
- Alarm In: 8-ch
- Alarm Out: 2-ch
- RS232: NA
- RS485: 1
General
- Power: 12VDC/3.3A
- Power consumption: ≤12 W (without HDD)
- Working Environment: -10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing)
- Dimensions (W×D×H): 380mm × 315mm × 53mm (15.0" × 12.4"× 2.1")
- Weight (without HDD): ≤1.8Kg (3.97lb)
Certification
- Certification: CE, FCC, UL, RoHS, WEEE
- CE: EN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017
- FCC: Part 15 Subpart B, ANSI C63.4
