Name: UNV NVR302-16B-P16-IQ 2 HDDs 16CH Network Video Recorder
Brand: UNV
SKU: UNV-NVR302-16B-P16-IQ
Price: 899.0 USD
Availability: InStock

UNV NVR302-16B-P16-IQ 2 HDDs 16CH Network Video Recorder | All Security Equipment

Roll over image to zoom in Click on image to zoom

PromotionEnjoy Instant Savings at Checkout — Or Unlock Even Greater Benefits as a Pro Member!

Country

Province

Zip code

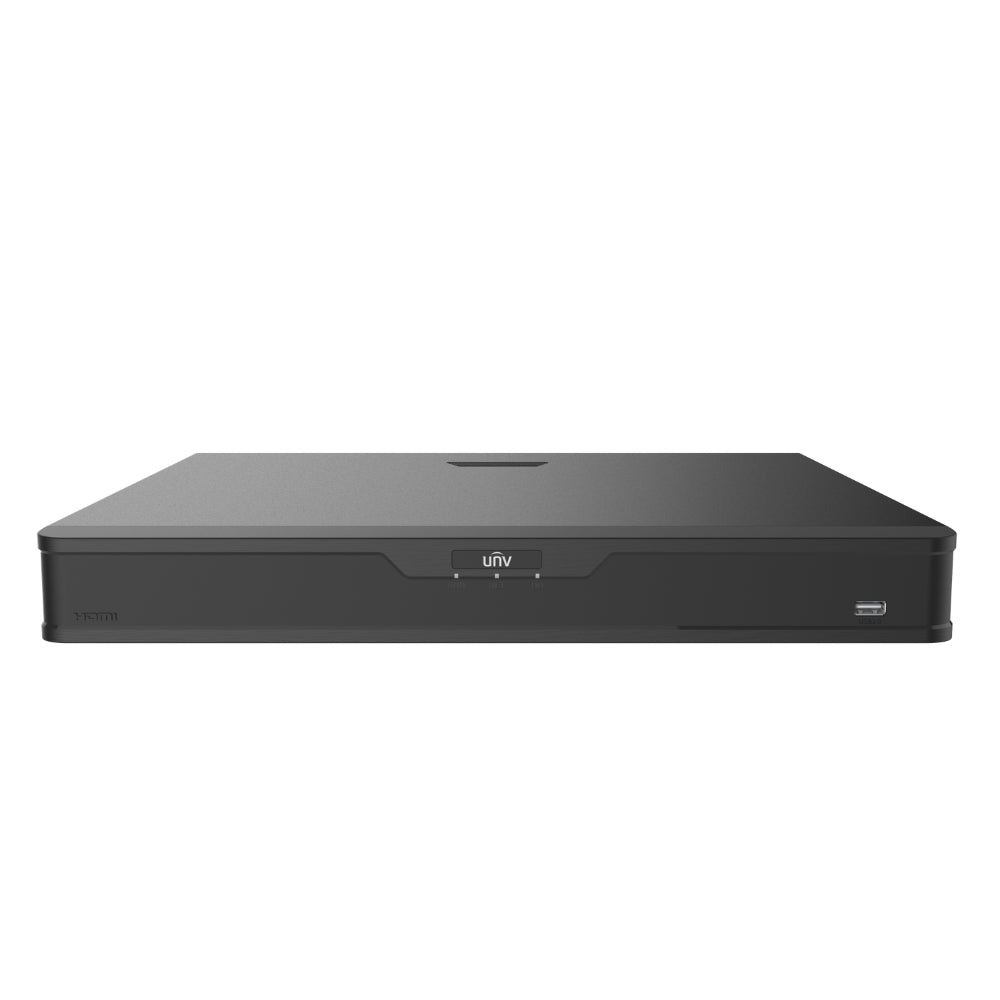

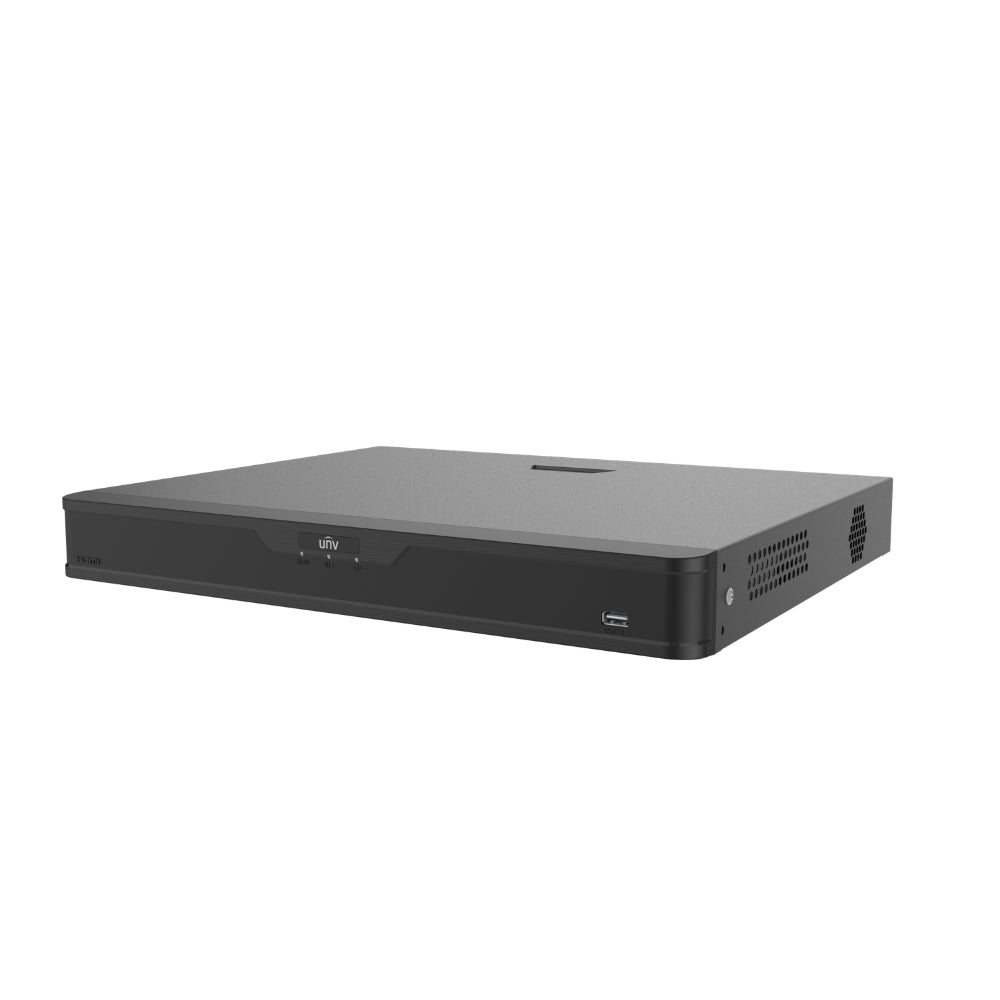

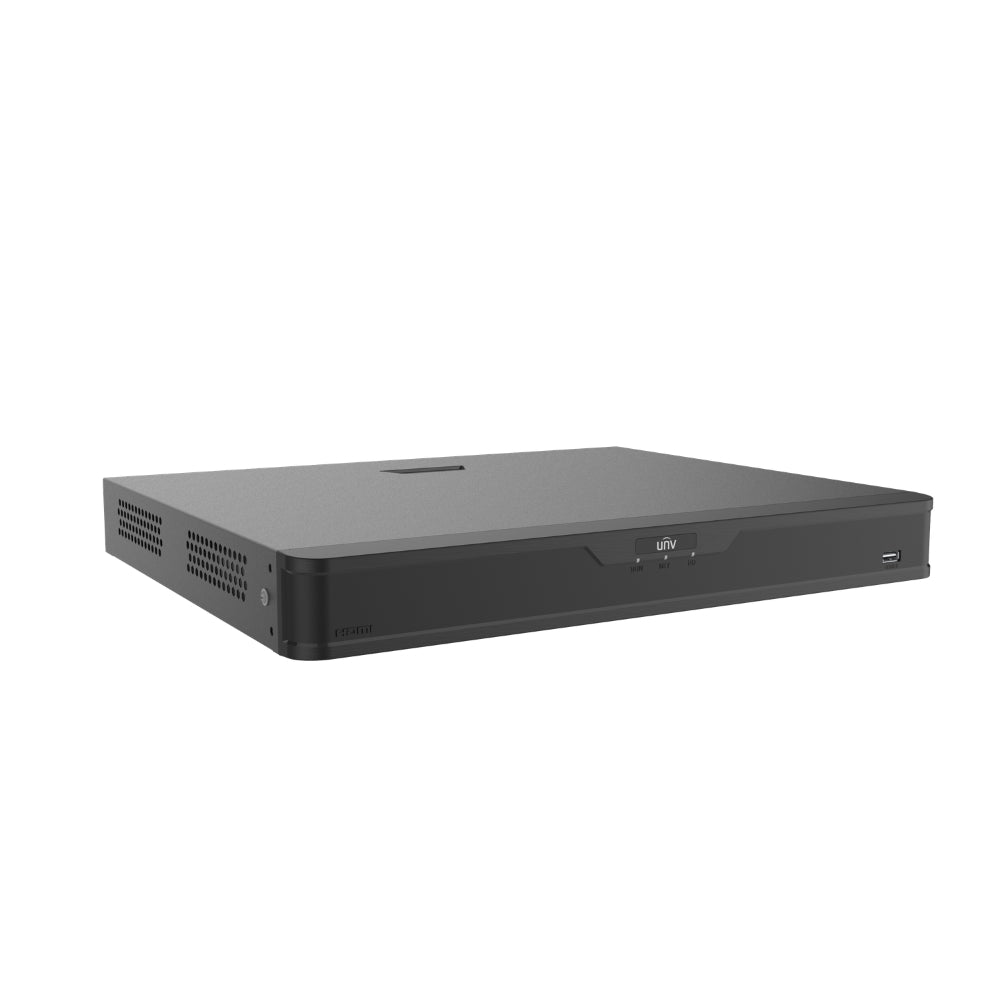

UNV NVR302-16B-P16-IQ 2 HDDs 16CH Network Video Recorder

The UNV NVR302-16B-P16-IQ is a 16-channel Network Video Recorder designed for security environments that demand high intelligence and large storage capacity. This NVR doesn't just record video—it processes it. Equipped with Uniview’s IQ Series AI, it supports advanced deep-learning functions, including fast human and vehicle search, significantly reducing the time required to review footage.

Featuring 16 independent PoE+ ports, this NVR offers a true "plug-and-play" experience for large-scale installations. With dual SATA bays supporting up to 20TB of total storage, the NVR302-16B-P16-IQ is built for long-retention surveillance. Its 4K output ensures that every frame is rendered in stunning detail, providing the clarity needed for identifying faces, license plates, and critical incidents.

Decoding

Decoding Format: Ultra 265, H.265, H.264
Decoding Capability: Smart Off：2 x 12MP@30, 2 x 4K@30, 4 x 4MP@30, 10 x 1080P@30, 16 x 720P@30
Smart On：2 x 4K@30, 4 x 4MP@30, 8 x 1080P@30, 16 x 720P@30
Decoding Capability Description: The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width
Audio Compression: G.711A, G.711U

Network

Incoming Bandwidth: 160 Mbps
Outgoing Bandwidth: 128Mbps
Remote Users: 128
Protocols: TCP/IP, P2P, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, IPv6, IPv4, 802.1x, UPnP
Browser (Plugin): IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+

Video/Audio Input

IP Video Input: 16-ch
RCA Audio Input: 1-ch

Peripheral Input

Ip Speaker: 16-ch
POS: All channels

Video/Audio Output

HDMI Output: 4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
VGA Output: 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
RCA Audio Output: 1-ch
Liveview Display: 1/4/6/8/9/16
Corridor Mode Screen: 3/4/5/7/9/10/12/16

Two-way Audio

Two-way Audio: 1-ch,RCA(Using the audio input and output)

Snapshot

FTP/Schedule/Event Snapshot: 4-ch snapshot (max. D1 (720 × 576) video resolution, with D1 snapshot resolution)

Recording

Recording Resolution: 12 MP/8 MP/6 MP/5 MP/4 MP/3MP/1080P/960P/720P/D1/2CIF/CIF
Synchronous Playback in Local: 16-ch

Smart

Smart by IPC: All channels (up to 8 images/s in total), Face Detection, Vehicle Detection (LPR), SIP, UMD, Traffic Monitoring
Smart by NVR: Face Detection, Smart Intrusion Prevention (SIP), Ultra Motion Detection (UMD)
Smart by NVR Analyzer Mode: Single Mode (), Single Mode (SIP), Single Mode (UMD), Single Mode (AcuSearch/AcuTrack). Modes cannot be active simultaneously, only one mode can be active at a time.
VCA Search: AcuSearch, AcuTrack, Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map
AcuSearch: All channels with UNV SIP/UMD Camera
AcuTrack: All channels with UNV SIP/UMD Camera
by NVR: Up to 8-ch with UNV Face Detection Camera, Up to 1-ch with normal camera (UNV and Third-party brand, 1-ch 2MP)
Vehicle Picture Library: Up to 5 vehicle picture libraries, with up to 25,000 vehicle pictures in total
SIP by NVR with normal cameras: Up to 2-ch with normal camera (UNV and Third-party brand, 2-ch 2MP, 1-ch 4MP)
UMD by NVR with normal cameras: Up to 4-ch with normal camera (UNV and Third-party brand, 4-ch 2MP, 2-ch 4MP, 1-ch 4K)

Alarm

General Alarm: Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection
Alert Alarm: IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal

GUI Language

GUI Language: 38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian

Hard Disk

SATA: 2 SATA Interfaces
Capacity: Up to 24 TB for each HDD (The maximum HDD capacity varies with environmental temperature and hard disk size. The environmental temperature for use should not exceed 40°C)

External Interface

Network Interface: 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface
USB: Front panel: 1 × USB2.0, Rear panel: 1 × USB3.0
RS485: 1
RS232: N/A
Alarm In: 8-ch
Alarm Out: 2-ch
Power Supply: AC 100~240V

PoE

PoE Interface: 16 RJ45 10 M/100 M self-adaptive Ethernet Interface
Max Power: Max 30 W for a single port, Max 240 W in total
Supported Standard: IEEE 802.3at, IEEE 802.3af

Working Environment

Working Temperature: -10 ℃ ~ + 55 ℃ (+14 ℉ ~ +131 ℉)
Working Humidity: ≤ 90% RH (non-condensing)
Power Consumption (without HDD): ≤ 12W

Dimensions

Weight (without HDD): ≤ 2.7Kg (6.0lb)

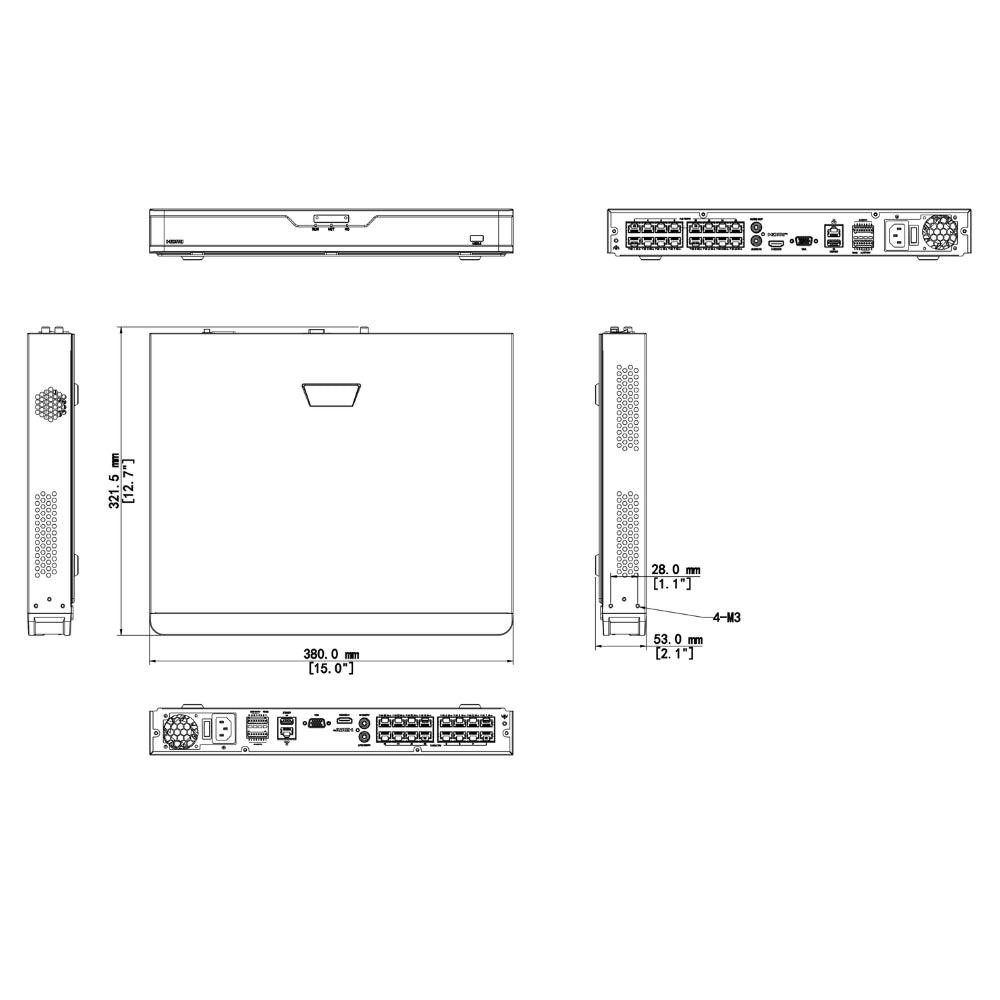

Dimensions: 380mm × 322mm × 53mm (15.0"×12.7"×2.1")

Certification

Certification: CE; FCC; UL; RoHS; WEEE
CE: EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035
FCC: Part 15 Subpart B

UNV NVR302-16B-P16-IQ 2 HDDs 16CH Network Video Recorder
